Trailer Tow Hitch For 2019 Ford Escape Class 2 Complete Package w/ Wiring Draw Bar and 1-7/8" Ball

Trailer Tow Hitch For 2019 Ford Escape Class 2 Complete Package w/ Wiring Draw Bar and 1‑7/8" Ball

Model: 365240 118802 63810

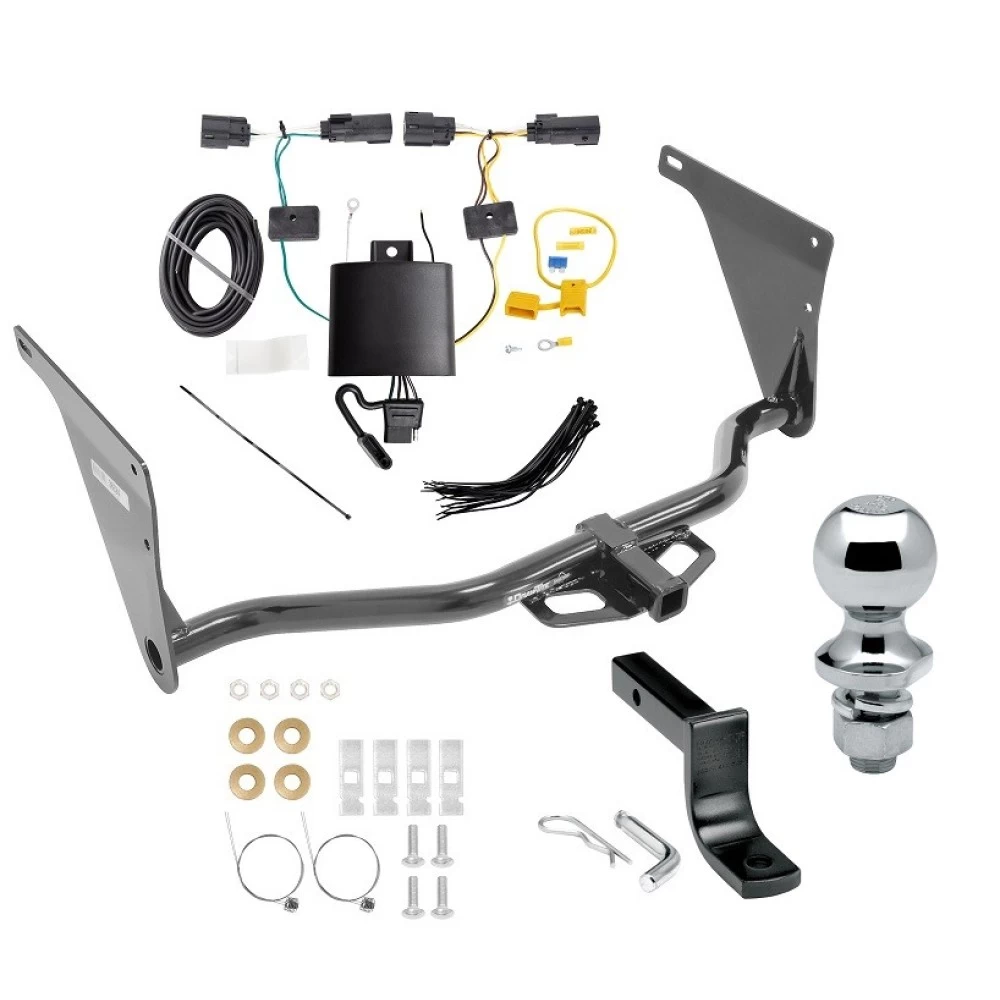

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2019 - 2019 Ford, Escape, All Styles

Trailer Hitch Specs:

Part Number	365240
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

Wiring Kit Specs:

Part Number	118802
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 19 2019

See Full Description

$329 ⁸⁹ $550.18 40% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
Pre-Order

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$550.18 $329 ⁸⁹

Pay in 4 interest-free installments of $82.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $82.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 365240 118802 63810
Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Part Number	365240
Brand	Draw-Tite
Finish	Black Powdercoat
Class	2
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

Wiring Kit Specs:

Part Number	118802
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63810
Brand	Draw-Tite
Size	1-7/8" x 3/4" x 1-1/2"
Towing Capacity	2,000 lbs. GTW
Material	Chrome (Cold forged for superior strength)
Torque	torgue to 160 ft. lbs
Ball Hole Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Tags: 365240 , 118802 , 63810 , Draw-Tite , Trailer , Tow , Hitch , 2019 , Escape , Class , 2 , Complete , Package , Wiring , Draw , Bar , and , 1-7/8" , Ball , 19 , 2019

Get Expert Help

Trailer Tow Hitch For 2019 Ford Escape Class 2 Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes

Installation Instructions for Ford Escape

Part Numbers:

36524
90219
06147

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrench: 11/16"
Drill with 3/8" Drill Bit (for enlarging access holes if necessary)

Step-by-Step Instructions:

Prepare Frame Rails:
- Feed spacers and carriage bolts into position in both frame rails using the provided pull wires. Leave pull wires attached.
- Note: Do not engage the bolt and spacer when inserting into the frame. Insert them separately as shown in Figure 3.
Push Fasteners Into Frame Rails:
- Push the fasteners back into the frame rails, ensuring the pull wires remain accessible and sticking out of the frame rails.
Raise Hitch Into Position:
- Position the hitch between the frame rails.
- Feed the pull wires through the adjacent holes in the hitch.
- On the passenger side, ensure the forward end of the hitch bracket is positioned over the hoses crossing the frame rail.
Secure Fasteners:
- Pull the fasteners back through the access holes in the hitch and frame rails.
- Remove the pull wires carefully, ensuring the fasteners do not fall back into the frame.
- Attach conical washers (teeth facing the hitch) and hex nuts to the fasteners.
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Torque Specifications:

Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Hardware List:

(4) Carriage Bolt, 7/16"-14 x 1.50" GR5
(4) Spacer, 1/4" x 7/8" x 3.00"
(4) Conical Washer, 7/16"
(4) Hex Nut, 7/16"-14
(4) Pull Wire, 7/16"

Notes on Hands-Free Liftgate Sensors:

If the vehicle is equipped with the "Hands-Free Liftgate" option, the sensor function will be limited to a specific area near the hitch (see Figure 2).

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Drawbar must be used in the RISE position only.

Additional Notes:

Drawbar Kit: 36071 (sold separately)
Fastener Kit: 36524F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Ford Escape

Part Numbers:

36524
90219
06147

Wiring Access Location:

SUV1, SUV2

Tools Required:

Wrench: 11/16"
Drill with 3/8" Drill Bit (for enlarging access holes if necessary)

Step-by-Step Instructions:

Prepare Frame Rails:
- Feed spacers and carriage bolts into position in both frame rails using the provided pull wires. Leave pull wires attached.
- Note: Do not engage the bolt and spacer when inserting into the frame. Insert them separately as shown in Figure 3.
Push Fasteners Into Frame Rails:
- Push the fasteners back into the frame rails, ensuring the pull wires remain accessible and sticking out of the frame rails.
Raise Hitch Into Position:
- Position the hitch between the frame rails.
- Feed the pull wires through the adjacent holes in the hitch.
- On the passenger side, ensure the forward end of the hitch bracket is positioned over the hoses crossing the frame rail.
Secure Fasteners:
- Pull the fasteners back through the access holes in the hitch and frame rails.
- Remove the pull wires carefully, ensuring the fasteners do not fall back into the frame.
- Attach conical washers (teeth facing the hitch) and hex nuts to the fasteners.
Tighten Fasteners:
- Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Torque Specifications:

Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Hardware List:

(4) Carriage Bolt, 7/16"-14 x 1.50" GR5
(4) Spacer, 1/4" x 7/8" x 3.00"
(4) Conical Washer, 7/16"
(4) Hex Nut, 7/16"-14
(4) Pull Wire, 7/16"

Notes on Hands-Free Liftgate Sensors:

If the vehicle is equipped with the "Hands-Free Liftgate" option, the sensor function will be limited to a specific area near the hitch (see Figure 2).

Safety Notes:

Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath the vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Drawbar must be used in the RISE position only.

Additional Notes:

Drawbar Kit: 36071 (sold separately)
Fastener Kit: 36524F
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-One® T-Connector for Ford Escape

Part Numbers:

118802

Tools Required:

Trim Panel Remover
8mm Socket & Ratchet or 8mm Wrench
Drill (3/32” Drill Bit)
1/4” Socket
Wire Crimpers
Wire Cutters
Phillips Head Screwdriver
Test Probe

Step-by-Step Instructions:

Remove the Taillight Assemblies:
- Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
- Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.
- Set the taillight housings aside.
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Clean all connector surfaces to remove dirt.
Remove Floor Trim Panels:
- Carefully remove the floor trim panels and access panels on both sides of the vehicle.
- Locate the rubber grommet in the taillight pocket and remove it.
Route the T-Connector for Driver-Side:
- Behind the driver’s side trim panel, route the T-Connector end with the yellow wire out of the opening exposed by removing the grommet.
- Plug the yellow wire end between the driver’s side taillight socket and vehicle wiring harness.
Route the T-Connector for Passenger-Side:
- Route the green wire through the interior trim panel, along the threshold plate, and up through the passenger side trim panel.
- Insert the green wire end between the passenger-side taillight socket and vehicle wiring harness.
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire and route it along the vehicle’s frame or existing wiring to the engine compartment.
Warning: Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable and insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer.
Reinstall Taillights and Panels:
- Reinstall the taillight assemblies and other panels removed during installation.
- Ensure no wires are pinched or damaged.
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness.
- Avoid areas that may pinch, cut, or melt the wire.
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the spare tire compartment for storage when not in use.

Safety Notes:

Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

Refer to the vehicle owner’s manual and the instruction sheet for additional details.
Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

118802

Tools Required:

Trim Panel Remover
8mm Socket & Ratchet or 8mm Wrench
Drill (3/32” Drill Bit)
1/4” Socket
Wire Crimpers
Wire Cutters
Phillips Head Screwdriver
Test Probe

Step-by-Step Instructions:

Remove the Taillight Assemblies:
- Open the tailgate and remove the vehicle’s taillight assemblies by removing the two 8mm hex head bolts on each side.
- Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.
- Set the taillight housings aside.
Disconnect the Wiring Harness:
- Disconnect the vehicle wiring harness from both taillight sockets.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Clean all connector surfaces to remove dirt.
Remove Floor Trim Panels:
- Carefully remove the floor trim panels and access panels on both sides of the vehicle.
- Locate the rubber grommet in the taillight pocket and remove it.
Route the T-Connector for Driver-Side:
- Behind the driver’s side trim panel, route the T-Connector end with the yellow wire out of the opening exposed by removing the grommet.
- Plug the yellow wire end between the driver’s side taillight socket and vehicle wiring harness.
Route the T-Connector for Passenger-Side:
- Route the green wire through the interior trim panel, along the threshold plate, and up through the passenger side trim panel.
- Insert the green wire end between the passenger-side taillight socket and vehicle wiring harness.
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire and route it along the vehicle’s frame or existing wiring to the engine compartment.
Warning: Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder. Attach the ring terminal to the Positive (+) battery cable.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable and insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer.
Reinstall Taillights and Panels:
- Reinstall the taillight assemblies and other panels removed during installation.
- Ensure no wires are pinched or damaged.
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness.
- Avoid areas that may pinch, cut, or melt the wire.
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the spare tire compartment for storage when not in use.

Safety Notes:

Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

Refer to the vehicle owner’s manual and the instruction sheet for additional details.
Store these instructions for future reference.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
