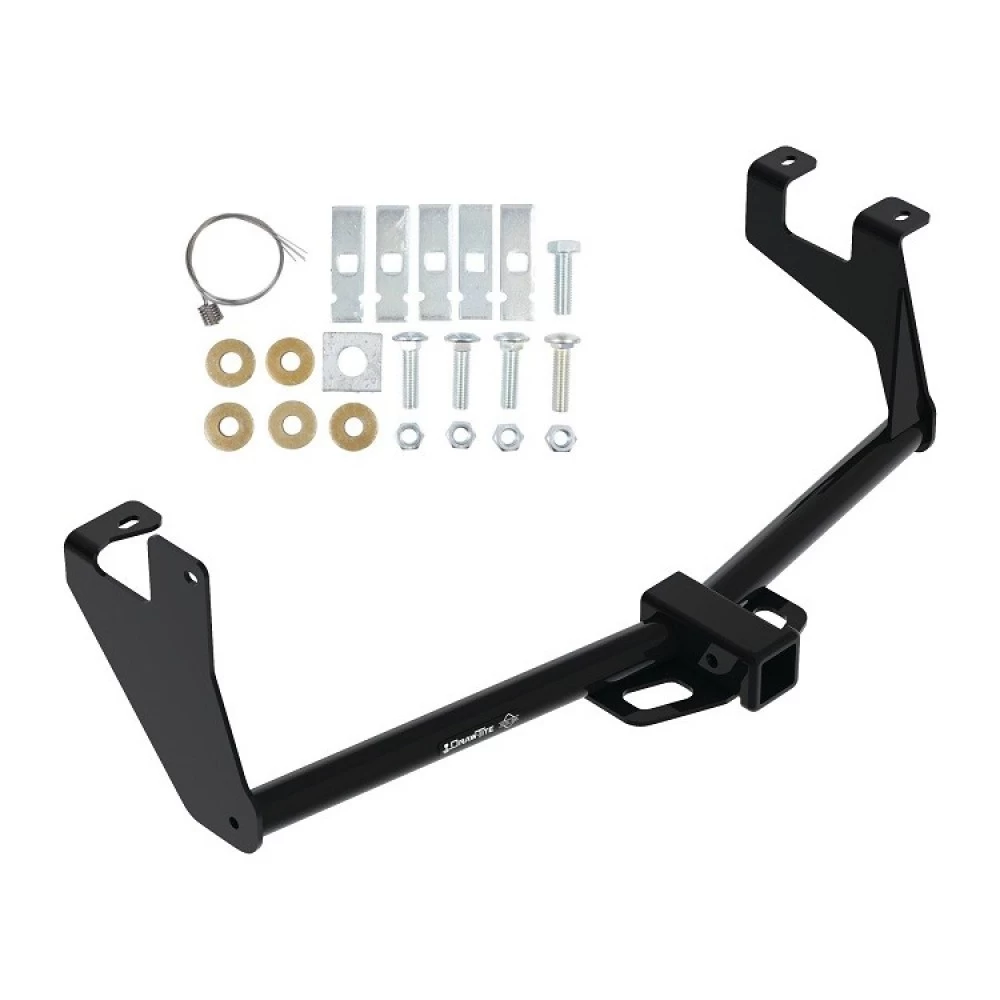

Trailer Tow Hitch For 13‑22 Chevy Trax 13‑23 Buick Encore 2" Towing Receiver Class 3
Model: 765932013 - 2023 Buick, Encore, All Styles
2013 - 2022 Chevrolet, Trax, All Styles
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
$242 04 $377.98 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$377.98 $242 04
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76593
- UPC: 016118164060
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|
2013 - 2023 Buick, Encore, All Styles
2013 - 2022 Chevrolet, Trax, All Styles
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Specification | |
Attachment Location | Rear |
Ball Mount Included | No |
Color | Black |
Drilling Required | Yes |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | III |
Material | Steel |
Maximum Tongue Weight | 525 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 2 in. |
Receiver Type | Round Tube |
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch For 13-22 Chevy Trax 13-23 Buick Encore 2" Towing Receiver Class 3 Install Notes
Installation Instructions for 2013-Current Chevrolet Trax and Buick Encore
Part Numbers:
- 76593
- 84593
- CQT76593
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 19 mm, 11/16"
- Wire Brush
- Exhaust Removal Pliers
- Soapy Water
Step-by-Step Instructions:
-
Insert Pull Wires:
- Insert pull wires into the frame rails and use them to feed the carriage bolts and spacers into the frame rails through the access holes.
- Leave the pull wires attached.
-
Lower Exhaust System:
- Use exhaust removal pliers to remove the exhaust system at two rubber isolators.
- Spray lubricant or soapy water on the metal hanger rod and rubber isolators to ease removal.
- Support the muffler to avoid damage.
-
Position Hitch:
- Add one spacer to the flange on the driver's side bracket if needed.
- Raise the hitch into position and slide it over the top of the exhaust pipe on the passenger side.
- Feed the pull wires through the slots in the brackets.
-
Secure Hitch:
- Remove the pull wires and loosely install conical washers and hex nuts to secure the hitch.
- For vehicles with a weldnut on the driver's side frame, use the provided M12 bolt and conical washer.
-
Tighten Fasteners:
- Tighten all 7/16”-14 GR5 fasteners to 50 ft-lbs (68 N*m).
- Tighten all M12 x 1.75 CL8.8 fasteners to 68 ft-lbs (92 N*m).
-
Reinstall Exhaust:
- Reinstall the exhaust system onto the rubber isolators.

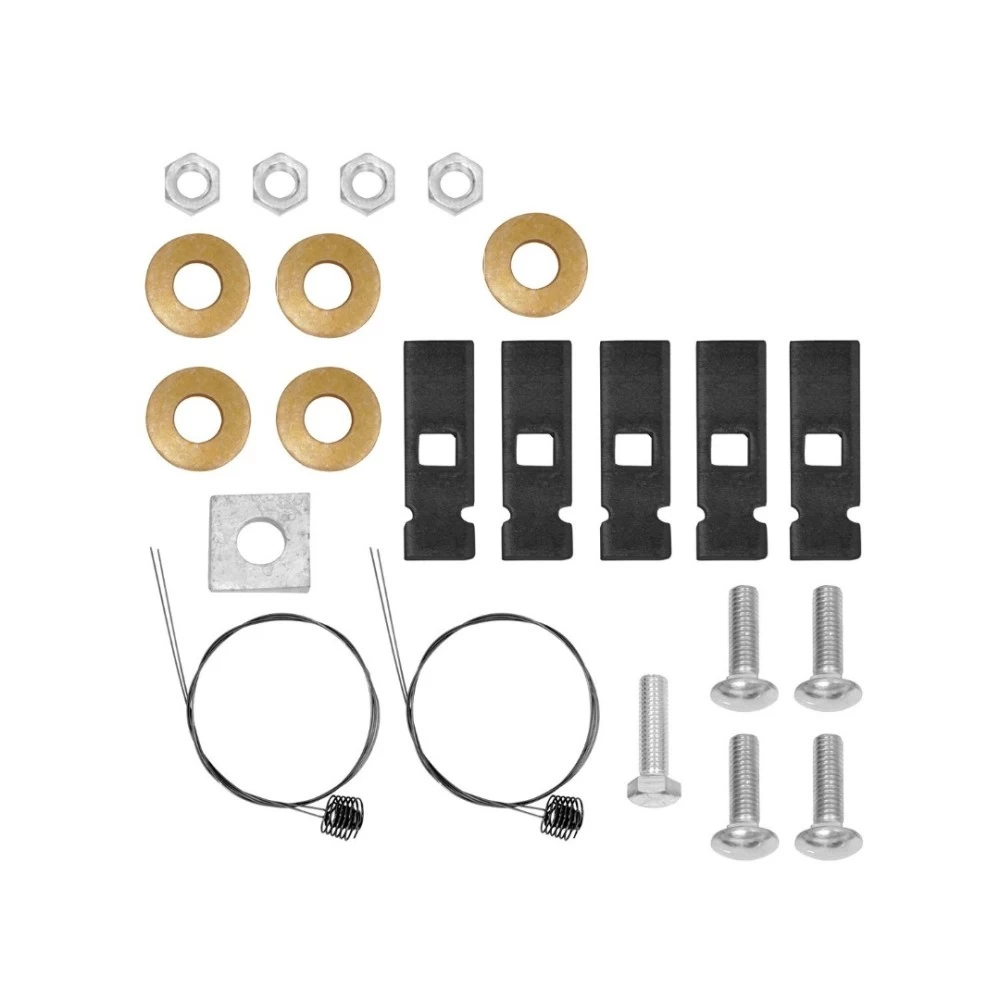

Hardware List:
- (4) Carriage Bolt 7/16"-14 x 1.75" GR5
- (5) Spacer 0.25" x 0.875" x 3.00"
- (4) Conical Washer 7/16"
- (4) Hex Nut 7/16"-14 GR2
- (4) Pull Wire 7/16"
- (1) Bolt M12 x 1.75 x 40 mm CL8.8
- (1) Conical Washer 1/2"
- (1) Bevel Washer
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check that all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent the entry of water or exhaust fumes.
- Observe all safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 525 lbs (238 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 40 minutes.
- For detailed photo instructions, scan the QR code provided in the manual or visit the website.
