Trailer Wiring Harness Kit For 16‑19 Chevrolet Cruze (New Body Style)
Model: 1186962016 - 2019 Chevrolet, Cruze, (New Body Style)
(Does Not Fit 2016 Cruze Limited Old Body)
Direct Plug & Play Wiring Kit
| Part Number | 118696 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
16 17 18 19 2016 2017 2018 2019
$55 89 $80.86 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$80.86 $55 89
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $13.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118696
- UPC: 016118144857

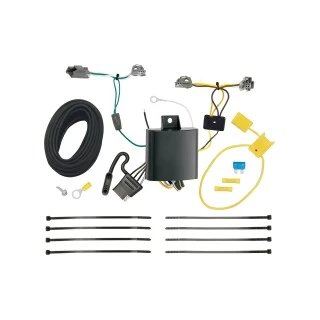

- Includes: T-One T-Connector Custom Harness
Compatibility Chart
2016 - 2019 Chevrolet, Cruze, (New Body Style)
(Does Not Fit 2016 Cruze Limited Old Body)
Direct Plug & Play Wiring Kit
| Part Number | 118696 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Tekonsha, the most powerful name in trailer light wiring and brake control system. Our trailer wiring harness is vehicle specific, requires no splicing or cutting of the wires. Simply plug & play and your vehicle will be able to control trailers brake, turn and running lights. Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. T-One connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our T One connectors offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years:
16 17 18 19 2016 2017 2018 2019
Get Expert Help
Trailer Wiring Harness Kit For 16-19 Chevrolet Cruze (New Body Style) Install Notes
Installation Instructions for T-One® T-Connector for Chevrolet Cruze
Part Numbers:
- 118696
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Trunk:
- Temporarily remove the rear threshold plate.
- Partially remove the felt trunk liner behind the taillights.
-
Locate the Vehicle’s Wiring Harness:
- On both the driver and passenger sides, locate the taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted and secured.
-
Route the Passenger-Side T-Connector:
- Route the green wire T-Connector behind the panels and along the threshold to the passenger side.
- Repeat Step 3 for the passenger-side T-Connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Clean dirt and rustproofing from the area, then drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or follow existing wiring into the engine compartment.
Warning: Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could pinch or break.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the provided ring terminal to the vehicle’s positive (+) battery cable.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative (-) battery cable.
- Test the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way place and mount the black box using the provided double-sided tape.
-
Secure the Wiring:
- Use the provided cable ties to secure the T-One® harness, ensuring no wires are pinched, cut, or melted.
-
Reassemble the Vehicle:
- Replace the carpet, clips, panels, and threshold removed earlier.
- Ensure no wires are pinched during reassembly.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the trunk area when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
