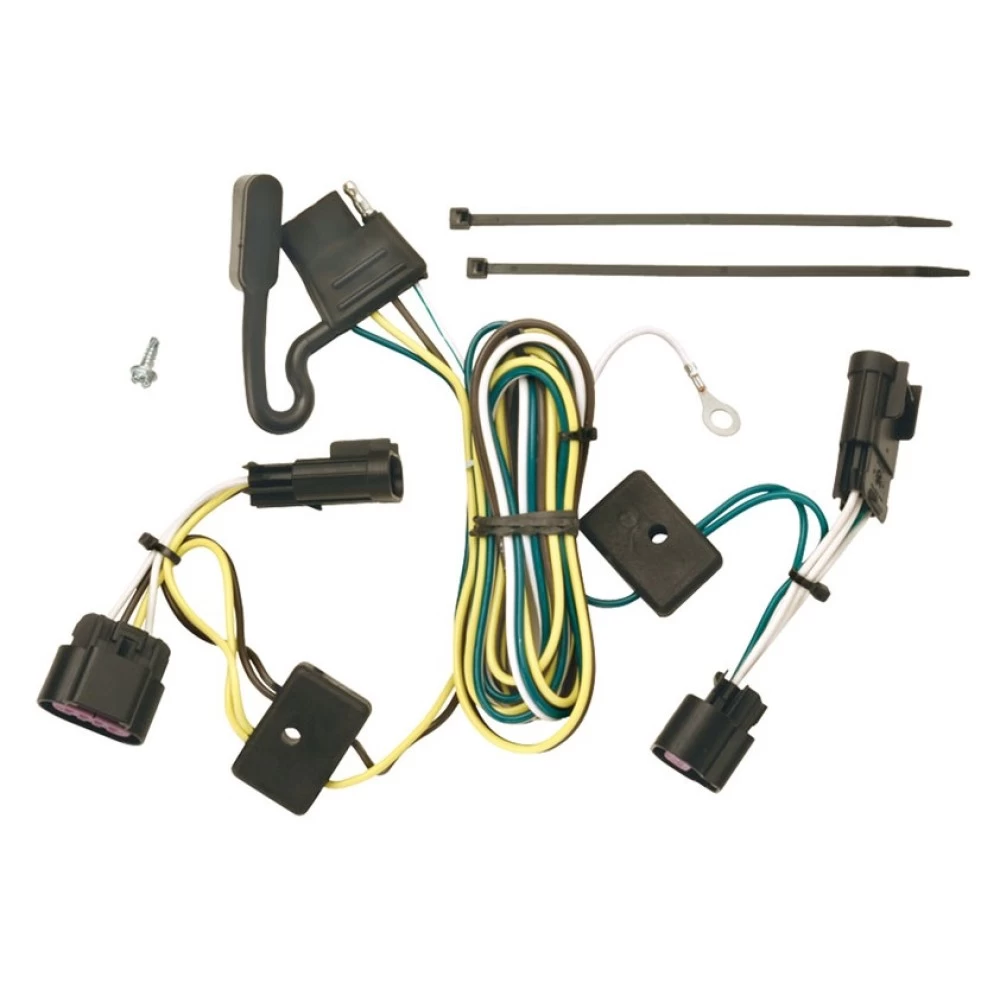

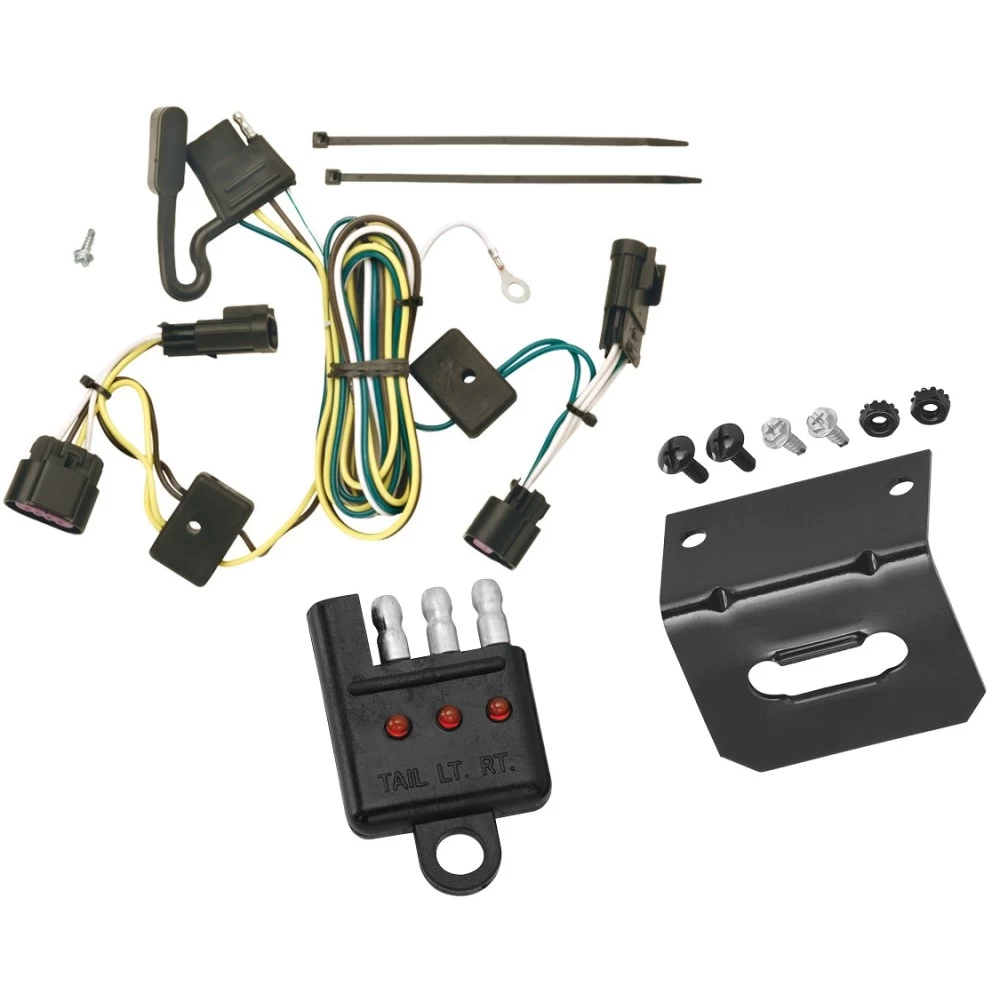

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118398

Tools Required:

• 9/32" Socket
• Philips Head Screwdriver (if needed)
• Drill with 3/32" Drill Bit (if needed)

Step-by-Step Instructions:

1. Remove Rear Taillight Assemblies:

   • Open the trunk and locate the plastic wing nuts behind the taillights on both sides (1 per side). Remove them.
   • Pull back the carpet on both sides to expose and remove the second set of plastic wing nuts (1 per side).
   • Locate and remove the remaining taillight screws outside the vehicle near the trunk weather seal (2 screws per side). Use a 9/32" socket.
   • Carefully pull the taillights away from the vehicle, ensuring the alignment pins are not damaged.

2. Connect T-Connector on Driver’s Side:

   • Disconnect the vehicle’s wiring harness from the driver’s side taillight socket.
   • Plug the T-Connector end with the yellow wire between the taillight socket and the vehicle wiring harness.

3. Route the T-Connector Harness:

   • Route the T-Connector end with the green wire and the 4-flat connector down through the opening between the vehicle’s bumper and body.
   • Route the green wire to the passenger side and the 4-flat connector under the bumper.
   • Bring the green wire up through the opening on the passenger side.
   • Avoid areas with hot pipes, heat shields, the fuel tank, or other points that may pinch or damage the wire.
   • Repeat step 2 for the passenger side using the T-Connector end with the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector (e.g., an existing ground stud). If necessary, drill a 3/32" hole.
   • Secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Reinstall Taillight Assemblies:

   • Position the vehicle wiring harness between the taillight housing and the vehicle body.
   • Reinstall the screws, plastic wing nuts, carpet, and other components removed during installation. Ensure wires are not pinched or cut.
   • Secure the remaining T-Connector harness under the bumper using the provided cable ties.

6. Test the Installation:

   • Test the T-Connector with a test light or trailer to verify proper functionality.
   • All connections must be complete for the T-Connector to work correctly.

   Specifications:

   • Max. stop/turn light: 1 per side (7.5 amps).
   • Max. tail lights: (7.5 amps).

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Overloading circuits can cause fires. Test the installation thoroughly to ensure proper functionality.

Manufacturer Notes:

• Follow all warnings and installation instructions provided.
• Refer to the vehicle owner’s manual for additional information.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118398

Tools Required:

• 9/32" Socket
• Philips Head Screwdriver (if needed)
• Drill with 3/32" Drill Bit (if needed)

Step-by-Step Instructions:

1. Remove Rear Taillight Assemblies:

   • Open the trunk and locate the plastic wing nuts behind the taillights on both sides (1 per side). Remove them.
   • Pull back the carpet on both sides to expose and remove the second set of plastic wing nuts (1 per side).
   • Locate and remove the remaining taillight screws outside the vehicle near the trunk weather seal (2 screws per side) using a 9/32" socket.
   • Carefully pull the taillights away from the vehicle, ensuring the alignment pins are not damaged.

2. Connect T-Connector on Driver’s Side:

   • Disconnect the vehicle’s wiring harness from the driver’s side taillight socket.
   • Plug the T-Connector end with the yellow wire between the taillight socket and the vehicle wiring harness.

3. Route the T-Connector Harness:

   • Route the T-Connector end with the green wire and the 4-flat connector down through the opening between the vehicle’s bumper and body.
   • Route the green wire to the passenger side and the 4-flat connector under the bumper.
   • Bring the green wire up through the opening on the passenger side.
   • Avoid areas with hot pipes, heat shields, the fuel tank, or other points that may pinch or damage the wire.
   • Repeat step 2 for the passenger side using the T-Connector end with the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector (e.g., an existing ground stud). If necessary, drill a 3/32" hole.
   • Secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Reinstall Taillight Assemblies:

   • Position the vehicle wiring harness between the taillight housing and the vehicle body.
   • Reinstall the screws, plastic wing nuts, carpet, and other components removed during installation. Ensure wires are not pinched or cut.
   • Secure the remaining T-Connector harness under the bumper using the provided cable ties.

6. Test the Installation:

   • Test the T-Connector with a test light or trailer to verify proper functionality.
   • All connections must be complete for the T-Connector to work correctly.

Specifications:

• Max. Stop/Turn Light: 1 per side (7.5 amps).
• Max. Tail Lights: (7.5 amps).

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Overloading circuits can cause fires. Test the installation thoroughly to ensure proper functionality.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
