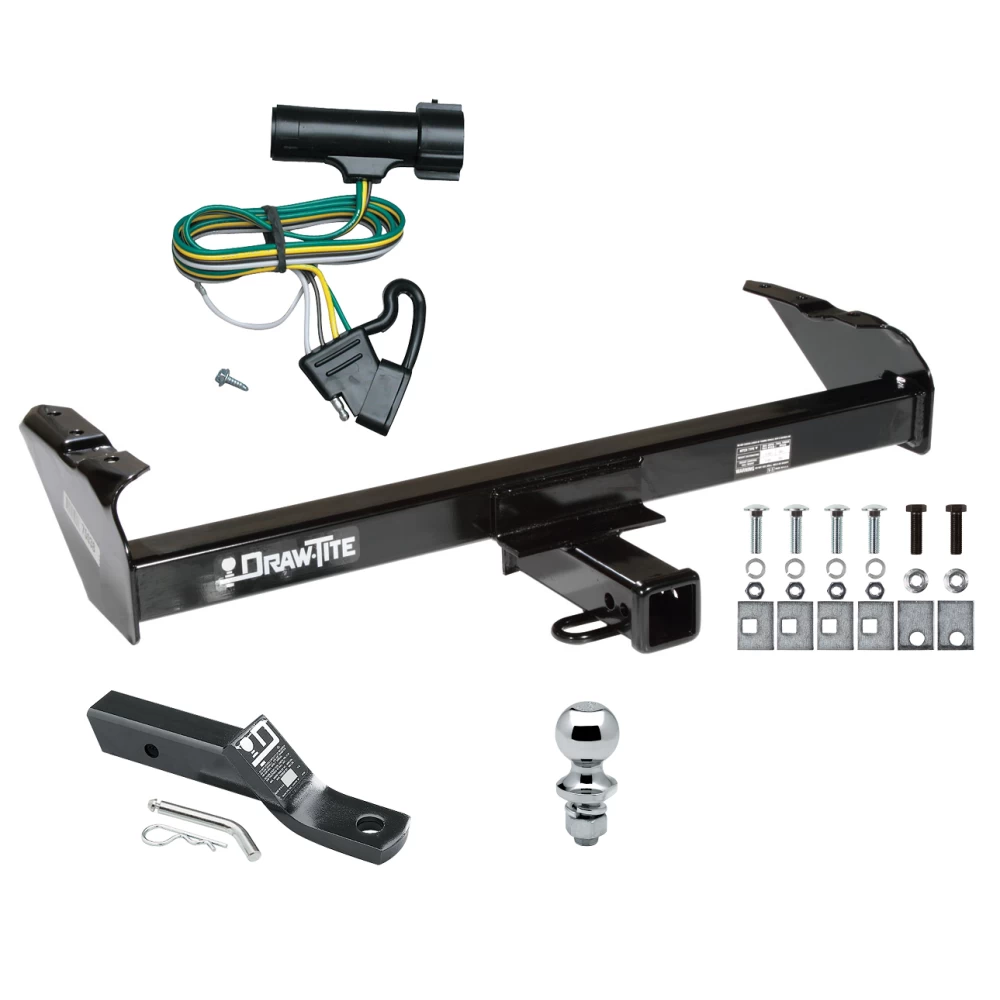

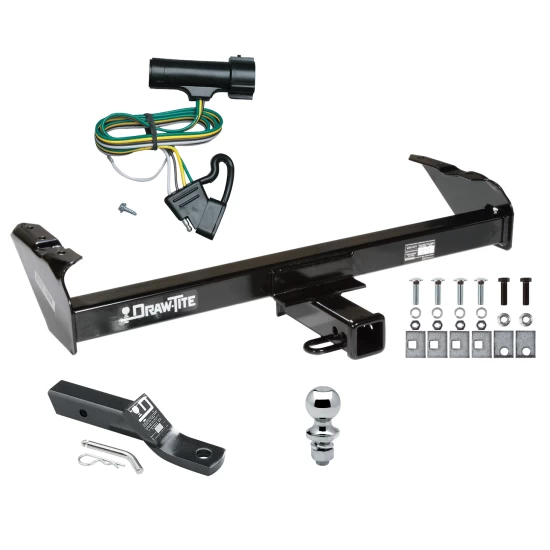

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 80-86 Ford Bronco F100/150/250/350 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Dodge, Ford, and Plymouth Vehicles
Part Numbers:
- 75038
Applicable Vehicles:
- Dodge D&W Series Pickup
- Dodge Ramcharger
- Ford Bronco (Full Size)
- Ford F-Series Pickup (with 37.5" frame)
- Plymouth Trailduster
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
Step-by-Step Instructions:
-
Remove Spare Tire:
- Where applicable, remove the spare tire and carrier from the vehicle.
-
Prepare Frame Rail:
- Remove undercoating from the attachment surfaces.
- Position the receiver on the vehicle, ensuring it is centered and that the formed depression in the side bracket aligns over the rivet, if present.
-
Drill Holes:
- Using the receiver as a template, drill 1/2" holes into the frame.
-
Install Fasteners:
- Install all fasteners as shown in the diagram, placing the blocks inside the vehicle frame.
- Tighten the nuts on 1/2"-13 GR5 carriage bolts to 75 lb-ft.
- Tighten the locknuts on 1/2"-20 GR5 hex bolts to 95 lb-ft.
-
Adjust Spare Tire Carrier (If Applicable):
- For vehicles retaining under-vehicle spare tire stowage, modify or relocate the spare tire carrier. Ensure the relocated carrier and tire do not contact brake lines, rear axle, or other safety-related components.
-
Ford F-Series Pickup Applications:
- Adjust the bumper brackets if necessary to provide clearance for the hitch side brackets.
-
Special Note for Dodge Ramcharger and Trailduster:
- Drill out the rear frame rivet for receiver attachment. If the receiver is removed, reinstall the 1/2"-20 x 1-3/4" GR5 hex bolts (tightened to 95 lb-ft) to maintain the connection between the frame and crossmember.
Hardware List:
- (4) Carriage Bolt 1/2"-13 x 1-3/4" GR5
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Lock Washer
- (4) Hex Nut
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Replace damaged hitches or balls immediately.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
Additional Notes:
- Installation time for professional installers is approximately 1 hour.
- Follow all torque specifications and ensure proper alignment during installation.
Installation Instructions for Dodge, Ford, and Plymouth Vehicles
Part Numbers:
- 75038
Applicable Vehicles:
- Dodge D&W Series Pickup
- Dodge Ramcharger
- Ford Bronco (Full Size)
- Ford F-Series Pickup (with 37.5" frame)
- Plymouth Trailduster
Wiring Access Location:
- PU1, PU2
Tools Required:
- Drill Bits: 1/2"
- Wrenches: 3/4", 7/8" (Torque Wrench Required)
Specifications:
- Weight Carrying Capacity:
- Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
- Weight Distributing Capacity:
- Trailer Weight: 8,000 lbs
- Tongue Weight: 800 lbs
Step-by-Step Instructions:
-
Remove Spare Tire
- Where applicable, remove the spare tire and carrier from the vehicle.
-
Prepare Frame Rail
- Remove undercoating from the attachment surfaces.
- Position the receiver on the vehicle, ensuring it is centered and that the formed depression in the side bracket aligns over the rivet, if present.
-
Drill Holes
- Using the receiver as a template, drill 1/2" holes into the frame.
-
Install Fasteners
- Install all fasteners as shown in the diagram, placing the blocks inside the vehicle frame.
- Tighten the nuts on 1/2"-13 GR5 carriage bolts to 75 lb-ft.
- Tighten the locknuts on 1/2"-20 GR5 hex bolts to 95 lb-ft.
-
Adjust Spare Tire Carrier (If Applicable)
- For vehicles retaining under-vehicle spare tire stowage, modify or relocate the spare tire carrier.
- Ensure the relocated carrier and tire do not contact brake lines, rear axle, or other safety-related components.
-
Ford F-Series Pickup Applications
- Adjust the bumper brackets if necessary to provide clearance for the hitch side brackets.
-
Special Note for Dodge Ramcharger and Trailduster
- Drill out the rear frame rivet for receiver attachment.
- If the receiver is removed, reinstall the 1/2"-20 x 1-3/4" GR5 hex bolts (tightened to 95 lb-ft) to maintain the connection between the frame and crossmember.
Hardware List:
- (4) 1/2"-13 x 1-3/4" GR5 Carriage Bolts
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Lock Washers
- (4) Hex Nuts
Safety Notes:
- Regularly inspect the hitch and fasteners to ensure secure attachment.
- Replace damaged hitches or balls immediately.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with V.E.S.C. Regulation V-5 and safety requirements for connecting devices and towing systems in New York State.
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
