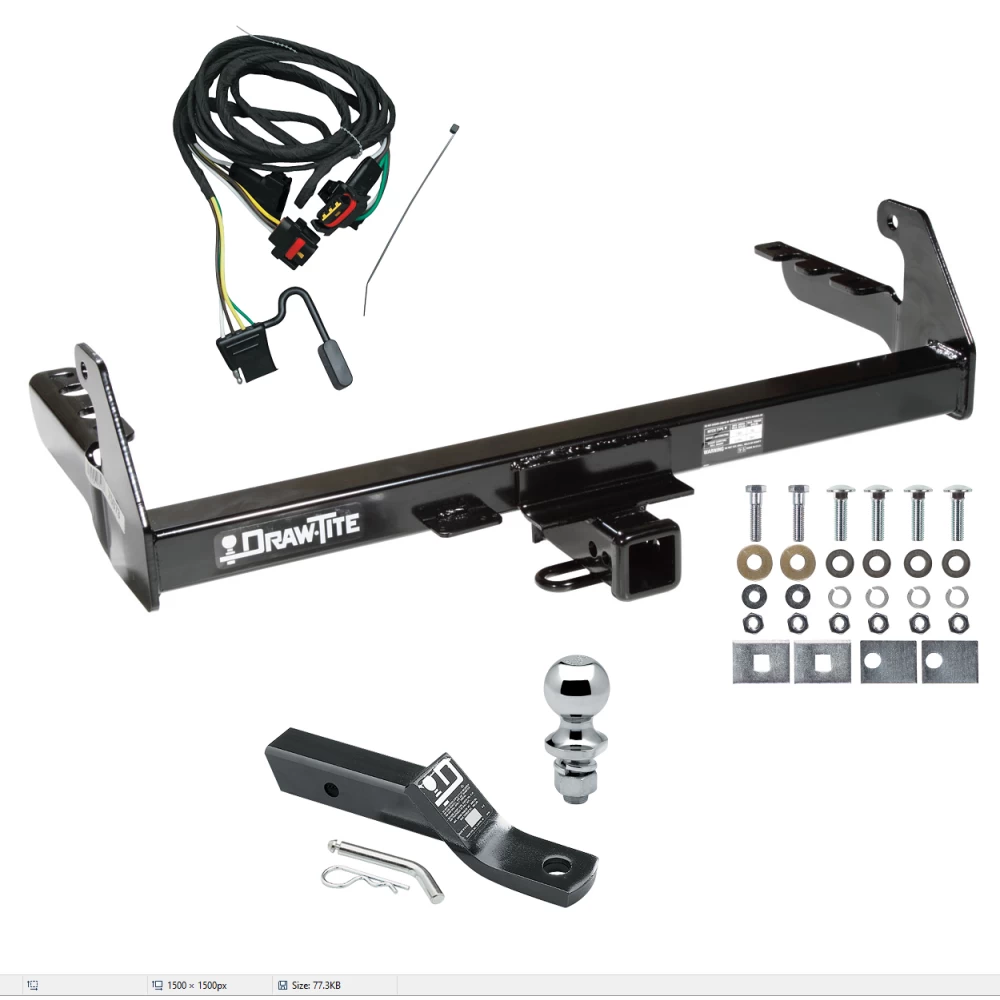

Trailer Tow Hitch For 2004 Dodge Dakota Complete Package w/ Wiring and 1‑7/8" Ball
Model: 75073 118323 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 Dodge, Dakota, All Styles
Trailer Hitch Specs:
| Part Number | 75073 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118323 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 04 2004
$275 94 $415.14 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$415.14 $275 94
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $68.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75073 118323 23 63816
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 Dodge, Dakota, All Styles
Trailer Hitch Specs:
| Part Number | 75073 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118323 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 04 2004
Get Expert Help
Trailer Tow Hitch For 2004 Dodge Dakota Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Dodge/Ram Pickup Trucks (Various Models)
Part Numbers:
- N75073
Tools Required:
- Wrenches (sizes not specified)
- Torque Wrench
- Ratchet
Step-by-Step Instructions:
-
Prepare Vehicle:
- Clean the mounting areas on the frame rails to ensure proper contact with the hitch and fasteners.
-
Position Hitch:
- Place the hitch on the frame rails, aligning the attachment holes with existing frame holes.
-
Insert Fasteners:
- Install the carriage bolts, flat washers, and nuts as per the provided diagram.
- Use the pull wire method if applicable to guide bolts through the frame.
-
Align and Center Hitch:
- Adjust the hitch to ensure it is centered and aligned with the frame rails.
-
Tighten Fasteners:
- Torque all fasteners to the specified torque values.
Torque Specifications:
- Refer to standard torque settings for the bolt grades included in the hardware kit.
Hardware List:
- (Details of hardware components, e.g., bolt sizes and quantities, to be added from the provided diagram or list in the manual.)
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: (Details to be added from manual)
- Max Tongue Weight: (Details to be added from manual)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Follow the provided diagrams closely for correct installation.
Installation Instructions for Pickup Trucks (Various Models)
Part Numbers:
- N75073
Tools Required:
- Wrenches (sizes not specified)
- Torque Wrench
- Ratchet
Step-by-Step Instructions:
-
Prepare Vehicle:
- Clean the mounting areas on the frame rails to ensure proper contact with the hitch and fasteners.
-
Position Hitch:
- Place the hitch on the frame rails, aligning the attachment holes with existing frame holes.
-
Insert Fasteners:
- Install the carriage bolts, flat washers, and nuts as per the provided diagram.
- Use the pull wire method if applicable to guide bolts through the frame.
-
Align and Center Hitch:
- Adjust the hitch to ensure it is centered and aligned with the frame rails.
-
Tighten Fasteners:
- Torque all fasteners to the specified torque values.
Torque Specifications:
- Refer to standard torque settings for the bolt grades included in the hardware kit.
Hardware List:
- (Details of hardware components, e.g., bolt sizes and quantities, to be added from the provided diagram or list in the manual.)
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: (Details to be added from manual)
- Max Tongue Weight: (Details to be added from manual)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Follow the provided diagrams closely for correct installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118323
Vehicle Compatibility:
- Chrysler Town & Country
- Dodge Caravan
- Plymouth Voyager
- Dodge Dakota
Tools Required:
- None specified.
Step-by-Step Instructions:
For Chrysler Town & Country, Dodge Caravan, Plymouth Voyager:
- Remove the right taillight assembly from the vehicle.
- Disconnect the wire harness from the upper taillight socket.
- Caution: Be careful not to damage the connector locking tabs.
- Lay the T-Connector harness on the top of the bumper.
- Route the connectors with green, brown, and white wires to the right side of the vehicle.
- Plug the T-Connector harness connectors into the mating plugs on the taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs in place.
- Repeat this procedure for the left side of the vehicle.
- Push the 4-flat plug of the T-Connector harness behind the bumper fascia at the center of the vehicle.
- Route the remainder of the harness behind the bumper as well.
- Reinstall the taillight assemblies, positioning the wire harness between the housing and the body.
- Caution: Ensure the wires are not pinched. Secure the harness under the bumper.
- Test the installation with a test light or trailer.
For Dodge Dakota:
-
Remove both taillight assemblies to access the taillight connectors.
- Beginning on the left (driver’s) side, route the T-Connector harness containing the yellow wire from under the vehicle through the taillight opening.
-
Disconnect the vehicle’s wiring harness connector from the taillight assembly.
- Plug the T-Connector between these separated halves, ensuring the connectors are fully inserted.
-
Route the connector with the green wire across the vehicle along the frame.
- Run the wire out from under the vehicle through the right (passenger) side taillight opening. Repeat step 2 using the connector containing the green wire.
-
Reinstall the taillight assemblies removed in step 1.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly to verify functionality.
- Do not exceed the specified amperage rating.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118323
Vehicle Compatibility:
- Chrysler Town & Country
- Dodge Caravan
- Plymouth Voyager
- Dodge Dakota
Tools Required:
- None specified
Step-by-Step Instructions:
For Chrysler Town & Country, Dodge Caravan, Plymouth Voyager:
-
Remove the Right Taillight Assembly:
- Remove the right taillight assembly from the vehicle.
-
Disconnect the Wire Harness:
- Disconnect the wire harness from the upper taillight socket.
- Caution: Be careful not to damage the connector locking tabs.
-
Lay the T-Connector Harness:
- Lay the T-Connector harness on the top of the bumper.
- Route the connectors with green, brown, and white wires to the right side of the vehicle.
-
Plug the T-Connector Harness:
- Plug the T-Connector harness connectors into the mating plugs on the taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Repeat for the Left Side:
- Repeat this procedure for the left side of the vehicle.
-
Route the 4-Flat Plug:
- Push the 4-flat plug of the T-Connector harness behind the bumper fascia at the center of the vehicle.
- Route the remainder of the harness behind the bumper as well.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies, positioning the wire harness between the housing and the body.
- Caution: Ensure the wires are not pinched. Secure the harness under the bumper.
-
Test the Installation:
- Test the installation with a test light or trailer.
For Dodge Dakota:
-
Remove Both Taillight Assemblies:
- Remove both taillight assemblies to access the taillight connectors.
- Begin on the left (driver’s) side and route the T-Connector harness containing the yellow wire from under the vehicle through the taillight opening.
-
Disconnect the Vehicle’s Wiring Harness:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly.
- Plug the T-Connector between these separated halves, ensuring the connectors are fully inserted.
-
Route the Connector with the Green Wire:
- Route the connector with the green wire across the vehicle along the frame.
- Run the wire out from under the vehicle through the right (passenger) side taillight opening.
- Repeat step 2 using the connector containing the green wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies removed in step 1.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly to verify functionality.
- Do not exceed the specified amperage rating.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
Related Products
