Class 4 7K Trailer Hitch Tow Package Prodigy P3 Brake Control For 16-23 Toyota Tacoma All Models w/ 7-Way RV Wiring 2" Drop Mount 2" Ball 2" Receiver Reese Tekonsha
Model: 84238 22117 20212 7080500 901952016 - 2023 Toyota, Tacoma, All Styles
Trailer Hitch Specs:

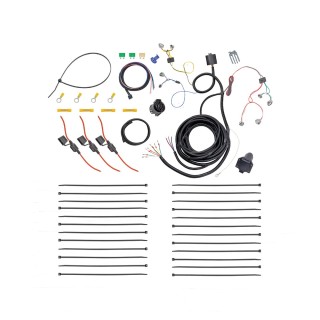

Direct Plug & Play Wiring Kit
| Part Number | 22117 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |
7-Way Mount Bracket
| Part Number | 20212 |
| Fits | 7-Way Flat Pin Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Ball Mount Specs:
| Part Number | 7080500 |
| Brand |
Reese Towpower |
| Finish | Black Powder Coat |
| Towing Capacity |
7500 lbs |
| Tongue Weight Capacity | 750 lbs |
| Hitch Opening | 2" |
| Drop |
2" |
| Rise |
3/4" |
| Warranty | 1 Year |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions |
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2021 2022 2023
$734 99 $903.31 19% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$903.31 $734 99
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
You are in!
We will alert you the moment it is back.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Reese
- Model: 84238 22117 20212 7080500 90195

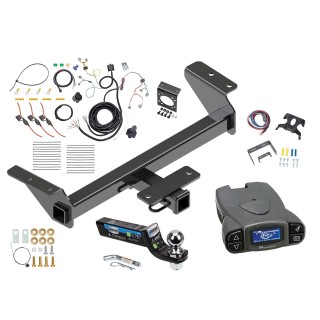

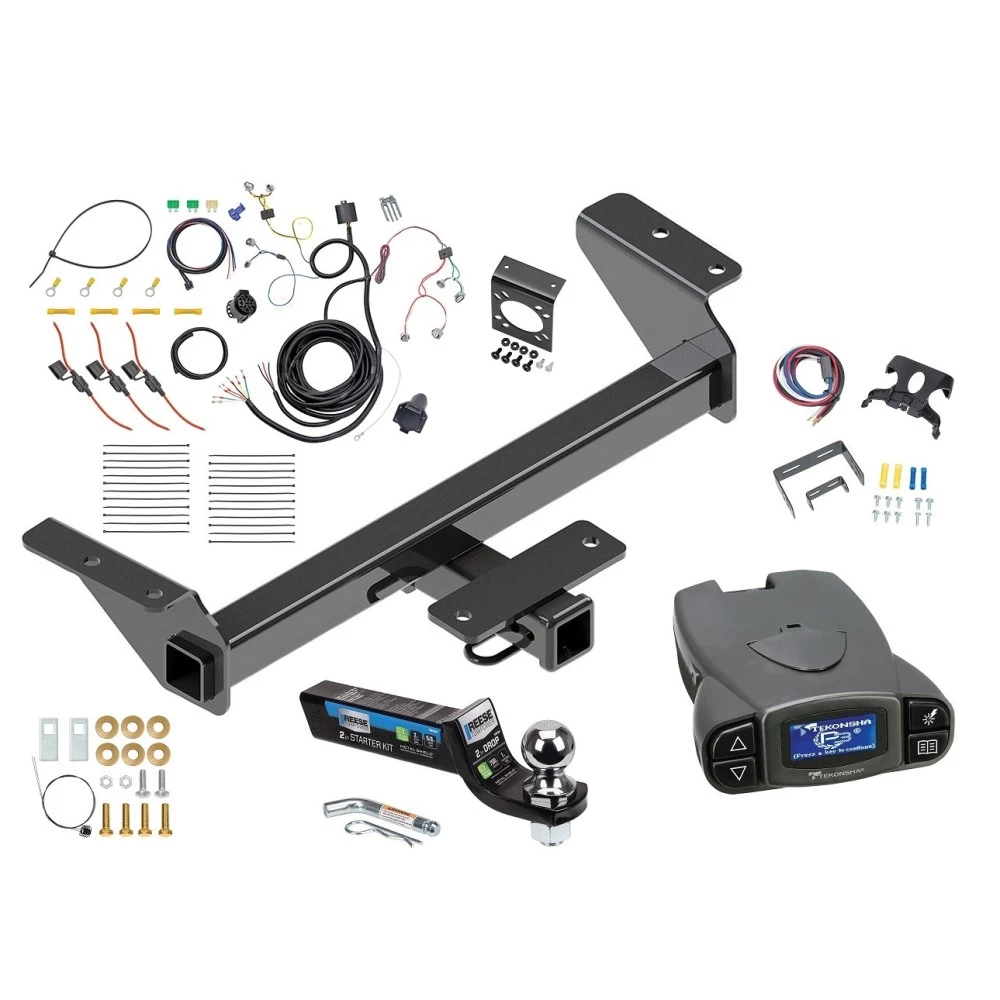

- Includes: Class 4 Trailer Tow Hitch, Tow Custom Harness, Prodigy P3 Proportional Brake Controller for Trailers with 1-4 Axles, Mounting Bracket, Trailer Tow Hitch Ball Mount Starter Kit
-
Fitment CodesHZNHW592 16-23 Toyota Tacoma All Models
Compatibility Chart
| Year Range | Make | Model | Style | Fitment Code |
|---|
| Default | |
| Brand | Reese |
| Gross Towing Weight | 7,000 LB |
| BC Connector Install Type | Plug&Play |
| Brake Controller Type | Proportional Inertia Based |
| Includes | 7-Way Mounting Bracket |
| Maximum Drop | 2 Inch |
| Trailer Hitch Receiver Size | 2 Inch |
| Trailer Wiring Output Type | 7-Way Round |
| Ball Size | 2 Inch Ball |
| Compatibility | All Tekonsha, Pro Series, Draw-Tite & Reese Brake Controllers |

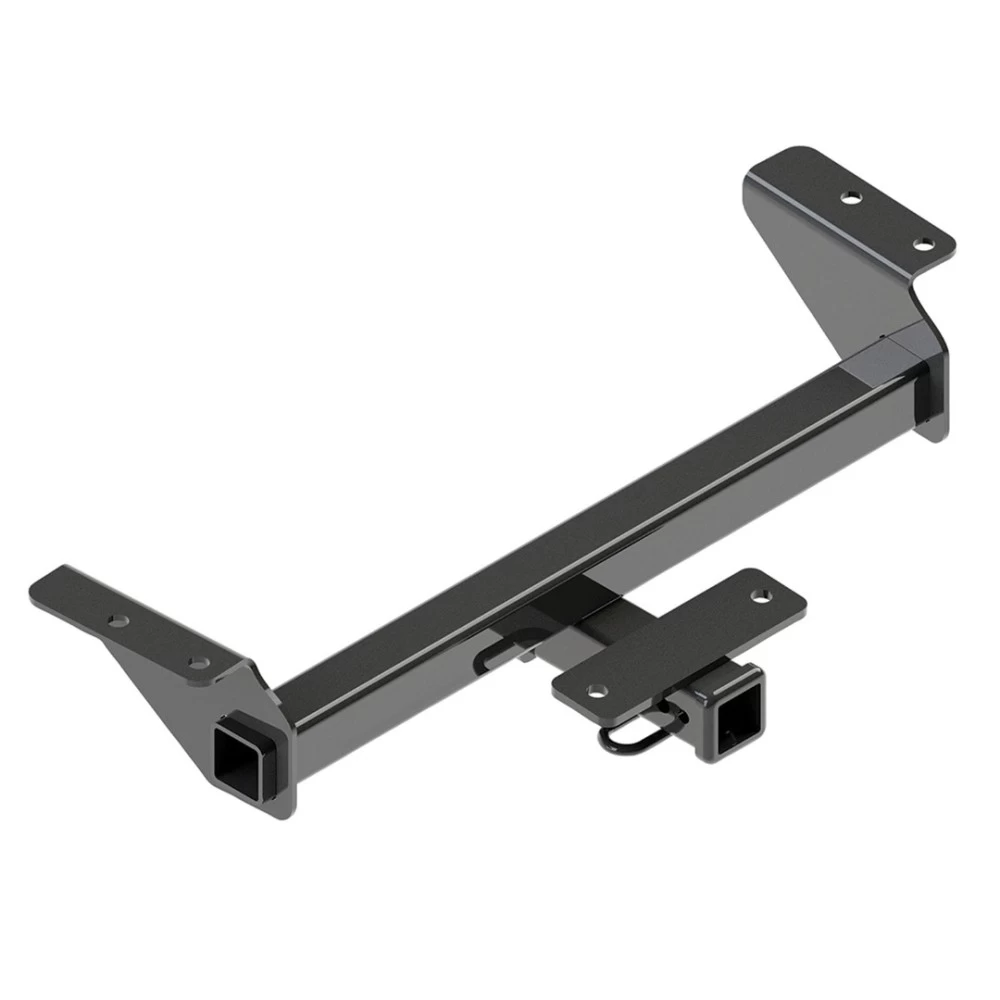

| Hitch Class | 4 |
| Maximum Ball Mount Rating Capacity | 7500 LB |
| Maximum Rise | 1 Inch |
| Self Leveling | Yes |
| Trailer Wiring Install Style | Plug&Play |
| Display Type | Full LCD Display |
| Drilling Required | No |
| Number of Balls | Single Ball |
| Number of Axles | 1 to 4 |
| Tongue Weight Capacity | 1,050 LB |
| Gross Towing Weight w/ Weight Distribution Kit | 8,000 LB |
| Maximum Tongue Weight w/ Weight Distribution Kit | 1,200 LB |
| Hitch Visibility | Concealed |
| Cross-Tube Type | Square Tube |
| Warranty | Lifetime |
Ask a Question about Class 4 7K Trailer Hitch Tow Package Prodigy P3 Brake Control For 16-23 Toyota Tacoma All Models w/ 7-Way RV Wiring 2" Drop Mount 2" Ball 2" Receiver Reese Tekonsha
Be the first to ask a question.
Description
2016 - 2023 Toyota, Tacoma, All Styles
Trailer Hitch Specs:
Direct Plug & Play Wiring Kit
| Part Number | 22117 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |
7-Way Mount Bracket
| Part Number | 20212 |
| Fits | 7-Way Flat Pin Connectors |
| Brand | Tow Ready |
| Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging |
|
| Warranty | 1 Year |
Ball Mount Specs:
| Part Number | 7080500 |
| Brand |
Reese Towpower |
| Finish | Black Powder Coat |
| Towing Capacity |
7500 lbs |
| Tongue Weight Capacity | 750 lbs |
| Hitch Opening | 2" |
| Drop |
2" |
| Rise |
3/4" |
| Warranty | 1 Year |
P3 the industries most advanced electric trailer brake control. A true proportional braking system, P3 has several added features, making it the new standard for electric trailer brake controls.
- 5 storable setting options for pulling different trailers or preferences of multiple drivers.
- A distinct, easy-to-read LCD display with multiple screen color options.
- Up-Front controls provide easy access to all P3 features.
- Easy to understand diagnostics show output current, battery, brake, and output voltage.
- A flashing red warning system alerts user to No Trailer Brake situations.
- Select Electric over Hydraulic or Electric trailer brake mode.
- Screen information display in English, French or Spanish.
- The Original Boost feature allows for different levels of customized braking.
- Compact, dash-hugging design.
Brake Control Specs:
| Part Number | 90195 |
| Brand | Tekonsha |
| Type | Proportional |
| Axles | 1 to 4 axle trailers |
| Warranty | Lifetime |
| Installation Instructions |
Partial list of fitment years: 16 17 18 19 20 21 22 23 2016 2017 2018 2019 2021 2022 2023
