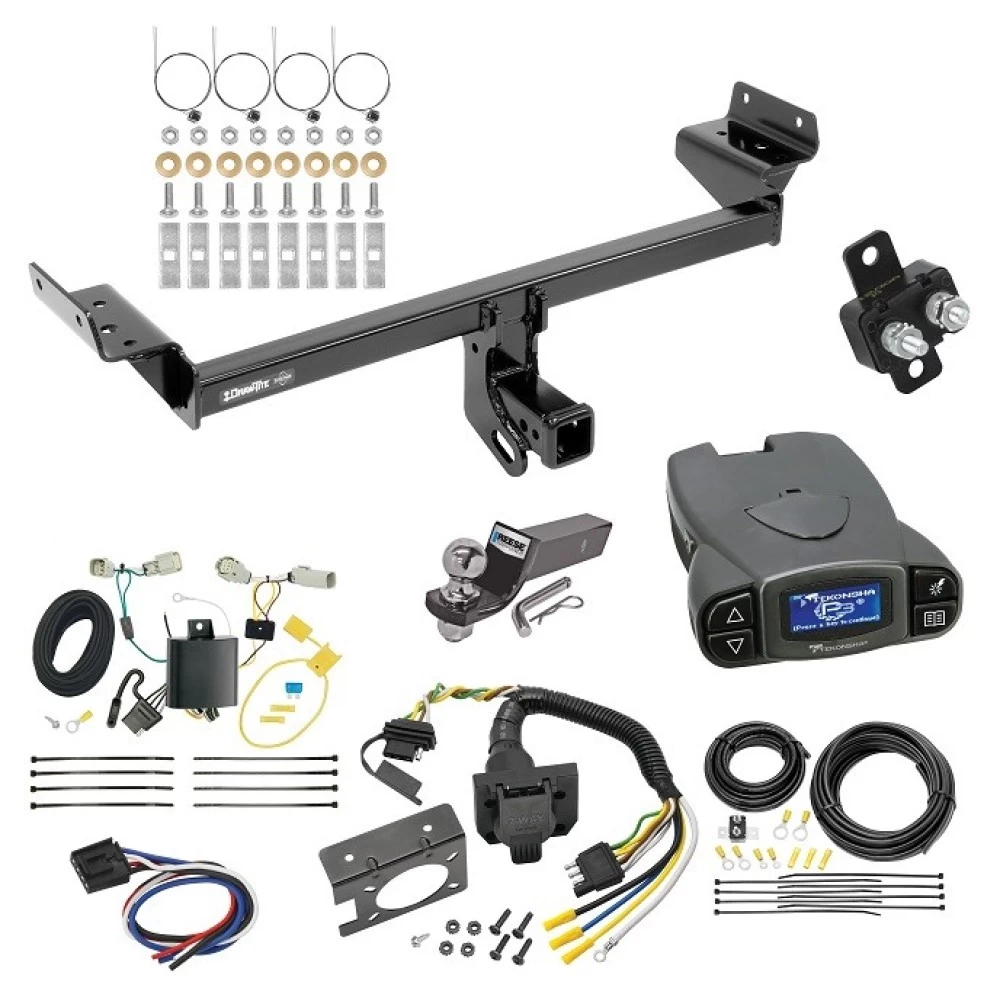

Installation Instructions for Ford Edge, Lincoln MKX, and Lincoln Nautilus

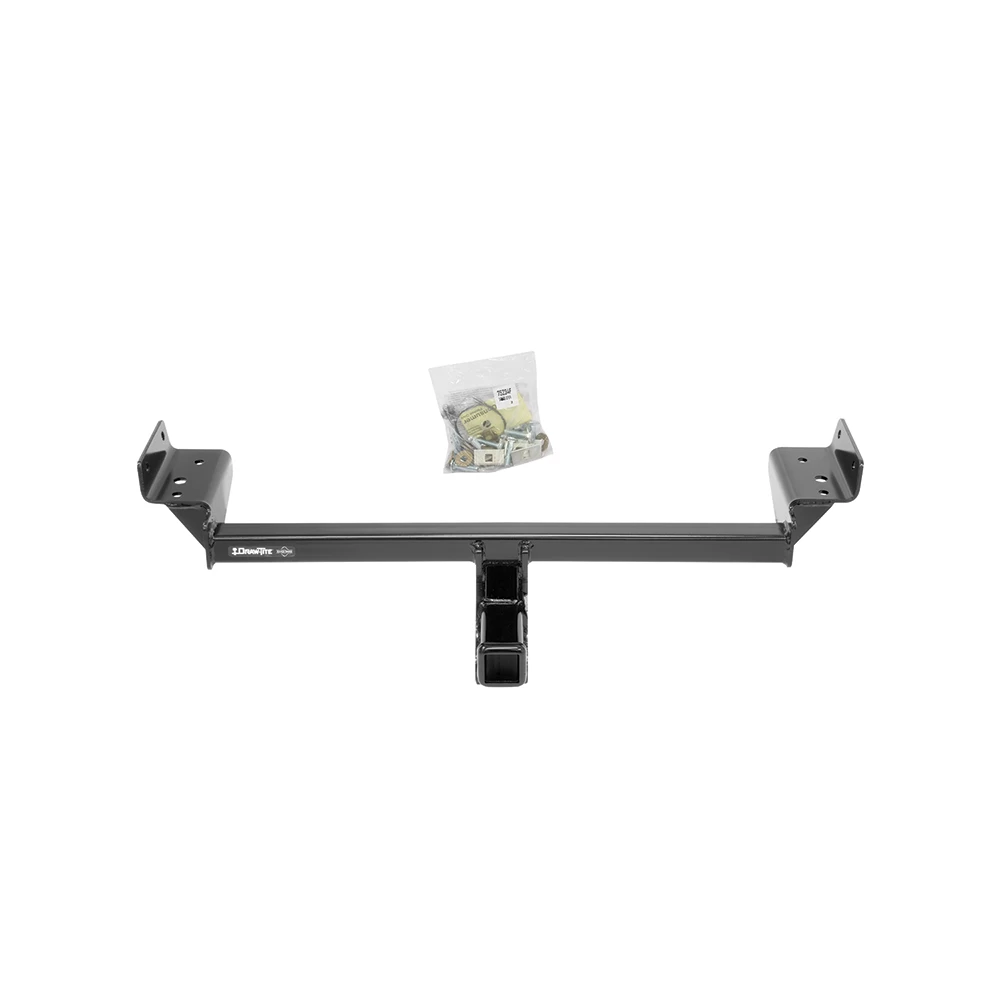

Part Numbers:

• 75234
• 44784
• CQT75234

Applications:

• 2015-Current Ford Edge
• 2015-2018 Lincoln MKX
• 2019-Current Lincoln Nautilus

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 5.5mm, 10mm
• Flat Head Screwdriver
• CR-VT 20 Screwdriver
• Die Grinder
• 6" Socket Extension

Installation Time:

• Approximately 45 minutes (for professional installers)

Step-by-Step Instructions:

1. Remove Bottom Side Plastic Panels:

   • Use 5.5mm and 10mm sockets to remove (2) bolts and (2) flange nuts per panel on both sides (see Figure 2).
   • Keep panels for reinstallation.
   • For Edge Sport and MKX AWD models:
     • Remove (6) bolts and (1) flange nut from the center plastic panel with heat shields (see Figure 3).
     • Remove and return the panel to the owner.
   • For MKX models:
     • Remove bumper fascia for easier installation.
     • Use a flat head and CR-VT 20 screwdriver to remove (3) rivets and (1) bolt per side (see Figure 4).
     • Open the trunk, gently pull the fascia away, and disconnect the electrical connector on the driver side (see Figure 5).

2. Lower Muffler:

   • Detach exhaust hanger rods from rubber isolators on both sides.
   • Use a stand to support the muffler to prevent damage.
   • Skip this step if the bumper fascia is already removed.

3. Install Hitch:

   • Feed carriage bolts (Item 1) and spacers (Item 2) into the frame using pull wires (Item 5) (see Figure 6).
   • Leave pull wires attached.
   • Use a die grinder to cut the stud above the center of the muffler (see Figure 7).
   • Raise the hitch into position, sliding it over the passenger side exhaust first.
   • Feed pull wires through bracket holes, remove them, and loosely install washers (Items 3 and 6) and hex nuts (Item 4).

4. Tighten Fasteners:

   • Torque all 7/16" fasteners to 50 lb-ft (68 N·m).

5. Reinstall Components:

   • Reinstall all fasteners, fascia, muffler, and plastic panels removed in Steps 1 and 2.

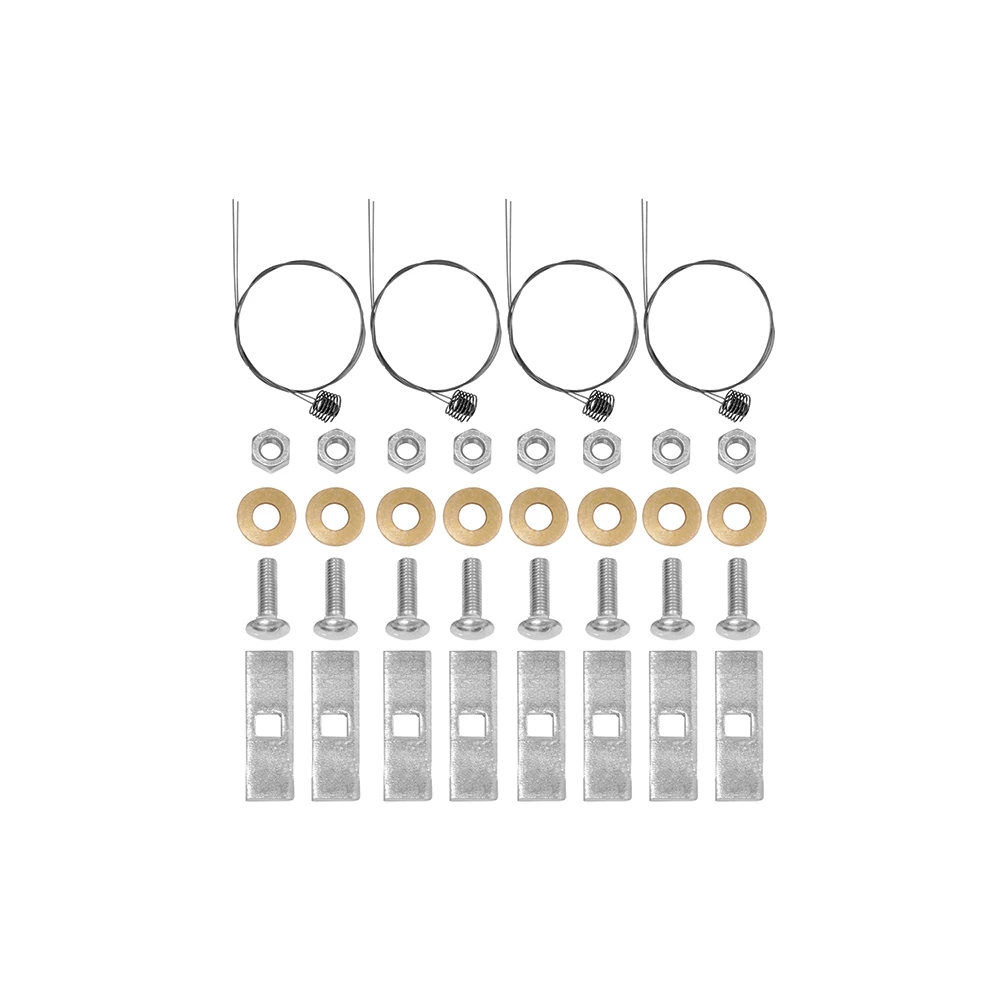

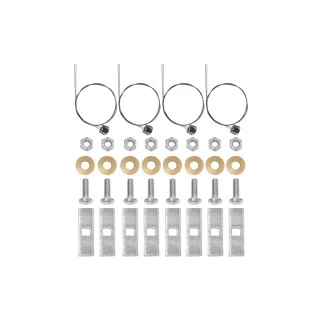

Hardware List:

• (8) 7/16"-14 x 1.75" GR5 Carriage Bolts
• (8) 0.188 x 1 x 2 Spacers
• (6) 7/16" Conical Washers
• (8) 7/16"-14 GR2 Hex Nuts
• (8) 7/16"-13 Pull Wires
• (2) 7/16" Lock Washers

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

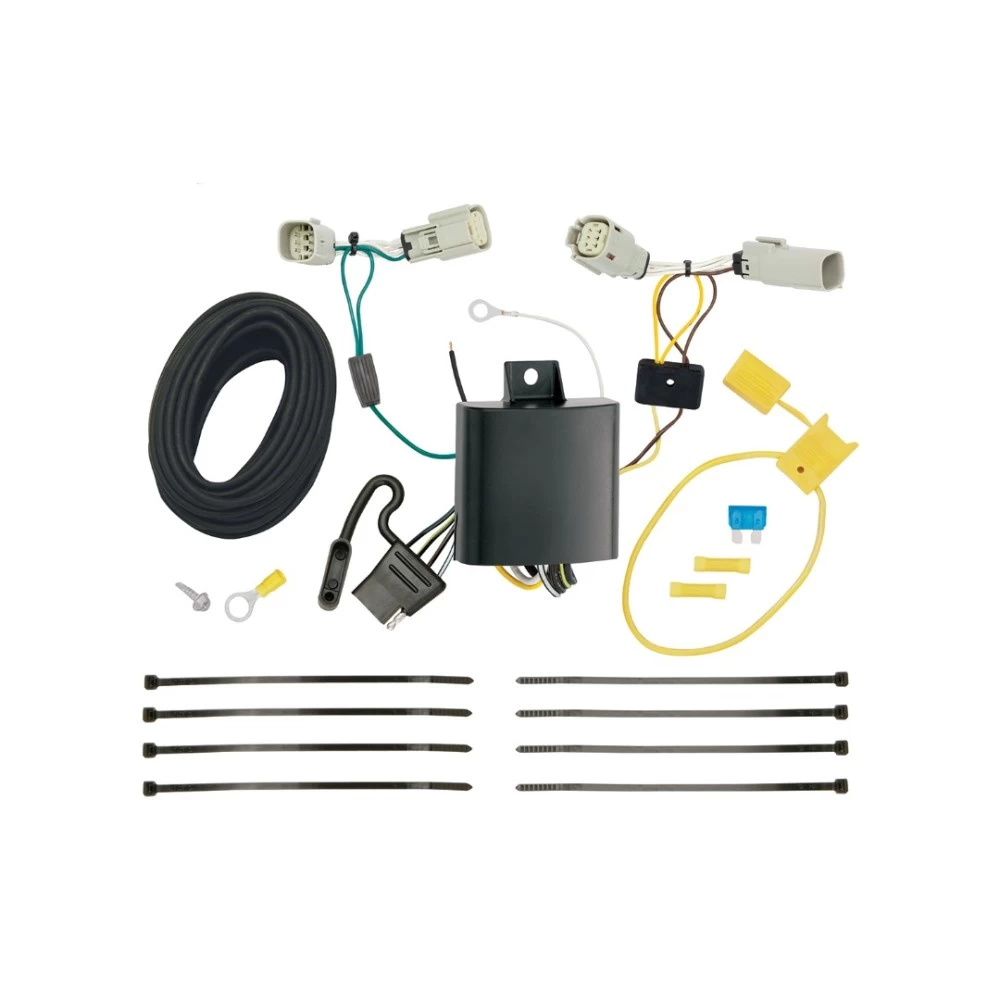

Installation Instructions for T-One® T-Connector for Lincoln MKX

Part Numbers:

• 118682

Tools Required:

• Torx 25 Driver
• 10mm Socket or Wrench
• 5.5mm or 7/32” Socket or Wrench
• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Taillight Housing:

   • Open the rear tailgate to access the screws holding the taillights in place.
   • Remove the T-25 Torx screws and carefully pry the taillight housings rearward without breaking the alignment tabs.

2. Remove Lower Fascia Components:

   • On both sides, remove clips from the wheel well and all screws from the lower fascia area.
   • Carefully pull back fascia pieces to expose the area behind the fascia underneath the vehicle.

3. Mount the T-Connector Black Box:

   • Underneath the vehicle, determine a mounting point behind the rear bumper fascia on the driver’s side.
   • Use the provided double-sided tape to mount the black box with the epoxy side facing down to prevent water accumulation.

4. Connect Driver-Side T-Connector:

   • Disconnect the vehicle wiring harness from the driver-side taillight socket.
   • Route the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket.
   • Plug the T-Connector with yellow wires in-between the driver-side taillight socket and vehicle wiring harness.

5. Connect Passenger-Side T-Connector:

   • Route the T-Connector end with green wires to the passenger side and the 4-flat connector underneath the bumper.
   • Route the green wire through the opening on the passenger side and plug it into the taillight socket, repeating the process from Step 4.

6. Ground the White Wire:

   • Locate a suitable grounding point near the black converter box. Avoid drilling into the vehicle floor or bed.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify the area behind any surface before drilling to prevent damage or injury.

7. Prepare and Connect the Power Wire:

   • Disconnect the vehicle’s Negative (-) battery cable and remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it. Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

8. Route the Power Wire:

   • Route the black 12-gauge wire rearward along the frame rail, ensuring to avoid hot pipes, heat shields, fuel tanks, or any areas that may pinch the wire.

9. Connect the Power Wire to the Black Box:

   • Route the black wire to the driver-side taillight area and connect it to the black wire from the T-Connector black box using the provided yellow butt connector.

10. Reconnect the Battery and Test:

    • Reconnect the vehicle’s Negative (-) battery cable.
    • Install the 15-amp fuse into the fuse holder and test the installation using a test light or trailer.

11. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies, securing the vehicle wiring harness between the housing and the body.
    • Use the provided cable ties to secure the remainder of the T-Connector harness under the bumper.
    • Replace all covers, clips, and screws removed during installation.

12. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. Bracket not included.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
