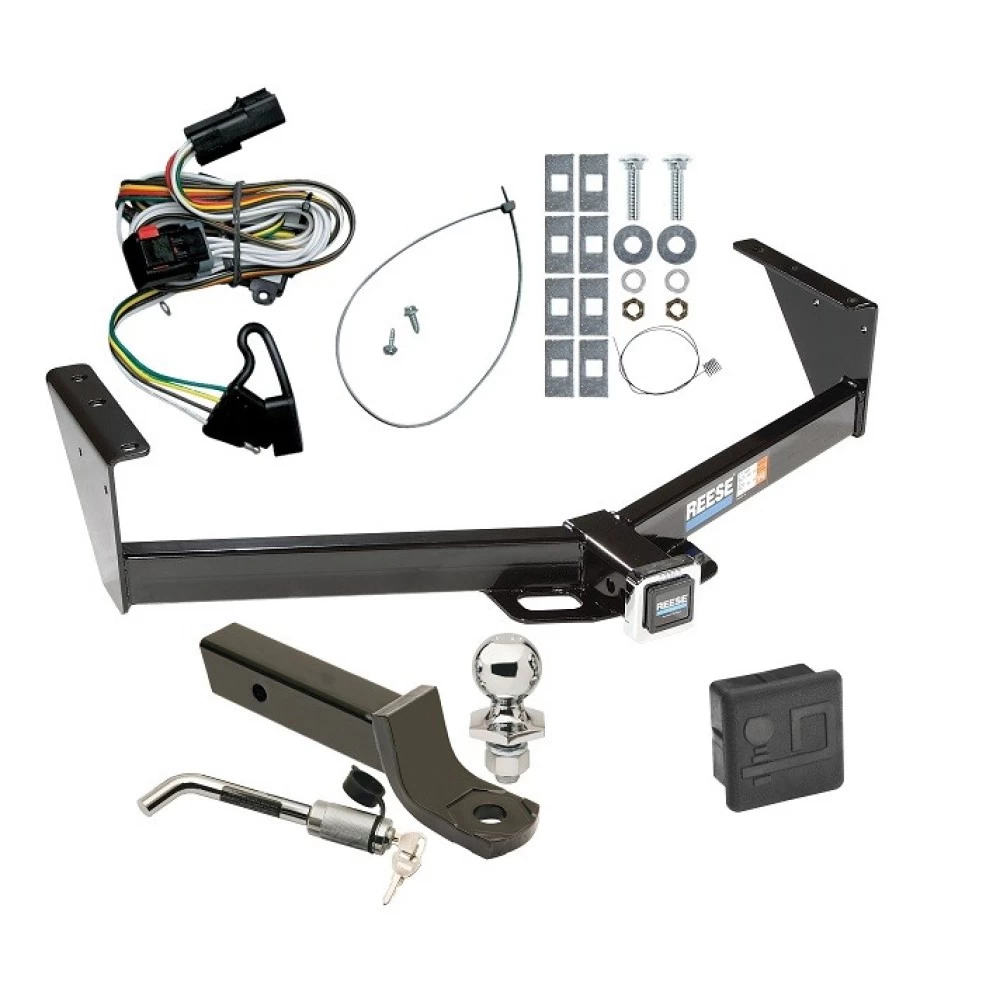

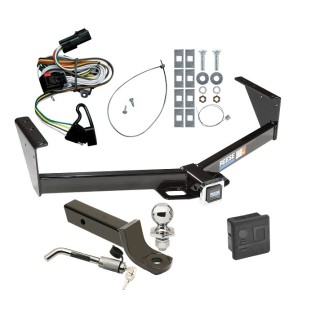

Reese Trailer Tow Hitch For 01‑03 Chrysler Town Country Voyager Dodge Grand Caravan Deluxe Package Wiring 2" Ball Mount and Lock
Model: 44006 118376 7005111 7010Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2003 Chrysler, Town & Country, All Styles
2001 - 2003 Chrysler, Voyager, All Styles
2001 - 2003 Dodge, Caravan, All Styles
2001 - 2003 Dodge, Grand Caravan, All Styles
Trailer Hitch Specs:
Part Number | 44006 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | 3,500 lbs |
Max Tongue Weight | 350/400 lbs |
Warranty | Lifetime |
Wiring Kit Specs:
Part Number | 118376 |
Brand | Tekonsha |
Warranty | 1 Year |
Ball Mount Specs:
Part Number | 7005111 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Receiver |
Drop |
2" |
Rise |
3/4" |
Warranty |
1 Year |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 01 02 03 2001 2002 2003
$316 86 $449.19 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$449.19 $316 86
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $79.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44006 118376 7005111 7010
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Interlock Trailer Tow Hitch Ball Mount Security Kit, Trailer Tow Hitch Tube Cover
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Locking Pin/Clip
2" Chrome Ball
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2003 Chrysler, Town & Country, All Styles
2001 - 2003 Chrysler, Voyager, All Styles
2001 - 2003 Dodge, Caravan, All Styles
2001 - 2003 Dodge, Grand Caravan, All Styles
Trailer Hitch Specs:
Part Number | 44006 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 3,500 lbs |
Max GTW w/ weight distribution | 3,500 lbs |
Max Tongue Weight | 350/400 lbs |
Warranty | Lifetime |
Wiring Kit Specs:
Part Number | 118376 |
Brand | Tekonsha |
Warranty | 1 Year |
Ball Mount Specs:
Part Number | 7005111 |
Brand |
Reese Towpower |
Finish | Black Powder Coat |
Towing Capacity |
6000 lbs |
Tongue Weight Capacity | 600 lbs |
Fits | 2" Receiver |
Drop |
2" |
Rise |
3/4" |
Warranty |
1 Year |
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.
Partial list of fitment years: 01 02 03 2001 2002 2003
Get Expert Help
Reese Trailer Tow Hitch For 01-03 Chrysler Town Country Voyager Dodge Grand Caravan Deluxe Package Wiring 2" Ball Mount and Lock Install Notes
Installation Instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager
Part Numbers:
- 75119
- 44006
- 78214 UH
Wiring Access Location:
- SUV1 & SUV2
Tools Required:
- Wrenches: 15mm, 17mm, 18mm, 19mm, 7/8"
- Drill Bits: 7/16"
Step-by-Step Instructions:
For Normal Installation (Without Rear Stabilizer Bar):
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides.
-
Install M12 x 1.75 Stud:
- Insert the stud into position until it seats to the frame where the bumper bolt was removed.
- Final tightening will occur when the nuts are tightened.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts and place the hitch into position as shown.
-
Drill Holes:
- Using the hitch as a template, drill a 7/16" hole in each frame rail for the forward attachment. Refer to Figure 1 for the hole location.
-
Fishwire Bolts:
- Fishwire the 7/16" bolts and blocks through the oval hole on the side brackets.
-
Secure Fasteners:
- Tighten the bolts and nuts to the specified torque values:
- 7/16" GR5 Fasteners: 50 lb-ft (68 N·m)
- M10 Fasteners: 42 lb-ft (57 N·m)
- M12 Fasteners: 75 lb-ft (102 N·m)
- Tighten the bolts and nuts to the specified torque values:
For Short Wheel Base with Rear Stabilizer Bar:
- Follow the same procedure as above, but refer to Figure 2 for adjustments related to the stabilizer bar bracket installation.
Torque Specifications:
- 7/16"-14 GR5: 50 lb-ft (68 N·m)
- M10: 42 lb-ft (57 N·m)
- M12: 75 lb-ft (102 N·m)
Hardware List:
- (2) M12 x 1.75 Studs
- (2) 1/4" x 1-1/2" x 2" Blocks
- (2) M10 x 1.5 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers (M10)
- (2) Conical Toothed Washers (M12)
- (2) 7/16"-14 x 1-3/4" GR5 Carriage Bolts
- (2) 1/4" x 1" x 3" Blocks
- (2) 3/16" x 1-1/2" x 2" Blocks
- (2) Lock Washers
- (2) Hex Nuts
Safety Notes:
- Inspect the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes to prevent water or exhaust fumes from entering.
- Wear eye protection and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Chrysler Town & Country, Dodge Caravan, and Plymouth Voyager
Part Numbers:
- 75119
- 44006
- 78214 UH
Wiring Access Location:
- SUV1 & SUV2
Tools Required:
- Wrenches: 15mm, 17mm, 18mm, 19mm, 7/8"
- Drill Bits: 7/16"
Step-by-Step Instructions:
For Normal Installation (Without Rear Stabilizer Bar):
-
Remove Front Bumper Bolts:
- Remove the front bumper bolts on both sides.
-
Install M12 x 1.75 Stud:
- Insert the stud into position until it seats to the frame where the bumper bolt was removed.
- Final tightening will occur when the nuts are tightened.
-
Remove Rear Bumper Bolts:
- Remove the rear bumper bolts and place the hitch into position as shown.
-
Drill Holes:
- Using the hitch as a template, drill a 7/16" hole in each frame rail for the forward attachment. Refer to Figure 1 for the hole location.
-
Fishwire Bolts:
- Fishwire the 7/16" bolts and blocks through the oval hole on the side brackets.
-
Secure Fasteners:
- Tighten the bolts and nuts to the specified torque values:
- 7/16" GR5 Fasteners: 50 lb-ft (68 N·m)
- M10 Fasteners: 42 lb-ft (57 N·m)
- M12 Fasteners: 75 lb-ft (102 N·m)
- Tighten the bolts and nuts to the specified torque values:
For Short Wheel Base with Rear Stabilizer Bar:
- Follow the same procedure as above, but refer to Figure 2 for adjustments related to the stabilizer bar bracket installation.
Torque Specifications:
- 7/16"-14 GR5: 50 lb-ft (68 N·m)
- M10: 42 lb-ft (57 N·m)
- M12: 75 lb-ft (102 N·m)
Hardware List:
- (2) M12 x 1.75 Studs
- (2) 1/4" x 1-1/2" x 2" Blocks
- (2) M10 x 1.5 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers (M10)
- (2) Conical Toothed Washers (M12)
- (2) 7/16"-14 x 1-3/4" GR5 Carriage Bolts
- (2) 1/4" x 1" x 3" Blocks
- (2) 3/16" x 1-1/2" x 2" Blocks
- (2) Lock Washers
- (2) Hex Nuts
Safety Notes:
- Inspect the hitch frequently to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes to prevent water or exhaust fumes from entering.
- Wear eye protection and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118376
Wiring Access Location:
- Driver’s side rear taillamp and jack storage compartment.
Tools Required:
- Utility knife.
- Drill with a 3/32" drill bit.
- Cable ties (provided).
- Double-sided tape (provided).
Step-by-Step Instructions:
-
Remove the driver’s side rear taillamp housing (Fig. 1).
- Slide the red locking tab on the harness connector to the unlocked position.
- Disconnect the wire harness from the taillamp sockets.
-
Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.
-
With the wiring and grommets exposed, slit the grommet using a utility knife from the hole where the vehicle wiring passes through to the outside edge (Fig. 2).
- Unwrap the tape around the grommet tabs or cut the tabs off the grommet holding the wires.
-
Open the vehicle’s jack storage cover on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- If necessary, peel back the black tape covering a hole on the vehicle body panel.
- Push the T-Connector’s end through the jack storage compartment and out to the driver’s side rear taillamp opening.
- Reposition the tape over the hole and wires if necessary.
- Plug the T-Connector into the mating plug on the taillamp socket and the vehicle’s wiring harness.
- Secure the connectors with the red locking tab (Fig. 3).
-
Place the rubber grommet over the T-Connector wiring and reseat it into the grommet hole.
-
Locate a suitable grounding point near the taillamp opening.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Caution: Do not drill into exposed surfaces.
-
Secure the black converter box and trailer wiring with double-sided tape or cable ties.
- Alternatively, mount the converter using the provided screw and mounting tab to prevent damage or rattling.
- Note: Place the converter box inside the jack storage compartment.
-
Test the installation with a circuit tester or trailer.
-
Reinstall all trim panels removed during the process.
-
Replace the taillamp housing, positioning the wire harness between the housing and the vehicle body.
-
Store the 4-flat connector in the jack storage compartment when not in use.
-
Specifications:
- This unit is rated for 7.5 amps per circuit.
-
Hardware List:
- T-Connector adapter.
- Black converter box.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a circuit tester or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118376
Wiring Access Location:
- Driver’s side rear taillamp and jack storage compartment.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Cable ties (provided)
- Double-sided tape (provided)
Step-by-Step Instructions:
-
Remove the Driver’s Side Rear Taillamp Housing:
- Slide the red locking tab on the harness connector to the unlocked position.
- Disconnect the wire harness from the taillamp sockets.
-
Expose the Vehicle’s Wiring Harness and Grommet:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.
-
Modify the Grommet:
- Using a utility knife, slit the grommet from the hole where the vehicle wiring passes through to the outside edge (Fig. 2).
- Unwrap or remove the tape around the grommet tabs or cut off the tabs holding the wires.
-
Access the Jack Storage Compartment:
- Open the vehicle’s jack storage cover on the driver’s side.
- Partially remove the driver’s side rear trim panel.
- Peel back the black tape covering a hole on the vehicle body panel if necessary.
-
Route and Connect the T-Connector:
- Push the T-Connector’s end through the jack storage compartment and out to the driver’s side rear taillamp opening.
- Reposition the tape over the hole and wires if necessary.
- Plug the T-Connector into the mating plug on the taillamp socket and the vehicle’s wiring harness.
- Secure the connectors with the red locking tab (Fig. 3).
-
Reseat the Grommet:
- Place the rubber grommet over the T-Connector wiring and reseat it into the grommet hole.
-
Ground the White Wire:
- Locate a suitable grounding point near the taillamp opening.
- Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
- Caution: Do not drill into exposed surfaces.
-
Secure the Converter Box and Wiring:
- Use double-sided tape or cable ties to secure the black converter box and trailer wiring.
- Alternatively, mount the converter using the provided screw and mounting tab to prevent damage or rattling.
- Note: Place the converter box inside the jack storage compartment.
-
Test the Installation:
- Use a circuit tester or connect a trailer to confirm functionality.
-
Reinstall Components:
- Reinstall all trim panels removed during the process.
- Replace the taillamp housing, ensuring the wire harness is positioned properly between the housing and the vehicle body.
- Store the 4-flat connector in the jack storage compartment when not in use.
Specifications:
- Current Rating: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Black converter box
- Eyelet and screw
- Double-sided tape
- Cable ties
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
