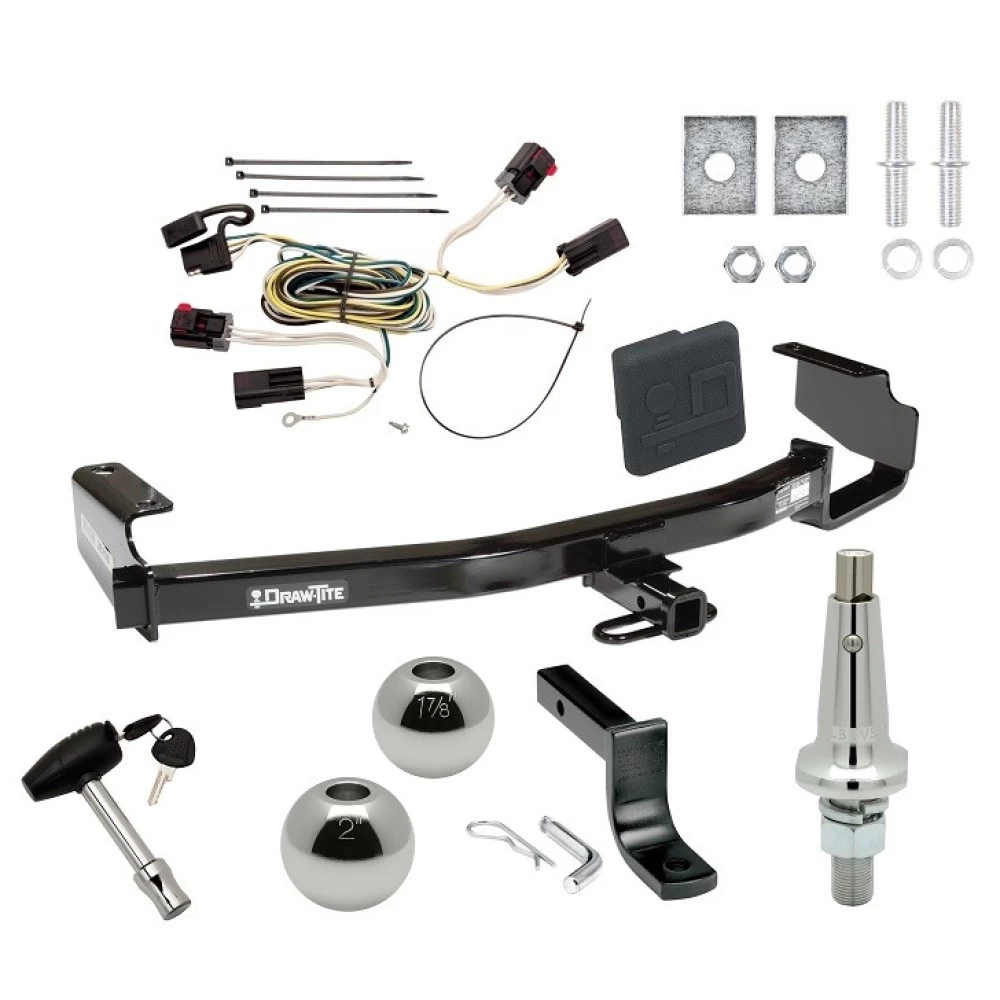

Installation Instructions for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, Plymouth Voyager

Part Numbers:

• 06369
• 36296
• 90165
• 39602 (U-Haul)

Wiring Access Location:

• SUV1
• SUV2

Tools Required:

• Wrenches: 18 mm, 19 mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Front Bumper Bolts:

   • Remove the front bumper bolts on both sides of the vehicle.

2. Install M12 x 1.75 Studs:

   • Install the M12 x 1.75 studs into the holes where the front bumper bolts were removed. Tighten by hand until seated. Final tightening will occur when the nuts are secured later.

3. Remove Rear Bumper Bolts:

   • Remove the rear bumper bolts.

4. Position and Secure Hitch:

   • Place the hitch into position as shown in the instructions.
   • Install the remaining fasteners into the existing weldnuts on the frame.

5. Tighten Fasteners:

   • Tighten all M12 x 1.75 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.

Hardware List:

• (2) Stud – M12 x 1.75
• (2) Spacer – 3/16 x 1-1/2 x 2
• (2) Lock Washer – 1/2"
• (2) Hex Nut – M12 x 1.75

Safety Notes:

• Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Drawbar must be used in the rise position only.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Compatible with all models of Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Plymouth Voyager (2WD, 4WD, short and long wheelbase).
• Installation time for professional installers is approximately 30 minutes.
• For more detailed instructions, refer to the QR code or manual provided.

Installation Instructions for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, Plymouth Voyager

Part Numbers:

• 06369
• 36296
• 90165
• 39602 (U-Haul)

Wiring Access Location:

• SUV1
• SUV2

Tools Required:

• Wrenches: 18 mm, 19 mm
• Drill Bits: None

Step-by-Step Instructions:

1. Remove Front Bumper Bolts:

   • Remove the front bumper bolts on both sides of the vehicle.

2. Install M12 x 1.75 Studs:

   • Install the M12 x 1.75 studs into the holes where the front bumper bolts were removed. Tighten by hand until seated. Final tightening will occur when the nuts are secured later.

3. Remove Rear Bumper Bolts:

   • Remove the rear bumper bolts.

4. Position and Secure Hitch:

   • Place the hitch into position as shown in the instructions.
   • Install the remaining fasteners into the existing weldnuts on the frame.

5. Tighten Fasteners:

   • Tighten all M12 x 1.75 fasteners to 75 ft-lbs (102 N*m) using a torque wrench.

Hardware List:

• (2) Stud – M12 x 1.75
• (2) Spacer – 3/16 x 1-1/2 x 2
• (2) Lock Washer – 1/2"
• (2) Hex Nut – M12 x 1.75

Safety Notes:

• Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or other body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Observe all safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Drawbar must be used in the rise position only.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Compatible with all models of Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Plymouth Voyager (2WD, 4WD, short and long wheelbase).
• Installation time for professional installers is approximately 30 minutes.
• For more detailed instructions, refer to the QR code or manual provided.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

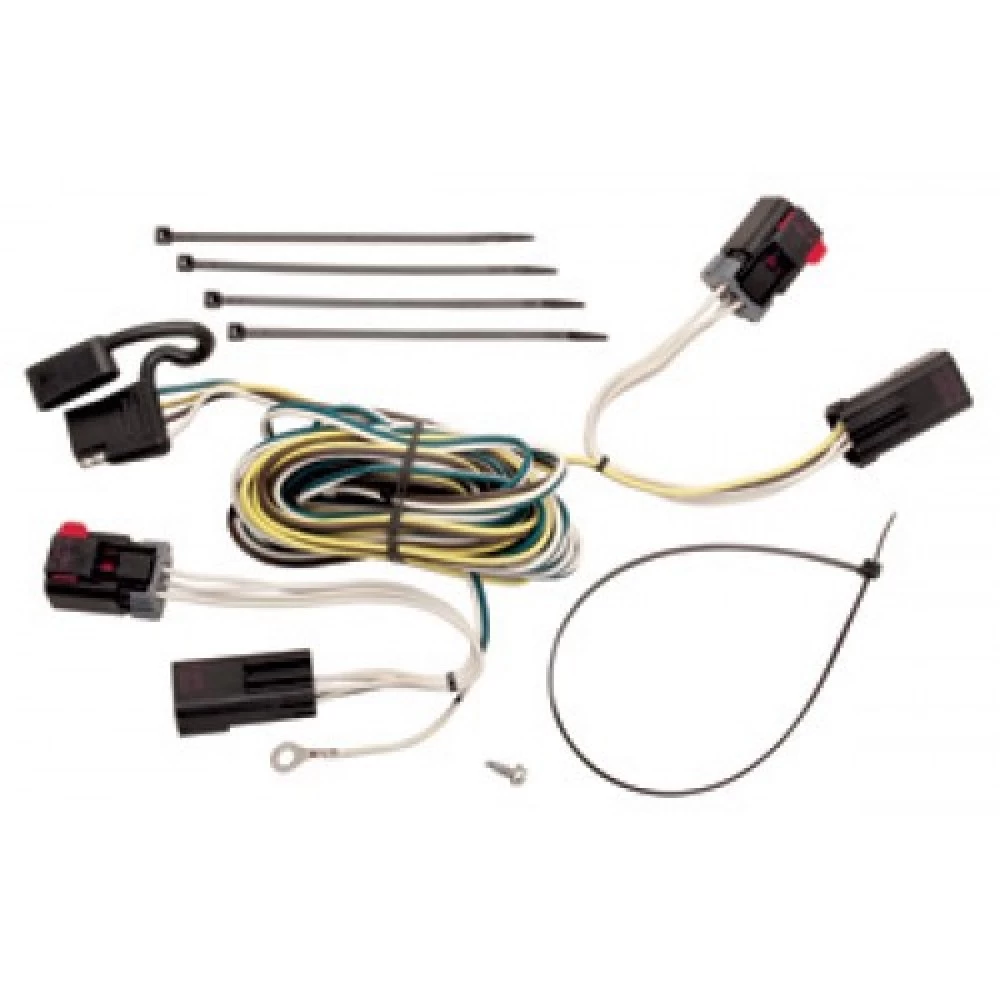

Installation Instructions for T-Connector Adapter
