Trailer Tow Hitch For 03‑08 Toyota Matrix Trailer Hitch Tow Receiver w/ Wiring Harness Kit

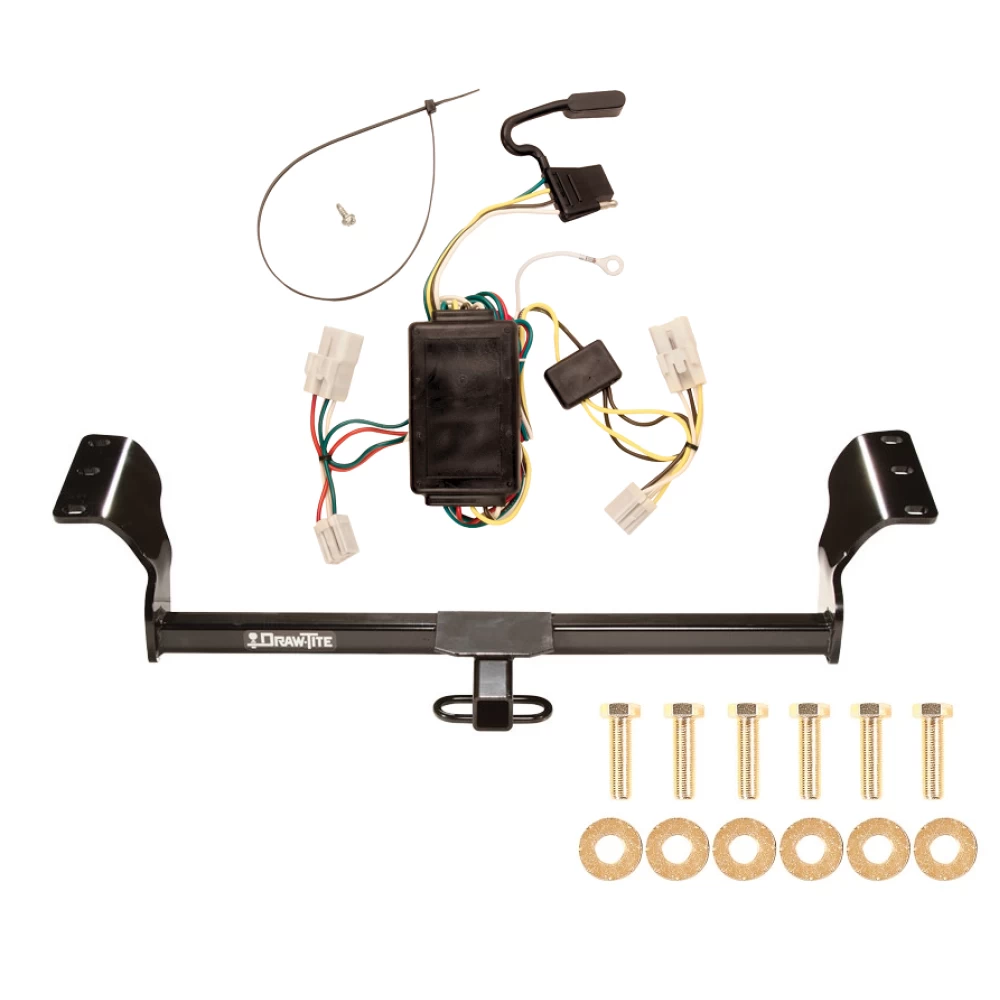

Model: 24812 118386Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2008 Toyota, Matrix, All Styles
Trailer Hitch Specs:
| Part Number | 24812 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118386 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 03 04 05 06 07 08 2003 2004 2005 2006 2007 2008
$261 56 $382.24 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$382.24 $261 56
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $65.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24812 118386
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2003 - 2008 Toyota, Matrix, All Styles
Trailer Hitch Specs:
| Part Number | 24812 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | 0 lbs |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118386 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 03 04 05 06 07 08 2003 2004 2005 2006 2007 2008
Get Expert Help
Trailer Tow Hitch For 03-08 Toyota Matrix Trailer Hitch Tow Receiver w/ Wiring Harness Kit Install Notes
Installation Instructions for Toyota Matrix and Pontiac Vibe
Part Numbers:
- 24812
- 60898
- 77183
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position on the vehicle.
-
Install Fasteners:
- Attach the hitch to the existing weldnuts in the frame rails using the provided bolts and washers.
-
Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M) using a torque wrench.
Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2” Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- For Toyota Matrix XRS and XR Sport models: The center fascia must be removed for hitch installation. (Fascia sold separately.)
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 24812
- 60898
- 77183
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (91 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position on the vehicle.
-
Install Fasteners:
- Attach the hitch to the existing weldnuts in the frame rails using the provided bolts and washers.
-
Tighten Fasteners:
- Torque all M12 CL10.9 fasteners to 92 Lb.-Ft. (125 N*M) using a torque wrench.
Hardware List:
- (6) M12 x 1.25 x 40mm CL10.9 Bolts
- (6) 1/2” Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- For Toyota Matrix XRS and XR Sport models: The center fascia must be removed for hitch installation. (Fascia sold separately.)
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118386
Vehicle Compatibility:
- Toyota Matrix
- Pontiac Vibe
- Toyota Echo
Tools Required:
- Philips head screwdriver.
- Drill with 3/32” drill bit.
Step-by-Step Instructions:
For Toyota Matrix and Pontiac Vibe:
-
Open the vehicle's rear tailgate.
- Remove the cargo nets and cargo floor hatch to access the spare tire area.
- Unscrew the nut holding the spare tire cover and remove the cover.
- Remove the access panel doors on both sides to access the vehicle's wiring connectors.
-
Locate the vehicle's taillight wiring harness on both the driver’s and passenger’s sides.
- Disconnect the harness carefully to avoid damaging the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Locate the access hole on the driver’s side between the spare tire and the rear threshold.
- Route the T-Connector end with the yellow wire through this hole to the access panel.
-
Insert the T-Connector with the yellow wire between the vehicle’s wiring connectors and lock into place.
- Ensure the connectors are fully inserted with the locking tabs secure.
-
Route the T-Connector end with the green wire to the passenger’s side.
- Repeat step 4 for the passenger’s side using the green wire.
-
Locate a suitable grounding point near the connectors.
- Clean the area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Mount the T-Connector black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties to prevent damage or rattling.
- Avoid areas that may pinch or cut the wire.
-
Reinstall the access panels, spare tire cover, cargo floor hatch, and cargo nets.
For Toyota Echo:
-
Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Follow steps 2-7 as described above.
-
Reposition the trunk liner and reattach the threshold panel.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5 amps).
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Double-sided tape.
- Cable ties.
Safety Notes:
- Test the installation with a test light or trailer after completing all connections.
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
Manufacturer Notes:
- Read and follow all warnings and instructions provided with the product.
- Store the 4-flat connector in the trunk or rear cargo area when not in use.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118386
Vehicle Compatibility:
- Toyota Matrix
- Pontiac Vibe
- Toyota Echo
Tools Required:
- Philips head screwdriver
- Drill with 3/32” drill bit
Step-by-Step Instructions:
For Toyota Matrix and Pontiac Vibe:
-
Access the Rear Compartment:
- Open the rear tailgate.
- Remove cargo nets and the cargo floor hatch to access the spare tire area.
- Unscrew the nut holding the spare tire cover and remove it.
- Remove the access panel doors on both sides to locate the vehicle’s wiring connectors.
-
Locate the Wiring Harness:
- Identify the taillight wiring harness on both the driver’s and passenger’s sides.
- Disconnect the harness carefully to avoid damaging the locking tabs.
- Clean all connector surfaces to remove dirt.
-
Route the T-Connector:
- Locate the access hole on the driver’s side between the spare tire and rear threshold.
- Route the T-Connector end with the yellow wire through this hole to the access panel.
-
Connect the Driver’s Side T-Connector:
- Insert the T-Connector with the yellow wire between the vehicle’s wiring connectors.
- Ensure the connectors are fully inserted and locked into place.
-
Connect the Passenger’s Side T-Connector:
- Route the T-Connector end with the green wire to the passenger’s side.
- Repeat step 4 for the passenger’s side using the green wire.
-
Ground the White Wire:
- Find a suitable grounding point near the connectors.
- Clean the grounding area of dirt and rustproofing.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Mount the Black Box:
- Attach the T-Connector black box using the provided double-sided tape.
- Secure the remaining harness with cable ties to prevent damage or rattling.
- Avoid areas where the wire could be pinched or cut.
-
Reassemble Components:
- Reinstall the access panels, spare tire cover, cargo floor hatch, and cargo nets.
For Toyota Echo:
-
Access the Trunk Wiring:
- Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the vehicle’s taillight wiring harness.
-
Follow Steps 2-7 as described above.
-
Reinstall Components:
- Reposition the trunk liner and reattach the threshold panel.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Lights: 5 amps
Hardware List:
- T-Connector adapter
- Eyelet and screw
- Double-sided tape
- Cable ties
Safety Notes:
- Test the installation with a test light or trailer after completing all connections.
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
