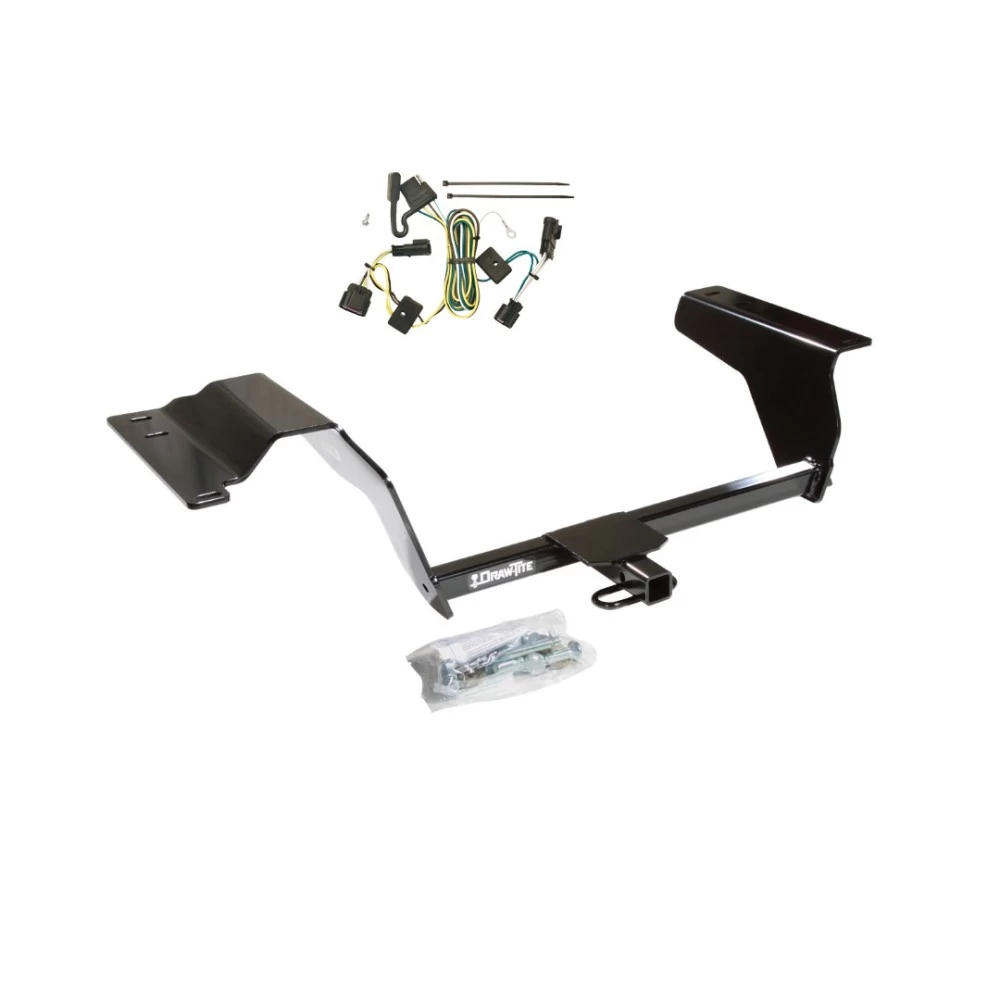

Installation Instructions for Acura TL

Part Numbers:

• 77131
• 24755
• 60814

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 10mm
• Drill Bits: 1/2"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Remove the spare tire from the trunk before beginning installation.

2. Remove Plastic Cover:

   • Remove the plastic cover under the trunk by detaching four plastic rivets that secure it to the fascia and two hex flange nuts that secure it to the trunk bottom.
   • Reinstall the rivets and return the plastic cover and hex flange nuts to the vehicle owner.

3. Attach Hitch to Tow Hook:

   • Attach the hitch to the tow hook as shown in Figure 1. Orient spacers with respect to the tow hook as shown in Figures 2 and 3.

4. Drill Holes:

   • Using the hitch as a template, drill two 1/2” holes in the trunk pan.

5. Install Fasteners:

   • Install the hitch to the trunk pan using the provided carriage bolts, spacers, lock washers, and nuts as illustrated in Figure 1.

6. Seal Holes:

   • Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.

7. Reinstall Spare Tire:

   • Place the spare tire back into the trunk.

8. Tighten Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

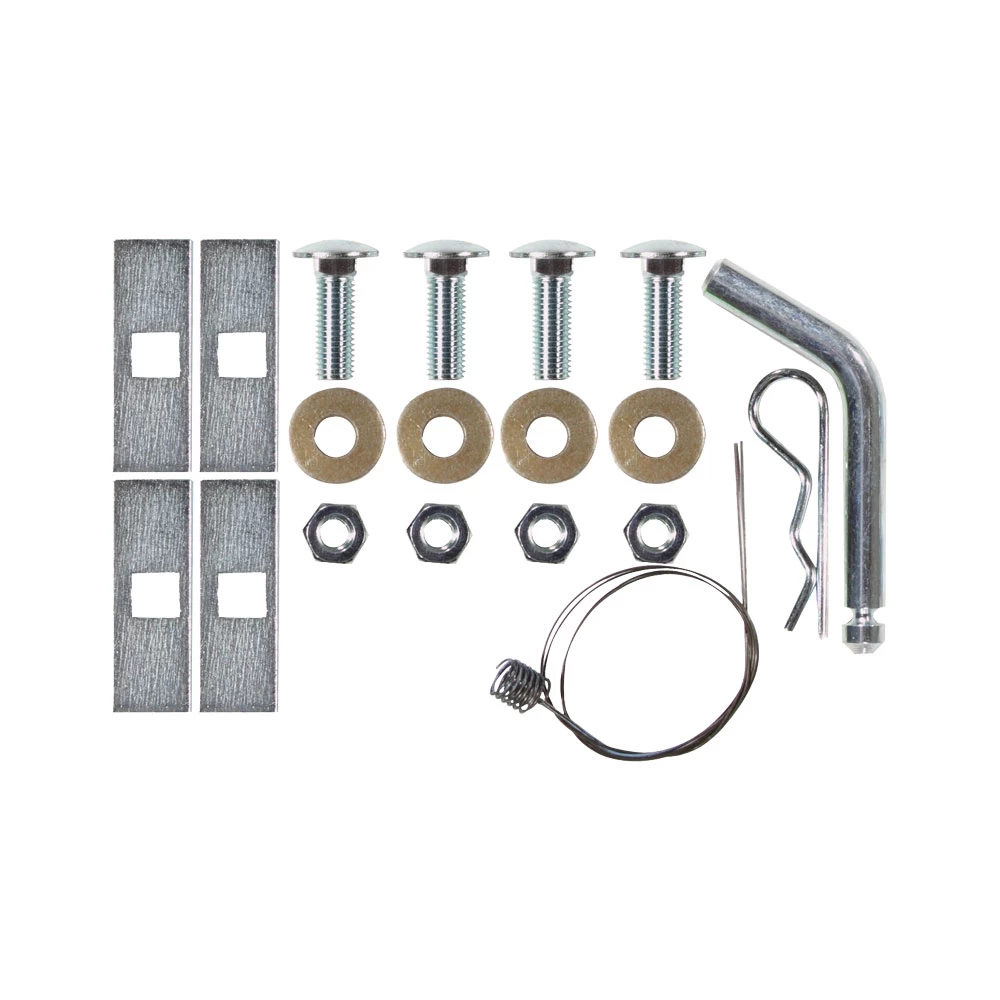

Hardware List:

• (1) Hex Bolt: 1/2”-13 x 2-1/2”
• (3) Hex Nuts: 1/2”
• (3) Spacers: 1/4” x 1-1/2” x 2”
• (2) Carriage Bolts: 1/2”-13 x 1-3/4”
• (3) Lock Washers: 1/2”
• (2) Spacers: 1/4” x 1” x 2”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Acura TL

Part Numbers:

• 77131
• 24755
• 60814

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 10mm
• Drill Bits: 1/2"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle ratings.

Step-by-Step Instructions:

1. Remove Spare Tire:

   • Remove the spare tire from the trunk before beginning installation.

2. Remove Plastic Cover:

   • Remove the plastic cover under the trunk by detaching four plastic rivets that secure it to the fascia and two hex flange nuts that secure it to the trunk bottom.
   • Reinstall the rivets and return the plastic cover and hex flange nuts to the vehicle owner.

3. Attach Hitch to Tow Hook:

   • Attach the hitch to the tow hook as shown in Figure 1. Orient spacers with respect to the tow hook as shown in Figures 2 and 3.

4. Drill Holes:

   • Using the hitch as a template, drill two 1/2” holes in the trunk pan.

5. Install Fasteners:

   • Install the hitch to the trunk pan using the provided carriage bolts, spacers, lock washers, and nuts as illustrated in Figure 1.

6. Seal Holes:

   • Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.

7. Reinstall Spare Tire:

   • Place the spare tire back into the trunk.

8. Tighten Fasteners:

   • Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (1) Hex Bolt: 1/2”-13 x 2-1/2”
• (3) Hex Nuts: 1/2”
• (3) Spacers: 1/4” x 1-1/2” x 2”
• (2) Carriage Bolts: 1/2”-13 x 1-3/4”
• (3) Lock Washers: 1/2”
• (2) Spacers: 1/4” x 1” x 2”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3594
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24755 Rev. A 6/25/2014

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118407

Tools Required:

• Drill with 3/32” Drill Bit
• Philips Head Screwdriver
• Trim Panel Remover

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Locate the vehicle wiring inside the rear cargo area by removing the wiring access panels on both sides.
   • Carefully remove the foam insulation padding on each side to access the taillight connection points.
   • Note: Use the top set of connection points for the T-Connector.

2. Driver’s Side Connection:

   • Beginning on the driver’s side, disconnect the vehicle’s wiring connectors carefully to avoid breaking the locking tabs.
   • Connect the T-Connector containing the yellow wire between the separated connectors.
   • Ensure the connectors are fully inserted, and the locking tabs are secure.

3. Passenger’s Side Connection:

   • Remove the cargo floor panel and the cargo tray by unscrewing the spare tire hold-down nut. Set the cargo tray aside.
   • Route the T-Connector containing the green wire behind and under the trim panel along the vehicle floor near the spare tire.
   • Continue routing the wire across the vehicle, behind the trim panel, and up to the wiring access area on the passenger’s side.
   • Repeat Step 2 for the passenger’s side using the T-Connector containing the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the T-Connector. Do not drill into the vehicle floor or bed.
   • Clean the area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid vehicle damage or personal injury.

5. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-Connector harness to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wire.

6. Reassemble the Vehicle:

   • Replace the foam insulation padding, wiring access panels, cargo tray, spare tire hold-down nut, and cargo floor panel removed during installation.
   • Store the 4-flat connector in the rear cargo area when not in use.

7. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

   Specifications:

   • Max. stop/turn light: 7.5 amps per side
   • Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual and instruction sheet for additional guidance.

Manufacturer Notes:

• Follow all warnings and installation instructions provided.
• Store the 4-flat connector in the rear cargo area when not in use.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118407

Tools Required:

• Drill with 3/32” Drill Bit
• Philips Head Screwdriver
• Trim Panel Remover

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Locate the vehicle wiring inside the rear cargo area by removing the wiring access panels on both sides.
   • Carefully remove the foam insulation padding on each side to access the taillight connection points.
   • Note: Use the top set of connection points for the T-Connector.

2. Driver’s Side Connection:

   • Beginning on the driver’s side, disconnect the vehicle’s wiring connectors carefully to avoid breaking the locking tabs.
   • Connect the T-Connector containing the yellow wire between the separated connectors.
   • Ensure the connectors are fully inserted, and the locking tabs are secure.

3. Passenger’s Side Connection:

   • Remove the cargo floor panel and the cargo tray by unscrewing the spare tire hold-down nut. Set the cargo tray aside.
   • Route the T-Connector containing the green wire behind and under the trim panel along the vehicle floor near the spare tire.
   • Continue routing the wire across the vehicle, behind the trim panel, and up to the wiring access area on the passenger’s side.
   • Repeat Step 2 for the passenger’s side using the T-Connector containing the green wire.

4. Ground the White Wire:

   • Locate a suitable grounding point near the T-Connector. Do not drill into the vehicle floor or bed.
   • Clean the area to remove dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid vehicle damage or personal injury.

5. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-Connector harness to prevent damage or rattling.
   • Avoid areas that could pinch, cut, or melt the wire.

6. Reassemble the Vehicle:

   • Replace the foam insulation padding, wiring access panels, cargo tray, spare tire hold-down nut, and cargo floor panel removed during installation.
   • Store the 4-flat connector in the rear cargo area when not in use.

7. Test the Installation:

   • Test and verify the installation with a test light or trailer.
   • Ensure all connections are complete for the T-Connector to function properly.

Specifications:

• Max. Stop/Turn Light: 7.5 amps per side
• Max. Tail Lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual and instruction sheet for additional guidance.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
