For 1991-1994 Ford Explorer 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series Pilot Brake Controller + Plug & Play Adapter By Reese Towpower
Model: 78058 74184 8506020 20212 80550 3035-P-236314This Bundle Fits The Following Vehicles:
_x000D_1991-1994 Ford Explorer

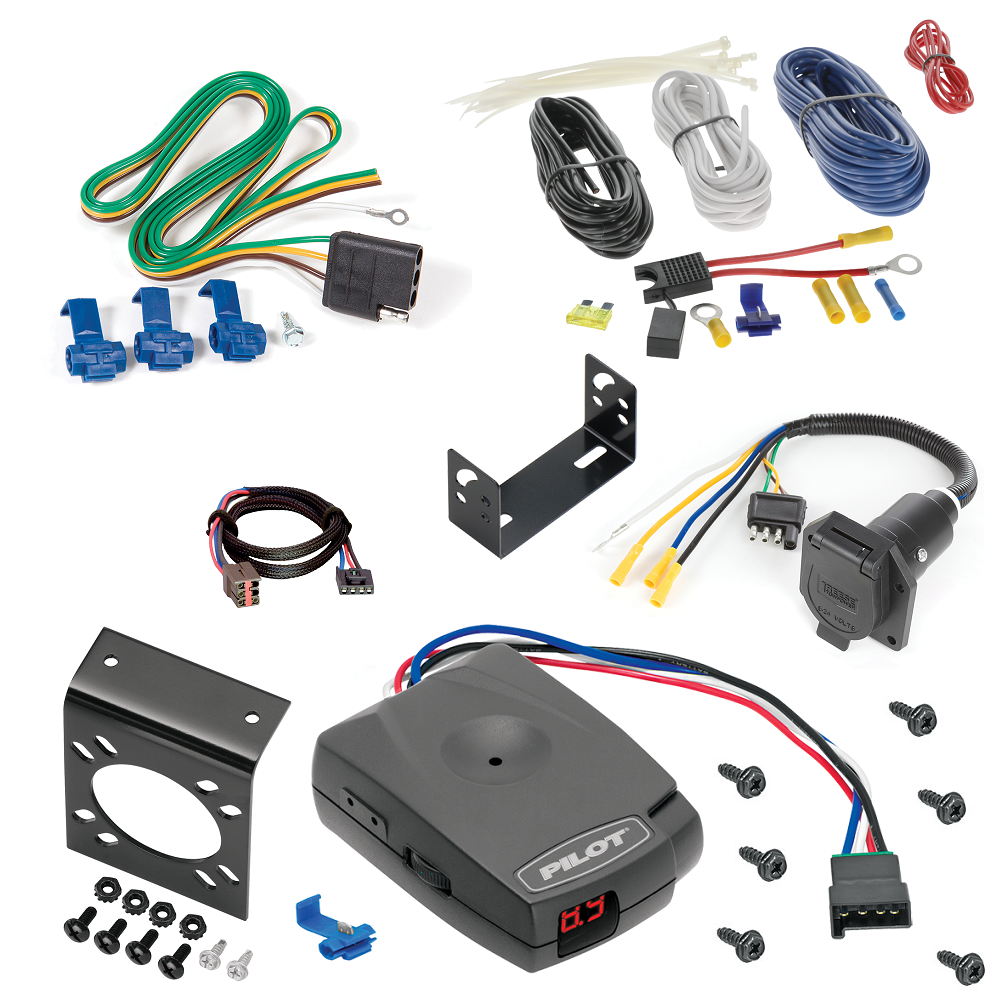

_x000D_ _x000D_This Bundle Includes the Following Parts:
_x000D_- _x000D_
- 7-Way RV Wiring _x000D_
- Pro Series Pilot Brake Control _x000D_
- Plug & Play BC Adapter _x000D_
List of fitment years:
_x000D_1991, 1992, 1993, 1994
_x000D_ _x000D_Wiring Connector, 4-Way Flat Vehicle End, 48 in. Length Wire Manufactured by: Reese Towpower
_x000D_The REESE Towpower electrical 4-Flat wiring kit is designed for the vehicle end, and includes 48 In. of wire with splice connectors. The included splice connectors make adding a 4-flat connector easy for most vehicle wiring systems.
_x000D_- _x000D_
- Molded 4-Flat vehicle connector _x000D_
- Features 18 gauge bonded wire _x000D_
- Ground wire runs full length of assembly _x000D_
- Tin plated terminals _x000D_
- Bolded wire for a clean neat appearance. _x000D_
- Rated for 7.5 amps per circuit _x000D_
- Conforms to SAE spec. J1128 standard _x000D_
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower
_x000D_The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.
_x000D_- _x000D_
- Provide versatility in going from 4-Flat to 7-Way standard plug _x000D_
- Pre-wired with 4-Flat and wired with butt connects and ring terminal _x000D_
- Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal _x000D_
- Features non-corroding brass terminals _x000D_
- Mounts to standard 7-Way bracket _x000D_
- Non-corrosive thermo plastic construction _x000D_
- Ring terminal already mounted to ground wire _x000D_
- 12 volt and brake wires have butt connectors already attached _x000D_
Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha
_x000D_This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
_x000D_- _x000D_
- OEM Style wiring harness _x000D_
- Easy to install _x000D_
- 1-3 axles _x000D_
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
_x000D_- _x000D_
- Mounts electrical connector to attachment bracket _x000D_
- Includes screws and nuts _x000D_
- Attractive point-of-purchase packaging _x000D_
Pilot® Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles Manufactured by: Pro Series
_x000D_Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.
_x000D_- _x000D_
- Large easy to read dual digital display shows: _x000D_
- Properly wired control _x000D_
- Voltage output to brakes (vs. a percentage) _x000D_
- Connection to trailer _x000D_
- Dark smoke lens ideal for direct light applications; performs better than red lens _x000D_
- Protection against short circuit/loss of ground _x000D_
- Microprocessor allows control to be mounted upside down and still have a readable display _x000D_
- Standard mounting bracket included with optional ball mount available _x000D_
- For use on any 12 volt negative ground system _x000D_
- Plug & Play feature allows quick and easy connection _x000D_
- Limited lifetime warranty _x000D_
Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
_x000D_Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
_x000D_$143 33 $186.39 23% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$186.39 $143 33
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese Towpower
- Model: 78058 74184 8506020 20212 80550 3035-P-236314
- Includes: Wiring Connector, Wiring Adapter, Trailer Brake Controller Installation Kit, Mounting Bracket, Pilot Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles, Trailer Brake Controller Custom Harness
