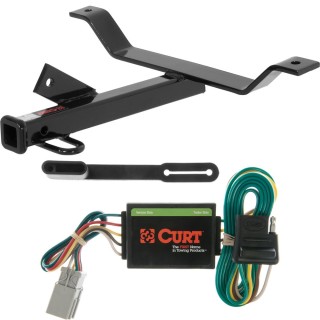

For 1998‑2002 Honda Accord Trailer Hitch + Wiring 4 Pin Fits Sedan Curt 11290 55336 1‑1/4 Tow Receiver
Model: 11290 55336-CH2232This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
1998 - 2002 Honda Accord Sedan

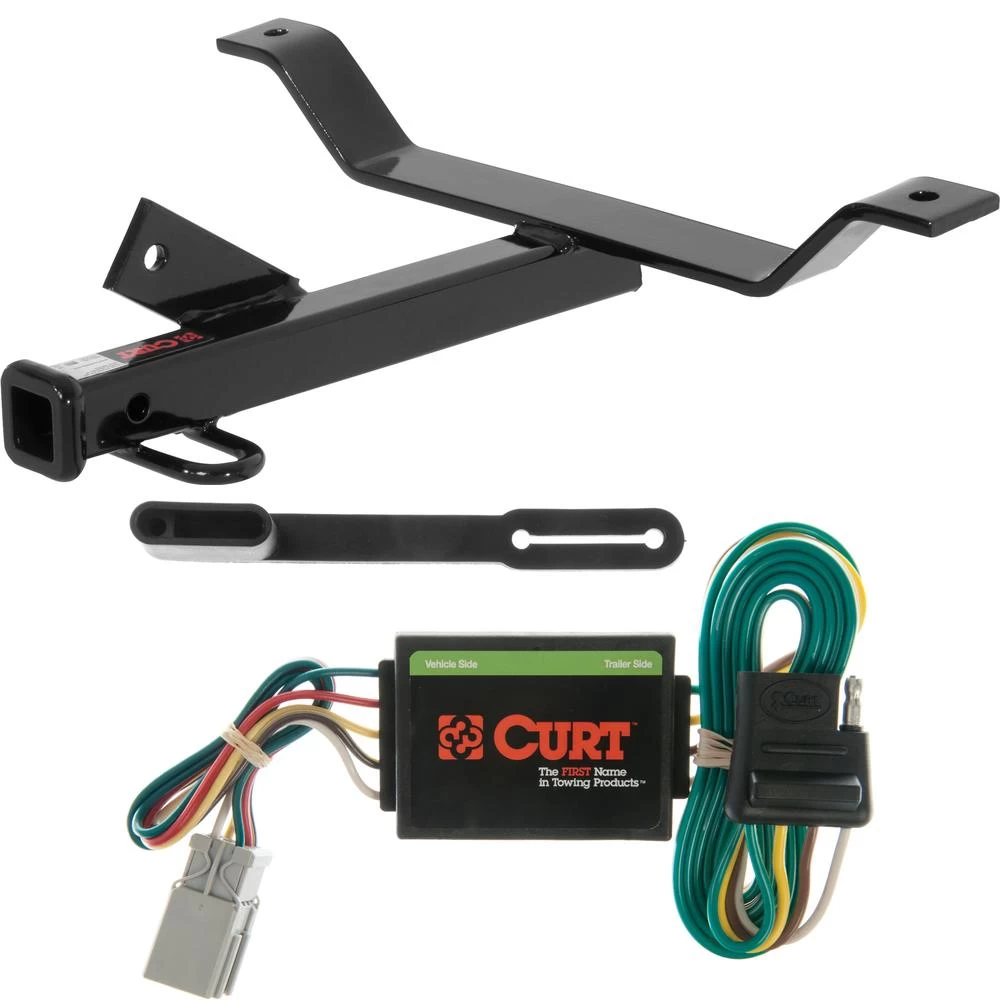

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Drilling Required)
- Custom Wiring Connector, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
1998, 1999, 2000, 2001, 2002

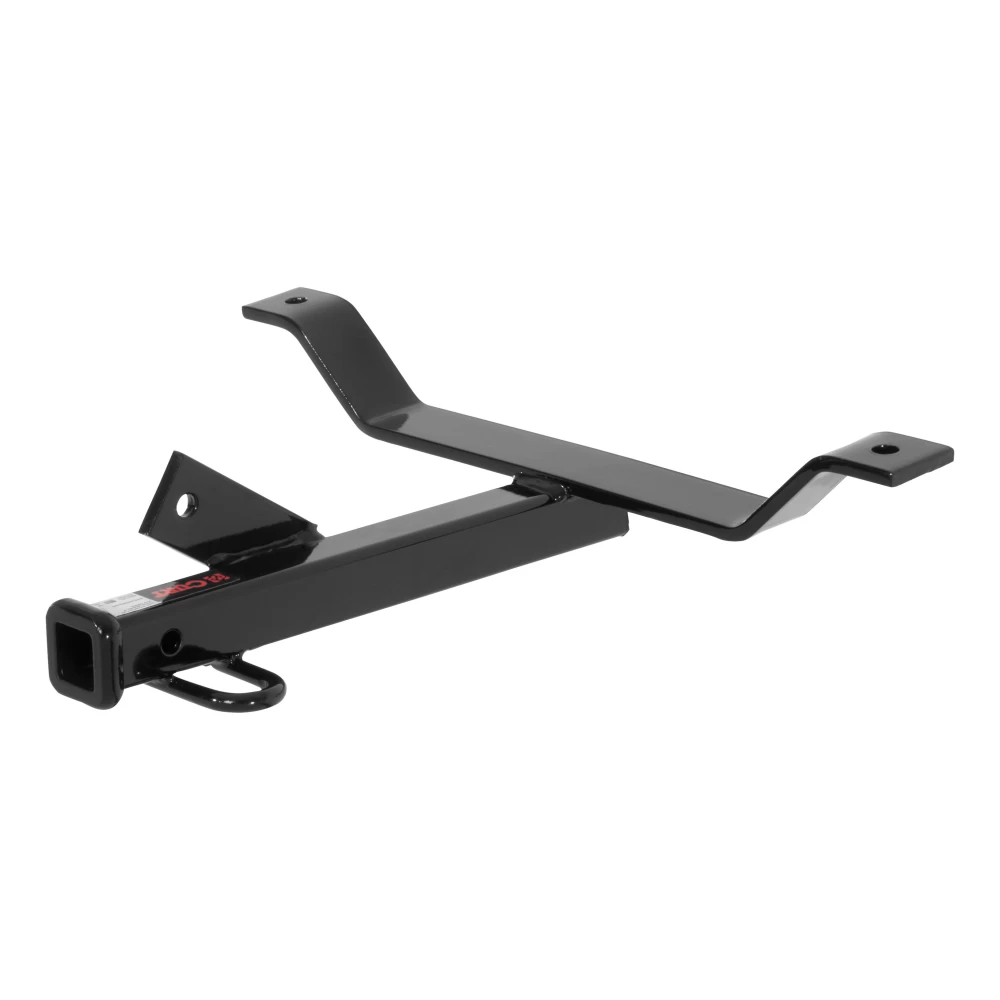

CURT 11290 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda Accord, Acura CL and Acura TL (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit (truck pan mount)
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
CURT 55336 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Accord, CRV, Element, Odyssey, Pilot and Prelude, Acura Integra, CL, RL, TL and MDX and Isuzu Oasis (to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:
- Plugs into existing OEM vehicle socket to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$210 75 $347.90 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$347.90 $210 75
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11290 55336-CH2232
- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Connector
Compatibility Chart
Get Expert Help
For 1998-2002 Honda Accord Trailer Hitch + Wiring 4 Pin Fits Sedan Curt 11290 55336 1-1/4 Tow Receiver Install Notes
Installation Instructions for 1998-2007 Honda Accord (Including Hybrid),
1999-2003 Acura 2.5 & 3.2 TL, and 2001-2003 Acura CL
Part Numbers:
- 11290
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
- Drill with 1/2" bit
- Silicone sealant
Step-by-Step Instructions:
-
Remove the Spare Tire:
- Remove the spare tire from the trunk to access the installation area.
-
Attach Hitch to Tow Hook:
- Attach the hitch to the tow hook with the attachment point nearest to the end of the receiver tube.
- Use two spacers on the driver side of the hook and one spacer on the passenger side.
- Secure the assembly using a 1/2" x 2-1/2" hex bolt.
-
Drill Holes in Trunk Pan:
- Using the hitch as a template, drill two 1/2" holes into the trunk pan.
-
Install Bolts and Hardware:
- Install the 1/2-13 bolts, spacer blocks, lock washers, and nuts as shown in the diagram.
-
Seal Drilled Holes:
- Seal the drilled holes in the trunk pan with silicone sealant to prevent water and exhaust fumes intrusion.
-
Reinstall Spare Tire:
- Reinstall the spare tire back into the trunk.
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
Hardware List:
- Hex Bolt, 1/2-13 UNC x 2-1/2, Grade 8, YZ: Qty 1 (Part No. 10-10402)
- Carriage Bolt, 1/2-13 UNC x 1-3/4, Grade 8, YZ: Qty 2 (Part No. 10-10272)
- Square Hole Spacer, .250 x 1.50 x 2.00": Qty 2 (Part No. CM-SP13)
- Square Hole Spacer, .250 x 1.50 x 3.00": Qty 2 (Part No. CM-SP4)
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 3 (Part No. 20-00062)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps.
- Periodically check the receiver hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 18 minutes
- Novice (DIY): 35 minutes
- Drilling Required: Yes
- Spare Tire Removal: Required
Manufacturer Notes:
- Designed for use with Ball Mount #D-224.
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 1998-2007 Honda Accord (Including Hybrid),
1999-2003 Acura 2.5 & 3.2 TL, and 2001-2003 Acura CL
Part Numbers:
- 11290
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
- Drill with 1/2" bit
- Silicone sealant
Step-by-Step Instructions:
-
Remove the Spare Tire:
- Remove the spare tire from the trunk to access the installation area.
-
Attach Hitch to Tow Hook:
- Attach the hitch to the tow hook with the attachment point nearest to the end of the receiver tube.
- Use two spacers on the driver side of the hook and one spacer on the passenger side.
- Secure the assembly using a 1/2" x 2-1/2" hex bolt.
-
Drill Holes in Trunk Pan:
- Using the hitch as a template, drill two 1/2" holes into the trunk pan.
-
Install Bolts and Hardware:
- Install the 1/2-13 bolts, spacer blocks, lock washers, and nuts as shown in the diagram.
-
Seal Drilled Holes:
- Seal the drilled holes in the trunk pan with silicone sealant to prevent water and exhaust fumes intrusion.
-
Reinstall Spare Tire:
- Reinstall the spare tire back into the trunk.
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
Hardware List:
- Hex Bolt, 1/2-13 UNC x 2-1/2, Grade 8: Qty 1
- Carriage Bolt, 1/2-13 UNC x 1-3/4, Grade 8: Qty 2
- Square Hole Spacer, .250 x 1.50 x 2.00": Qty 2
- Square Hole Spacer, .250 x 1.50 x 3.00": Qty 2
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8: Qty 3
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps.
- Periodically check the receiver hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 18 minutes
- Novice (DIY): 35 minutes
- Drilling Required: Yes
- Spare Tire Removal: Required
Important Notice:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty coverage details and duration apply as specified.
- For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Acura CL Series, Acura Integra, Acura MDX, Acura RL Series, Acura TL Series, Honda Accord, Honda CR-V, Honda Element, Honda Odyssey, Honda Pilot, Honda Prelude, and Isuzu Oasis
Part Number:
- 55336
Tools Required:
- Panel trim removal tool
- Phillips screwdriver
- Flat blade screwdriver
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 5.0 amps total
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Access the Vehicle's Taillight Wiring Connector:
- The location of the taillight wiring connector varies by vehicle model:
- Passenger Cars:
- Open the trunk and remove the plastic screw securing the passenger side trunk liner.
- Pull back the felt liner to locate the vehicle's taillight wiring connector, which will resemble the custom wiring connector.
- 1996-1999 Isuzu Oasis & 1995-1998 Honda Odyssey:
- Remove the rear access panel inside the van, behind the driver side taillight, to find the wiring connector.
- 1999-2004 Honda Odyssey:
- Open the trunk and remove the driver side cargo bracket screw.
- Pull back the trim panel to locate the wiring connector.
- 1997-2001 Honda CR-V:
- Remove the three screws securing the rear driver side speaker and cover.
- Remove the speaker and cover to find the wiring connector, which is secured to the speaker wires.
- 2002-2006 Honda CR-V:
- Open the trunk and remove the cargo door on the floor.
- Remove the storage container, rear threshold, driver side cargo bracket screw, and cargo screw on the driver side trim panel.
- Unscrew the cargo bracket from the vehicle floor.
- Carefully pry the trim panel away to reveal the wiring connector taped near the vehicle floor.
- Acura MDX:
- Open the trunk and remove the cargo door on the floor.
- Remove the headrests from their storage location.
- Locate and remove two clips inside the storage area on the threshold.
- Carefully pry the threshold to remove it.
- The wiring connector is inside the cargo area, on the driver side, attached to the threshold plate.
- Honda Pilot:
- Open the trunk and carefully pry the driver side threshold to locate the wiring connector.
- Honda Element:
- Open the trunk and remove the cargo door on the floor.
- Remove the screws holding the spring-loaded hinge cover and set it aside.
- Carefully remove the three plastic clips holding the passenger side trim panel to the floor.
- Remove the five screws securing the passenger side trim panel.
- Remove the cargo net bracket and carefully pull back the trim panel, avoiding damage to tabs or clips.
- Passenger Cars:
- The location of the taillight wiring connector varies by vehicle model:
-
Prepare the Vehicle Connector:
- Locate the vehicle harness connectors.
- Carefully remove any tape securing the connectors, ensuring not to damage the locking tabs.
- Inspect the connectors for dirt and debris; clean if necessary.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector (Honda CR-V Only):
- Route the custom wiring connector's 4-flat plug from under the trim panel along the carpet edge.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Installation Instructions
Part Number:
- 55336
Tools Required:
- Panel trim removal tool
- Phillips screwdriver
- Flat blade screwdriver
Electrical System Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 5.0 amps total
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Access the Vehicle's Taillight Wiring Connector:
- The location of the taillight wiring connector varies by vehicle model:
- Passenger Cars:
- Open the trunk and remove the plastic screw securing the passenger side trunk liner.
- Pull back the felt liner to locate the vehicle's taillight wiring connector, which will resemble the custom wiring connector.
- 1996-1999 Isuzu Oasis & 1995-1998 Honda Odyssey:
- Remove the rear access panel inside the van, behind the driver side taillight, to find the wiring connector.
- 1999-2004 Honda Odyssey:
- Open the trunk and remove the driver side cargo bracket screw.
- Pull back the trim panel to locate the wiring connector.
- 1997-2001 Honda CR-V:
- Remove the three screws securing the rear driver side speaker and cover.
- Remove the speaker and cover to find the wiring connector, which is secured to the speaker wires.
- 2002-2006 Honda CR-V:
- Open the trunk and remove the cargo door on the floor.
- Remove the storage container, rear threshold, driver side cargo bracket screw, and cargo screw on the driver side trim panel.
- Unscrew the cargo bracket from the vehicle floor.
- Carefully pry the trim panel away to reveal the wiring connector taped near the vehicle floor.
- Acura MDX:
- Open the trunk and remove the cargo door on the floor.
- Remove the headrests from their storage location.
- Locate and remove two clips inside the storage area on the threshold.
- Carefully pry the threshold to remove it.
- The wiring connector is inside the cargo area, on the driver side, attached to the threshold plate.
- Honda Pilot:
- Open the trunk and carefully pry the driver side threshold to locate the wiring connector.
- Honda Element:
- Open the trunk and remove the cargo door on the floor.
- Remove the screws holding the spring-loaded hinge cover and set it aside.
- Carefully remove the three plastic clips holding the passenger side trim panel to the floor.
- Remove the five screws securing the passenger side trim panel.
- Remove the cargo net bracket and carefully pull back the trim panel, avoiding damage to tabs or clips.
- Passenger Cars:
- The location of the taillight wiring connector varies by vehicle model:
-
Prepare the Vehicle Connector:
- Locate the vehicle harness connectors.
- Carefully remove any tape securing the connectors, ensuring not to damage the locking tabs.
- Inspect the connectors for dirt and debris; clean if necessary.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Mount the Converter Box:
- Choose a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the 4-Flat Connector (Honda CR-V Only):
- Route the custom wiring connector's 4-flat plug from under the trim panel along the carpet edge.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
