Product Details
- Brand: Curt
- Model: 13344 55355 57187 58303-CH3177

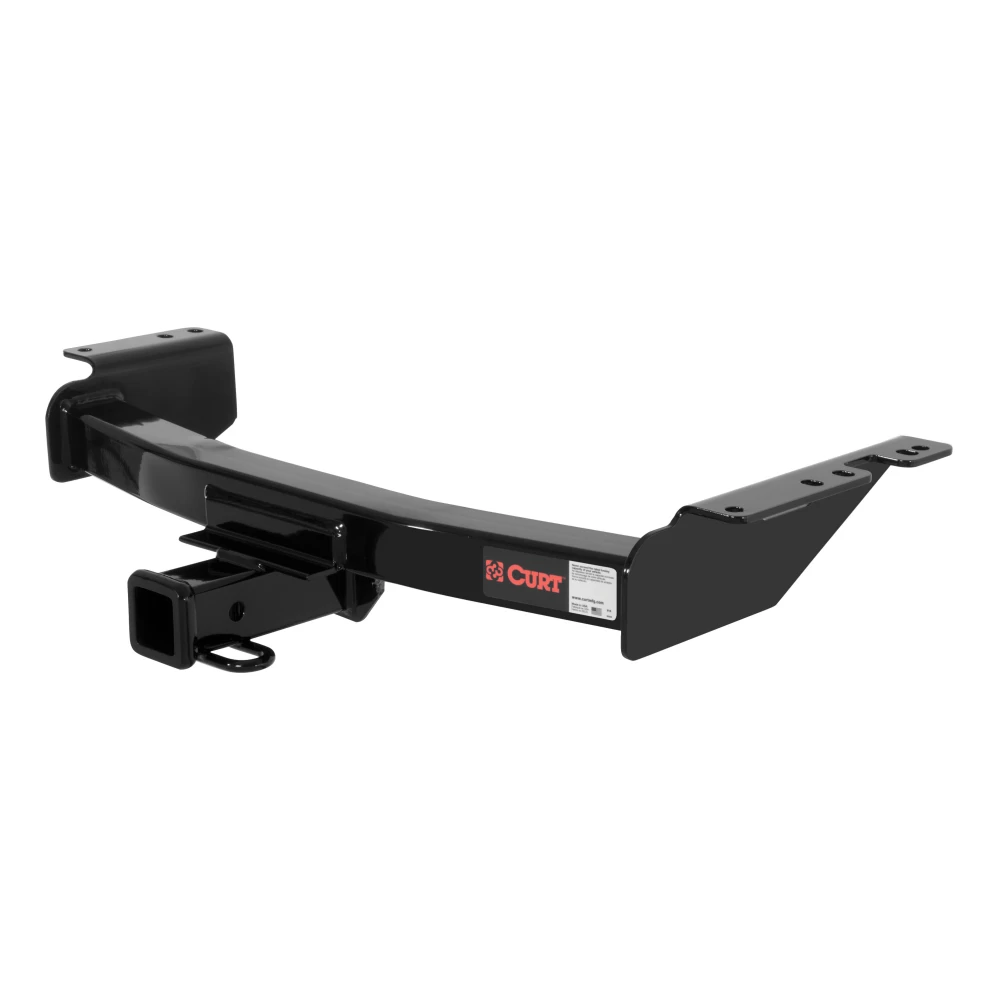

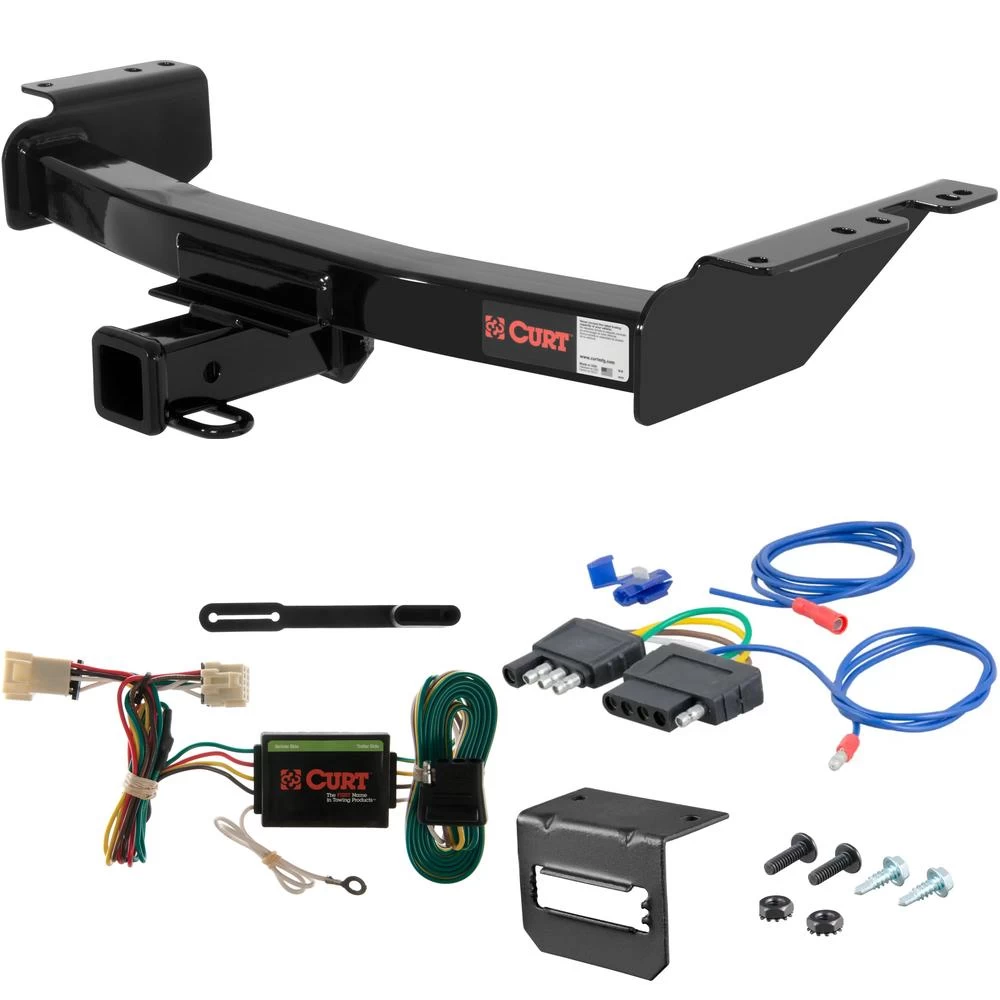

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Get Expert Help
For 1999-2005 Pontiac Montana Trailer Hitch + Wiring 5 Pin Fits All Models Curt 13344 2 inch Tow Receiver Install Notes
Installation Instructions for 1997-2007 Chevrolet Venture, 1997-2005 Oldsmobile Silhouette,
1997-2005 Pontiac Trans Sport, 2005-2008 Chevrolet Uplander, 2005-2007 Saturn Relay,
2005-2007 Buick Terraza, and 2008+ Pontiac Montana SV6 (Canada Only)
Part Numbers:
- 13344
Tools Required:
- Ratchet
- 6" Extension
- 3/4" Socket
- 11/16" Socket
- 15mm Socket
- 10mm Socket
- Pliers
- Drill with 17/32" Bit
- Torque Wrench
Step-by-Step Instructions:
-
Lower Exhaust:
- Lower the exhaust by detaching the exhaust hanger on the passenger side.
-
Lower Load Leveling Compressor (if equipped):
- On the driver’s side, remove the load leveling compressor using one M10 bolt and two M6 nuts.
- If necessary, trim the vertical tab on the compressor bracket to clear the adjacent M10 bolt.
-
Raise the Hitch into Position:
- Raise the hitch into position and secure it using the M10-1.5 x 45mm bolts into the existing weldnuts on both sides.
-
Drill Mounting Holes:
- Using the rear-most holes in the hitch side plate as a template, drill 1/2" holes into the vehicle frame rails.
- Long Wheelbase Models: Drill a 1/2" hole in the forward-most passenger side plate hole.
- Short Wheelbase Models: The forward-most hole aligns with the existing slot in the frame rail.
-
Fishwire Carriage Bolts:
- On the passenger side, fishwire a 1/2" carriage bolt and spacer blocks through the existing slot in the frame rail and into the forward-most drilled hole.
- Secure the bolts using blocks, lock washers, and nuts as follows:
- Short Wheelbase: Place two spacer blocks between the frame rail and hitch.
- Long Wheelbase: Place two spacer blocks between the hitch and flange nut.
-
Install Handle Nuts:
- Insert the handle nut through the square hole in the vehicle frame rail.
- Install the hex bolt and conical washer through the rear-most drilled hole.
-
Reattach Exhaust Hanger and Compressor:
- Reattach the exhaust hanger and load leveling compressor using the original M10 fasteners.
- AWD Models: Pass the exhaust hanger through the 3" slot in the side plate and use 1/4" spacer blocks for reattachment.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
- Torque all M10 hardware to 45 lb-ft.
- Torque all M6 hardware to 9 lb-ft.
-
Final Inspection:
- Periodically check the hitch to ensure all fasteners are tight and structural components remain sound.
Hardware List:
- Carriage Bolt, 1/2-13 x 2, Grade 8, YZ: Qty 1
- Handle Nut, 1/2-13 UNC, Grade 8, CZ: Qty 1
- Hex Bolt, 1/2-13 x 1-1/2, Grade 8, YZ: Qty 2
- Hex Bolt, M10 x 1.5 x 45, Class 10.9, YZ: Qty 2
- Conical Washer, 1/2, YZ: Qty 2
- Conical Washer, 3/8, YZ: Qty 2
- Spacer Block, .250 x 1.50 x 2.00, Square Hole: Qty 2
- Spacer Block, .250 x 1.75 x 2.00, U-Shape: Qty 2
- Spacer Block, .250 x 2.00 x 2.00, Round Hole: Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 4,000 lbs (trailer weight), 400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 45 minutes
- Novice (DIY): 60 minutes
- Drilling Required: Yes
- Lower Exhaust: Required
- Clean Weldnuts: Required
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 1997-2007 Chevrolet Venture, 1997-2005 Oldsmobile Silhouette,
1997-2005 Pontiac Trans Sport, 2005-2008 Chevrolet Uplander, 2005-2007 Saturn Relay,
2005-2007 Buick Terraza, and 2008+ Pontiac Montana SV6 (Canada Only)
Product Information:
- Part Number: 13344
Tools Required:
- Ratchet
- 6" Extension
- 3/4" Socket
- 11/16" Socket
- 15mm Socket
- 10mm Socket
- Pliers
- Drill with 17/32" Bit
- Torque Wrench
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the exhaust hanger on the passenger side to lower the exhaust.
-
Lower Load Leveling Compressor (if equipped):
- On the driver’s side, remove the load leveling compressor using one M10 bolt and two M6 nuts.
- Trim the vertical tab on the compressor bracket if necessary to clear the adjacent M10 bolt.
-
Raise the Hitch into Position:
- Lift the hitch into position and secure it using M10-1.5 x 45mm bolts in the existing weldnuts on both sides.
-
Drill Mounting Holes:
- Use the rear-most holes in the hitch side plate as a template to drill 1/2" holes into the vehicle frame rails.
- Long Wheelbase Models: Drill a 1/2" hole in the forward-most passenger side plate hole.
- Short Wheelbase Models: Align the forward-most hole with the existing slot in the frame rail.
-
Fishwire Carriage Bolts:
- On the passenger side, fishwire a 1/2" carriage bolt and spacer blocks through the existing slot in the frame rail and into the forward-most drilled hole.
- Secure bolts using blocks, lock washers, and nuts:
- Short Wheelbase: Place two spacer blocks between the frame rail and hitch.
- Long Wheelbase: Place two spacer blocks between the hitch and flange nut.
-
Install Handle Nuts:
- Insert the handle nut through the square hole in the vehicle frame rail.
- Install the hex bolt and conical washer through the rear-most drilled hole.
-
Reattach Exhaust Hanger and Compressor:
- Reattach the exhaust hanger and load leveling compressor using the original M10 fasteners.
- AWD Models: Pass the exhaust hanger through the 3" slot in the side plate and use 1/4" spacer blocks for reattachment.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
- Torque all M10 hardware to 45 lb-ft.
- Torque all M6 hardware to 9 lb-ft.
-
Final Inspection:
- Periodically check the hitch to ensure all fasteners are tight and structural components remain sound.
Hardware List:
- (1) 1/2"-13 x 2 Carriage Bolt, Grade 8
- (1) 1/2"-13 Handle Nut, Grade 8
- (2) 1/2"-13 x 1-1/2 Hex Bolts, Grade 8
- (2) M10 x 1.5 x 45 Hex Bolts, Class 10.9
- (2) 1/2" Conical Washers
- (2) 3/8" Conical Washers
- (2) Spacer Block, .250 x 1.50 x 2.00 (Square Hole)
- (2) Spacer Block, .250 x 1.75 x 2.00 (U-Shape)
- (2) Spacer Block, .250 x 2.00 x 2.00 (Round Hole)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 4,000 lbs (trailer weight), 400 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Always adhere to the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch for secure fasteners and structural integrity.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 45 minutes
- Novice (DIY): 60 minutes
- Drilling Required: Yes
- Lower Exhaust: Required
- Clean Weldnuts: Required
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed manufacturer recommendations, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting TrailerJacks.com or calling 877-869-6690.
End of Instructions

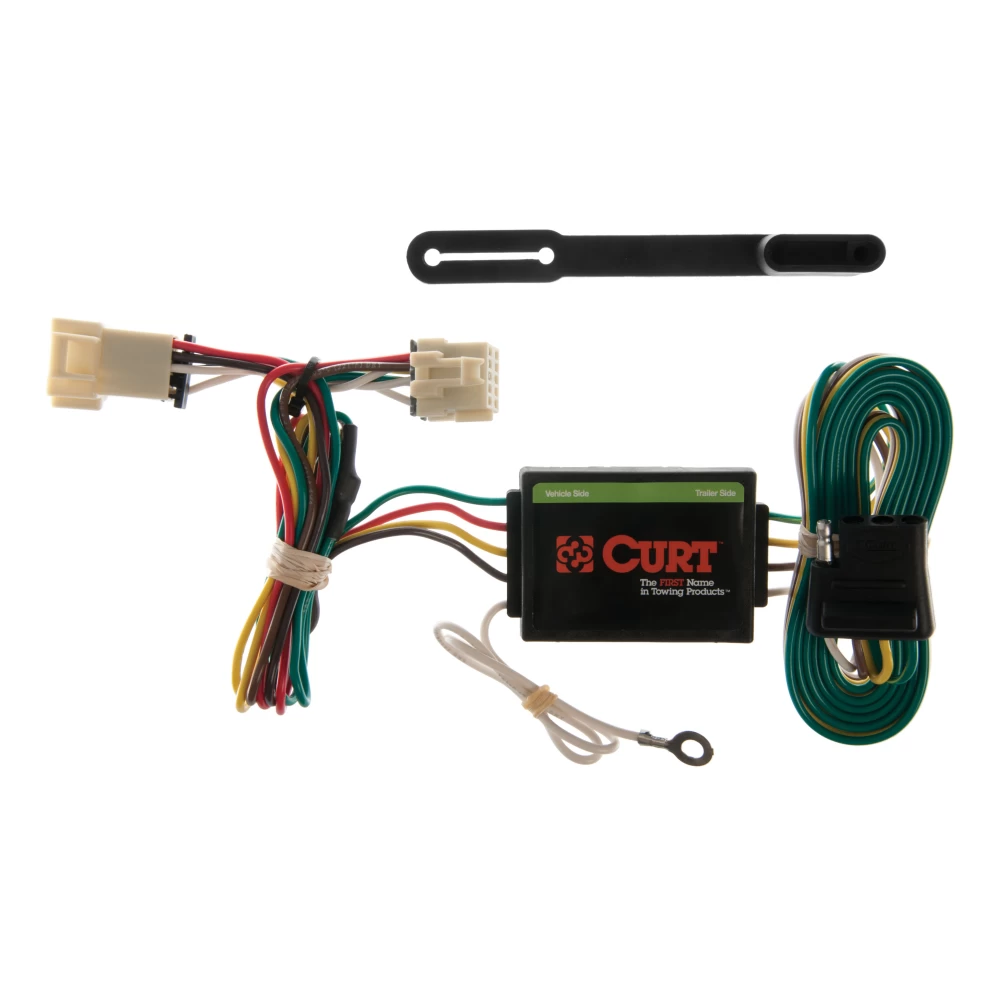

Installation Instructions for Chevrolet Venture, Oldsmobile Silhouette, Pontiac Montana (2007-2009 Canada only), and Pontiac Trans Sport Van
Part Number:
- 55355
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 5.0 amps total
Wiring Access Location:
- S3: Behind driver side rear access panel
Step-by-Step Instructions:
-
Access the Storage Compartment:
- Open the vehicle's tailgate.
- Remove the driver side storage compartment door.
-
Remove the Storage Compartment Panel:
- Take out the four plastic trim fasteners securing the storage compartment panel.
-
Locate the Taillight Wiring Harness Connectors:
- Pull back the side trim panel to find the vehicle's taillight wiring harness connectors, which should resemble those on the custom wiring harness.
- If the vehicle connectors are already connected, carefully separate them from the taillight housing without damaging the locking tabs.
-
Install the Custom Wiring Harness:
- Insert the custom wiring harness end between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Find a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Note: Ensure all connections are secure and test the wiring with a properly wired trailer or test light to confirm functionality.
Installation Instructions for Chevrolet Venture, Oldsmobile Silhouette, Pontiac Montana (2007-2009 Canada only), and Pontiac Trans Sport Van
Part Number:
- 55355
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Electrical Ratings:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 5.0 amps total
Wiring Access Location:
- S3: Behind driver side rear access panel
Step-by-Step Instructions:
-
Access the Storage Compartment:
- Open the vehicle's tailgate.
- Remove the driver side storage compartment door.
-
Remove the Storage Compartment Panel:
- Take out the four plastic trim fasteners securing the storage compartment panel.
-
Locate the Taillight Wiring Harness Connectors:
- Pull back the side trim panel to find the vehicle's taillight wiring harness connectors, which should resemble those on the custom wiring harness.
- If the vehicle connectors are already connected, carefully separate them from the taillight housing without damaging the locking tabs.
-
Install the Custom Wiring Harness:
- Insert the custom wiring harness end between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Find a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Note: Ensure all connections are secure and test the wiring with a properly wired trailer or test light to confirm functionality.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
