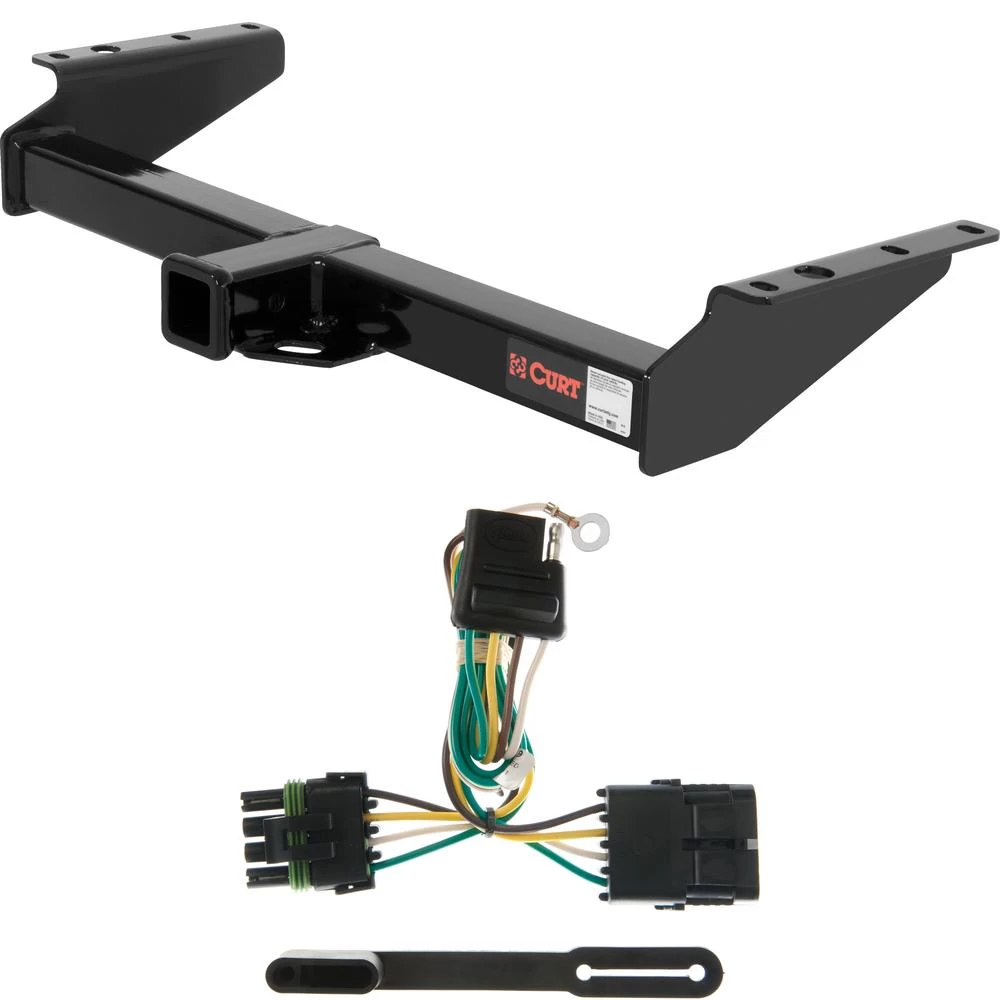

For 2000 GMC Yukon Trailer Hitch + Wiring 4 Pin Fits Denali - Old Body Style Curt 13029 55319 2 inch Tow Receiver
Model: 13029 55319-CH2219This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2000 - 2000 GMC Yukon Denali - Old Body Style
This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Hitch, 2" (Easy Bolt-On, No Drilling)
- Custom Wiring, 4-Way Flat (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2000

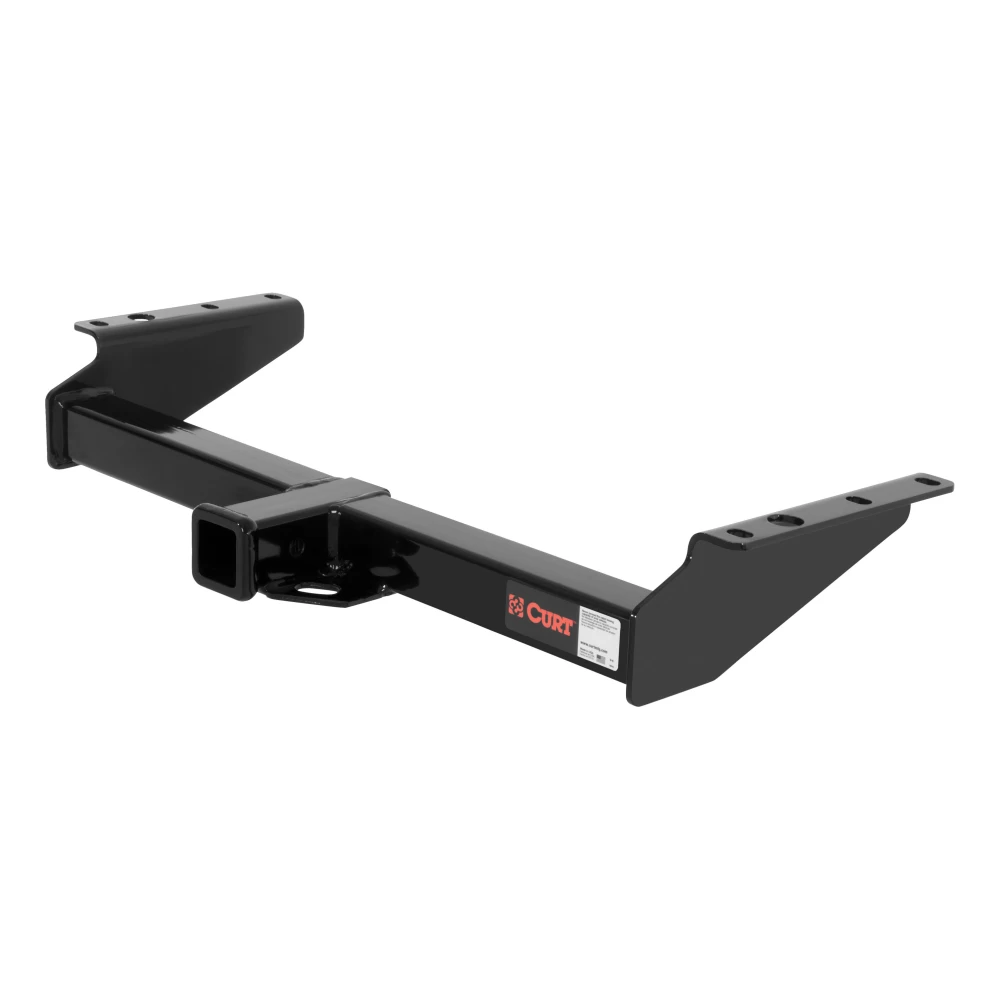

CURT 13029 Class 3 Trailer Hitch, 2-Inch Receiver, Square Tube Frame
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Chevy Blazer, Chevy Suburban, Chevy Tahoe, Cadillac Escalade and GMC Yukon (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 6,000 lbs GTW and 600 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs WD and 1,000 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 6,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Compatible with weight distribution hitch (10,000 lbs. WD / 1,000 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

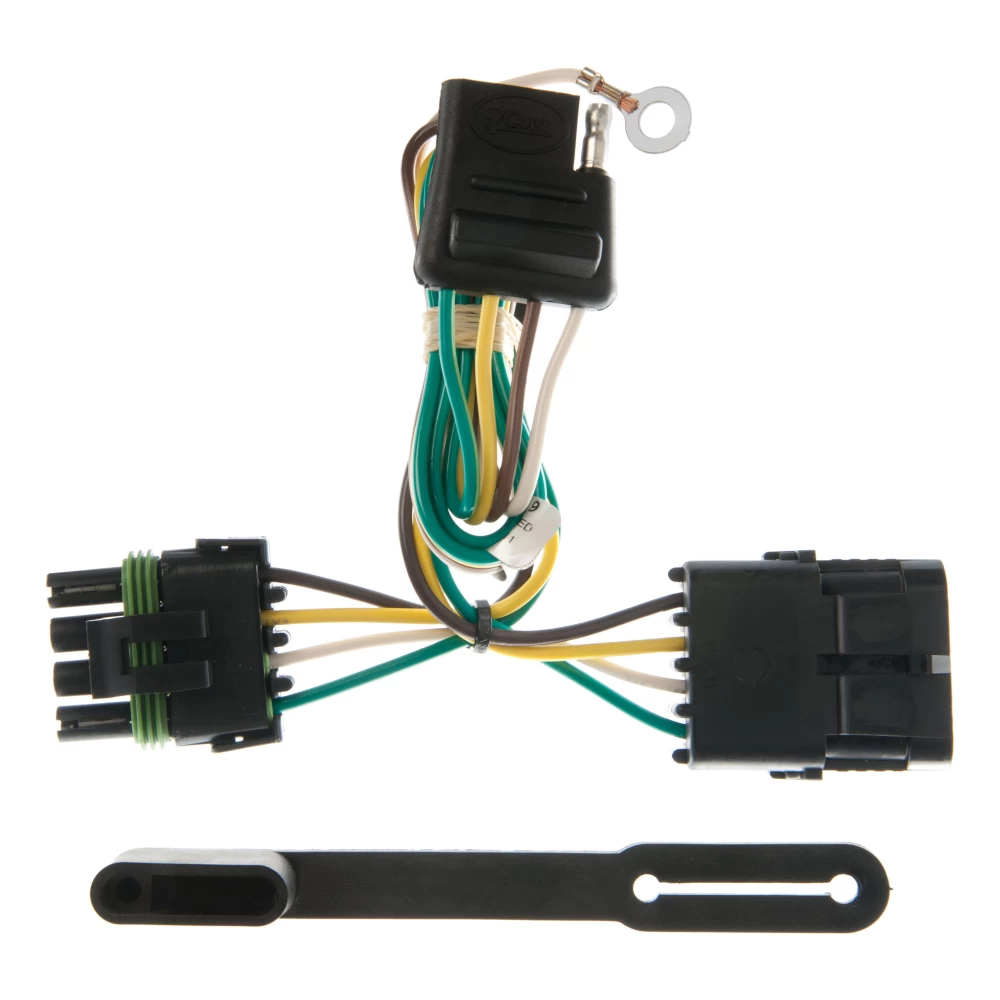

CURT 55319 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Blazer, C1500 Suburban, C2500 Suburban, K1500 Suburban, K2500 Suburban, Tahoe, GMC C1500 Suburban, C2500 Suburban, K1500 Suburban, K2500 Suburban, Yukon, Yukon XL 1500, Yukon XL 2500 and Cadillac Escalade (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$216 44 $357.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$357.90 $216 44
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13029 55319-CH2219
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring
Compatibility Chart
Get Expert Help
For 2000 GMC Yukon Trailer Hitch + Wiring 4 Pin Fits Denali - Old Body Style Curt 13029 55319 2 inch Tow Receiver Install Notes
Installation Instructions for 92-96 Chevy/GMC Full-Size Blazer, 92-00 Suburban, Yukon, Yukon XL, Tahoe, and 99-00 Cadillac Escalade (Old Body Style)
Part Numbers:
- 13029 / RRH13029
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 1/2" drill bit
- Fishwire tool (provided)
Step-by-Step Instructions:
-
Prepare the Frame:
- Locate the existing mounting holes in the frame rails.
- On some models, enlarge the existing holes to 1/2" using a drill bit.
-
Fishwire Bolts into Position:
- For boxed-in frames, use the fishwire technique to install the 1/2-13 x 2" carriage bolts and CM-SP16 square hole spacers through an existing access hole in the frame and into the mounting holes.
- Securely wrap the fishwire around the bolt threads to prevent dropping the hardware into the frame.
-
Raise the Hitch into Position:
- Carefully raise the hitch into position against the frame.
- Align the hitch mounting slots over the carriage bolts and frame rivets.
- Take care not to push the bolts back into the frame during this step.
-
Install Fasteners:
- Secure the hitch to the frame using 1/2" flange nuts provided in the hardware kit.
-
Torque Fasteners:
- Torque all 1/2" bolts to 110 ft-lbs using a torque wrench.
Hardware List:
- 1/2" Fishwire: Qty 1
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2
- Bolt, Carriage, 1/2-13 UNC, 2, Grade 8, YZ: Qty 3
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 3
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 32 minutes
- Drilling Required: Yes, to enlarge holes.
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 92-96 Chevy/GMC Full-Size Blazer, 92-00 Suburban, Yukon, Yukon XL, Tahoe, and 99-00 Cadillac Escalade (Old Body Style)
Part Numbers:
- 13029 / RRH13029
Wiring Access Location:
Not specified.
Tools Required:
- Torque wrench
- Ratchet
- 1/2" drill bit
- Fishwire tool (provided)
Step-by-Step Instructions:
-
Prepare the Frame:
- Locate the existing mounting holes in the frame rails.
- On some models, enlarge the existing holes to 1/2" using a drill bit.
-
Fishwire Bolts into Position:
- For boxed-in frames, use the fishwire technique to install the 1/2-13 x 2" carriage bolts and CM-SP16 square hole spacers through an existing access hole in the frame and into the mounting holes.
- Securely wrap the fishwire around the bolt threads to prevent dropping the hardware into the frame.
-
Raise the Hitch into Position:
- Carefully raise the hitch into position against the frame.
- Align the hitch mounting slots over the carriage bolts and frame rivets.
- Take care not to push the bolts back into the frame during this step.
-
Install Fasteners:
- Secure the hitch to the frame using 1/2" flange nuts provided in the hardware kit.
-
Torque Fasteners:
- Torque all 1/2" bolts to 110 ft-lbs using a torque wrench.
Hardware List:
- 1/2" Fishwire: Qty 1
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2
- Bolt, Carriage, 1/2-13 UNC, 2, Grade 8, YZ: Qty 3
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 3
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 32 minutes
- Drilling Required: Yes, to enlarge holes.
For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Coverage: Limited Lifetime Warranty
- For complete warranty instructions, please download the full installation PDF.
Warning: All non-trailer loads must be supported by auxiliary stabilizing straps to maintain warranty coverage.
Installation Instructions for Cadillac Escalade, Chevrolet Blazer, Suburban, Tahoe, and GMC Suburban, Yukon
Part Number:
- 55319
Step-by-Step Instructions:
-
Locate the Vehicle's Factory Tow Harness:
- Under the vehicle, along the driver's side frame rail (location S6), locate the factory tow harness.
- The connectors should resemble those on the T-connector.
-
Disconnect the Connectors:
- Carefully separate the connectors, ensuring not to damage the locking tabs.
- Insert the T-connector between the disconnected connectors, making sure the locking tabs are securely in place.
-
Establish a Ground Connection:
- Find a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle's frame.
- If unavailable, drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle.
- Secure it in a convenient, out-of-the-way location.
Safety Notes:
- Warning: Before drilling, verify that there are no hidden components behind or under the surface to prevent damage and/or personal injury.
Installation Instructions for Cadillac Escalade, Chevrolet Blazer, Suburban, Tahoe, and GMC Suburban, Yukon
Part Number:
- 55319
Step-by-Step Instructions:
-
Locate the Vehicle's Factory Tow Harness:
- Under the vehicle, along the driver's side frame rail (location S6), locate the factory tow harness.
- The connectors should resemble those on the T-connector.
-
Disconnect the Connectors:
- Carefully separate the connectors, ensuring not to damage the locking tabs.
- Insert the T-connector between the disconnected connectors, making sure the locking tabs are securely in place.
-
Establish a Ground Connection:
- Find a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle's frame.
- If unavailable, drill a 3/32" hole and secure the white wire using the provided eyelet and screw.
-
Route the 4-Flat Connector:
- Route the 4-flat connector to the center of the vehicle.
- Secure it in a convenient, out-of-the-way location.
Safety Notes:
- Warning: Before drilling, verify that there are no hidden components behind or under the surface to prevent damage and/or personal injury.
Warranty:
For complete warranty information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
