For 2003‑2005 Mercedes ML350 Trailer Hitch Fits All Models Curt 13018 2 inch Tow Receiver
Model: 13018-CH2911This Trailer Tow Hitch Fits The Following Vehicles:
2003 - 2005 Mercedes-Benz ML350 All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2003, 2004, 2005

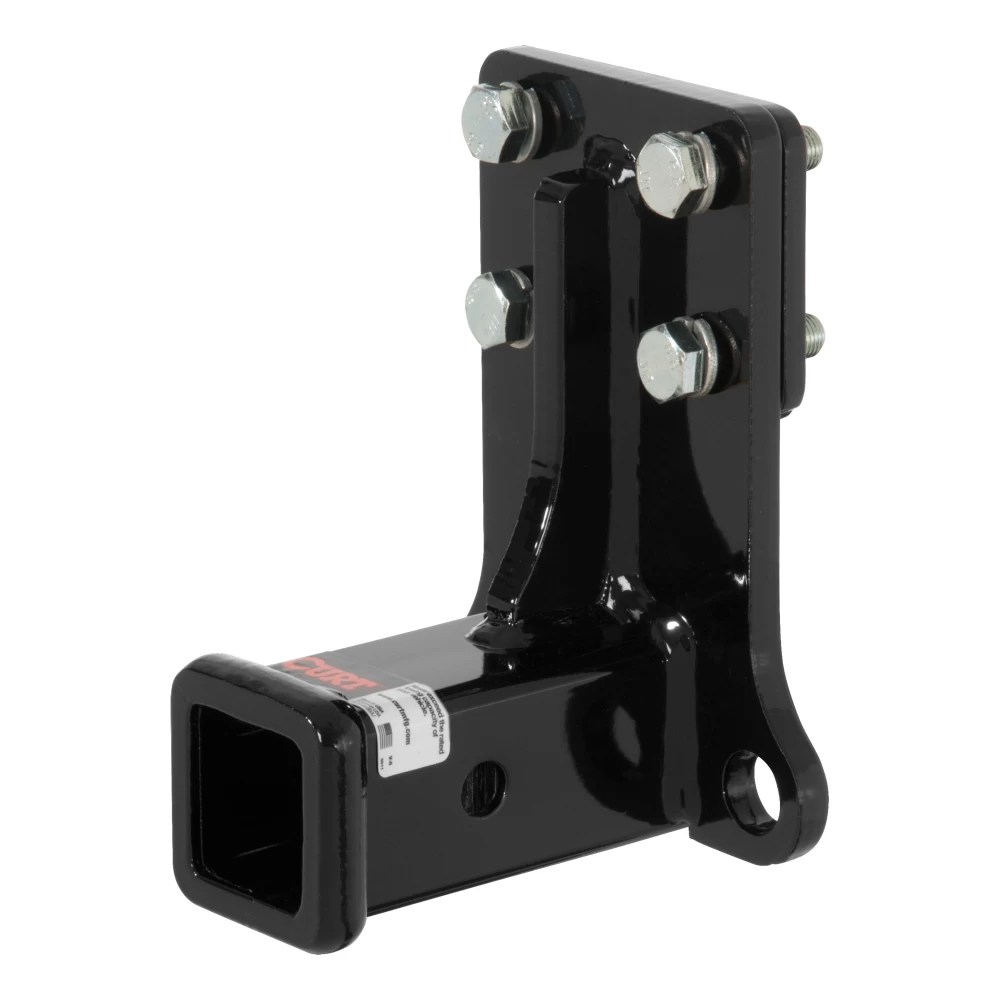

CURT 13018 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Mercedes-Benz ML320, ML350, ML430 and ML500 (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

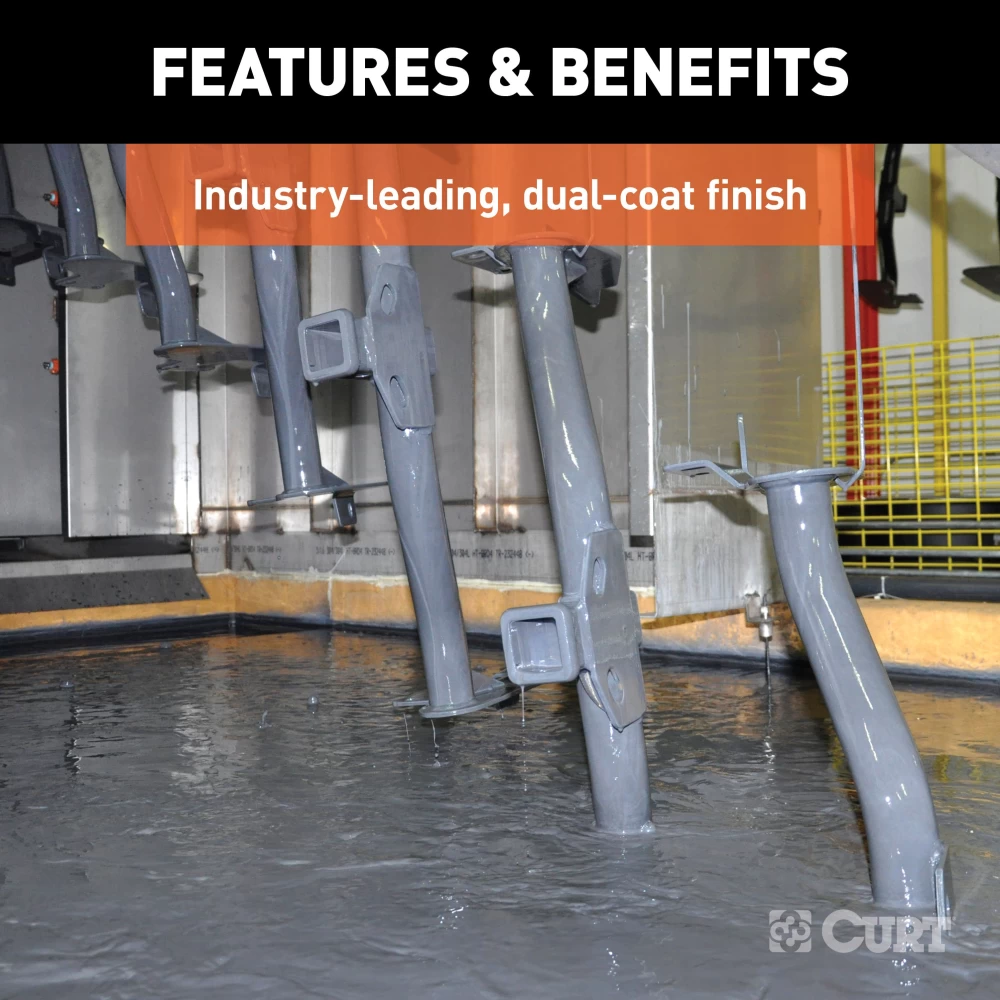

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

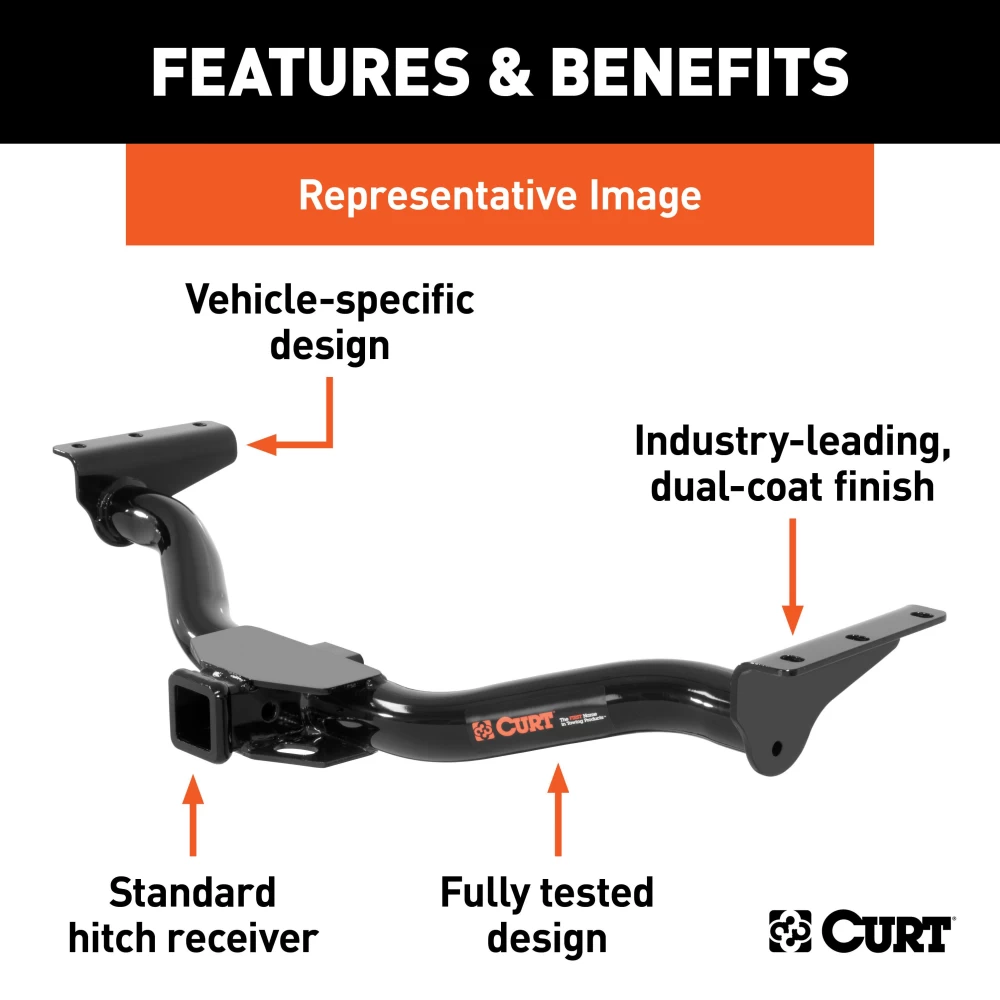

Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

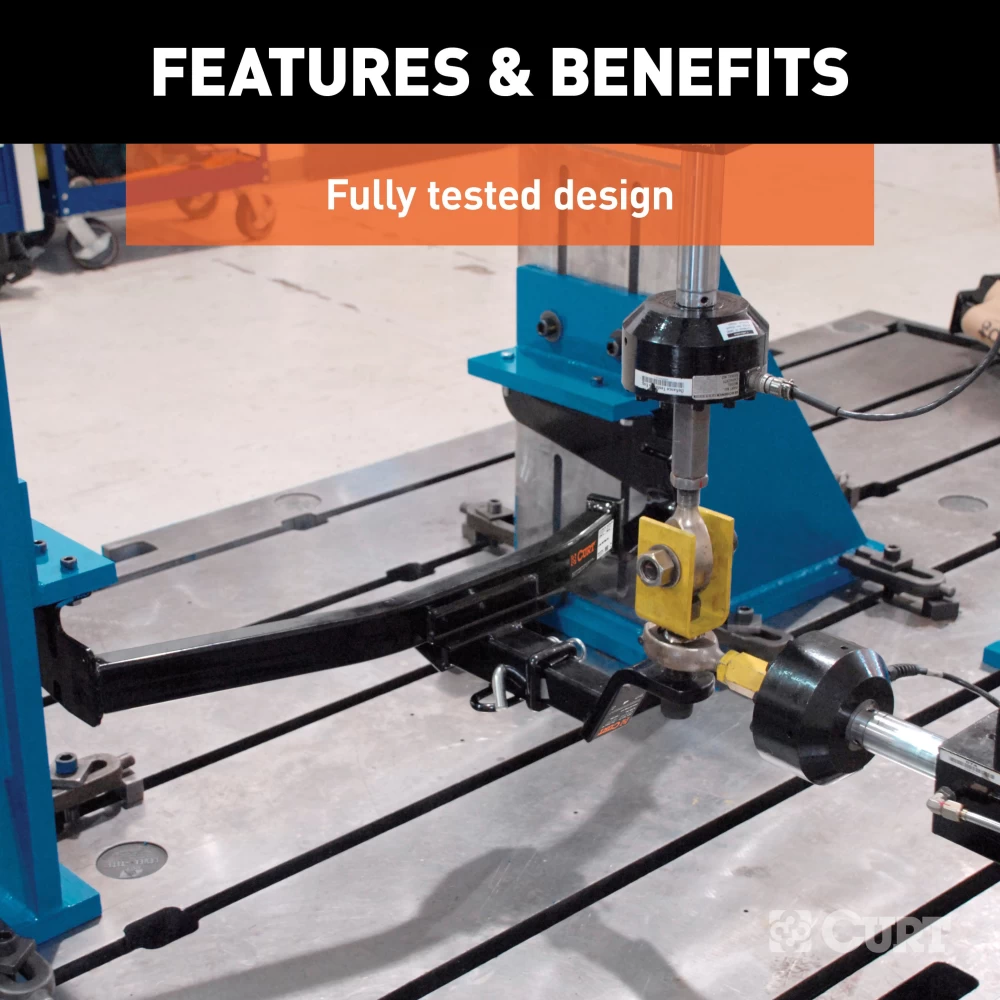

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$204 70 $318.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$318.95 $204 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Each may be shipped from a separate location, and therefore, may arrive at different times
Product Details
- Brand: Curt
- Model: 13018-CH2911
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2003-2005 Mercedes ML350 Trailer Hitch Fits All Models Curt 13018 2 inch Tow Receiver Install Notes
Installation Instructions for 1998-2002 Mercedes-Benz ML320, 1999-2001 Mercedes-Benz ML430,
2003-2005 Mercedes-Benz ML350, and 2002-2005 Mercedes-Benz ML500
Part Numbers:
- 13018
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
Step-by-Step Instructions:
-
Remove Plastic Bumper Fascia:
- Temporarily remove the plastic bumper fascia:
- Carefully remove the large center door and the smaller left and right doors.
- This will expose the fascia mounting screws. Remove the screws and fascia.
- Note: If the vehicle is equipped with an outboard spare tire carrier, temporarily remove the tire and mounting brackets as necessary.
- Temporarily remove the plastic bumper fascia:
-
Position the Hitch:
- Position the hitch over the existing weldnuts in the bumper beam.
-
Install Spacer Plate (if necessary):
- If the vehicle is equipped with a spare tire bracket mounted on the bumper beam, install the spacer plate between the hitch and bumper.
-
Secure the Hitch:
- Install the provided M14 bolts and lock washers as shown in the diagram.
-
Torque Fasteners:
- Torque all hardware to 136 lb-ft.
-
Reinstall Components:
- Reinstall the plastic bumper fascia and any components temporarily removed, such as the spare tire and its mounting brackets.
Hardware List:
- Hex Bolt, M14 x 1.5 x 50, Class 10.9, YZ: Qty 4 (Part No. 10-10546)
- Washer, Lock, 9/16, YZ: Qty 4 (Part No. 30-00194)
- Spacer Plate, .375": Qty 1 (Part No. CM-13018-SP)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Warning: All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Periodically check the receiver hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 12 minutes
- Novice (DIY): 30 minutes
- Drilling Required: No
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 1998-2002 Mercedes-Benz ML320, 1999-2001 Mercedes-Benz ML430,
2003-2005 Mercedes-Benz ML350, and 2002-2005 Mercedes-Benz ML500
Part Numbers:
- 13018
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
Step-by-Step Instructions:
-
Remove Plastic Bumper Fascia:
- Temporarily remove the plastic bumper fascia:
- Carefully remove the large center door and the smaller left and right doors.
- This will expose the fascia mounting screws. Remove the screws and fascia.
- Note: If the vehicle is equipped with an outboard spare tire carrier, temporarily remove the tire and mounting brackets as necessary.
- Temporarily remove the plastic bumper fascia:
-
Position the Hitch:
- Position the hitch over the existing weldnuts in the bumper beam.
-
Install Spacer Plate (if necessary):
- If the vehicle is equipped with a spare tire bracket mounted on the bumper beam, install the spacer plate between the hitch and bumper.
-
Secure the Hitch:
- Install the provided M14 bolts and lock washers as shown in the diagram.
-
Torque Fasteners:
- Torque all hardware to 136 lb-ft.
-
Reinstall Components:
- Reinstall the plastic bumper fascia and any components temporarily removed, such as the spare tire and its mounting brackets.
Hardware List:
- Hex Bolt, M14 x 1.5 x 50, Class 10.9, YZ: Qty 4 (Part No. 10-10546)
- Washer, Lock, 9/16, YZ: Qty 4 (Part No. 30-00194)
- Spacer Plate, .375": Qty 1 (Part No. CM-13018-SP)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Warning: All non-trailer loads applied to this product must be supported by auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Periodically check the receiver hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 12 minutes
- Novice (DIY): 30 minutes
- Drilling Required: No
Manufacturer Notes:
-
Warranty:
- Warranty covers defects in material and workmanship at the time of purchase.
- For complete warranty instructions, please download the full installation PDF.
-
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
