7 Pin Trailer Wiring For 04-17 22-25 BMW X3 RV 7 Way Trailer Plug By Tekonsha
Model: 119191 74184 8506020 20212-12138This Bundle Fits The Following Vehicles:
2004-2017 BMW X3

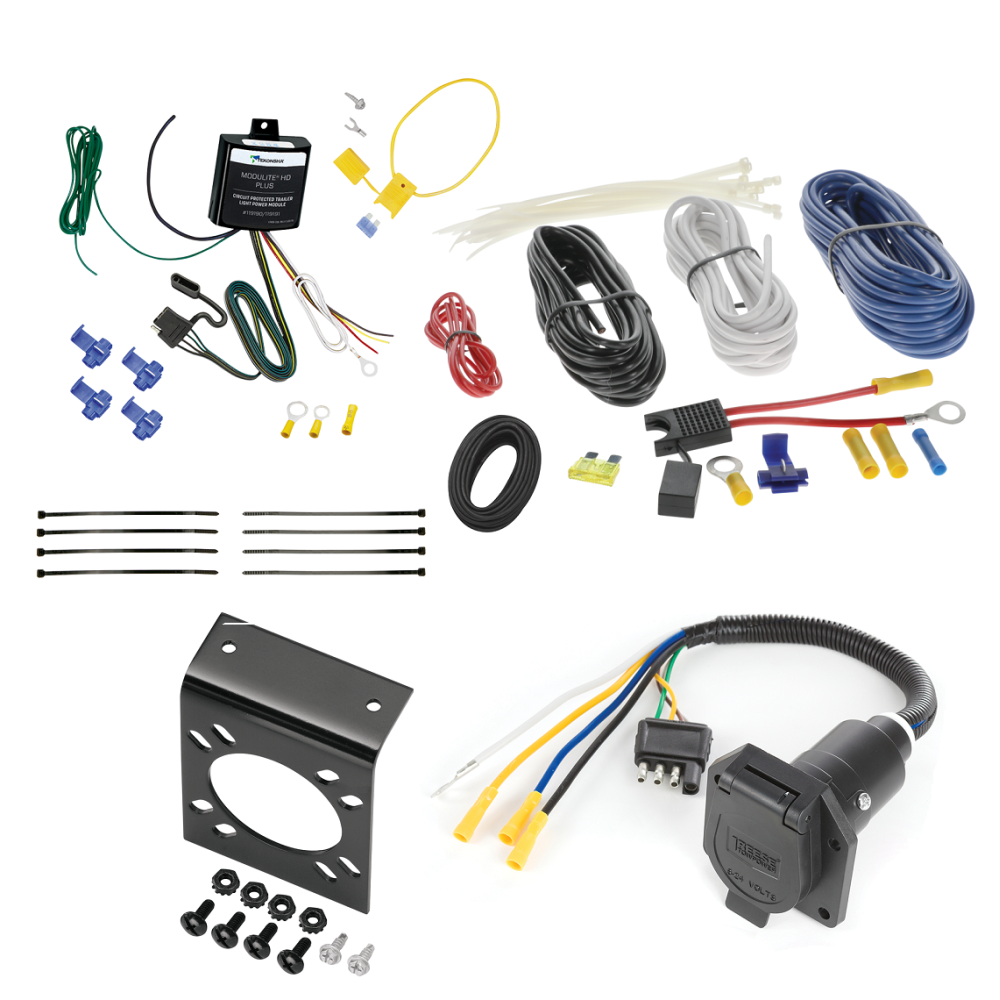

This Bundle Includes the Following Parts:
- 7-Way RV Wiring
List of fitment years:
2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit Manufactured by: Tekonsha
- The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
- Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
- Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
- Will work with either LED/Incandescent bulbs (vehicle & trailer)
- Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
- Designed not to send feedback thru the vehicle circuits
- The trailer brakes will override the hazard lamps when the brake is activated
- Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
- Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)
- Will not work with vehicles with low-side switch
- Can be used on a 2 wire or 3 wire system
- All solid-state components in potted encapsulation
- Includes integrated protective cover
Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha
This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
- OEM Style wiring harness
- Easy to install
- 1-3 axles
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower
The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.
- Provide versatility in going from 4-Flat to 7-Way standard plug
- Pre-wired with 4-Flat and wired with butt connects and ring terminal
- Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
- Features non-corroding brass terminals
- Mounts to standard 7-Way bracket
- Non-corrosive thermo plastic construction
- Ring terminal already mounted to ground wire
- 12 volt and brake wires have butt connectors already attached
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
$235 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$235 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Tekonsha
- Model: 119191 74184 8506020 20212-12138
- Includes: ModuLite HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit, Wiring Adapter, Trailer Brake Controller Installation Kit, Mounting Bracket
-
Fitment CodesTEKHDBCU44 23-27 BMW X1TEKHDPBCP1 22-26 Audi Q4 e-tron 11-12 Q5TEKHDPBCU30 12-15 BMW X1TEKHDPBCU31 04-17 BMW X3TEKHDPBCU32 00-06 BMW X5TEKPPBCU221 16-19 BMW X1TEKPPBCU312 20-22 BMW X1TEKPPBCU342 22-26 BMW X3
Compatibility Chart
| Year Range | Make | Model | Style | Fitment Code |
|---|
Get Expert Help
7 Pin Trailer Wiring For 04-17 22-25 BMW X3 RV 7 Way Trailer Plug By Tekonsha Install Notes
