Product Details
- Brand: Curt
- Model: 13068 56161 57187 58303-CH2298

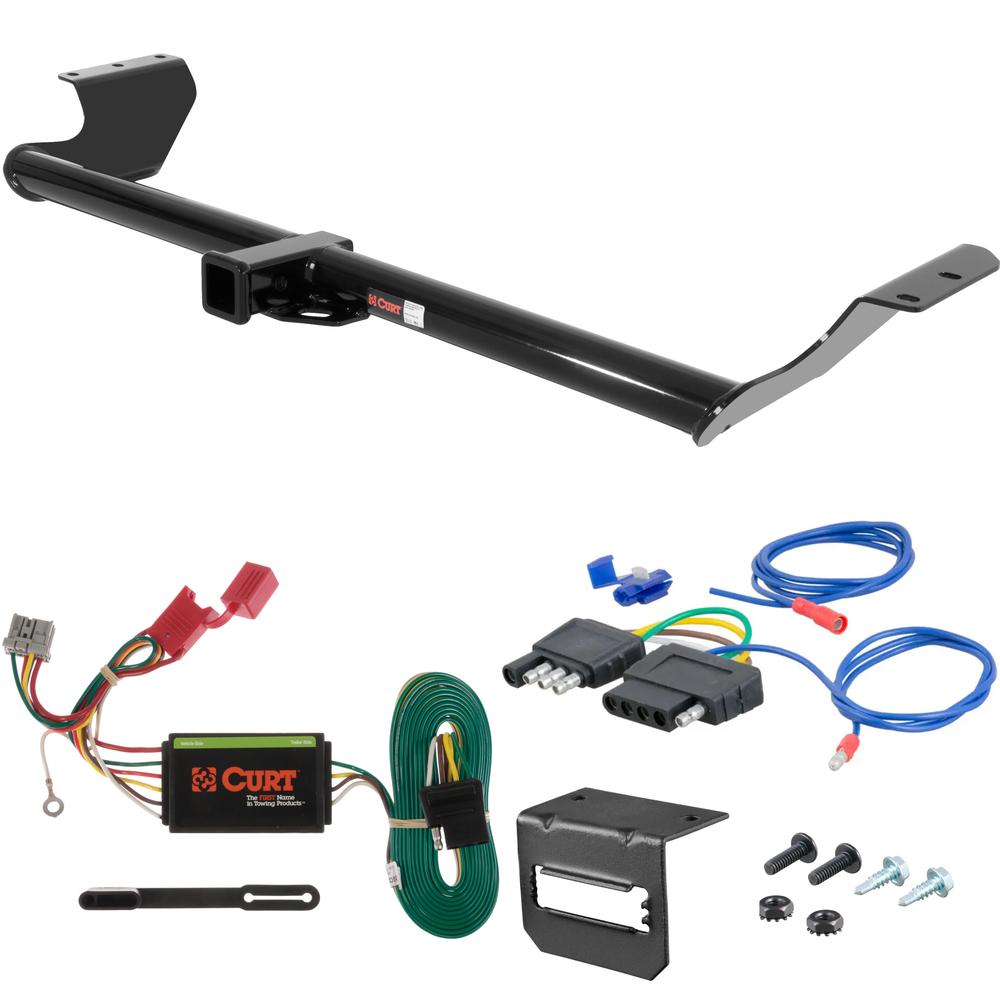

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Year Range | Make | Model | Style |
---|
Get Expert Help
For 2005-2010 Honda Odyssey Trailer Hitch + Wiring 5 Pin Fits All Models Curt 13068 2 inch Tow Receiver Install Notes
Installation Instructions for Honda CR-V
Part Numbers:
- 13068
Tools Required:
- Torque wrench
- Ratchet
- 9" socket extension
- 10mm socket
- 11/16" socket
- 19mm socket
- Screwdriver
Step-by-Step Instructions:
-
Remove Plastic Fascia (Driver-Side Frame Rail):
- If present, remove 5 fasteners securing the plastic fascia covering the driver-side frame rail.
- Return the fascia and fasteners to the vehicle owner.
Optional: Trim and reattach the fascia after hitch installation.
-
Clean the Weldnuts:
- Locate the 2 weldnuts near the end of each frame rail.
- Clean the weldnuts of debris or rust to ensure bolts thread easily.
- Use compressed air or lubricant to remove debris. For heavy debris, use a wire brush (avoid damaging threads).
-
Raise the Hitch into Position:
- Slide the passenger-side plate of the hitch over the exhaust first.
- Align the hitch with the frame rails.
-
Install Hardware (Passenger Side):
- Secure the hitch using the provided M12-1.25 x 35mm bolts and 1/2" conical-toothed washers into the existing weldnuts.
-
Fishwire Hardware (Driver Side):
- Use the 7/16" fishwire tool to guide a 7/16-14 x 1-1/2" carriage bolt and square hole spacer through the access hole in the driver-side frame rail.
- Secure the bolt using a 7/16" serrated-flange nut.
Fishwire Technique:- Thread the fishwire through the hitch mounting hole and out the access hole.
- Slide the spacer onto the wire, then thread the carriage bolt into the coil end.
- Pull the fishwire to guide the hardware into position.
-
Torque Fasteners:
- Torque all M12 bolts to 86 ft-lbs.
- Torque all 7/16" hardware to 70 ft-lbs.
Hardware List:
- Hex Bolt, M12 x 1.25 x 35mm, Class 10.9, YZ: Qty 4
- Conical Toothed Washer, 1/2", YZ: Qty 4
- Carriage Bolt, 7/16-14 x 1-1/2", Grade 8, YZ: Qty 1
- Square Hole Spacer, .250 x 7/8 x 2-1/4", YZ: Qty 1
- Serrated Flange Nut, 7/16-14, YZ: Qty 1
- 7/16" Fishwire Tool: Qty 1
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 350 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 5,000 lbs (trailer weight), 500 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components are sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 45 minutes
- Drilling Required: No
- Fishwire Hardware: Yes
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Honda Odyssey
Part Number:
- 56161
Wiring Access Location:
- S4 (Behind passenger side rear access panel)
Tools Required:
- Panel trim removal tool
Step-by-Step Instructions:
-
Prepare the Vehicle Interior:
- Open the vehicle's tailgate.
- Remove all trunk floor coverings.
-
Access the Rear Junction Box:
- Remove the rear scuff panel.
- On the passenger side, partially remove the rear trim panel to locate the rear junction box.
-
Connect the Custom Wiring Harness:
- Insert the custom connector into the top right corner of the junction box.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Secure the Converter Box:
- Find a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Install the In-Line Fuse:
- Insert the provided 10-amp fuse into the in-line fuse holder.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under the surface to avoid damage and/or personal injury.
-
Route the 4-Flat Wire:
- Route the 4-flat wire out from under the rear trim panel, along the removed scuff panel, and under the driver side rear trim panel.
-
Install the Fuse in the Passenger Side Kick Panel:
- Locate the fuse compartment on the passenger side kick panel, near the glove box.
- Remove the fuse panel cover and insert the provided 10-amp fuse into position #5.
-
Manage the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up the connector and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Vehicle Components:
- Reinstall all items removed during the installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Product Rating: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Ensure all steps are followed to guarantee the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Installation Instructions for Vehicle Model
Part Number:
- 56161
Wiring Access Location:
- S4 (Behind passenger side rear access panel)
Tools Required:
- Panel trim removal tool
Step-by-Step Instructions:
-
Prepare the Vehicle Interior:
- Open the vehicle's tailgate.
- Remove all trunk floor coverings.
-
Access the Rear Junction Box:
- Remove the rear scuff panel.
- On the passenger side, partially remove the rear trim panel to locate the rear junction box.
-
Connect the Custom Wiring Harness:
- Insert the custom connector into the top right corner of the junction box.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Secure the Converter Box:
- Find a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Install the In-Line Fuse:
- Insert the provided 10-amp fuse into the in-line fuse holder.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under the surface to avoid damage and/or personal injury.
-
Route the 4-Flat Wire:
- Route the 4-flat wire out from under the rear trim panel, along the removed scuff panel, and under the driver side rear trim panel.
-
Install the Fuse in the Passenger Side Kick Panel:
- Locate the fuse compartment on the passenger side kick panel, near the glove box.
- Remove the fuse panel cover and insert the provided 10-amp fuse into position #5.
-
Manage the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up the connector and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Vehicle Components:
- Reinstall all items removed during the installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Product Rating: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Ensure all steps are followed to guarantee the wiring connector functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
For Technical Support: Our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
