For 2005‑2009 Subaru Outback Trailer Hitch Fits Wagon Except Sport Curt 12284 1‑1/4 Tow Receiver
Model: 12284-CH3480This Trailer Tow Hitch Fits The Following Vehicles:
2005 - 2009 Subaru Outback Wagon Except Sport
This Trailer Tow Hitch Includes the Following Parts:
- Class 2 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2005, 2006, 2007, 2008, 2009

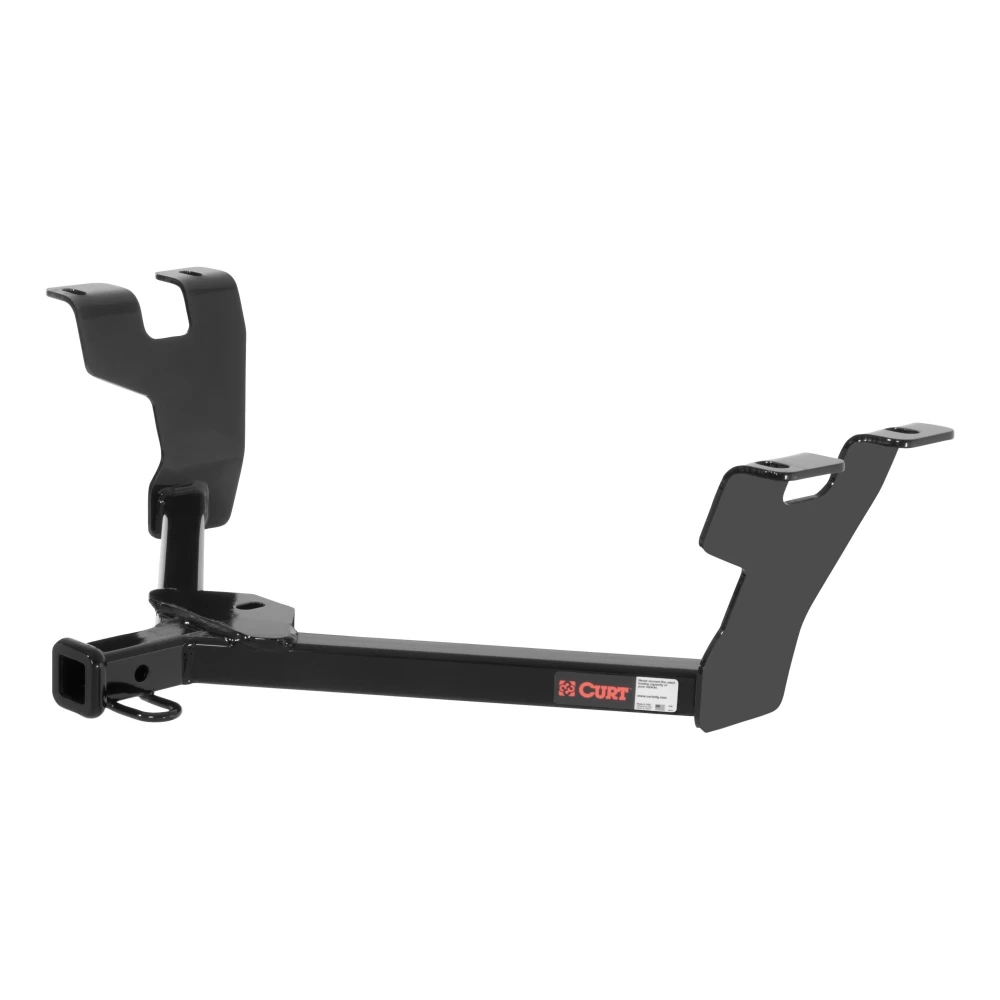

CURT 12284 Class 2 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.
This particular class 2 hitch is made to be a custom hitch for certain years of the Subaru Legacy and Outback (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 3,500 lbs GTW and 300 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.

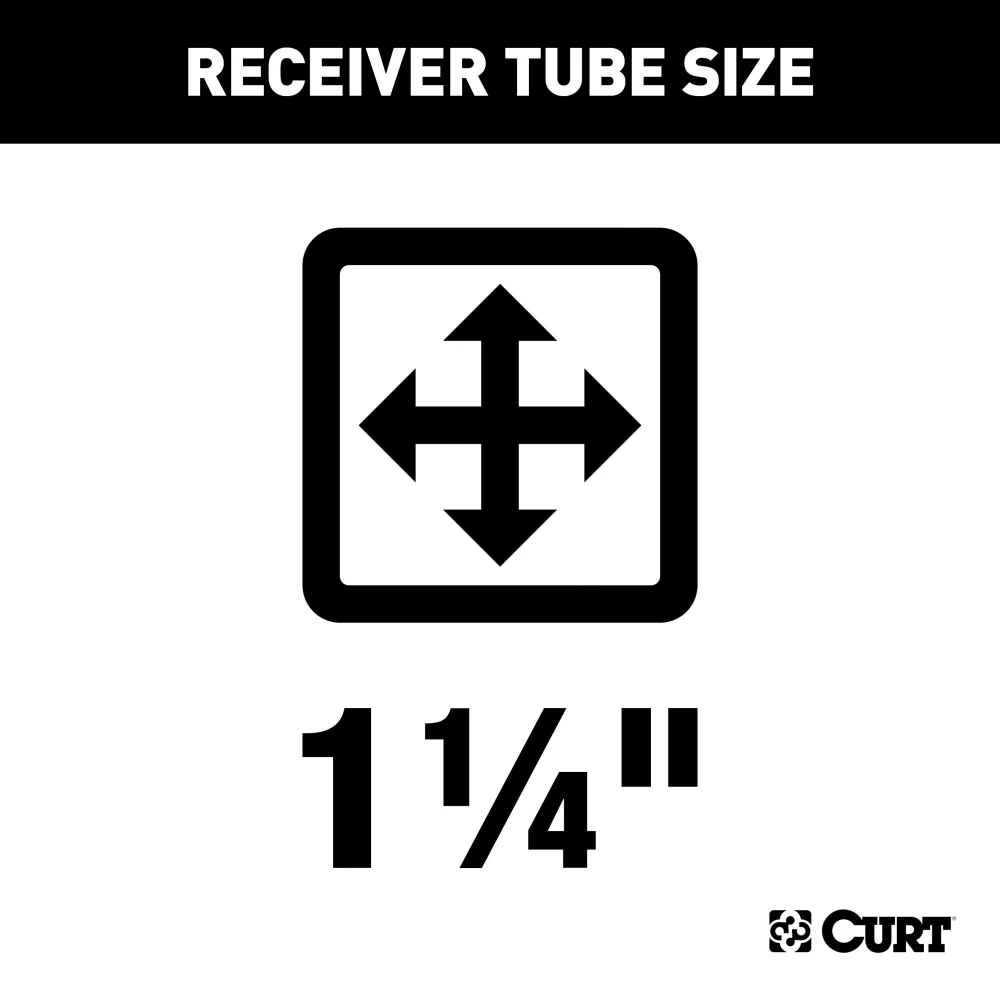

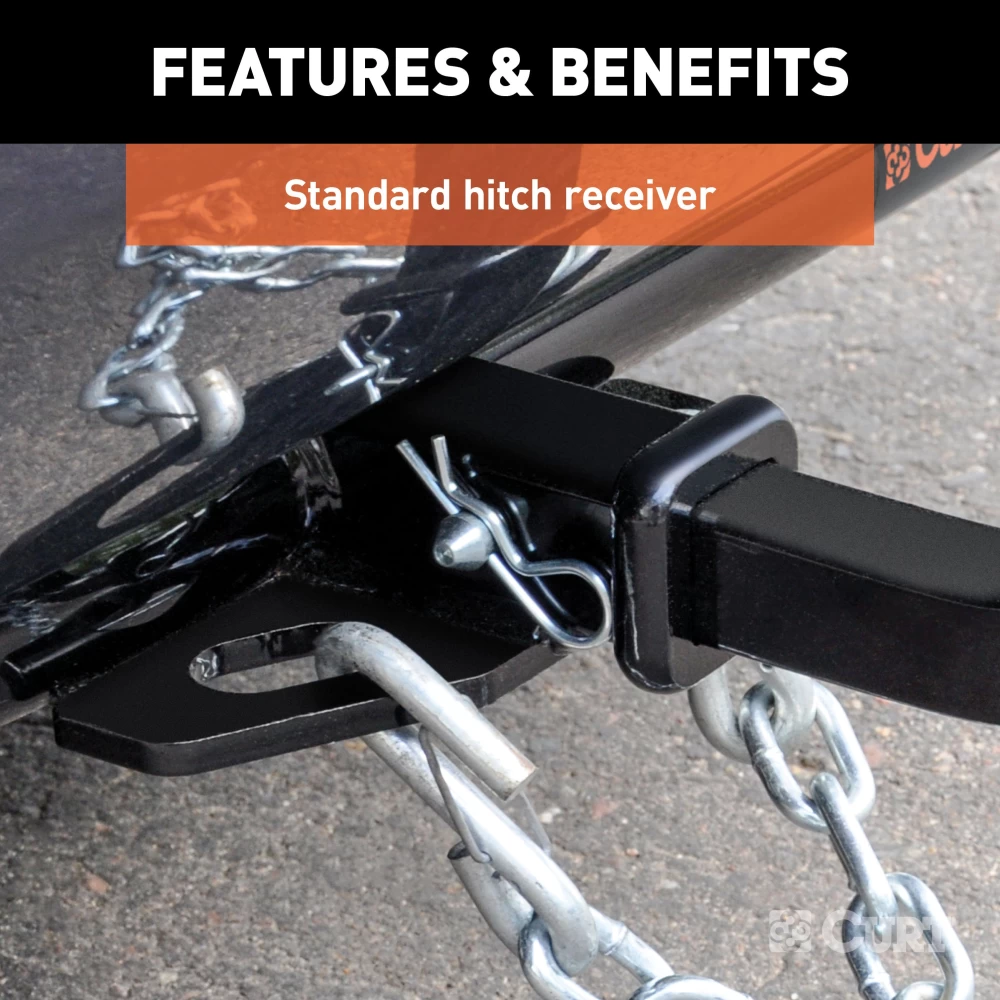

This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.

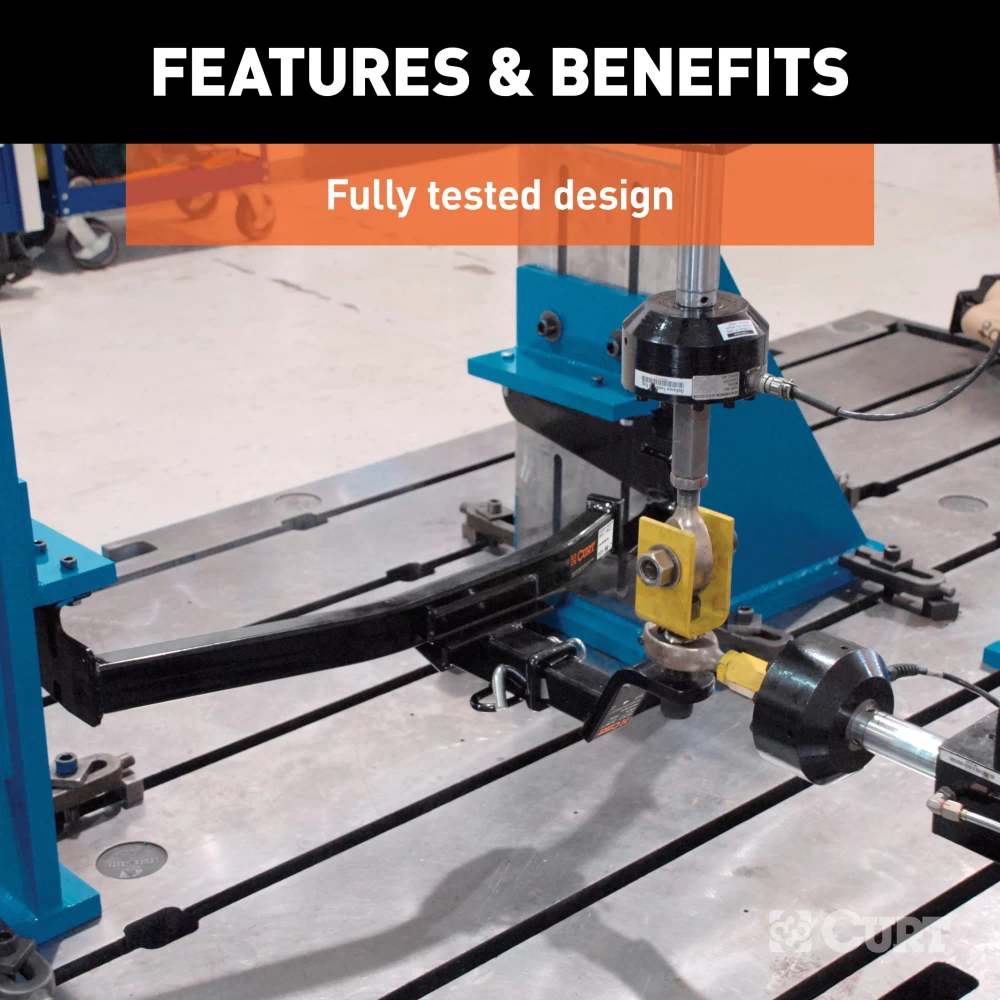

We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..
Features:

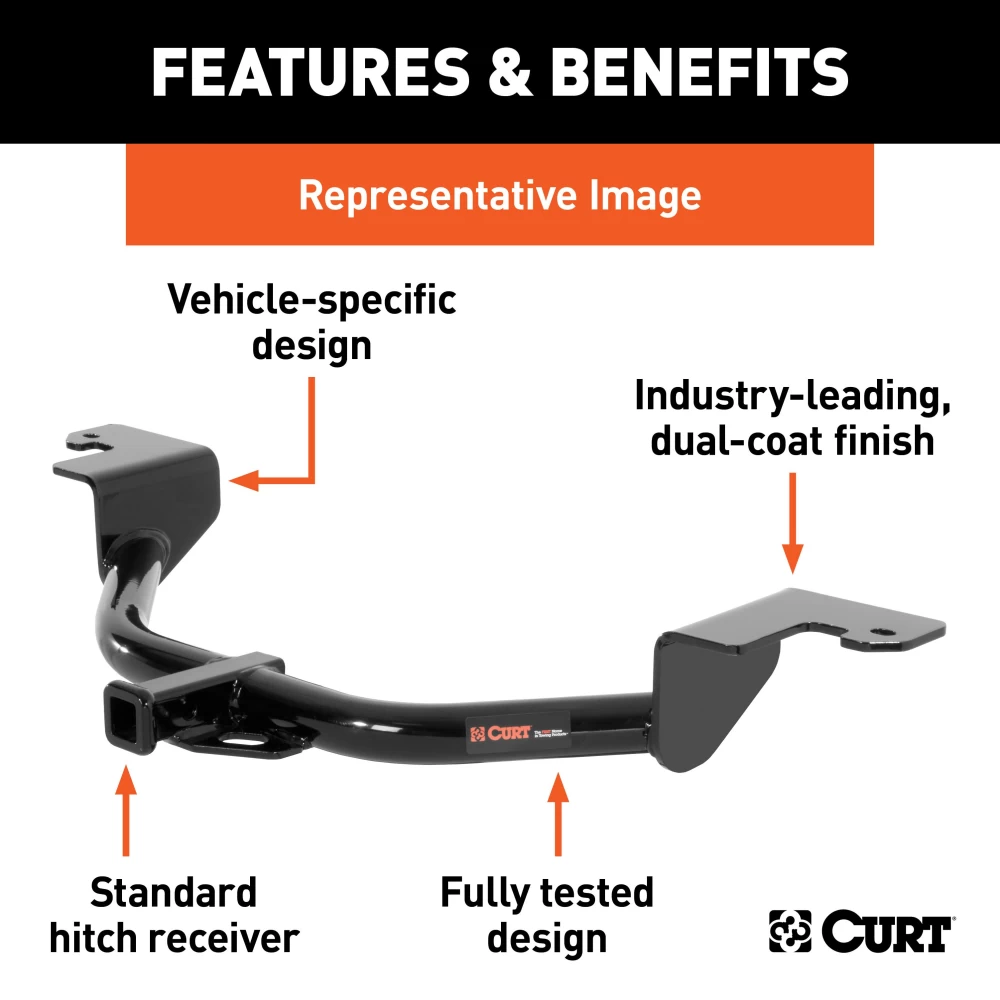

- Rated to 3,500 lbs. gross trailer weight and 300 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$228 81 $357.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$357.95 $228 81
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12284-CH3480
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2005-2009 Subaru Outback Trailer Hitch Fits Wagon Except Sport Curt 12284 1-1/4 Tow Receiver Install Notes
Installation Instructions for Subaru Legacy Sedan & Wagon / Outback Sedan & Wagon (2.5 XT & 3.0 LL Bean)
Excluding Outback Sport
Part Numbers:
- 12284
Tools Required:
- Ratchet
- Torque wrench
- 14mm socket
- 17mm socket
- 3/8" socket
- Small flat screwdriver
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the exhaust from five hangers:
- Two hangers per muffler
- One hanger rearward of the catalytic converter
- Caution: Do not allow the exhaust to hang on its own. Use wire or straps to support it.
- If installed, remove the rear factory splash guards to allow room for the exhaust to hang.
- Remove the exhaust from five hangers:
-
Remove Forward Bolt (Wagon Models Only):
- Remove the forward-most bolt from the bracket underneath the frame rails.
-
Remove Weldnut Plugs:
- Remove the plastic plugs covering the existing weldnuts in the frame rails.
-
Install Hitch:
- Raise the hitch over the exhaust and slide it under the vehicle from the rear.
- Loosely attach the hitch using the 1/2-13 carriage bolt and hardware through the vehicle's tow loop.
-
Install Spacers (As Needed):
- Use the provided spacers to level the hitch. Spacer usage will vary depending on the vehicle application.
-
Install Frame Rail Bolts:
- Install the M10 x 1.25 x 40 hex bolts with lock washers and flat washers into the existing weldnuts in the frame rails.
-
Torque Fasteners:
- Torque the 1/2-13 bolt to 110 lb-ft.
- Torque the M10 bolts to 49 lb-ft.
-
Raise Exhaust:
- Reinstall the muffler hangers to their original positions.
Hardware List:
- 1/2-13 x 1-3/4" Carriage Bolt, Grade 8, YZ: Qty 1 (Part No. 10-10272)
- 1/2-13 Serrated Flange Nut, Grade 8, YZ: Qty 1 (Part No. 20-00062)
- M10 x 1.25 x 40 Hex Bolt, Class 10.9, YZ: Qty 4 (Part No. 10-10398)
- 7/16" Lock Washer, YZ: Qty 4 (Part No. 30-00184)
- 3/8" Flat Washer, YZ: Qty 4 (Part No. 30-00186)
- .250 x 1.50 x 3.00" Square Hole Spacer (CM-SP41): Qty 1
- .250 x 1.50 x 2.00" Round Hole Spacer (CM-SP16): Qty 2
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 3,500 lbs (trailer weight), 300 lbs (tongue weight).
- Warning: All non-trailer loads must be supported with auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Installation Time:
- Professional: 27 minutes
- Novice (DIY): 35 minutes
- Drilling Required: No
- Lower Exhaust Required: Yes
- Bolt Removal Required: Yes
- Weldnut Plug Removal Required: Yes
Manufacturer Notes:
- Designed for use with Ball Mount #D-19 / 45519.
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits Subaru Legacy Sedan & Wagon
- Fits Subaru Outback Sedan & Wagon (2.5 XT & 3.0 LL Bean)
- Excluding Outback Sport
Revision History:
- 1/9/2008: Added 2.5 XT and 3.0 LL Bean (DWS)
- 8/20/2009: Updated to current standards (JWT)
- 7/12/2012: Changed to Grade 8 torque specs (AJP)
- 6/18/2020: Updated hardware descriptions/numbers and phone numbers (CJW)
