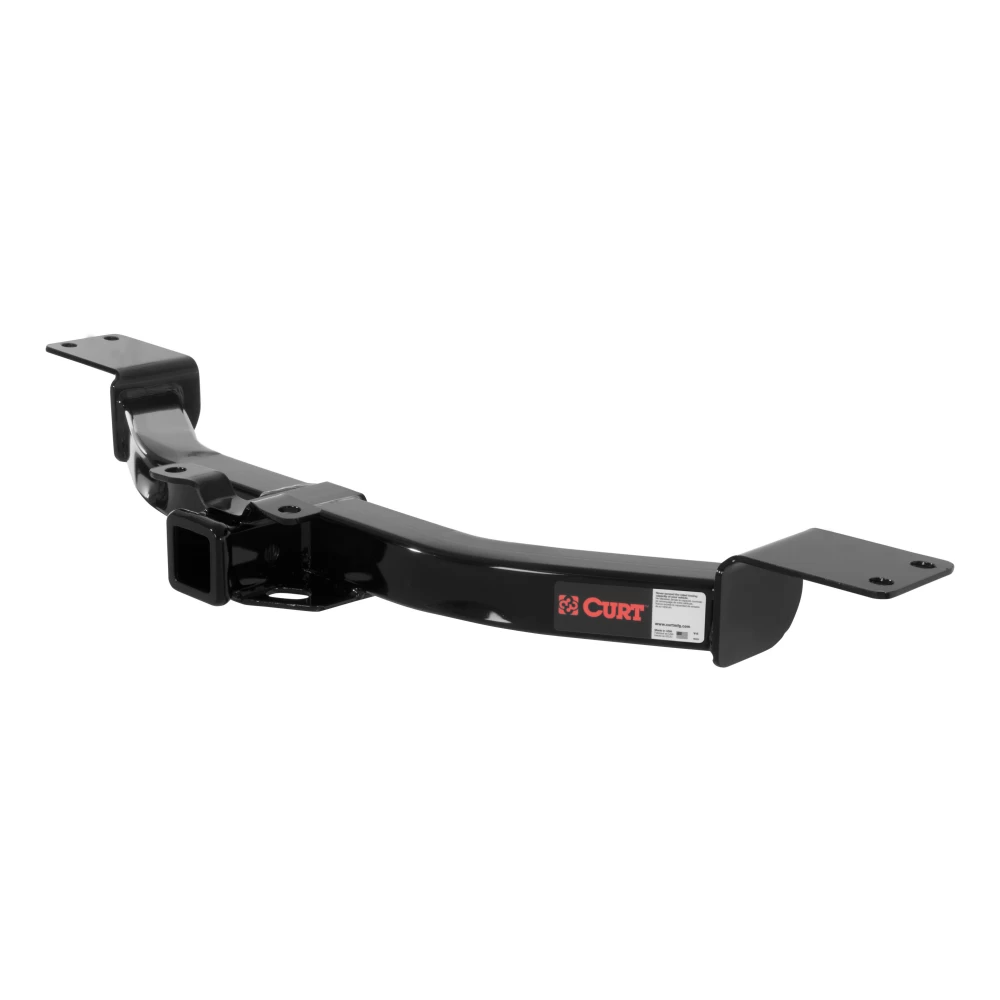

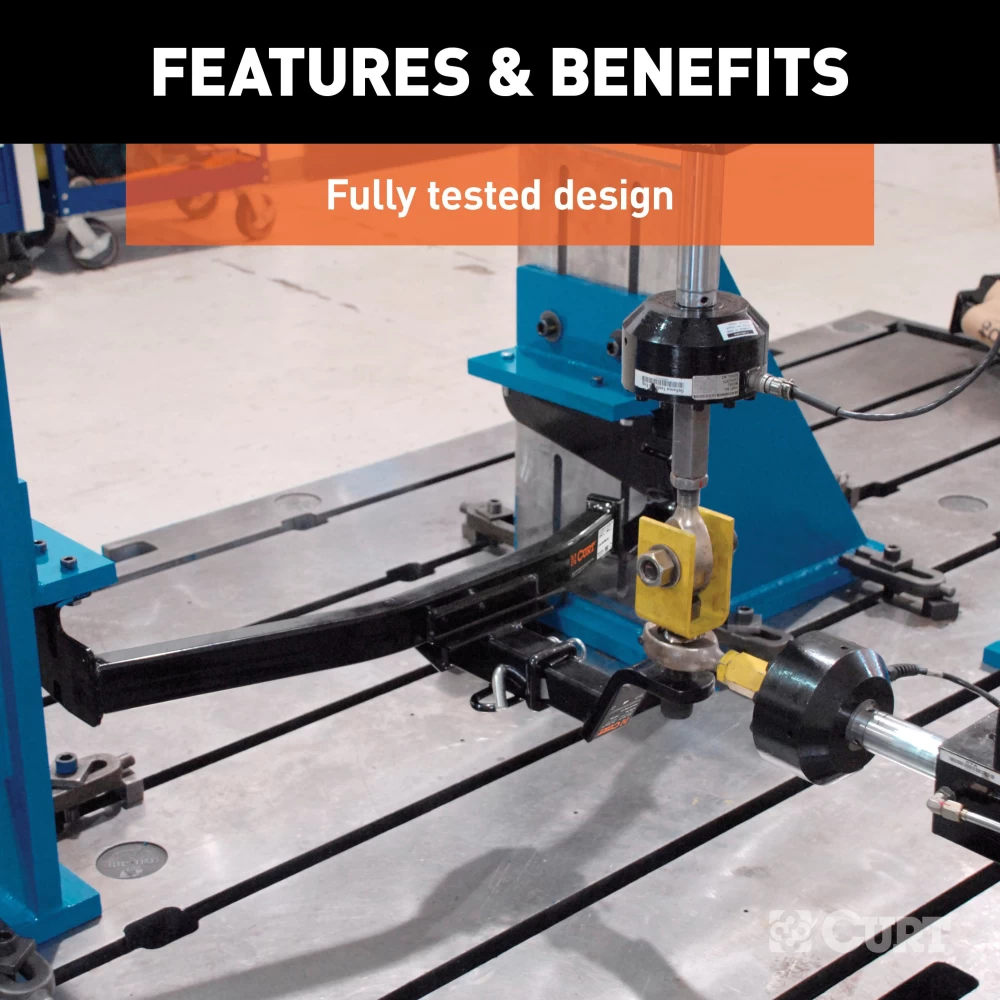

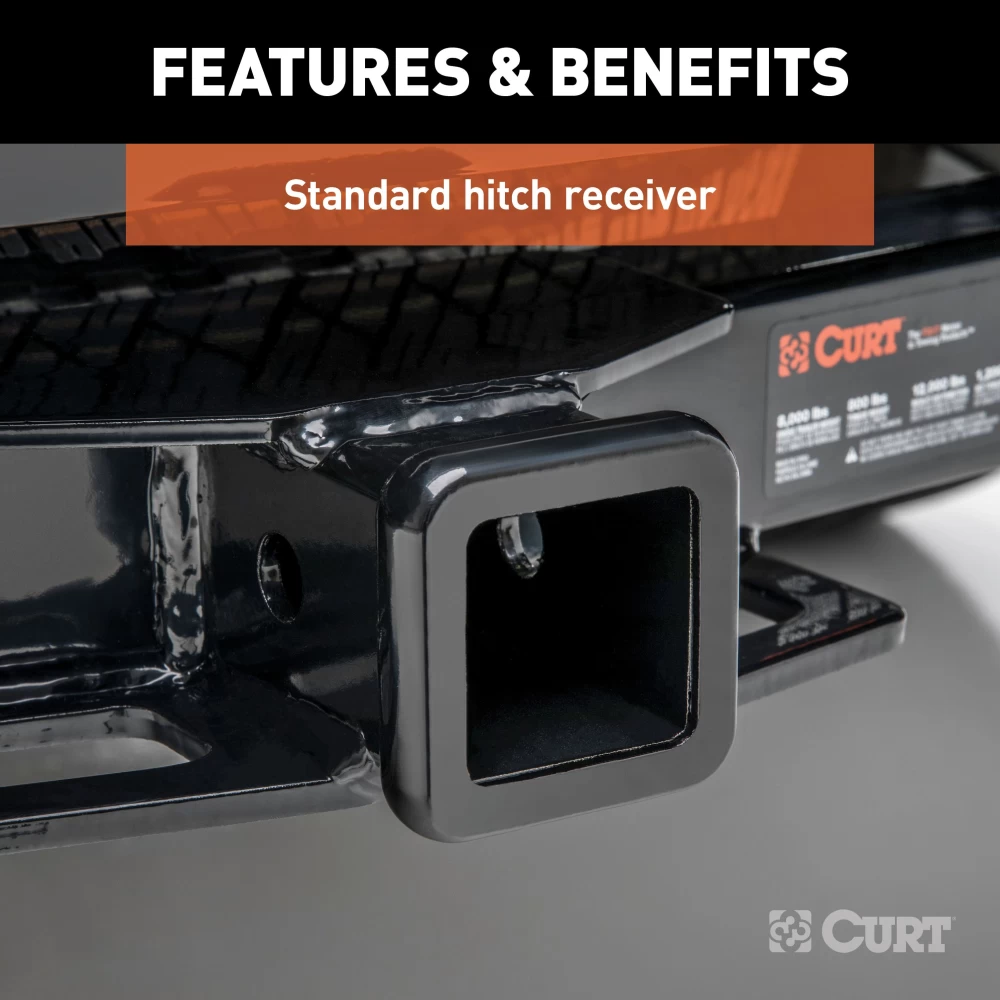

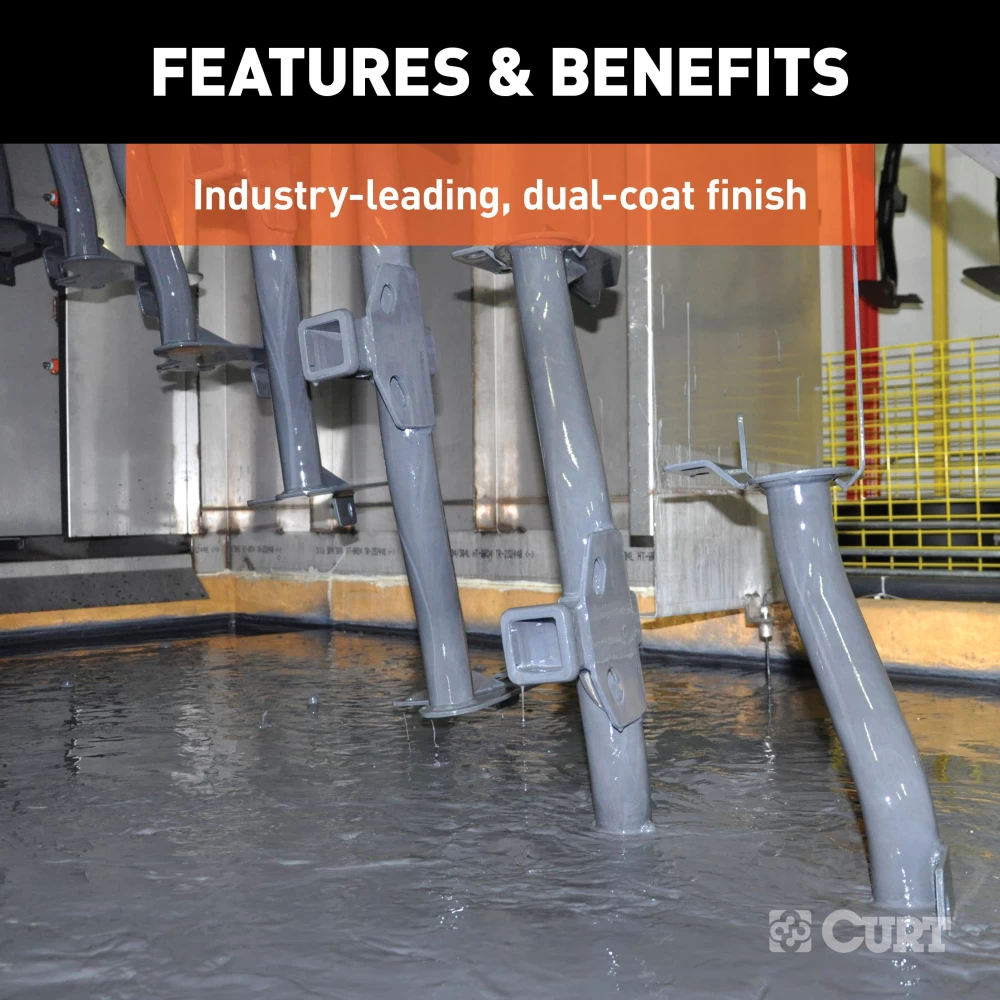

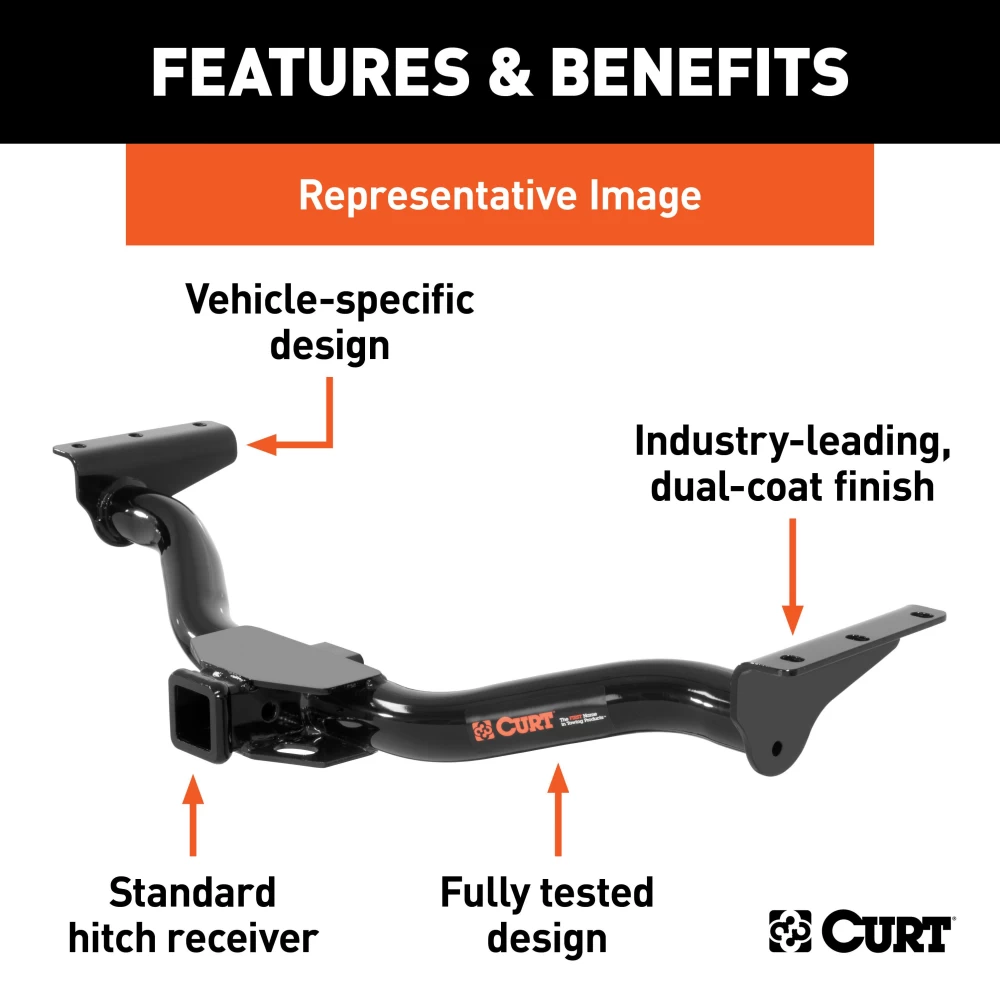

- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help

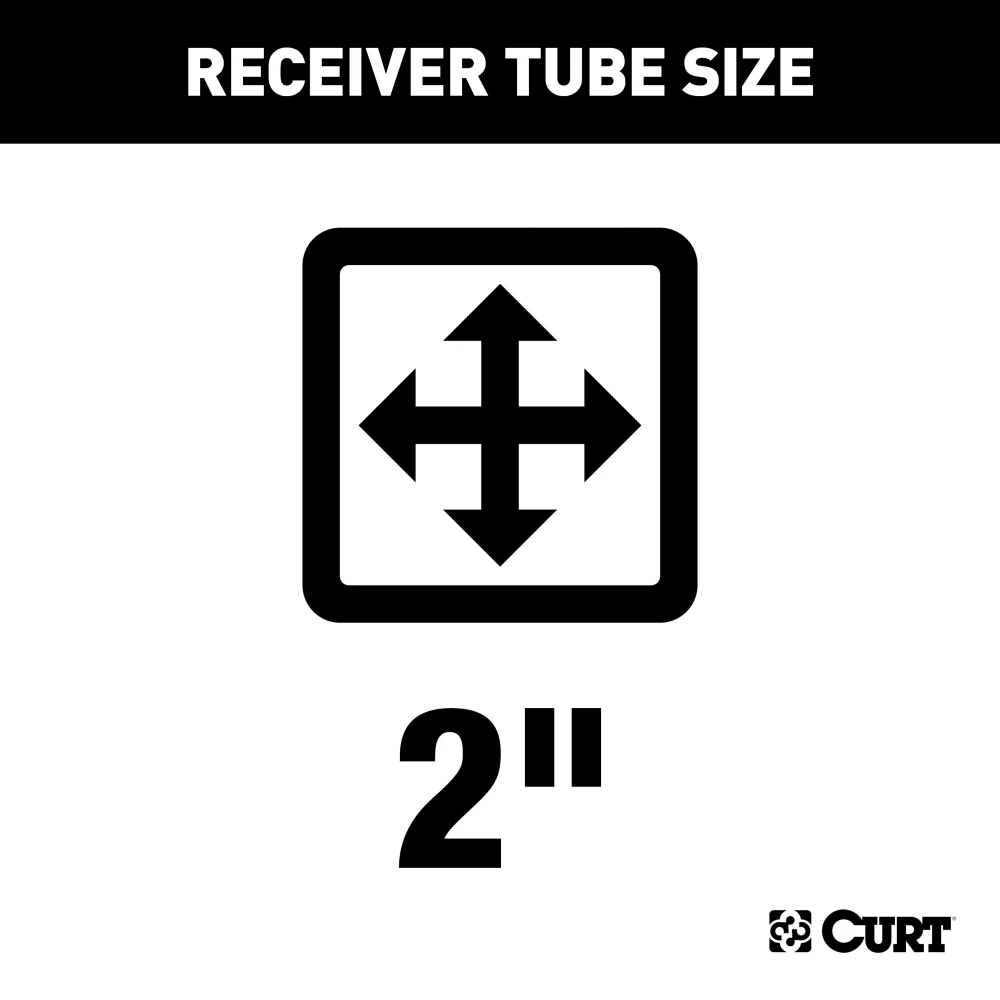

For 2007-2010 Saturn Outlook Trailer Hitch Fits All Models Curt 13424 2 inch Tow Receiver Install Notes
Installation Instructions for Buick Enclave, Chevy Traverse, GMC Acadia, and Saturn Outlook
Part Numbers:
- 13424
Tools Required:
- Ratchet
- Torque Wrench
- 19mm Socket
- 10" Extension
Step-by-Step Instructions:
-
Remove Bumper Fascia Panel:
- Remove the bumper fascia panel.
- Note: The panel may be reinstalled on some models after hitch installation, if desired.
-
Lower the Exhaust:
- Lower the exhaust to ease installation.
- Refer to the Rubber Isolator Removal Diagram for instructions.
-
Raise Hitch into Position:
- Position the hitch over the exhaust pipes and align the slots in the hitch with the existing weld nuts in the bottom of the frame rails.
-
Secure Hitch to Frame Rails:
- Install (4) M12 bolts and conical toothed washers through the hitch side plates and into the existing weld nuts in the frame rails.
-
Install Hardware in Bumper Beam:
- If weld nuts are present:
- Install (2) M12 bolts and conical toothed washers into the bumper beam.
- If weld nuts are NOT present:
- Fishwire 1/2"-13 x 1-1/4" carriage bolts and CM-SP6 spacers into position through the end of the bumper beam.
- If needed, enlarge the square access hole next to the mounting locations to fishwire hardware into position.
- Secure with 1/2" hex flange nuts.
- Refer to the Fishwire Technique Diagram for guidance.
- If weld nuts are present:
-
Torque Fasteners:
- Torque all M12 hardware to 86 ft-lbs.
- Torque all 1/2" hardware to 110 ft-lbs.
-
Reinstall Components:
- Raise the exhaust back into position and reinstall the rubber isolators.
- Reinstall the fascia panel, if desired.
Hardware List:
- (6) M12 x 1.75 x 30 Hex Bolts
- (6) 1/2" Conical Toothed Washers
- (2) 1/2"-13 UNC Carriage Bolts, 1-1/4"
- (2) CM-SP6 Square Hole Spacers (0.250 x 1.00 x 3.00")
- (2) 1/2"-13 UNC Hex Flange Nuts
- (2) 1/2" x 30" Fishwire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 5,000 lbs. Trailer Weight
- 500 lbs. Tongue Weight
- Gross Load Capacity (Weight Distribution Hitch):
- 6,000 lbs. Trailer Weight
- 600 lbs. Tongue Weight
- Professional Install Time: 30 minutes
- Novice (DIY) Install Time: 60 minutes
Manufacturer Notes:
- No drilling is required.
- Some models may require enlarging the access hole to install fishwire hardware.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Buick Enclave, Chevy Traverse, GMC Acadia, and Saturn Outlook
Part Numbers:
- 13424
Tools Required:
- Ratchet
- Torque Wrench
- 19mm Socket
- 10" Extension
Step-by-Step Instructions:
-
Remove Bumper Fascia Panel
- Remove the bumper fascia panel.
- Note: The panel may be reinstalled on some models after hitch installation, if desired.
-
Lower the Exhaust
- Lower the exhaust to ease installation.
- Refer to the Rubber Isolator Removal Diagram for instructions.
-
Raise Hitch into Position
- Position the hitch over the exhaust pipes and align the slots in the hitch with the existing weld nuts in the bottom of the frame rails.
-
Secure Hitch to Frame Rails
- Install (4) M12 bolts and conical toothed washers through the hitch side plates and into the existing weld nuts in the frame rails.
-
Install Hardware in Bumper Beam
- If weld nuts are present:
- Install (2) M12 bolts and conical toothed washers into the bumper beam.
- If weld nuts are NOT present:
- Fishwire 1/2"-13 x 1-1/4" carriage bolts and CM-SP6 spacers into position through the end of the bumper beam.
- If needed, enlarge the square access hole next to the mounting locations to fishwire hardware into position.
- Secure with 1/2" hex flange nuts.
- Refer to the Fishwire Technique Diagram for guidance.
- If weld nuts are present:
-
Torque Fasteners
- Torque all M12 hardware to 86 ft-lbs.
- Torque all 1/2" hardware to 110 ft-lbs.
-
Reinstall Components
- Raise the exhaust back into position and reinstall the rubber isolators.
- Reinstall the fascia panel, if desired.
Hardware List:
- (6) M12 x 1.75 x 30 Hex Bolts
- (6) 1/2" Conical Toothed Washers
- (2) 1/2"-13 UNC Carriage Bolts, 1-1/4"
- (2) CM-SP6 Square Hole Spacers (0.250 x 1.00 x 3.00")
- (2) 1/2"-13 UNC Hex Flange Nuts
- (2) 1/2" x 30" Fishwire Tools
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 5,000 lbs. Trailer Weight
- 500 lbs. Tongue Weight
- Gross Load Capacity (Weight Distribution Hitch):
- 6,000 lbs. Trailer Weight
- 600 lbs. Tongue Weight
- Professional Install Time: 30 minutes
- Novice (DIY) Install Time: 60 minutes
Manufacturer Notes:
- No drilling is required.
- Some models may require enlarging the access hole to install fishwire hardware.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions
