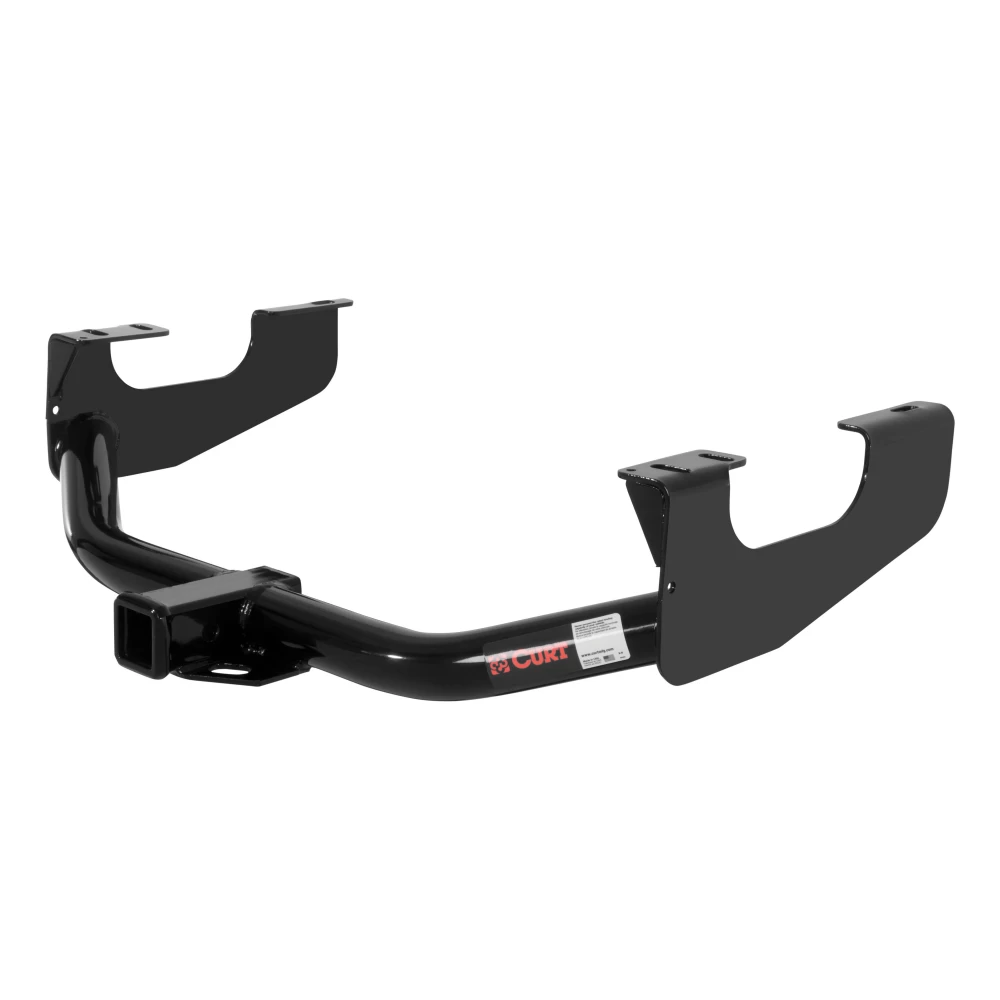

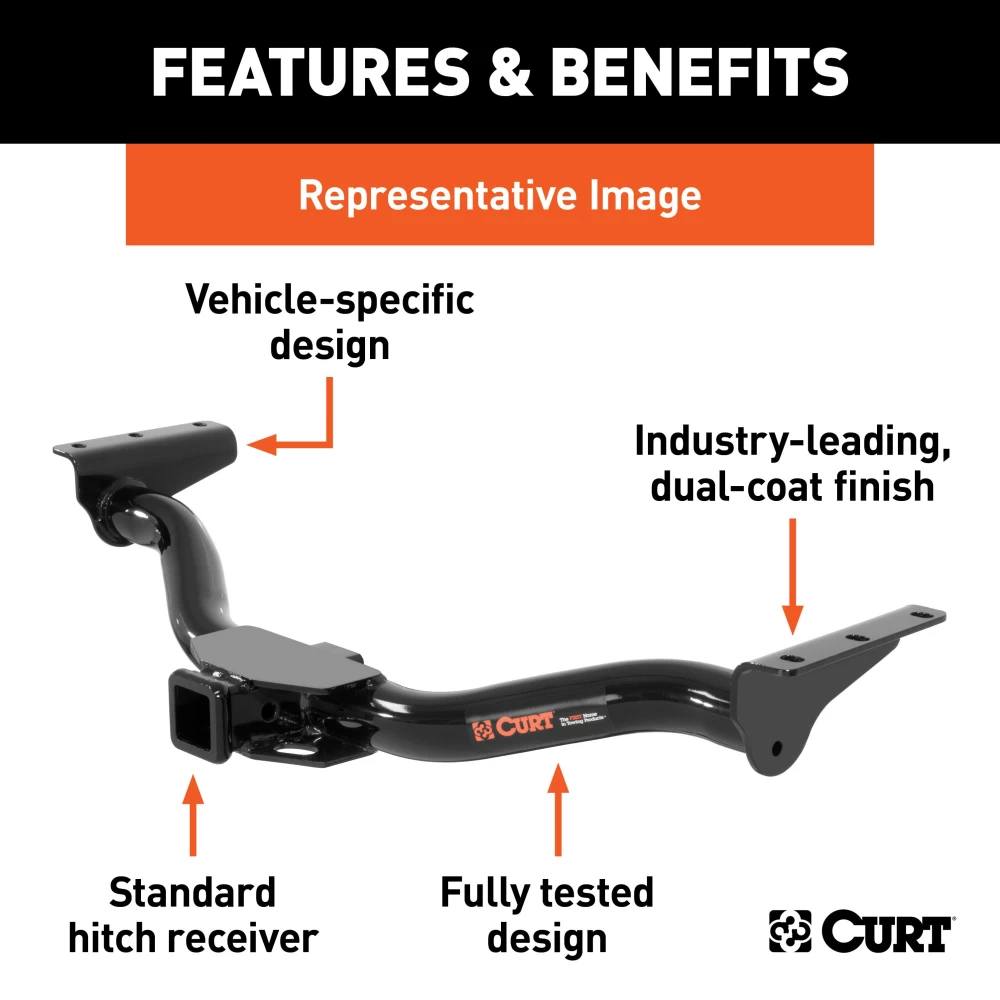

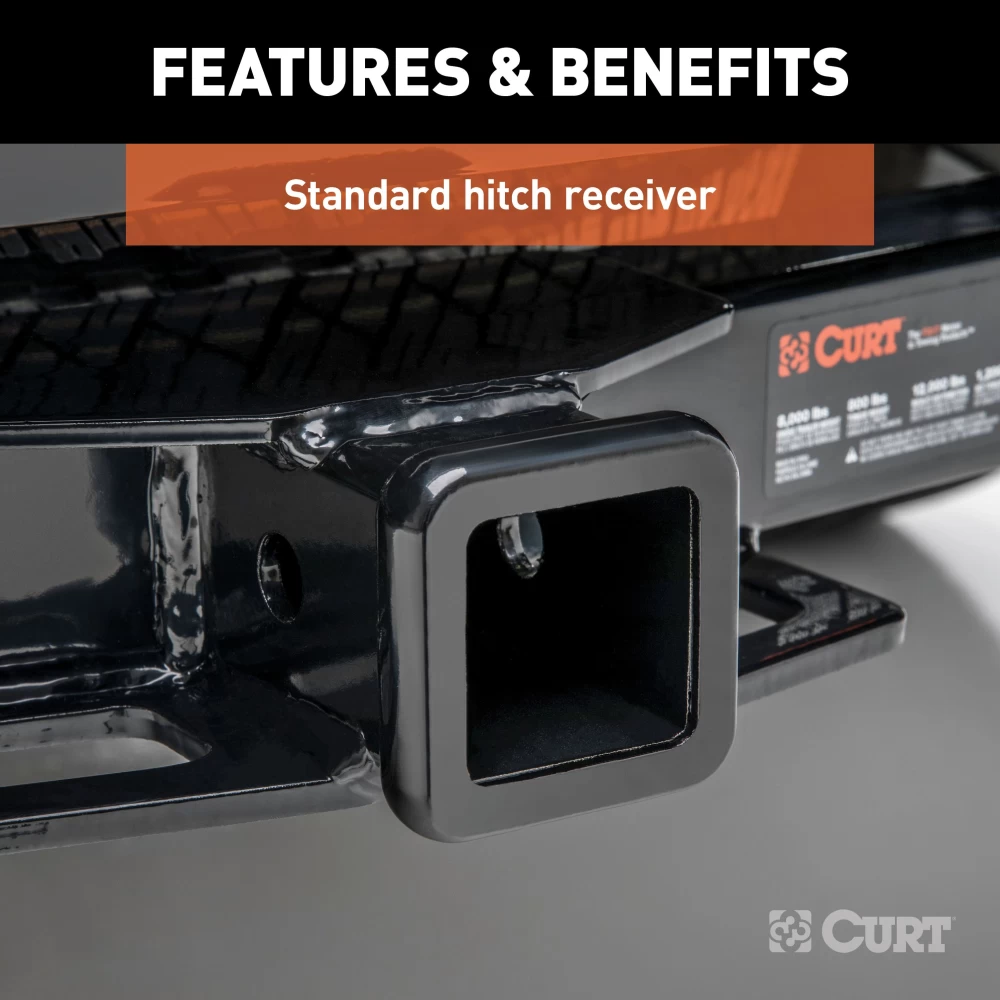

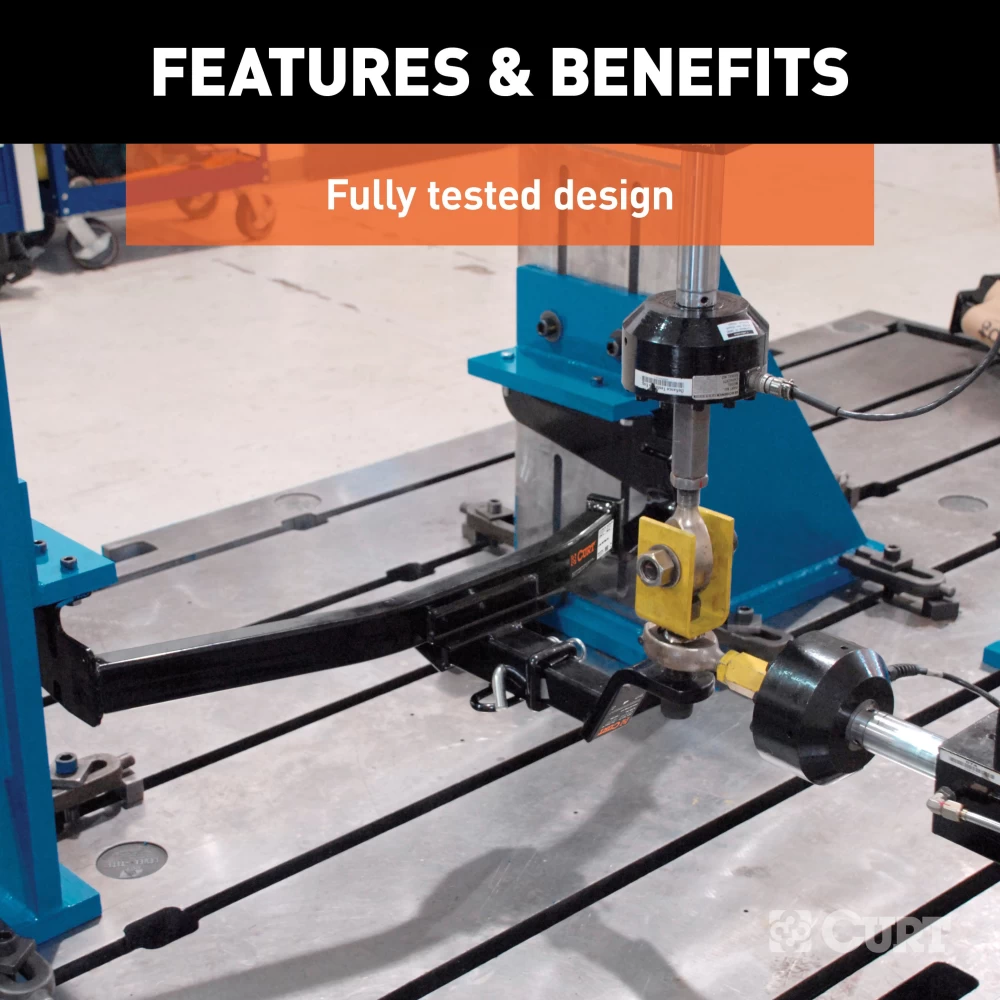

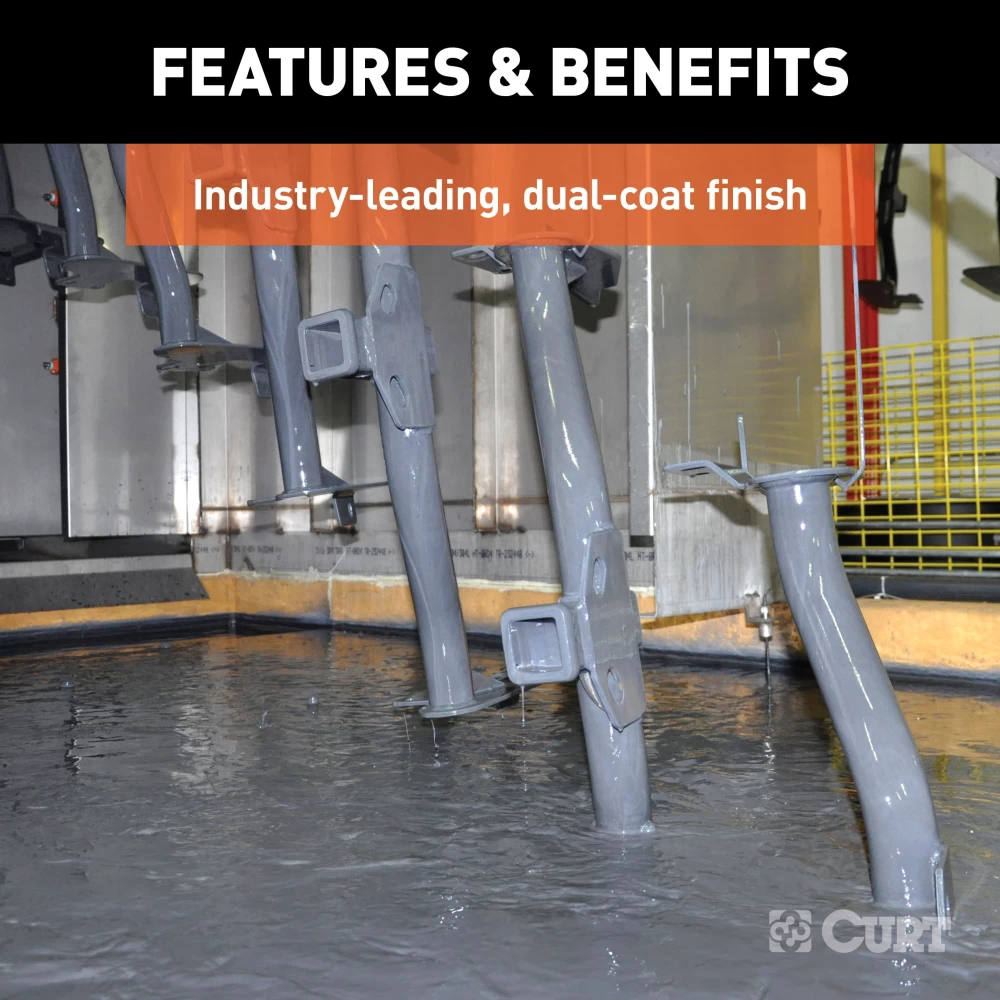

For 2008-2016 Ford F250 Super Duty Trailer Hitch Except Cab & Chassis Curt 13359 2 inch Tow Receiver Install Notes
Installation Instructions for 1997-2003 Ford F-150 & F-250 Light Duty (New Body Style),
1999-Current Ford F-250 & F-350 Super Duty, and 2008-Current Ford F-450 Super Duty
Part Numbers:
- 13359
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
Step-by-Step Instructions:
-
Lower the Spare Tire:
- Lower the spare tire to allow for installation.
- Note: The spare tire will be reinstalled after the hitch is in place.
-
Install Carriage Bolts and Spacers:
- Insert the 1/2" carriage bolts and square hole spacers through the existing holes in the vehicle frame as shown in the diagram.
-
Raise the Hitch into Position:
-
Position the hitch over the carriage bolts.
-
Secure the hitch with the 1/2" flange nuts.
-
Important: Ensure the wiring harness near the end of the truck frame is not pinched between the hitch and the frame.
-
Note: Only one of the two holes toward the front of the truck will be used, depending on the truck type:
- Light Duty Trucks: Use the rearward hole.
- Super Duty Trucks: Use the forward hole.
-
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
-
Reinstall Spare Tire:
- Raise the spare tire back into its storage location.
- You may need to push the spare tire toward the front of the truck for proper clearance.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8, YZ: Qty 6 (Part No. 10-10272)
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2 (Part No. CM-SP16)
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 6 (Part No. 20-00062)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check the receiver hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 43 minutes
- Drilling Required: No
Manufacturer Notes:
- Warranty covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Installation Instructions for 1997-2003 Ford F-150 & F-250 Light Duty (New Body Style),
1999-Current Ford F-250 & F-350 Super Duty, and 2008-Current Ford F-450 Super Duty
Part Numbers:
- 13359
Tools Required:
- Torque wrench
- Ratchet
- 3/4" socket
Step-by-Step Instructions:
-
Lower the Spare Tire:
- Lower the spare tire to allow for installation.
- Note: The spare tire will be reinstalled after the hitch is in place.
-
Install Carriage Bolts and Spacers:
- Insert the 1/2" carriage bolts and square hole spacers through the existing holes in the vehicle frame as shown in the diagram.
-
Raise the Hitch into Position:
-
Position the hitch over the carriage bolts.
-
Secure the hitch with the 1/2" flange nuts.
-
Important: Ensure the wiring harness near the end of the truck frame is not pinched between the hitch and the frame.
-
Note: Only one of the two holes toward the front of the truck will be used, depending on the truck type:
- Light Duty Trucks: Use the rearward hole.
- Super Duty Trucks: Use the forward hole.
-
-
Torque Fasteners:
- Torque all 1/2" fasteners to 110 lb-ft.
-
Reinstall Spare Tire:
- Raise the spare tire back into its storage location.
- You may need to push the spare tire toward the front of the truck for proper clearance.
Hardware List:
- Carriage Bolt, 1/2-13 x 1-3/4, Grade 8, YZ: Qty 6
- .250 x 1.50 x 2.00" Square Hole Spacer: Qty 2
- Nut, Ser-Flange, 1/2-13 UNC, Grade 8, YZ: Qty 6
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 6,000 lbs (trailer weight), 600 lbs (tongue weight).
- Gross Load Capacity (Weight Distribution Hitch): 10,000 lbs (trailer weight), 1,000 lbs (tongue weight).
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically check the receiver hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified.
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 43 minutes
- Drilling Required: No
Warranty:
- Limited Warranty: Covers defects in material and workmanship at the time of purchase.
- Alterations, misuse, or improper installation voids the warranty.
- For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
