Product Details
- Brand: Curt
- Model: 13534 56042-CH3565

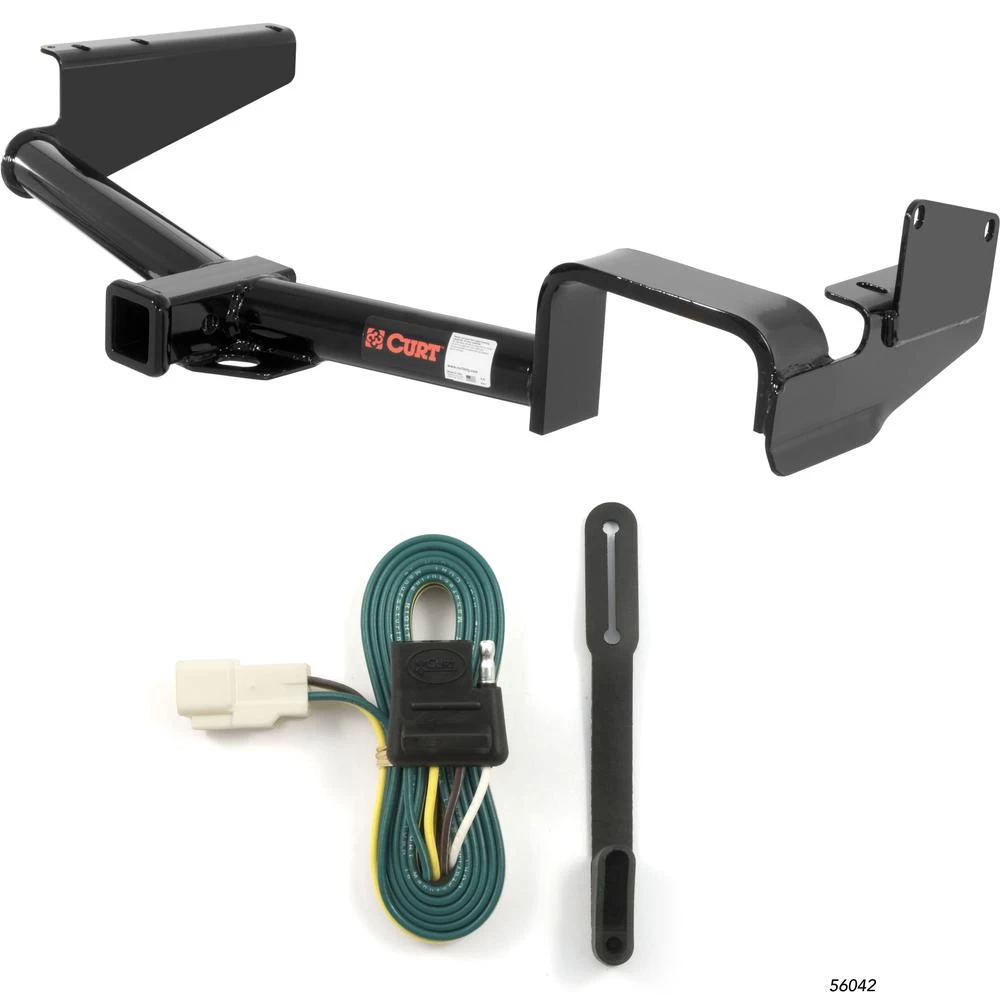

- Includes: Class 3 Trailer Tow Hitch, Custom 4-Flat
Compatibility Chart
Description
Get Expert Help
For 2008-2013 Toyota Highlander Trailer Hitch + Wiring 4 Pin Fits Models w/o Factory Tow Package Curt 13534 56042 2 inch Tow Receiver Install Notes

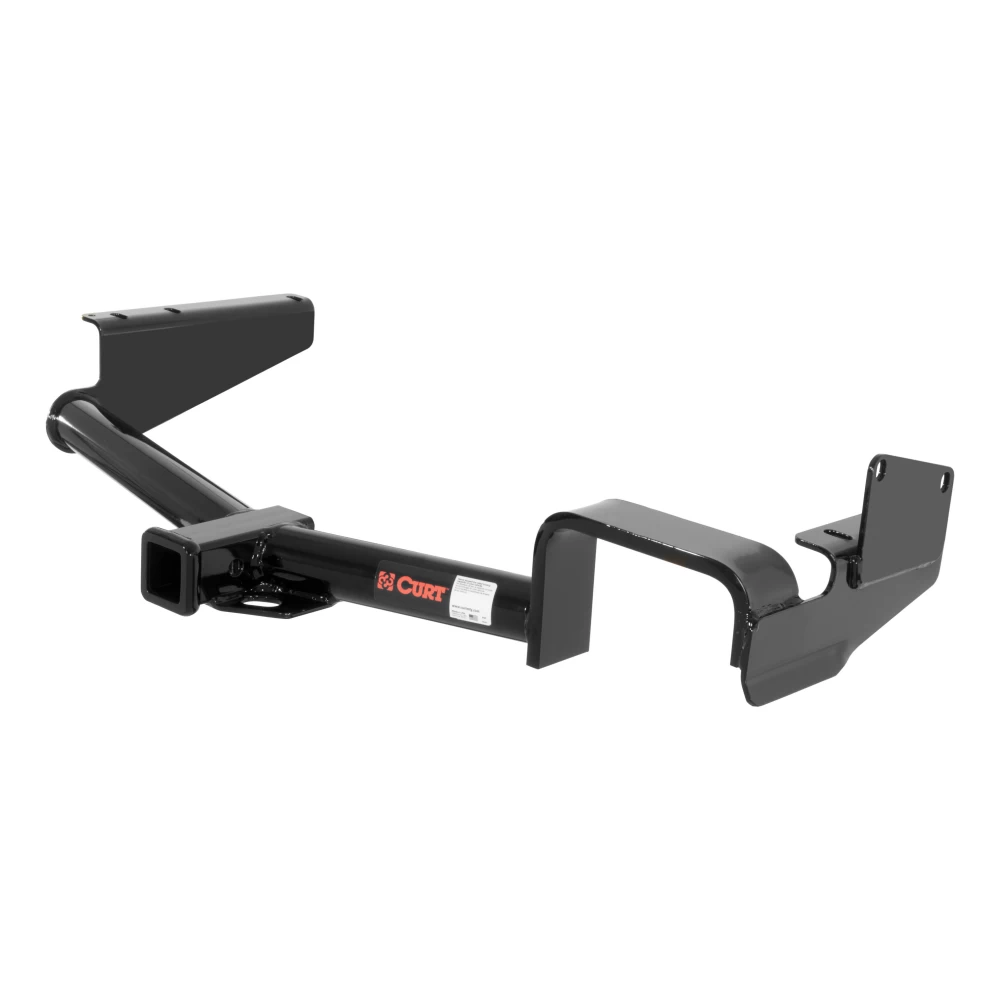

Installation Instructions for Toyota Highlander (Including Hybrid Models)
Part Numbers:
- 13534
Tools Required:
- 14mm Socket
- 17mm Socket
- 3/8" Drive Ratchet
- 5" Socket Extension
- Flat Head Screwdriver
- Phillips Head Screwdriver
- Torque Wrench
- Cutting Tool
Step-by-Step Instructions:
-
Remove Underbody Panels:
- Use a flat head screwdriver to remove all push fasteners.
- Use a Phillips head screwdriver to remove the remaining screws.
- Use a 14mm socket and ratchet to remove the bolt holding the passenger-side panel.
- Set the underbody panels aside or trim them for reinstallation in Step 6.
-
Remove Tow Loops and Rubber Plugs:
- Remove the tow loops from both sides using the 14mm socket.
- Return the tow loops to the vehicle owner.
- Remove (3) rubber plugs from the passenger side and (1) rubber plug from the driver side.
-
Raise Hitch into Position:
- Carefully raise the hitch over the exhaust and towards the muffler.
- Pull the hitch back towards the bumper so that the hitch frame rails align with the existing holes in the vehicle's frame.
-
Install Hardware:
- Install the supplied M10-1.25 x 30 hex bolts and 7/16" conical tooth washers into the frame rails through the existing holes.
-
Torque Fasteners:
- Torque all M10 bolts to 48 lb-ft using a torque wrench.
-
Trim and Reinstall Underbody Panels:
- Trim the driver-side and passenger-side underbody panels as follows:
- Driver-Side Trim Notes:
- Long thin cut: 7.5 inches from the edge of the large hole and 2.5 inches wide.
- Trim the corner along the panel seams.
- Passenger-Side Trim Notes:
- Align the horizontal cut with the top of the rib on the panel.
- Driver-Side Trim Notes:
- Reinstall the trimmed panels using the hardware removed in Step 1.
- Trim the driver-side and passenger-side underbody panels as follows:
Hardware List:
- (4) M10 x 1.25 x 30 Hex Bolts (Class 10.9, Yellow Zinc)
- (4) 7/16" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Non-trailer loads must be supported by 18050 stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 5,000 lbs. Trailer Weight
- 750 lbs. Tongue Weight
- Professional Install Time: 39 minutes
- Novice (DIY) Install Time: 45 minutes
Manufacturer Notes:
- Removal and trimming of underbody panels are required.
- No drilling is required for this installation.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Toyota Highlander (Including Hybrid Models)
Part Numbers:
- 13534
Tools Required:
- 14mm Socket
- 17mm Socket
- 3/8" Drive Ratchet
- 5" Socket Extension
- Flat Head Screwdriver
- Phillips Head Screwdriver
- Torque Wrench
- Cutting Tool
Step-by-Step Instructions:
-
Remove Underbody Panels:
- Use a flat head screwdriver to remove all push fasteners.
- Use a Phillips head screwdriver to remove the remaining screws.
- Use a 14mm socket and ratchet to remove the bolt holding the passenger-side panel.
- Set the underbody panels aside or trim them for reinstallation in Step 6.
-
Remove Tow Loops and Rubber Plugs:
- Remove the tow loops from both sides using the 14mm socket.
- Return the tow loops to the vehicle owner.
- Remove (3) rubber plugs from the passenger side and (1) rubber plug from the driver side.
-
Raise Hitch into Position:
- Carefully raise the hitch over the exhaust and towards the muffler.
- Pull the hitch back towards the bumper so that the hitch frame rails align with the existing holes in the vehicle's frame.
-
Install Hardware:
- Install the supplied M10-1.25 x 30 hex bolts and 7/16" conical tooth washers into the frame rails through the existing holes.
-
Torque Fasteners:
- Torque all M10 bolts to 48 lb-ft using a torque wrench.
-
Trim and Reinstall Underbody Panels:
- Trim the driver-side and passenger-side underbody panels as follows:
- Driver-Side Trim Notes:
- Long thin cut: 7.5 inches from the edge of the large hole and 2.5 inches wide.
- Trim the corner along the panel seams.
- Passenger-Side Trim Notes:
- Align the horizontal cut with the top of the rib on the panel.
- Driver-Side Trim Notes:
- Reinstall the trimmed panels using the hardware removed in Step 1.
- Trim the driver-side and passenger-side underbody panels as follows:
Hardware List:
- (4) M10 x 1.25 x 30 Hex Bolts (Class 10.9, Yellow Zinc)
- (4) 7/16" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Non-trailer loads must be supported by stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 5,000 lbs. Trailer Weight
- 750 lbs. Tongue Weight
- Professional Install Time: 39 minutes
- Novice (DIY) Install Time: 45 minutes
Manufacturer Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
Warranty covers defects in material and workmanship at the time of purchase. For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions

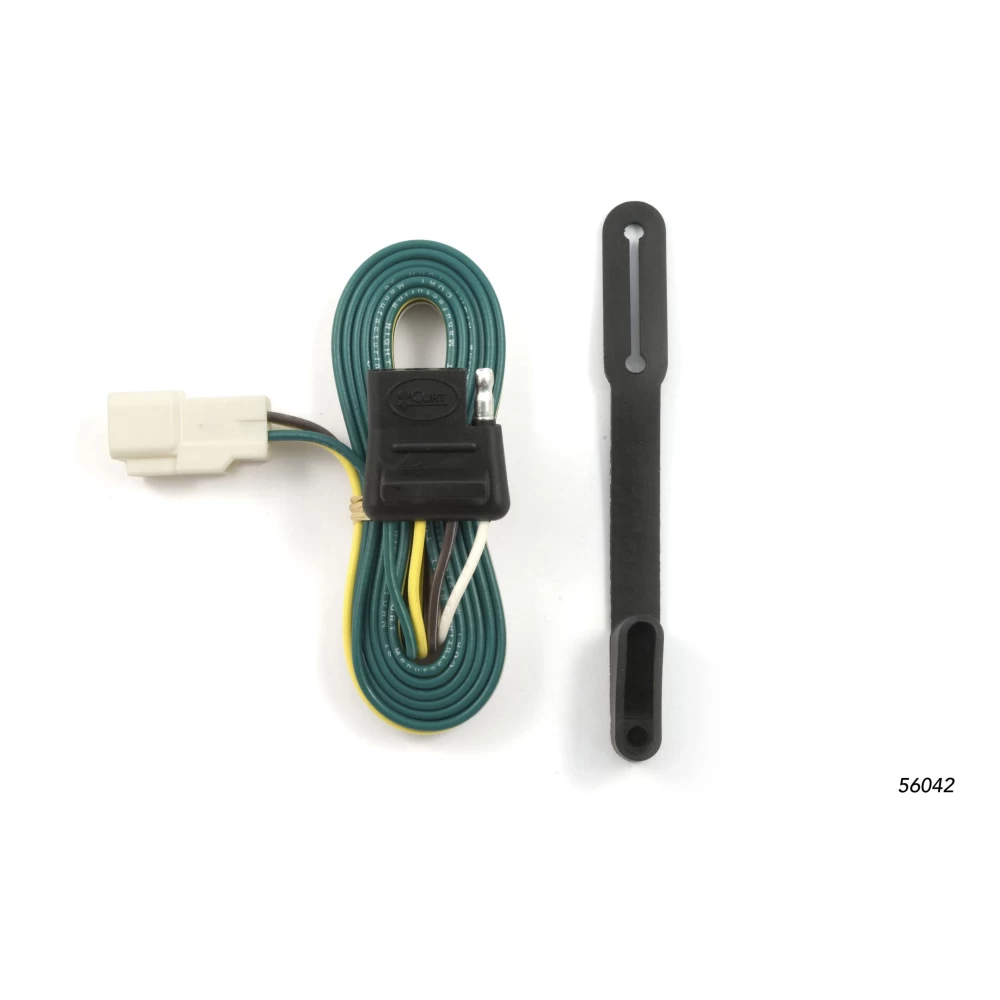

Installation Instructions for Toyota Highlander with Towing Prep Package
Part Number:
- 56042
Tools Required:
- None
Wiring Access Location:
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver-side rear access panel
Step-by-Step Instructions:
-
Access the Rear Cargo Area:
- Open the vehicle's tailgate.
- On the driver side, remove the access panels, threshold, trunk floor panels, and trays.
- Set aside all removed items, taking care not to damage any parts.
-
Locate and Connect the Taillight Wiring Harness:
- Locate the vehicle's 4-pin taillight wiring harness connector on the driver side.
- The connector will be similar to the one on the custom wiring connector.
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Route the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up the connector and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Cargo Area:
- Reinstall all items removed during the installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Ensure all steps are followed to guarantee the wiring connector functions properly.
- Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Installation Instructions for Vehicle Models
Part Number:
- 56042
Tools Required:
- None
Wiring Access Location:
- SUVs, Mini & Full-Sized Vans (S):
- S3: Behind driver-side rear access panel
Step-by-Step Instructions:
-
Access the Rear Cargo Area:
- Open the vehicle's tailgate.
- On the driver side, remove the access panels, threshold, trunk floor panels, and trays.
- Set aside all removed items, taking care not to damage any parts.
-
Locate and Connect the Taillight Wiring Harness:
- Locate the vehicle's 4-pin taillight wiring harness connector on the driver side.
- The connector will be similar to the one on the custom wiring connector.
- Insert the custom wiring connector into the vehicle's connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Route the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up the connector and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Cargo Area:
- Reinstall all items removed during the installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
- Ensure all steps are followed to guarantee the wiring connector functions properly.
- Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
