For 2008 Ford F150 Trailer Hitch Fits Models w/o Factory Connector Except factory receiver Curt 13360 2 inch Tow Receiver
Model: 13360-CH1332This Trailer Tow Hitch Fits The Following Vehicles:
2008 - 2008 Ford F-150 w/o Factory Connector Except factory receiver
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Hitch, 2" (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2008

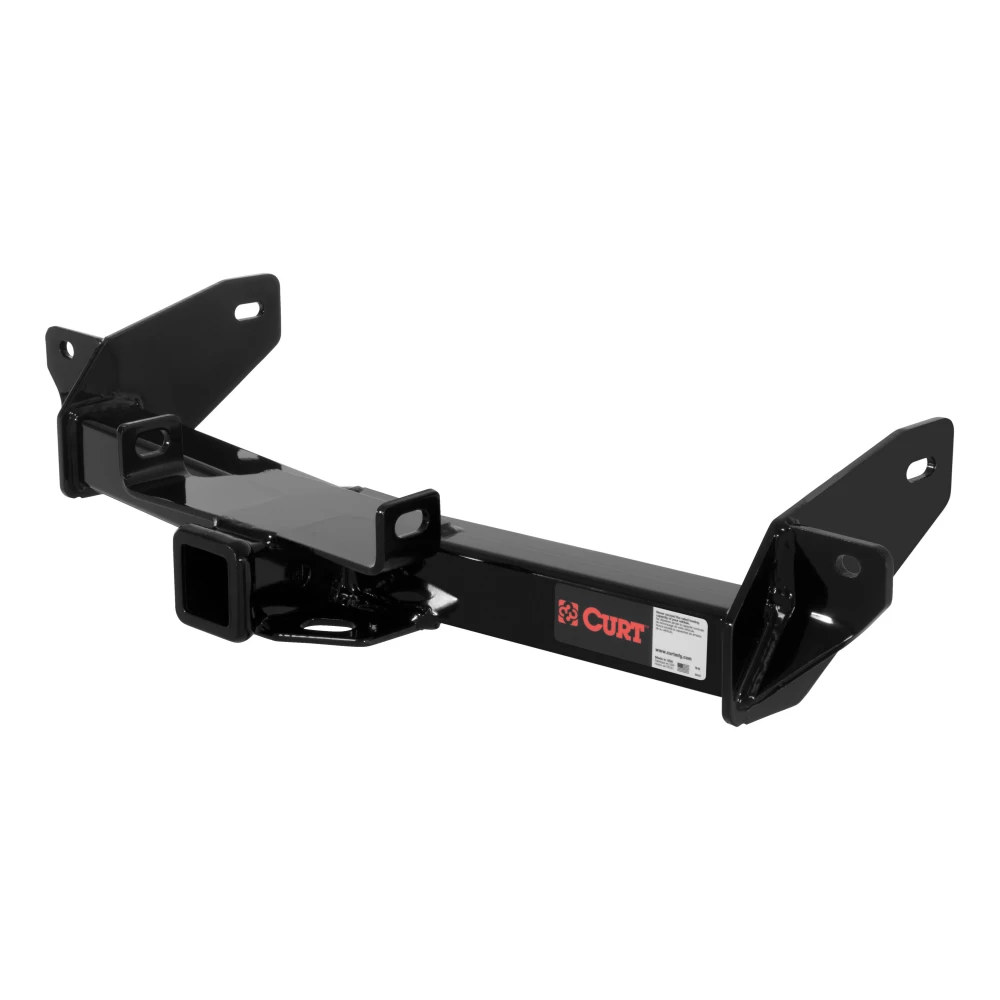

CURT 13360 Class 3 Trailer Hitch, 2-Inch Receiver, Square Tube Frame
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Ford F150 and Lincoln Mark LT (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 6,000 lbs GTW and 600 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs WD and 1,000 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

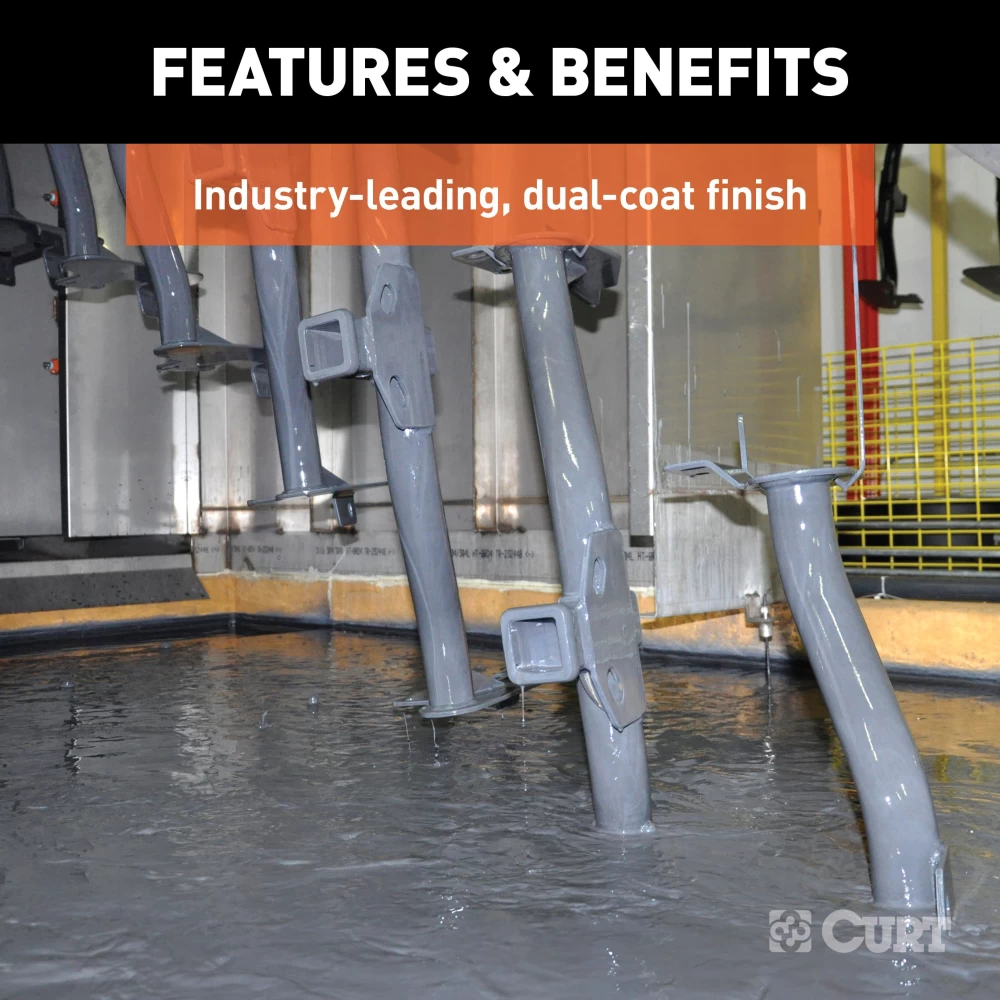

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 6,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Compatible with weight distribution hitch (10,000 lbs. WD / 1,000 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit

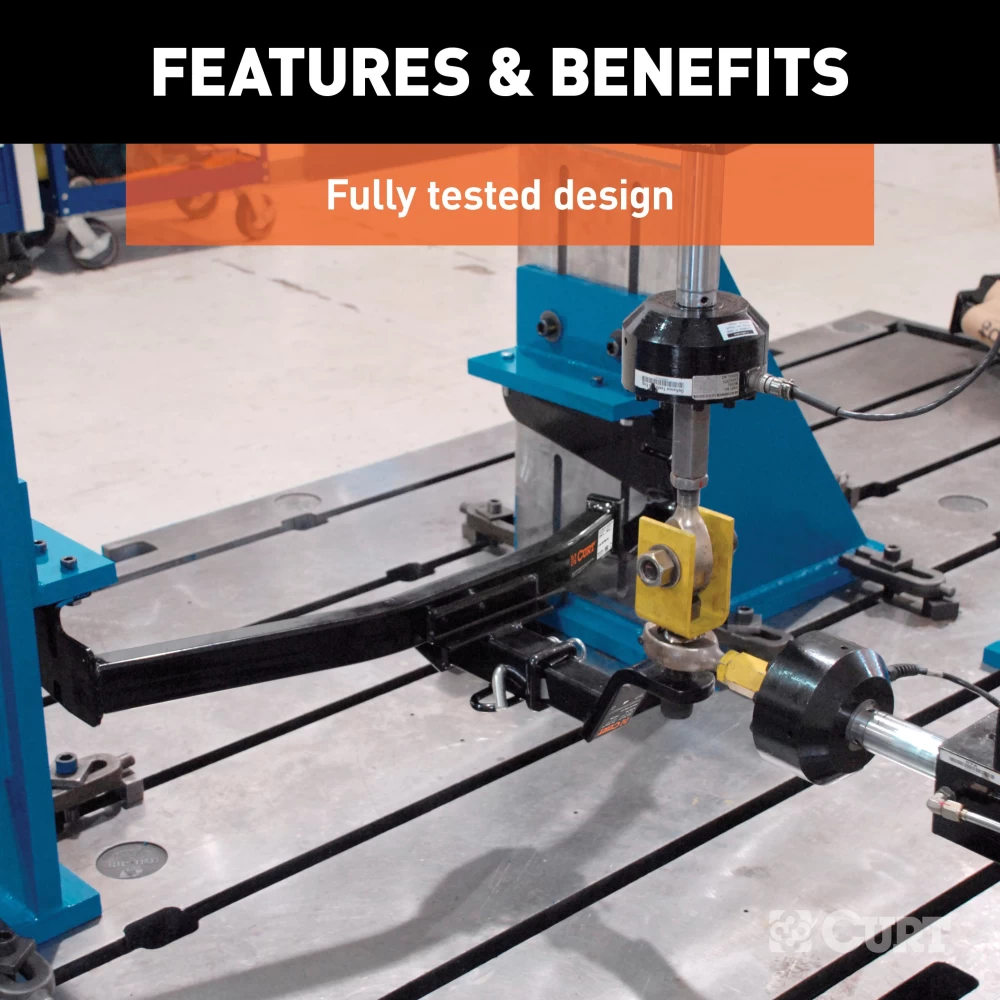

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$200 99 $299.95 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$299.95 $200 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $50.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13360-CH1332
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2008 Ford F150 Trailer Hitch Fits Models w/o Factory Connector Except factory receiver Curt 13360 2 inch Tow Receiver Install Notes
Installation Instructions for Ford F-150 (Built After 8/5/2005)
Part Numbers:
- 13360
Tools Required:
- Ratchet
- Torque Wrench
- Socket Set
Hardware List:
- Carriage Bolt: 1/2-13 UNC, 1-1/4", Grade 8, YZ (Qty: 2)
- Flange Nut: 1/2-13 UNC, Grade 8, YZ (Qty: 2)
- Hex Bolt: 5/8-11 UNC, 1-1/2", Grade 8, YZ (Qty: 2)
- Flat Washer: 5/8", YZ (Qty: 2)
- Flange Nut: 5/8-11 UNC, Grade 8, YZ (Qty: 2)
Step-by-Step Instructions:
- Raise Hitch Into Position:
- Position the hitch between the frame rails.
- Install 5/8" Fasteners:
- Install the 5/8" fasteners into the bumper with loops as shown in the diagram.
- Install Remaining 1/2" Fasteners:
- Secure the 1/2" carriage bolts into each bumper bracket and attach them with the provided flange nuts.
- Torque Fasteners:
- Torque all 5/8" fasteners to 210 lb-ft.
- Torque all 1/2" fasteners to 110 lb-ft.
Safety Notes:
- No Drilling Required: The hitch uses existing mounting points.
- If necessary, loosen the four (4) bumper bolts for improved hitch alignment.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 6,000 lbs
- Tongue Weight: 600 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 10,000 lbs
- Tongue Weight: 1,000 lbs
- Hitch Weight: 32 lbs
Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
Manufacturer Notes:
- For installation questions, contact Technical Support at 1-877-287-8634.
- Product Warranty: Curt Manufacturing Inc. guarantees this product to be free from defects in material and workmanship.
Installation Instructions for Ford F-150 (Built After 8/5/2005)
Part Numbers:
- 13360
Tools Required:
- Ratchet
- Torque Wrench
- Socket Set
Hardware List:
- Carriage Bolt: 1/2-13 UNC, 1-1/4", Grade 8, YZ (Qty: 2)
- Flange Nut: 1/2-13 UNC, Grade 8, YZ (Qty: 2)
- Hex Bolt: 5/8-11 UNC, 1-1/2", Grade 8, YZ (Qty: 2)
- Flat Washer: 5/8", YZ (Qty: 2)
- Flange Nut: 5/8-11 UNC, Grade 8, YZ (Qty: 2)
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Position the hitch between the frame rails.
-
Install 5/8" Fasteners:
- Install the 5/8" fasteners into the bumper with loops as shown in the diagram.
-
Install Remaining 1/2" Fasteners:
- Secure the 1/2" carriage bolts into each bumper bracket and attach them with the provided flange nuts.
-
Torque Fasteners:
- Torque all 5/8" fasteners to 210 lb-ft.
- Torque all 1/2" fasteners to 110 lb-ft.
Safety Notes:
- No Drilling Required: The hitch uses existing mounting points.
- If necessary, loosen the four (4) bumper bolts for improved hitch alignment.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 6,000 lbs
- Tongue Weight: 600 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 10,000 lbs
- Tongue Weight: 1,000 lbs
- Hitch Weight: 32 lbs
Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
Warranty:
- Limited Warranty: Covers defects in material and workmanship at the time of purchase.
- For complete warranty instructions, please download the full installation PDF.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
