For 2008 Jeep Liberty Trailer Hitch + Wiring 5 Pin Fits w/ Tow Prep Package Curt 12245 1‑1/4 Tow Receiver
Model: 12245 55381 57187 58303-CH2514This Trailer Tow Hitch + 5-Flat Fits The Following Vehicles:
2008 - 2008 Jeep Liberty w/ Tow Prep Package

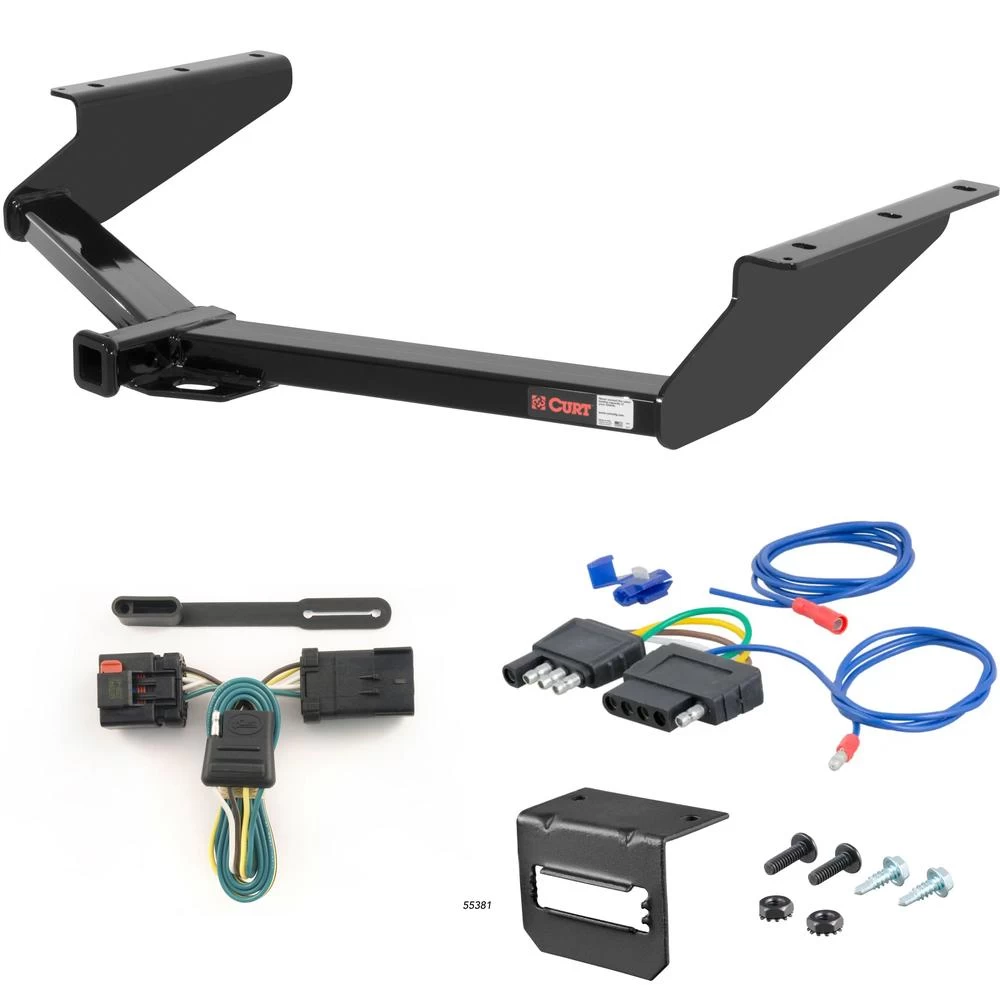

This Trailer Tow Hitch + 5-Flat Includes the Following Parts:
- Class 2 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring, 4-Flat (Plug & Play)
- 4-Way to 5-Way Flat Install Kit for Boat Trailer Surge and Connector Mounting Bracket for 5-Way Flat
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2008

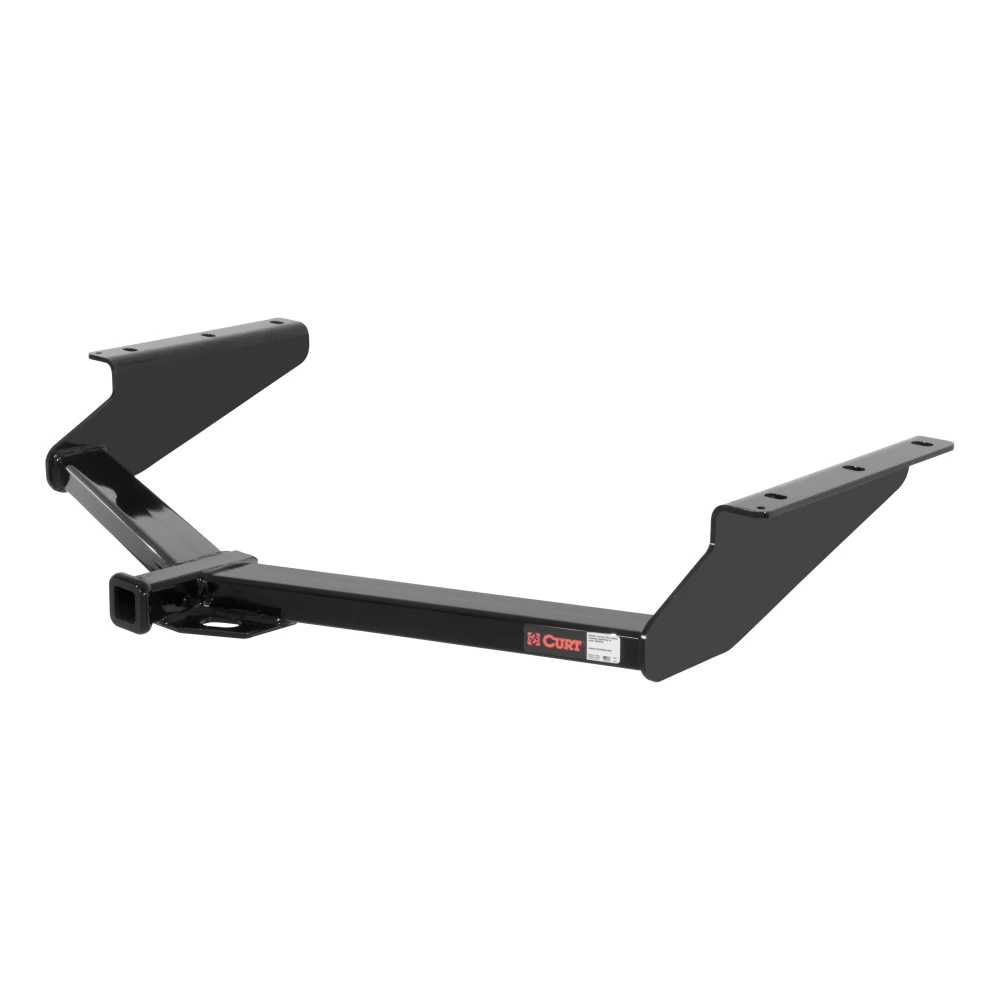

CURT 12245 Class 2 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.
This particular class 2 hitch is made to be a custom hitch for certain years of the Jeep Liberty (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 3,500 lbs GTW and 350 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.
This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.
We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
CURT 55381 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler Aspen and Pacifica, Dodge Dakota, Durango, Dodge Ram 2500, 1500 Van, 2500 Van, Dodge Sprinter 2500 and 3500, Jeep Commander, Grand Cherokee and Liberty and Mitsubishi Raider (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
CURT 57187 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes and CURT 58303 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 5-Way Flat
Manufactured by: Curt
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around; they can get tangled up with cargo and even damaged An electrical connector left to hang off the back end of your vehicle is an even greater hazard.
Secure, protect, and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 5-way flat socket It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch using the included hardware.
This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 5-way flat trailer plug It is specifically intended for boat trailers with surge brakes, adding in a fifth wire for the reverse lights and allowing your vehicle's 4-way flat to easily plug into your boat trailer 5-way flat This boat trailer wiring adapter features durable molded plastic construction and requires some splicing.
All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..
Features:
- Adapts vehicle 4-way flat to plug into boat trailer 5-way flat
- Intended for boat trailers with surge brakes
- Fifth wire splices in to connect reverse lights
- Adapts 4-way flat vehicle socket to fit 5-way flat trailer plugs
- Durable molded plastic housing resists corrosion
- Securely mounts a 5-way flat connector socket
- Allows for attachment to the vehicle or trailer hitch
- Constructed from high-strength steel
- Protected by a durable black powder coat finish
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$282 39 $396.80 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$396.80 $282 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12245 55381 57187 58303-CH2514
- Includes: Class 2 Trailer Tow Hitch, Custom Wiring, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Get Expert Help
For 2008 Jeep Liberty Trailer Hitch + Wiring 5 Pin Fits w/ Tow Prep Package Curt 12245 1-1/4 Tow Receiver Install Notes
Installation Instructions for Jeep Liberty (2008-2012)
Part Numbers:
- 12245
Tools Required:
- Ratchet
- Torque Wrench
- 18mm Socket
- 19mm Socket
- Safety Glasses
Step-by-Step Instructions:
-
Remove Existing Bolt:
- Remove the bolt from the driver-side vehicle support bracket.
- Return the bolt to the vehicle owner.
-
Raise Hitch into Position:
- Raise the hitch into position under the frame rails.
-
Install Fasteners:
- Position the hitch over the frame rails and the driver-side support bracket.
- Loosely install the supplied M12 hex bolts and 1/2" conical toothed washers into the existing weld nuts in the frame rails.
-
Torque Fasteners:
- Torque all M12 hardware to 79 ft-lbs.
Hardware List:
- (2) M12 x 1.75 x 40 Hex Bolts
- (2) 1/2" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Hitch Weight: 33 lbs.
- Professional Install Time: 20 minutes
Manufacturer Notes:
- No drilling is required for this installation.
- Designed for use with Ball Mount #D-55001.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Vehicle
Part Numbers:
- 12245
Tools Required:
- Ratchet
- Torque Wrench
- 18mm Socket
- 19mm Socket
- Safety Glasses
Step-by-Step Instructions:
-
Remove Existing Bolt:
- Remove the bolt from the driver-side vehicle support bracket.
- Return the bolt to the vehicle owner.
-
Raise Hitch into Position:
- Raise the hitch into position under the frame rails.
-
Install Fasteners:
- Position the hitch over the frame rails and the driver-side support bracket.
- Loosely install the supplied M12 hex bolts and 1/2" conical toothed washers into the existing weld nuts in the frame rails.
-
Torque Fasteners:
- Torque all M12 hardware to 79 ft-lbs.
Hardware List:
- (2) M12 x 1.75 x 40 Hex Bolts
- (2) 1/2" Conical Toothed Washers
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Hitch Weight: 33 lbs.
- Professional Install Time: 20 minutes
Important Notice:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
- For warranty information, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- No drilling is required for this installation.
- Designed for use with Ball Mount #D-55001.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
