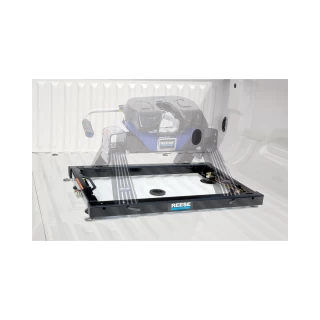

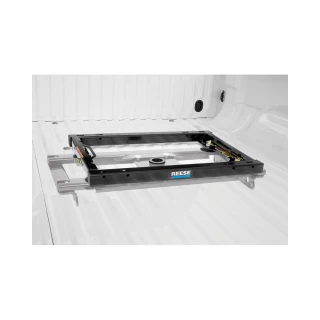

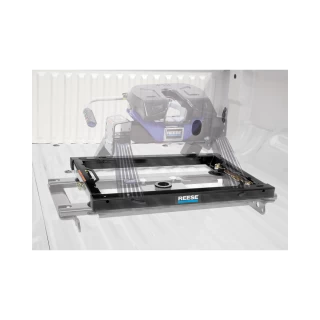

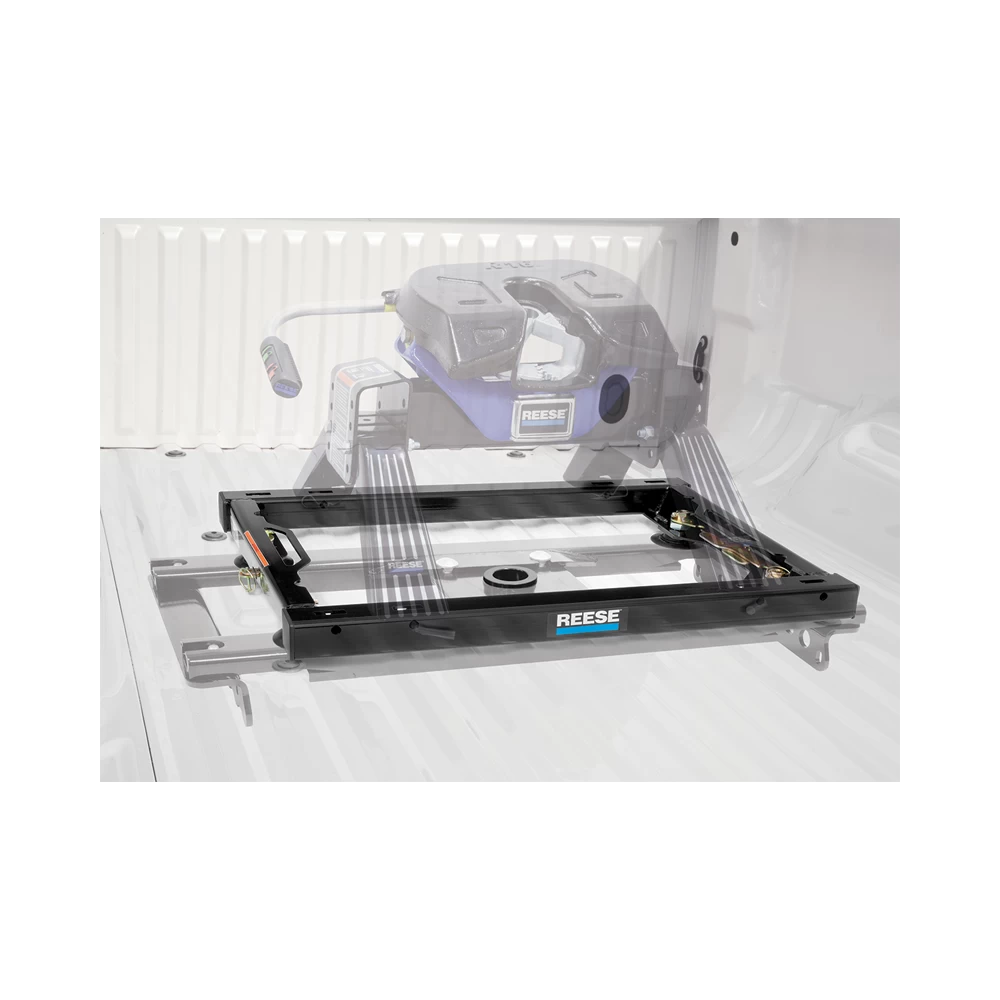

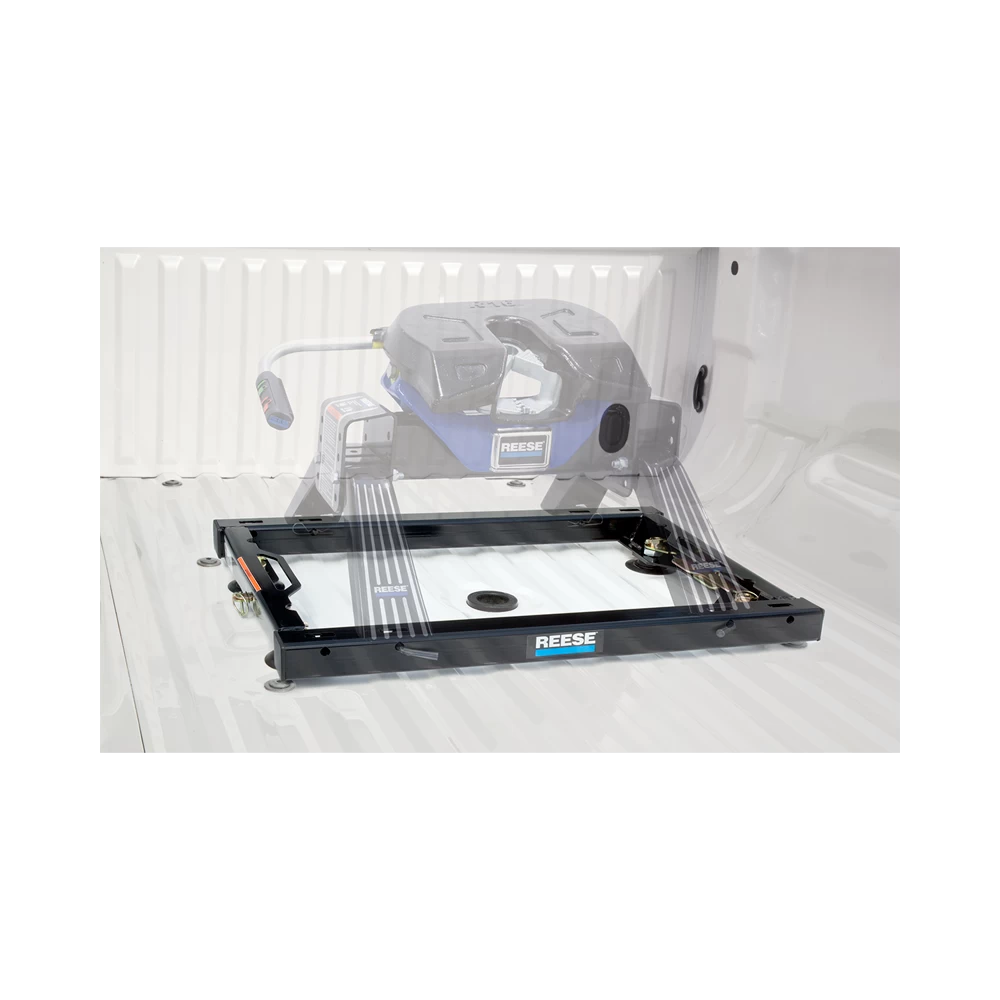

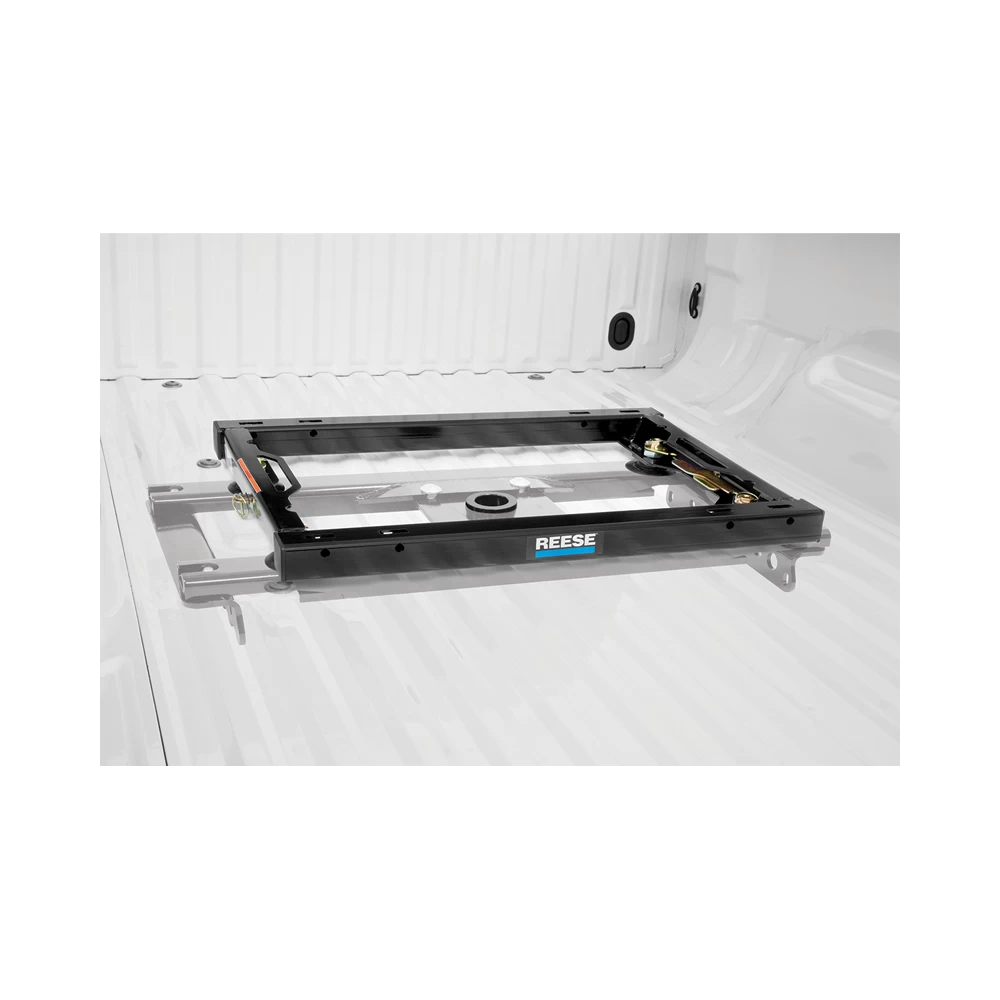

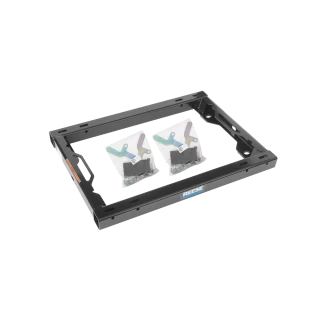

For 2011-2024 Ford F-350 Super Duty Adapter for Converting Factory Puck System or Reese Elite System to Industry Standard Base Rail Kit (For w/Factory or Reese Elite Puck System Models) By Reese Install Notes
Installation Instructions for Reese 5th Wheel Hitch Mounting Adapter Kit
Part Numbers:
- 30156
Rated Capacity:
- SAE J2638 Rated to 20,000 lbs Gross Trailer Weight
Tools Required:
- 1 ½” Socket and Wrench (or Crescent Wrench)
- Rubber Mallet

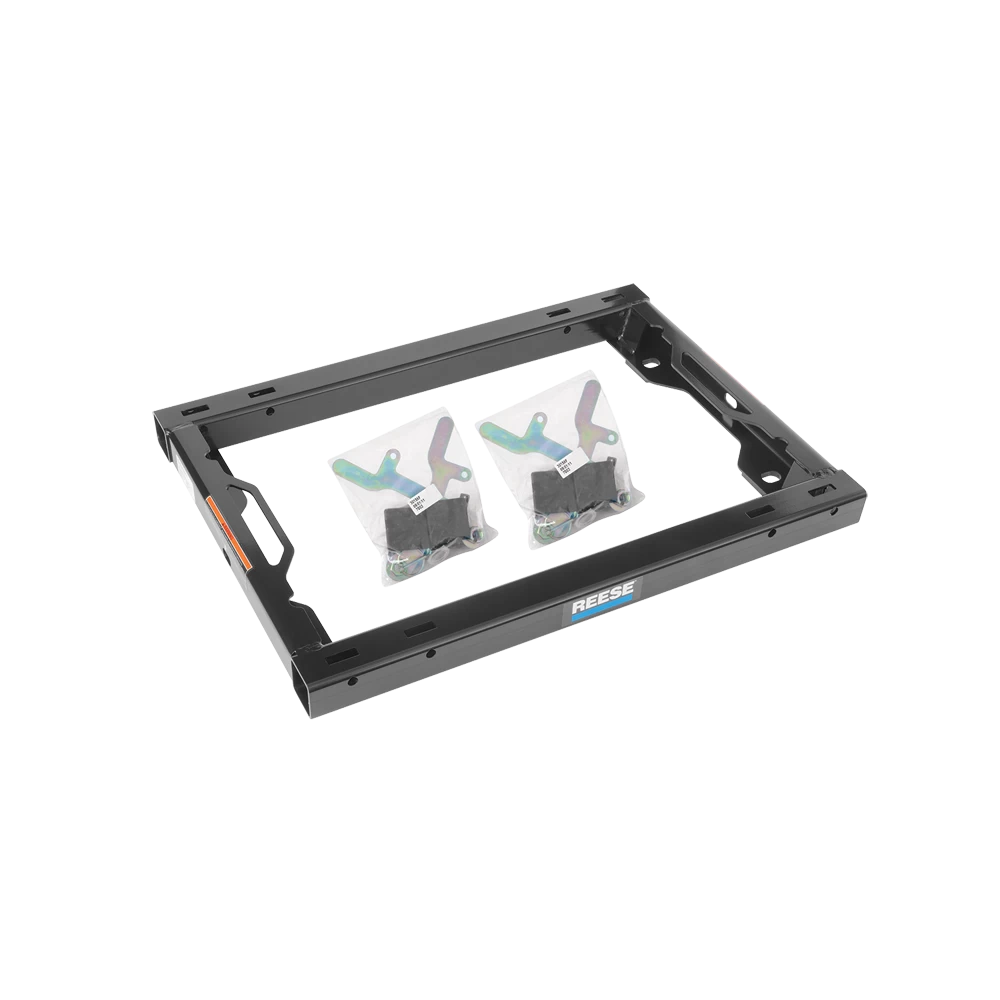

Hardware List:
- Adapter Weldment - Qty: 1
- Tee Pin Anchors - Qty: 4
- Anchor Bushings - Qty: 4
- 1” Jam Nuts - Qty: 4
- Left Anchor Handles - Qty: 2
- Right Anchor Handles - Qty: 2
- Lynch Pins - Qty: 6
- End Caps - Qty: 4
Warnings:
- Failure to follow instructions may result in serious injury or death.
- Ensure all components are installed and adjusted properly.
Step-by-Step Instructions:
1. System Assembly:
- Assemble each anchor bushing with a 1” jam nut. Tighten snugly (no vertical play), then turn an additional quarter turn.
- Attach the Tee Pin Anchor and handle. Ensure the locking tab protrudes through the slot when in the locked position.
- Tighten the Tee Pin until metal-to-metal contact is achieved, then loosen 1.5 turns.
- Align the Tee Pin hole with the handle nut slot, securing it with a lynch pin.
- Repeat the above steps for all anchor assemblies.
2. End Cap Installation:
- Orient the end cap ribs into the cross tube.
- Push the end cap into place until the flanged surface contacts the tube.
- Repeat for all end caps.

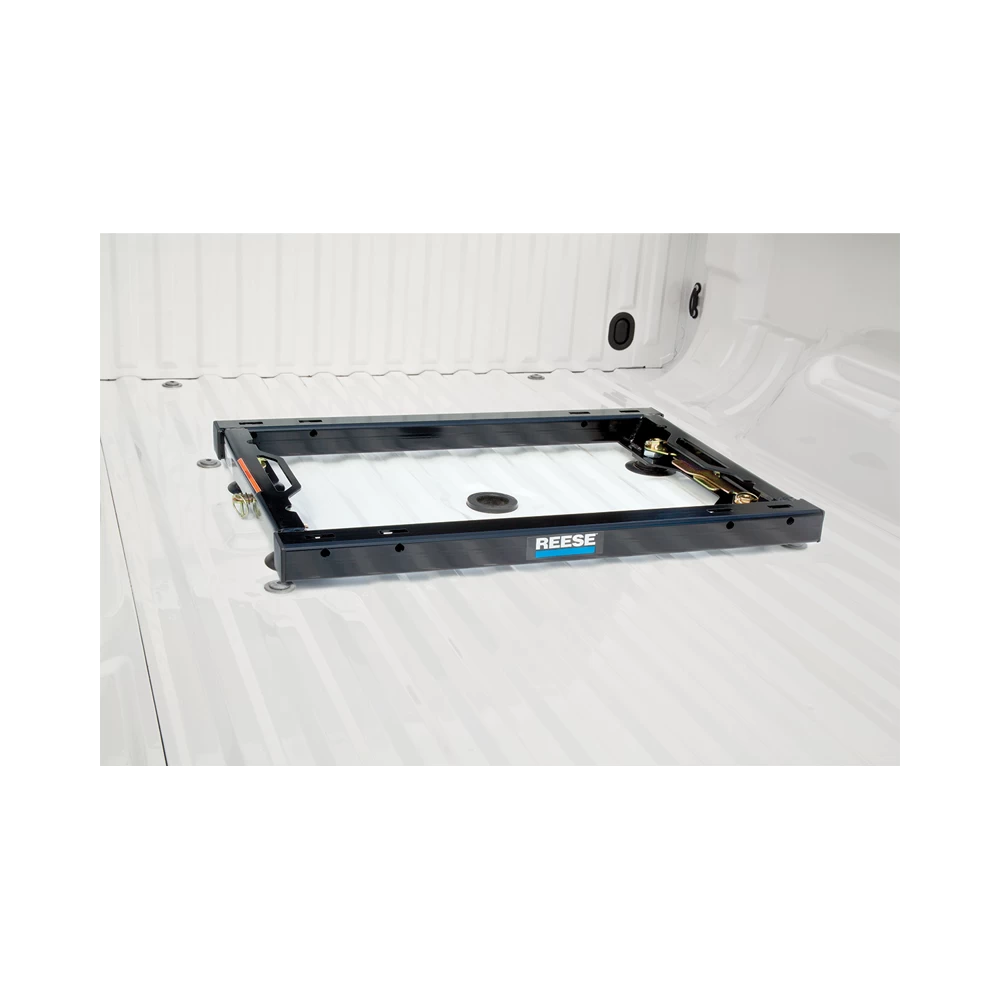

Installation:
- Remove puck plugs from the truck bed and store for future use.
- Place the adapter into the pucks with the handles in the unlocked position.
- Drop the adapter into the pucks on all four corners.
- Rotate the handles into the locked position, ensuring the locking hole tabs overlap and are secured with lynch pins.
Adjustment:
- If handles cannot be locked by hand or the adapter does not sit securely:
- Loosen the 1” jam nuts.
- Adjust the handle-to-Tee Pin orientation by rotating the Tee Pin clockwise or counterclockwise as needed.
- Retighten the jam nuts and secure with lynch pins.
Maintenance:
- Lubricate feet with lithium grease for easier engagement.
- Before each trip, ensure all Tee Pins and pull pins are locked in place with lynch pins.
- Regularly inspect components for wear and replace as necessary.
Adapter Removal:
- Remove lynch pins from the handle holes and store them.
- Rotate the handles to the unlocked position and lift the adapter from the pucks.
- Store the adapter in a dry place to avoid dirt and debris contamination.
- Reinsert puck plugs into the truck bed.
Warranty:
- Limited Lifetime Warranty:
- Covers material and workmanship defects under normal use.
- Excludes normal wear and tear, misuse, overloading, or improper installation.
- Warranty Claims:
- Contact Cequent Performance Products, Inc. at 1-888-521-0510.
- Provide proof of purchase and follow claim instructions.
For further assistance, consult the full manual or contact technical support.
Installation Instructions for 5th Wheel Hitch Mounting Adapter Kit
Part Numbers:
- 30156
Rated Capacity:
- SAE J2638 Rated to 20,000 lbs Gross Trailer Weight
Tools Required:
- 1 ½” Socket and Wrench (or Crescent Wrench)
- Rubber Mallet

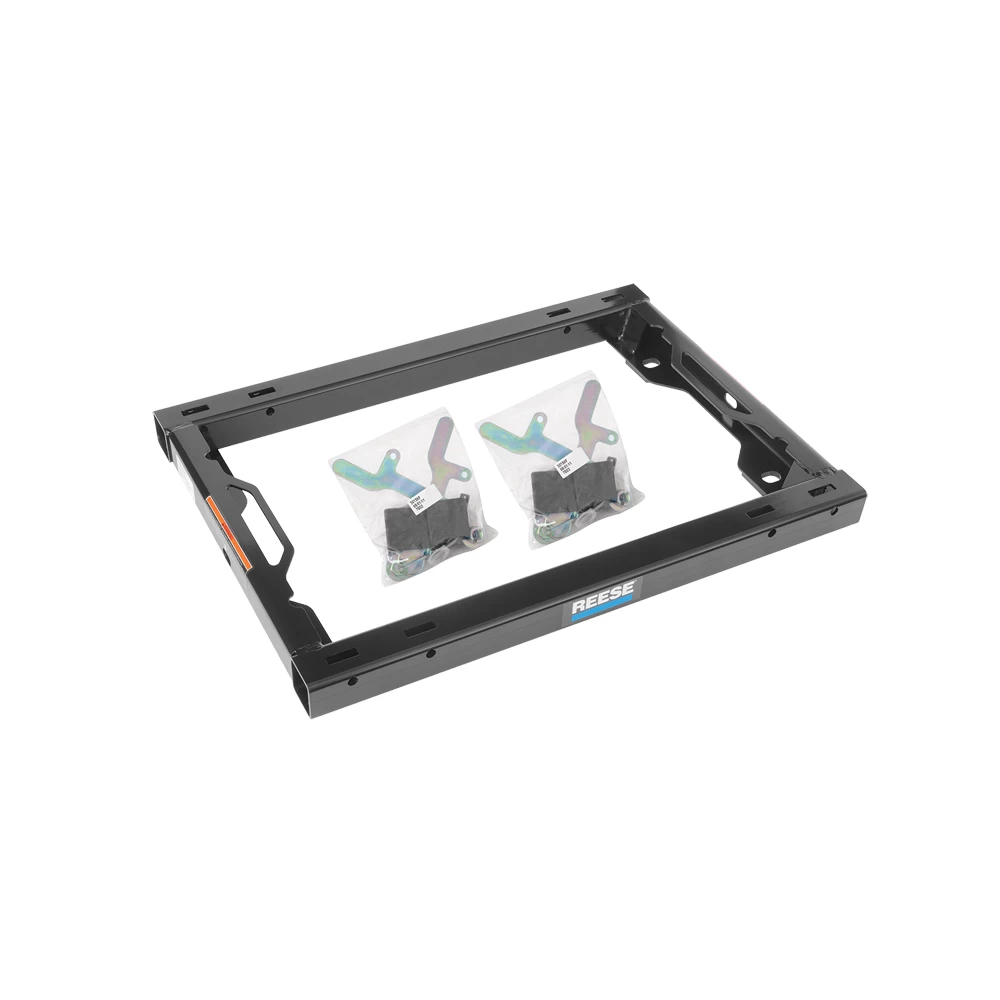

Hardware List:
- Adapter Weldment - Qty: 1
- Tee Pin Anchors - Qty: 4
- Anchor Bushings - Qty: 4
- 1” Jam Nuts - Qty: 4
- Left Anchor Handles - Qty: 2
- Right Anchor Handles - Qty: 2
- Lynch Pins - Qty: 6
- End Caps - Qty: 4
Warnings:
- Failure to follow instructions may result in serious injury or death.
- Ensure all components are installed and adjusted properly.
Step-by-Step Instructions:
1. System Assembly:
- Assemble each anchor bushing with a 1” jam nut. Tighten snugly (no vertical play), then turn an additional quarter turn.
- Attach the Tee Pin Anchor and handle. Ensure the locking tab protrudes through the slot when in the locked position.
- Tighten the Tee Pin until metal-to-metal contact is achieved, then loosen 1.5 turns.
- Align the Tee Pin hole with the handle nut slot, securing it with a lynch pin.
- Repeat the above steps for all anchor assemblies.
2. End Cap Installation:
- Orient the end cap ribs into the cross tube.
- Push the end cap into place until the flanged surface contacts the tube.
- Repeat for all end caps.

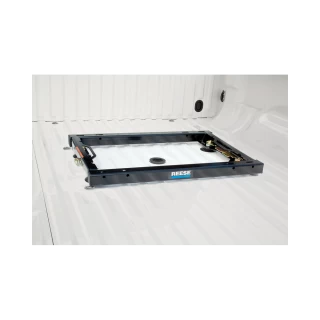

Installation:
- Remove puck plugs from the truck bed and store for future use.
- Place the adapter into the pucks with the handles in the unlocked position.
- Drop the adapter into the pucks on all four corners.
- Rotate the handles into the locked position, ensuring the locking hole tabs overlap and are secured with lynch pins.
Adjustment:
- If handles cannot be locked by hand or the adapter does not sit securely:
- Loosen the 1” jam nuts.
- Adjust the handle-to-Tee Pin orientation by rotating the Tee Pin clockwise or counterclockwise as needed.
- Retighten the jam nuts and secure with lynch pins.
Maintenance:
- Lubricate feet with lithium grease for easier engagement.
- Before each trip, ensure all Tee Pins and pull pins are locked in place with lynch pins.
- Regularly inspect components for wear and replace as necessary.
Adapter Removal:
- Remove lynch pins from the handle holes and store them.
- Rotate the handles to the unlocked position and lift the adapter from the pucks.
- Store the adapter in a dry place to avoid dirt and debris contamination.
- Reinsert puck plugs into the truck bed.
Warranty:
- Limited Lifetime Warranty:
- Covers material and workmanship defects under normal use.
- Excludes normal wear and tear, misuse, overloading, or improper installation.
- For warranty information, please download the full installation PDF.
For further assistance, consult the full manual or contact technical support.
