For 2013‑2018 Hyundai Santa Fe 7 Pin Trailer Wiring RV 7 Way Trailer Plug (For Sport (5 Passenger) Models) By Tekonsha
Model: 22122 20212-425636This Bundle Fits The Following Vehicles:
2013-2018 Hyundai Santa Fe Sport (5 Passenger)
This Bundle Includes the Following Parts:
7-Way RV Wiring
List of fitment years:
2013, 2014, 2015, 2016, 2017, 2018

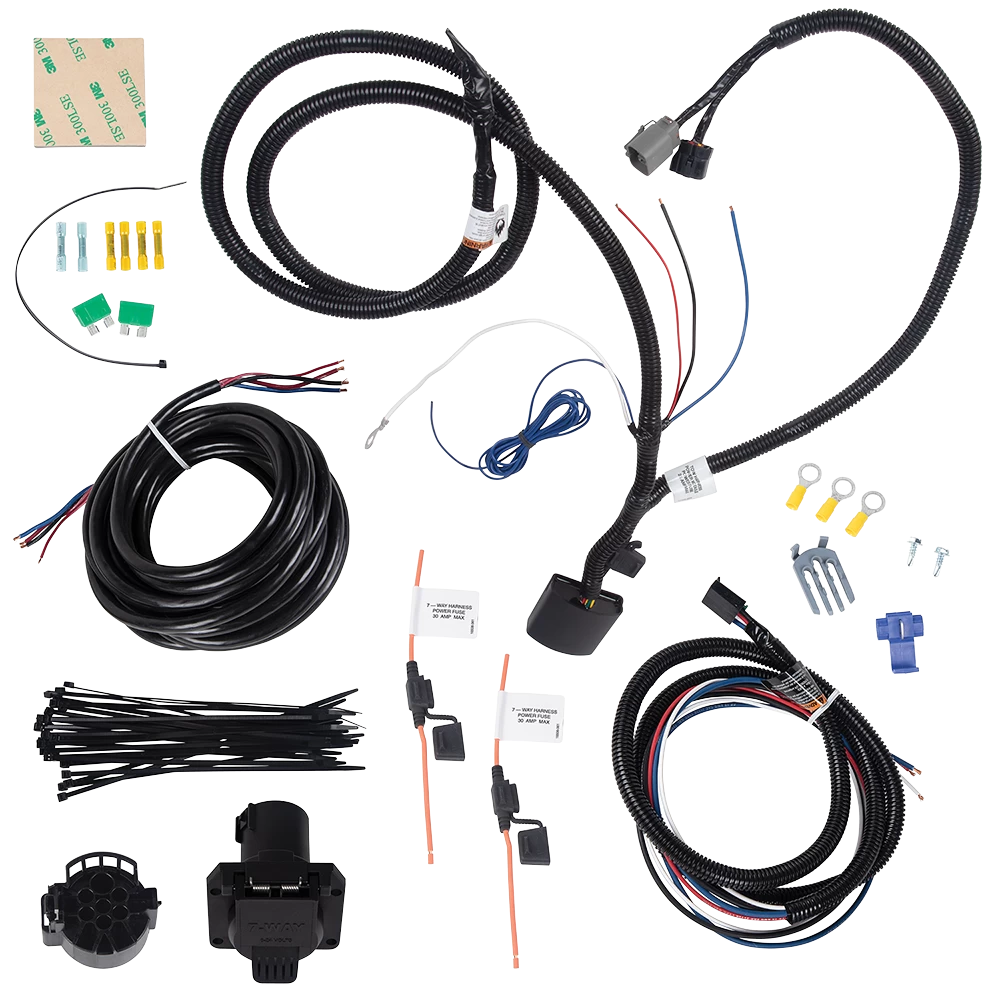

Tow Harness, 7-Way Complete Kit Manufactured by: Tekonsha
No other product is designed to specifically deliver everything needed for a fully functional 7-Way, INCLUDING a brake control plug. No more piecing together products. These kits are custom made and will REDUCE the installation time of installing a fully functional 7-Way.
- Allows for fully functional 7-Way (Tail Lights, Left/Right turn, Brake, Reverse, Electric Brakes and 12 Volt +)
- Short circuit and overload protection on all circuits including reverse
- Mates with standard U.S. trailer 7-Way connectors
- Provides Plug and Play connector to mate with all Horizon brake controls

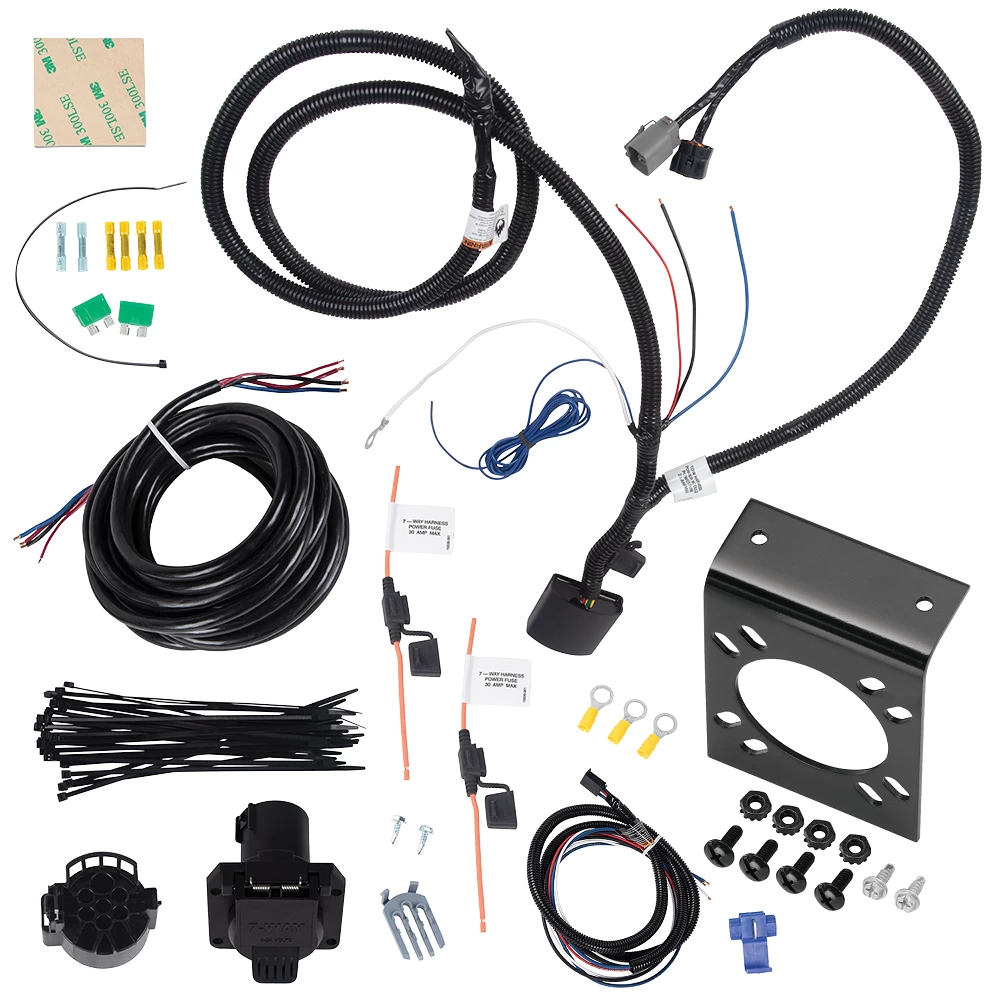

Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
$214 86 $298.57 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$298.57 $214 86
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 22122 20212-425636
- Includes: Tow Custom Harness, Mounting Bracket
Compatibility Chart
Get Expert Help
For 2013-2018 Hyundai Santa Fe 7 Pin Trailer Wiring RV 7 Way Trailer Plug (For Sport (5 Passenger) Models) By Tekonsha Install Notes
Installation Instructions for 7-Way T-One® T-Connector Kit
Part Numbers:
- 22122
Tools Required:
- Trim Panel Puller
- Ratchet
- 10mm Socket
- Wire Strippers/Crimpers
- Heat Gun
- Test Probe or Voltmeter
Hardware Included:
- Cable Ties (24 - 8.5”, 1 - 14.5”)
- Wire Tap (1)
- 25 AMP Fuse (1), 30 AMP Fuse (2)
- Ring Terminals (3)
- Fuse Holders (2)
- Yellow Butt Connectors (4)
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Disconnect and isolate the vehicle’s negative battery terminal.
- Locate the positive post underneath the hood on the driver’s side.
-
Remove Rear Components:
- Open the rear hatch and remove the taillight assemblies on both sides of the vehicle.
- Lower the spare tire for additional access (if applicable).
-
Install T-One® T-Connector:
- Locate the tow-plug connector near the rear tire. Remove the protective cover from the connector.
- Insert the T-One® T-Connector harness into the vehicle’s tow-plug harness, ensuring locking tabs are secure.
- Route the T-Connector harness along the inside of the bumper towards the center of the vehicle.
-
Ground the White Wire:
- Secure the white ground wire to a clean metal surface near the connection point using the provided screw.
-
Route the Body Harness:
- From inside the vehicle on the driver’s side, route the body harness with red/black/blue wires into the engine compartment.
- Follow existing wiring along the thresholds to the battery location.
- Secure with cable ties, avoiding hot pipes, heat shields, or other pinch points.
-
Connect Power Wires:
- Route the black wire to the battery’s positive post. Connect it using the 30 AMP fuse holder, butt connector, and ring terminal.
- Route the red wire to the battery’s positive post. Connect it using the 25 AMP fuse holder, butt connector, and ring terminal.
-
Install the 7-Way Connector:
- Determine a suitable mounting location for the 7-way connector.
- Route the harness behind the bumper fascia to the mounting point.
- Connect and secure the 7-way connector (bracket not included).
-
Secure and Reassemble Components:
- Use the provided cable ties to secure all wiring, avoiding any areas that could pinch, cut, or melt the wires.
- Replace all removed panels, grommets, and other components. Seal altered grommets with silicone.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative battery cable.
-
Test the Installation:
- Test and verify the system with a test light or trailer.
Specifications:
- Max. stop/turn/backup light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
- Max. 7-Way 12V power: 30 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
- Store these instructions for future reference.
Installation Instructions for 7-Way T-One® T-Connector Kit
Part Numbers:
- 22122
Tools Required:
- Trim Panel Puller
- Ratchet
- 10mm Socket
- Wire Strippers/Crimpers
- Heat Gun
- Test Probe or Voltmeter
Hardware Included:
- Cable Ties (24 - 8.5”, 1 - 14.5”)
- Wire Tap (1)
- 25 AMP Fuse (1), 30 AMP Fuse (2)
- Ring Terminals (3)
- Fuse Holders (2)
- Yellow Butt Connectors (4)
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Disconnect and isolate the vehicle’s negative battery terminal.
- Locate the positive post underneath the hood on the driver’s side.
-
Remove Rear Components:
- Open the rear hatch and remove the taillight assemblies on both sides of the vehicle.
- Lower the spare tire for additional access (if applicable).
-
Install T-One® T-Connector:
- Locate the tow-plug connector near the rear tire. Remove the protective cover from the connector.
- Insert the T-One® T-Connector harness into the vehicle’s tow-plug harness, ensuring locking tabs are secure.
- Route the T-Connector harness along the inside of the bumper towards the center of the vehicle.
-
Ground the White Wire:
- Secure the white ground wire to a clean metal surface near the connection point using the provided screw.
-
Route the Body Harness:
- From inside the vehicle on the driver’s side, route the body harness with red/black/blue wires into the engine compartment.
- Follow existing wiring along the thresholds to the battery location.
- Secure with cable ties, avoiding hot pipes, heat shields, or other pinch points.
-
Connect Power Wires:
- Route the black wire to the battery’s positive post. Connect it using the 30 AMP fuse holder, butt connector, and ring terminal.
- Route the red wire to the battery’s positive post. Connect it using the 25 AMP fuse holder, butt connector, and ring terminal.
-
Install the 7-Way Connector:
- Determine a suitable mounting location for the 7-way connector.
- Route the harness behind the bumper fascia to the mounting point.
- Connect and secure the 7-way connector (bracket not included).
-
Secure and Reassemble Components:
- Use the provided cable ties to secure all wiring, avoiding any areas that could pinch, cut, or melt the wires.
- Replace all removed panels, grommets, and other components. Seal altered grommets with silicone.
-
Reconnect the Battery:
- Reconnect the vehicle’s negative battery cable.
-
Test the Installation:
- Test and verify the system with a test light or trailer.
Specifications:
- Max. stop/turn/backup light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
- Max. 7-Way 12V power: 30 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional details.
- Store these instructions for future reference.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
22122 Rev. A 6/25/2014
