For 2013‑2018 Toyota Avalon Trailer Hitch Fits All Models Curt 12107 1‑1/4 Tow Receiver
Model: 12107-CH3532This Trailer Tow Hitch Fits The Following Vehicles:
2013 - 2018 Toyota Avalon All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 2 Trailer Hitch, 1-1/4" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2013, 2014, 2015, 2016, 2017, 2018

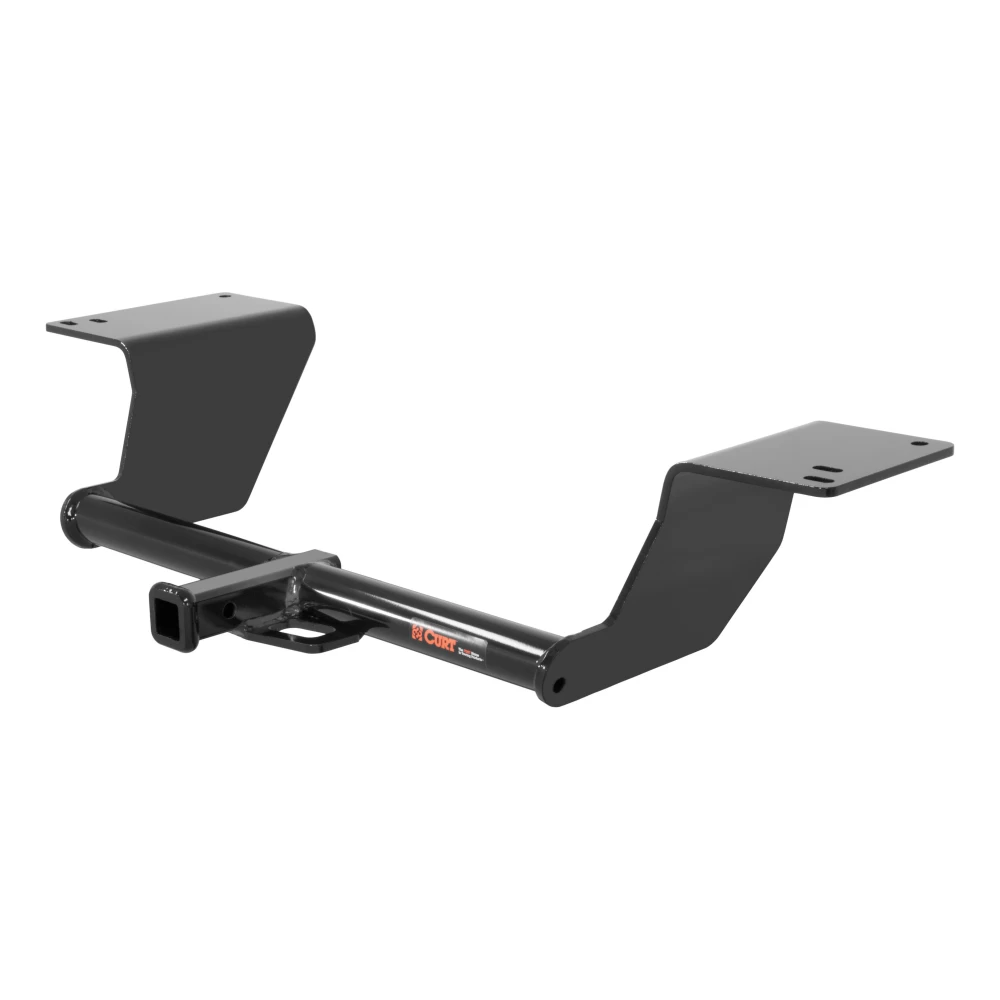

CURT 12107 Class 2 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.

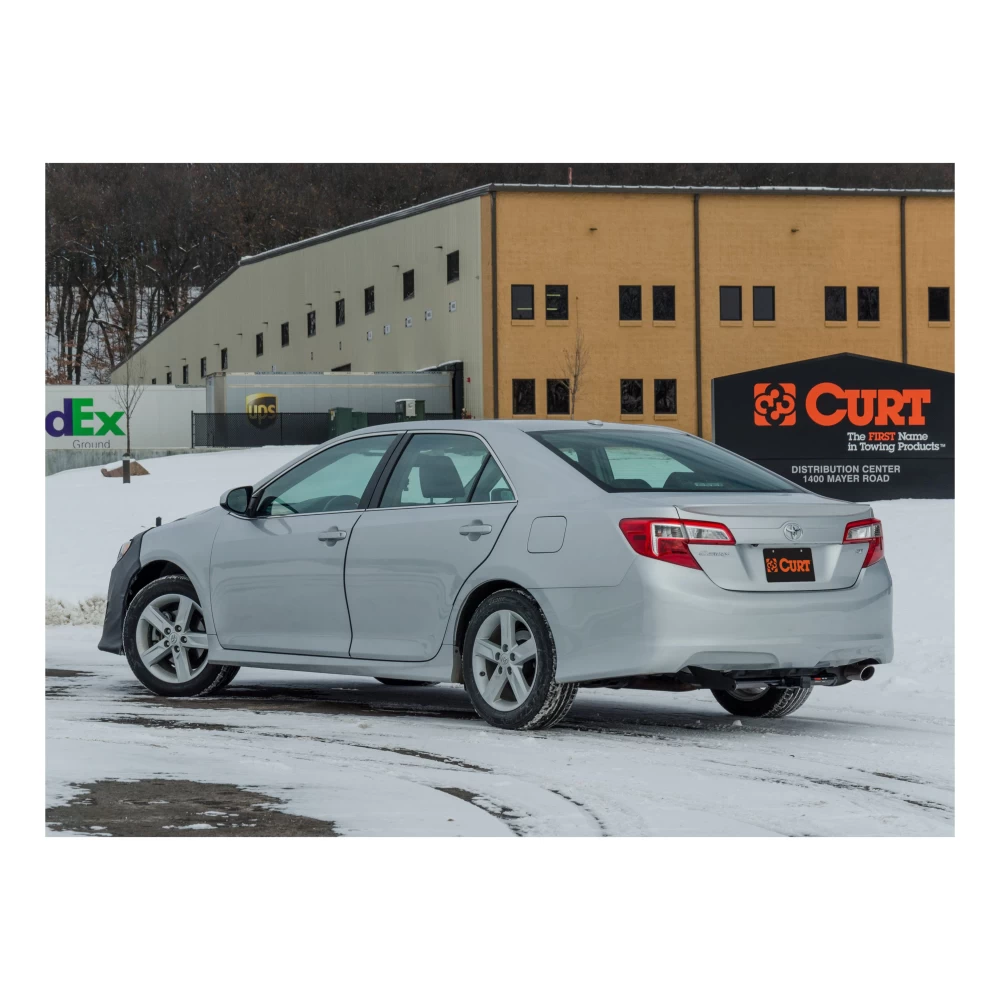

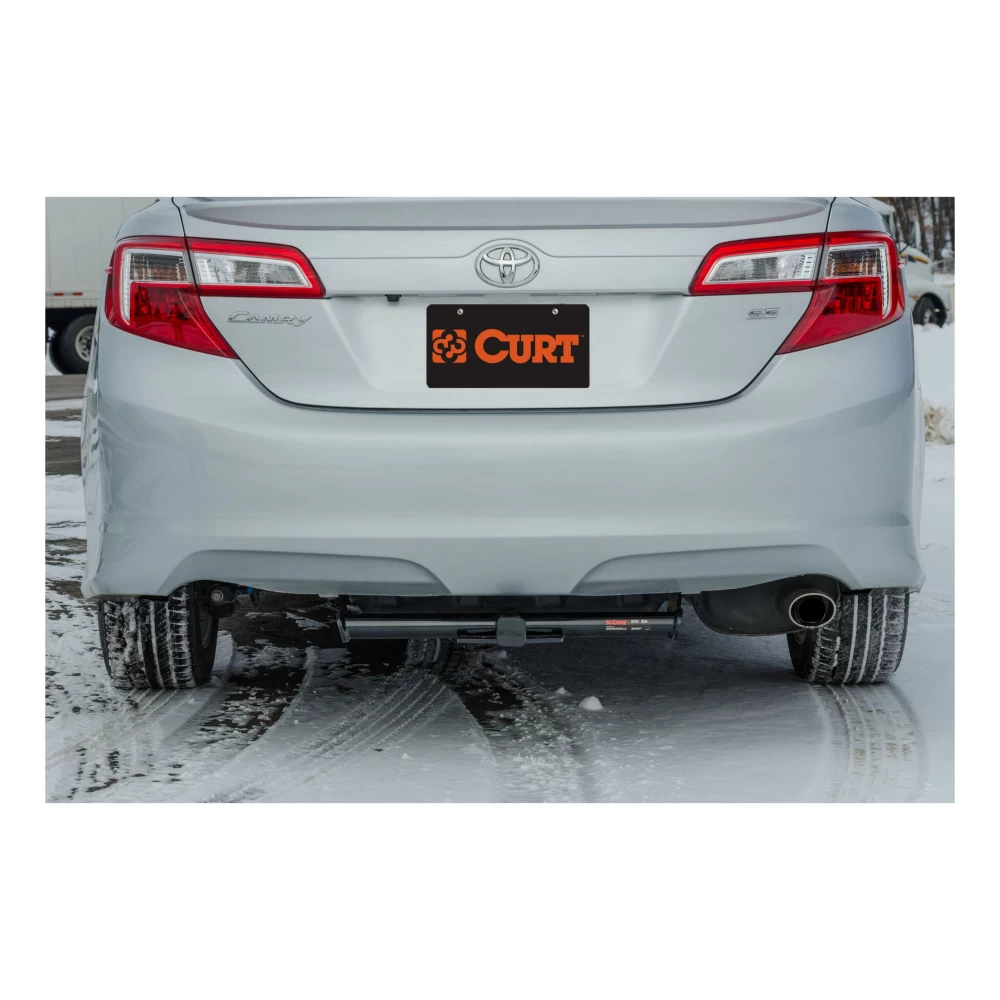

This particular class 2 hitch is made to be a custom hitch for certain years of the Toyota Avalon and Camry (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 3,500 lbs GTW and 350 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.

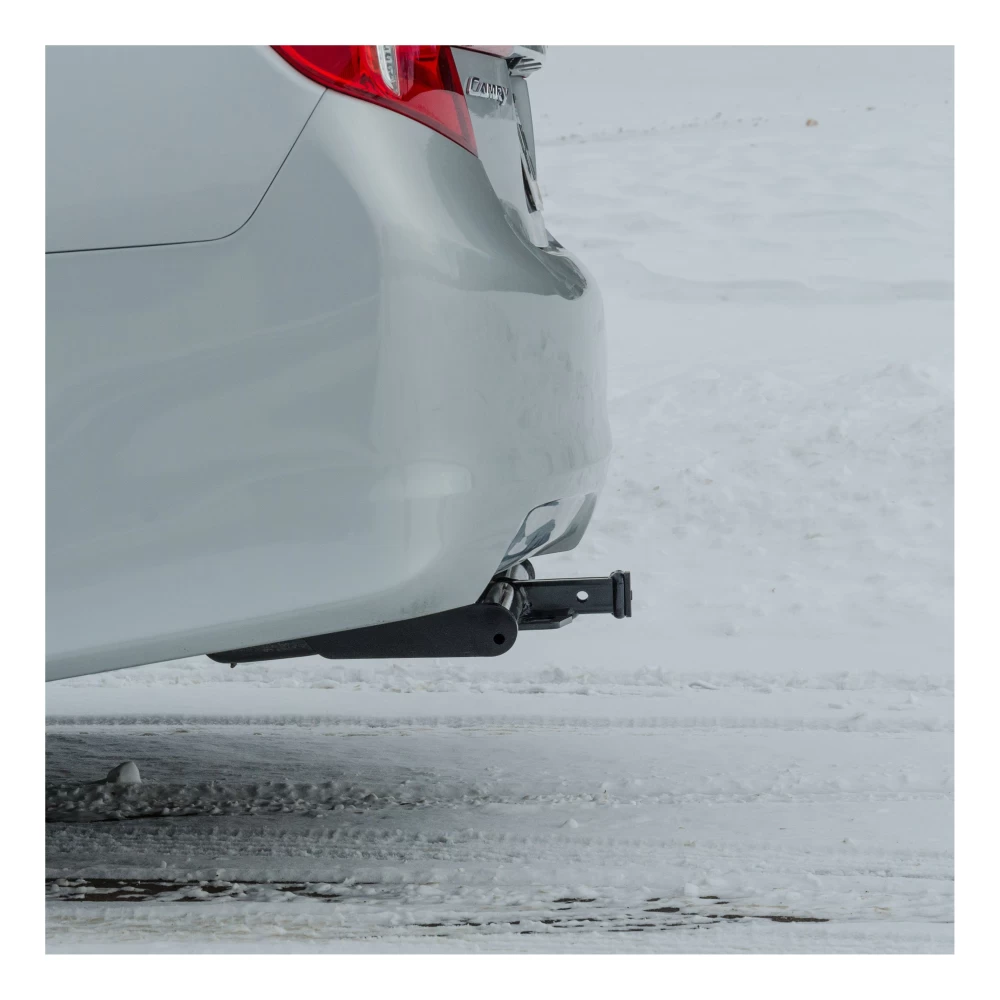

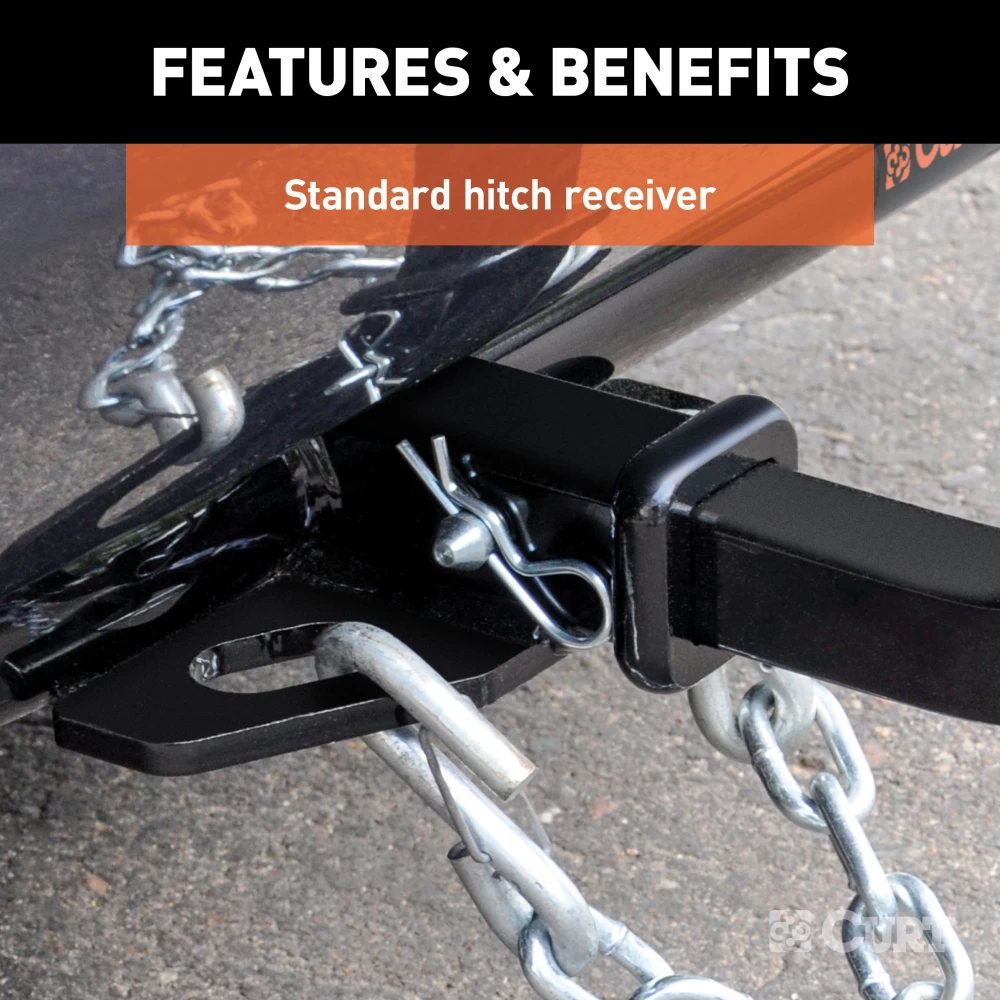

This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.
We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..

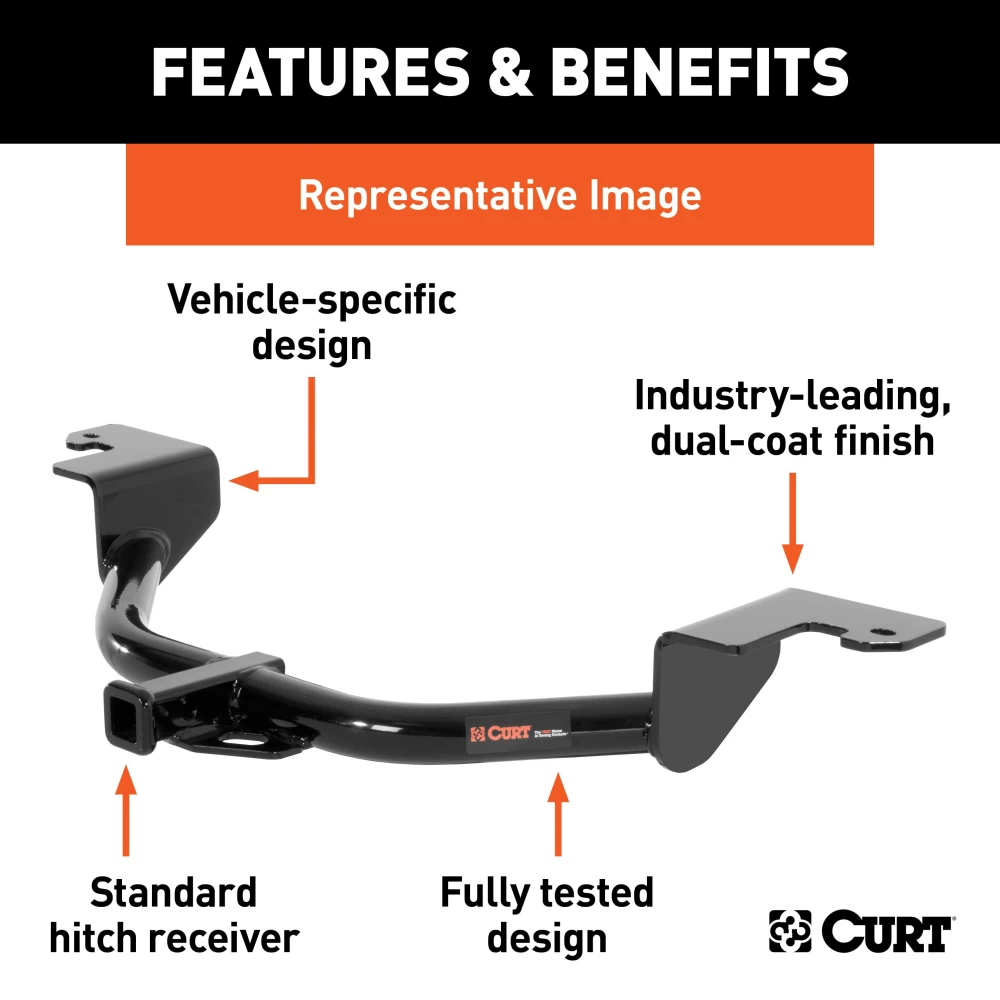

Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

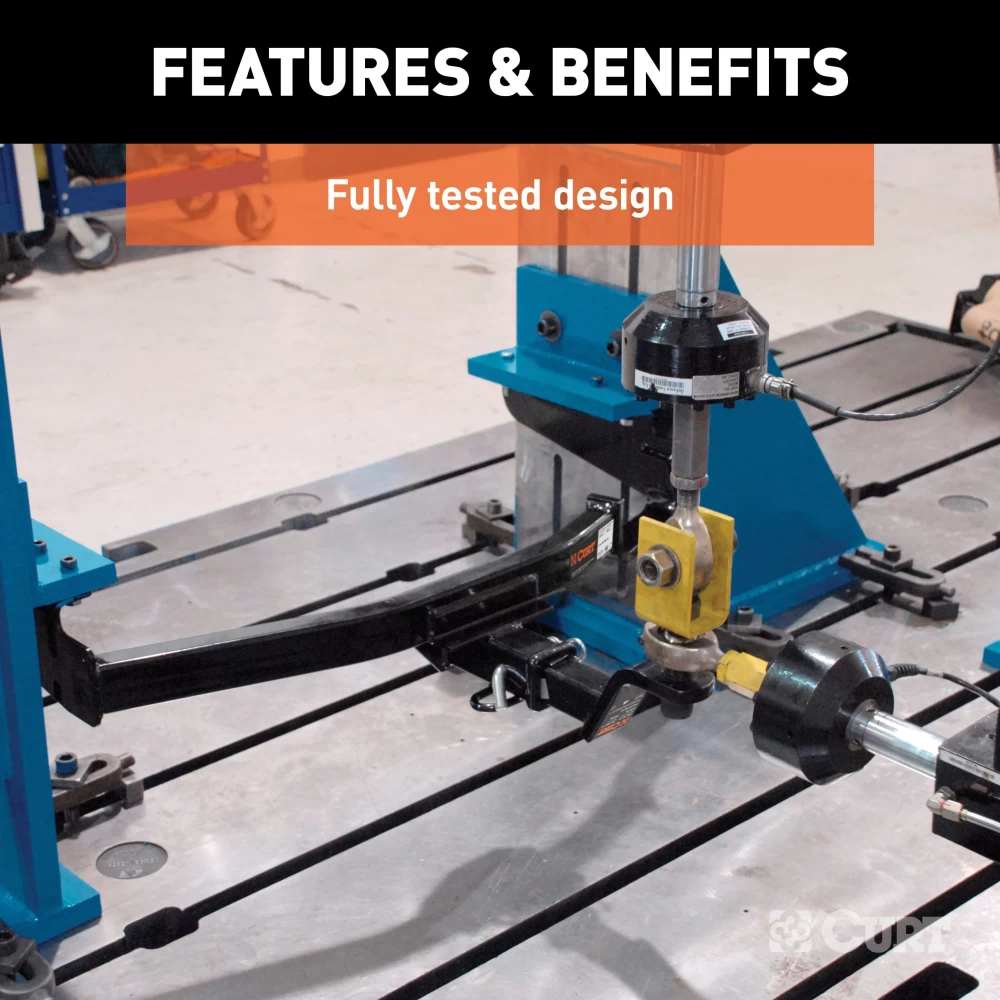

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

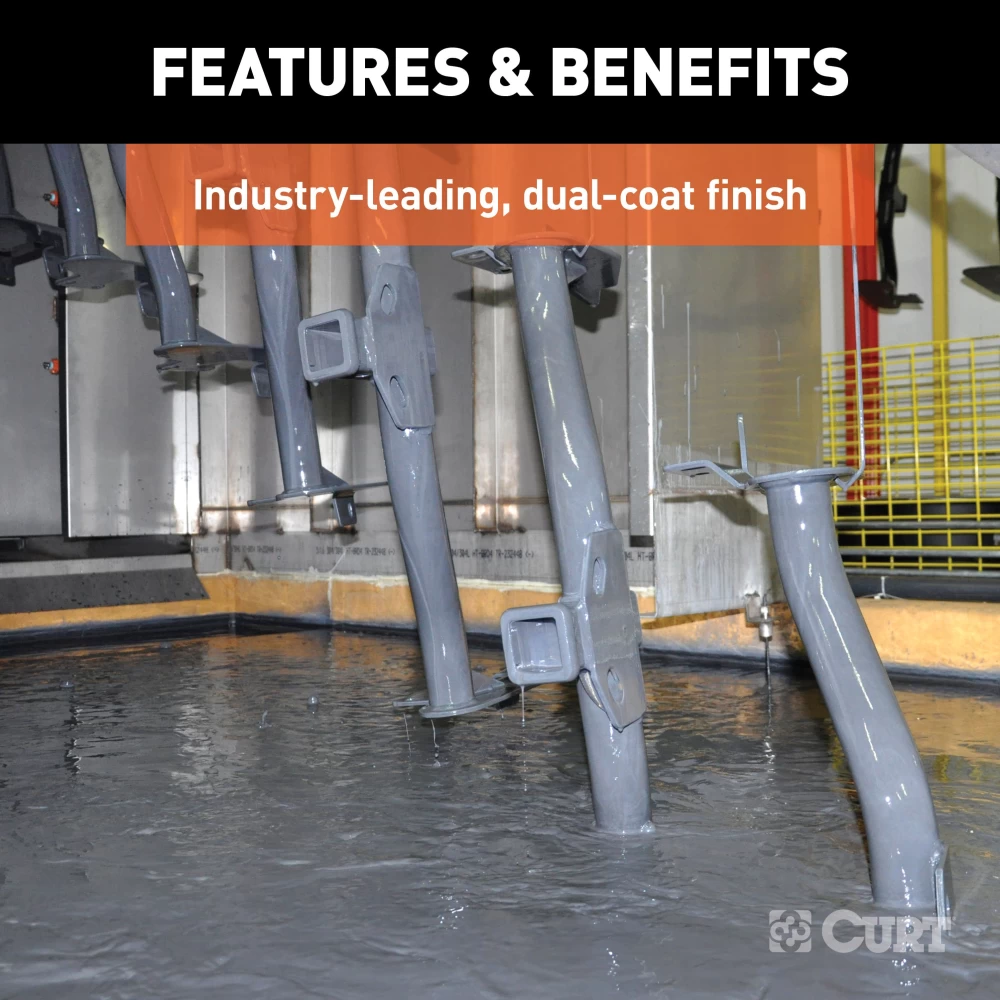

- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$197 36 $306.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$306.95 $197 36
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $49.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12107-CH3532
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2013-2018 Toyota Avalon Trailer Hitch Fits All Models Curt 12107 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2012-Present Toyota Avalon and Camry Sedan
Part Numbers:
- 12107
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 10mm, 12mm, 14mm, 17mm, 3/4"
- Power Drill with 1/2" Drill Bit
- Die Grinder
- Aviation Shears
- Marker
- Tape Measure
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the underbody panel (if present).
- Remove the screws, push-button fasteners, and plastic nuts securing the underbody panel to the frame and bumper fascia.
- Use a 10mm, 12mm socket, and other tools as specified.
- On single exhaust models, remove the screw attaching the underbody cover to the driver-side frame rail.
- Trim the panel according to the provided diagram or return it to the vehicle owner.
Step 2: Lower the exhaust.
- Detach two bolts securing the exhaust hanger brackets to the passenger-side frame rail.
- Remove the rubber isolator located forward of the muffler.
Step 3: Remove frame brackets (if equipped).
- Use a 14mm socket to remove the two brackets from the frame.
- Return the brackets and fasteners to the owner.
Step 4: Remove and trim the heat shield.
- Unfasten two screws securing the heat shield to the frame rail.
- Trim off the rear-most section of the heat shield as shown in the heat shield trim diagram.
Step 5: Repeat for dual exhaust models.
- For vehicles with dual exhaust, repeat Steps 2 through 4 on the driver side.
Step 6: Position the hitch and mark drilling locations.
- Raise the hitch into position and temporarily secure it using M10 bolts in the existing weld nuts.
- Mark the location for the forward-most hole on each frame rail and heat shield.
Step 7: Drill holes.
- Lower the hitch and drill 1/2" pilot holes in each frame rail at the marked locations.
- Enlarge the heat shield holes to 1".
Step 8: Enlarge frame rail holes.
- Use a die grinder to enlarge the drilled holes enough to accept spacers and carriage bolts.
- Take care not to damage the weld nuts.
Step 9: Fishwire bolts and spacers.
- Reverse fishwire the supplied spacers and carriage bolts through the enlarged holes, leaving the fishwires attached.
Step 10: Bend exhaust hanger brackets (if required).
- Adjust the exhaust hanger brackets so they rest flat against the hitch side plates.
Step 11: Reinstall the heat shield.
- Reattach the trimmed heat shield using the forward-most screw.
- The rearward edge of the heat shield should be compressed between the frame rail and hitch side plate.
Step 12: Final installation of the hitch.
- Raise the hitch into position and reattach the exhaust hanger brackets, with the hitch sandwiched between the brackets and the frame.
- Install all remaining fasteners and tighten securely.
Step 13: Torque all hardware.
- Torque M10 fasteners to 45 ft-lbs.
- Torque 1/2" fasteners to 110 ft-lbs.
Step 14: Reattach the exhaust.
- Raise the exhaust back into position and reconnect the rubber isolators.
Hardware List:
- (2) M10 x 1.25 x 35 Hex Bolts
- (2) .250 x 1.00 x 2.50" Square Hole Spacers
- (2) 1/2"-13 x 1-1/4" Carriage Bolts
- (2) 1/2"-13 Hex Flange Nuts
- (2) 7/16" Conical Toothed Washers
- (1) 1/2" Fishwire
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity (WC): 3,500 lbs GTW / 350 lbs TW
- Installation Time: 50 minutes (professional), 100 minutes (novice)
Manufacturer Notes:
- Drilling, heat shield trimming, and underbody panel trimming may be required.
- Fishwiring is required.
- For assistance, contact Curt Manufacturing Technical Support at 1-877-287-8634.
Installation Instructions for 2012-Present Toyota Avalon and Camry Sedan
Part Numbers:
- 12107
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 10mm, 12mm, 14mm, 17mm, 3/4"
- Power Drill with 1/2" Drill Bit
- Die Grinder
- Aviation Shears
- Marker
- Tape Measure
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the underbody panel (if present).
- Remove the screws, push-button fasteners, and plastic nuts securing the underbody panel to the frame and bumper fascia.
- Use a 10mm, 12mm socket, and other tools as specified.
- On single exhaust models, remove the screw attaching the underbody cover to the driver-side frame rail.
- Trim the panel according to the provided diagram or return it to the vehicle owner.
Step 2: Lower the exhaust.
- Detach two bolts securing the exhaust hanger brackets to the passenger-side frame rail.
- Remove the rubber isolator located forward of the muffler.
Step 3: Remove frame brackets (if equipped).
- Use a 14mm socket to remove the two brackets from the frame.
- Return the brackets and fasteners to the owner.
Step 4: Remove and trim the heat shield.
- Unfasten two screws securing the heat shield to the frame rail.
- Trim off the rear-most section of the heat shield as shown in the heat shield trim diagram.
Step 5: Repeat for dual exhaust models.
- For vehicles with dual exhaust, repeat Steps 2 through 4 on the driver side.
Step 6: Position the hitch and mark drilling locations.
- Raise the hitch into position and temporarily secure it using M10 bolts in the existing weld nuts.
- Mark the location for the forward-most hole on each frame rail and heat shield.
Step 7: Drill holes.
- Lower the hitch and drill 1/2" pilot holes in each frame rail at the marked locations.
- Enlarge the heat shield holes to 1".
Step 8: Enlarge frame rail holes.
- Use a die grinder to enlarge the drilled holes enough to accept spacers and carriage bolts.
- Take care not to damage the weld nuts.
Step 9: Fishwire bolts and spacers.
- Reverse fishwire the supplied spacers and carriage bolts through the enlarged holes, leaving the fishwires attached.
Step 10: Bend exhaust hanger brackets (if required).
- Adjust the exhaust hanger brackets so they rest flat against the hitch side plates.
Step 11: Reinstall the heat shield.
- Reattach the trimmed heat shield using the forward-most screw.
- The rearward edge of the heat shield should be compressed between the frame rail and hitch side plate.
Step 12: Final installation of the hitch.
- Raise the hitch into position and reattach the exhaust hanger brackets, with the hitch sandwiched between the brackets and the frame.
- Install all remaining fasteners and tighten securely.
Step 13: Torque all hardware.
- Torque M10 fasteners to 45 ft-lbs.
- Torque 1/2" fasteners to 110 ft-lbs.
Step 14: Reattach the exhaust.
- Raise the exhaust back into position and reconnect the rubber isolators.
Hardware List:
- (2) M10 x 1.25 x 35 Hex Bolts
- (2) .250 x 1.00 x 2.50" Square Hole Spacers
- (2) 1/2"-13 x 1-1/4" Carriage Bolts
- (2) 1/2"-13 Hex Flange Nuts
- (2) 7/16" Conical Toothed Washers
- (1) 1/2" Fishwire
Safety Notes:
- Always wear safety glasses during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity (WC): 3,500 lbs GTW / 350 lbs TW
- Installation Time: 50 minutes (professional), 100 minutes (novice)
Additional Notes:
- Drilling, heat shield trimming, and underbody panel trimming may be required.
- Fishwiring is required.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- This product is covered under a limited warranty for defects in materials and workmanship for the specified warranty period.
- For complete warranty instructions, please download the full installation PDF.
End of Instructions
