For 2013‑2016 Ford Escape Trailer Hitch Except S Models Curt 13131 2 inch Tow Receiver
Model: 13131-CH1219This Trailer Tow Hitch Fits The Following Vehicles:
2013 - 2016 Ford Escape Except S Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2013, 2014, 2015, 2016

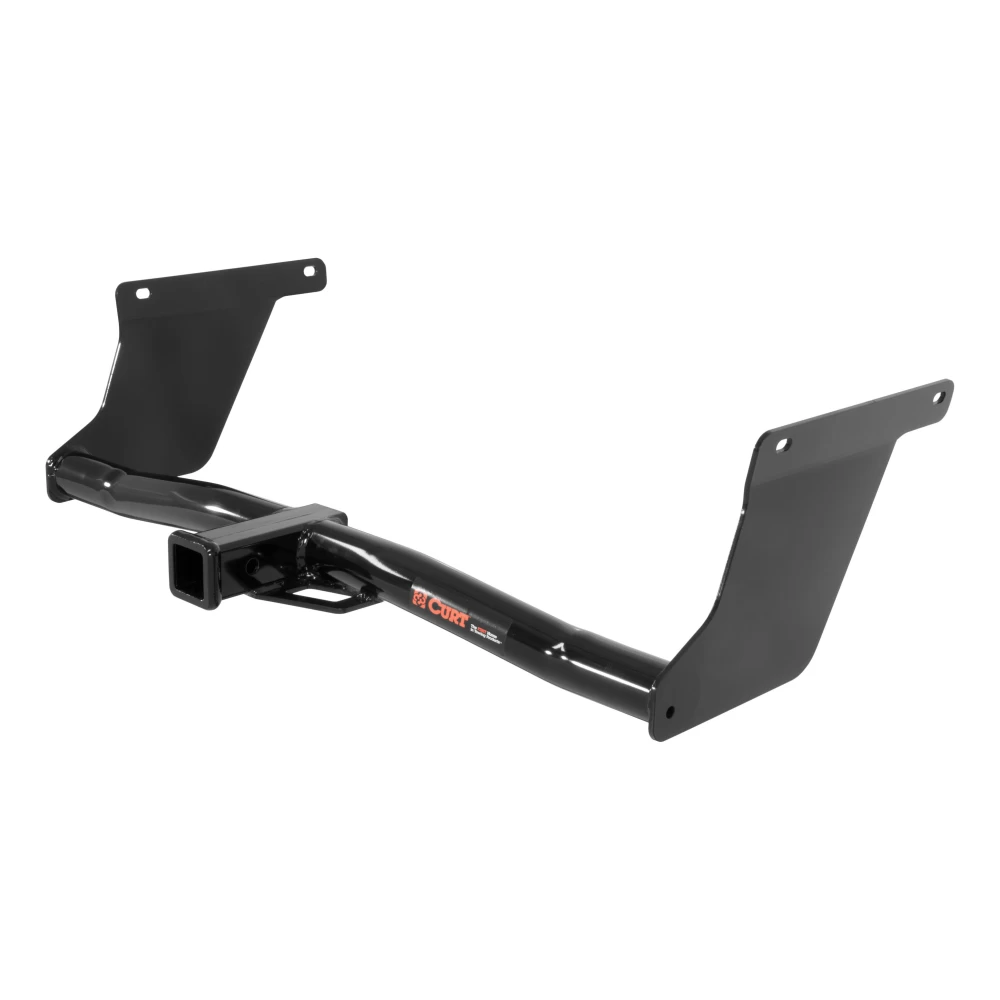

CURT 13131 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Ford Escape (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 525 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 525 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 525 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 525 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$228 66 $357.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$357.95 $228 66
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13131-CH1219
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2013-2016 Ford Escape Trailer Hitch Except S Models Curt 13131 2 inch Tow Receiver Install Notes
Installation Instructions for 2013-Present Ford Escape SUV (Excluding S Model)
Part Numbers:
- 13131
Tools Required:
- Ratchet
- 3/4" Socket
- 3/4" Boxed End Wrench
- Torque Wrench
- Die Grinder
- Safety Glasses
Step-by-Step Instructions:
Step 1: Enlarge Access Holes
- Use a die grinder to enlarge the access holes in the frame to allow square hole spacers to fit.
- Fishwire the 1/2" bolts and square hole spacers into the vehicle frame at the two side plate mounting points on each side.
Step 2: Position the Hitch
- Place the hitch underneath the vehicle and route the fishwires through the side plate mounting holes.
- Use two people if necessary to raise the hitch into position.
- Remove the fishwires and loosely secure the mounting hardware to hold the hitch in place.
Step 3: Secure Fasteners
- For the passenger side plate, use a 3/4" boxed end wrench to tighten the hardware due to limited access.
- For the driver side plate, use a 3/4" socket to secure the hardware.
Step 4: Torque Hardware
- Torque all 1/2" fasteners to 110 ft-lbs.
Step 5: Complete Installation
- Installation is complete. Verify all fasteners are properly secured.
Hardware List:
- (4) .250 x 1.00 x 2.50" Square Hole Spacers (Part Number: CM-SP10)
- (4) 1/2"-13 x 1-1/2" Carriage Bolts (Part Number: 10-102874)
- (4) 1/2"-13 Hex Flange Nuts (Part Number: 20-000624)
- (4) 1/2" Fishwires (Part Number: 1_2 FISHWIRE)
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity:
- Maximum Trailer Weight: 3,500 lbs
- Maximum Tongue Weight: 525 lbs
- Weight Distribution Capacity:
- Maximum Trailer Weight: 5,000 lbs
- Maximum Tongue Weight: 525 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- Fishwire hardware installation is required.
- Enlarge access holes as needed.
Warning:
Never exceed the vehicle manufacturer's recommended towing capacity.
Installation Instructions for 2013-Present Ford Escape SUV (Excluding S Model)
Part Numbers:
- 13131
Tools Required:
- Ratchet
- 3/4" Socket
- 3/4" Boxed End Wrench
- Torque Wrench
- Die Grinder
- Safety Glasses
Step-by-Step Instructions:
Step 1: Enlarge Access Holes
- Use a die grinder to enlarge the access holes in the frame to allow square hole spacers to fit.
- Fishwire the 1/2" bolts and square hole spacers into the vehicle frame at the two side plate mounting points on each side.
Step 2: Position the Hitch
- Place the hitch underneath the vehicle and route the fishwires through the side plate mounting holes.
- Use two people if necessary to raise the hitch into position.
- Remove the fishwires and loosely secure the mounting hardware to hold the hitch in place.
Step 3: Secure Fasteners
- For the passenger side plate, use a 3/4" boxed end wrench to tighten the hardware due to limited access.
- For the driver side plate, use a 3/4" socket to secure the hardware.
Step 4: Torque Hardware
- Torque all 1/2" fasteners to 110 ft-lbs.
Step 5: Complete Installation
- Installation is complete. Verify all fasteners are properly secured.
Hardware List:
- (4) .250 x 1.00 x 2.50" Square Hole Spacers
- (4) 1/2"-13 x 1-1/2" Carriage Bolts
- (4) 1/2"-13 Hex Flange Nuts
- (4) 1/2" Fishwires
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity:
- Maximum Trailer Weight: 3,500 lbs
- Maximum Tongue Weight: 525 lbs
- Weight Distribution Capacity:
- Maximum Trailer Weight: 5,000 lbs
- Maximum Tongue Weight: 525 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- Fishwire hardware installation is required.
- Enlarge access holes as needed.
Warning:
Never exceed the vehicle manufacturer's recommended towing capacity.
General Information:
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
