For 2014‑2020 KIA Sorento 7 Pin Trailer Wiring RV 7 Way Trailer Plug (For w/I4 Engine Models) By Tekonsha
Model: 118583 74184 8506020 20212-463538This Bundle Fits The Following Vehicles:
2014-2020 KIA Sorento w/I4 Engine

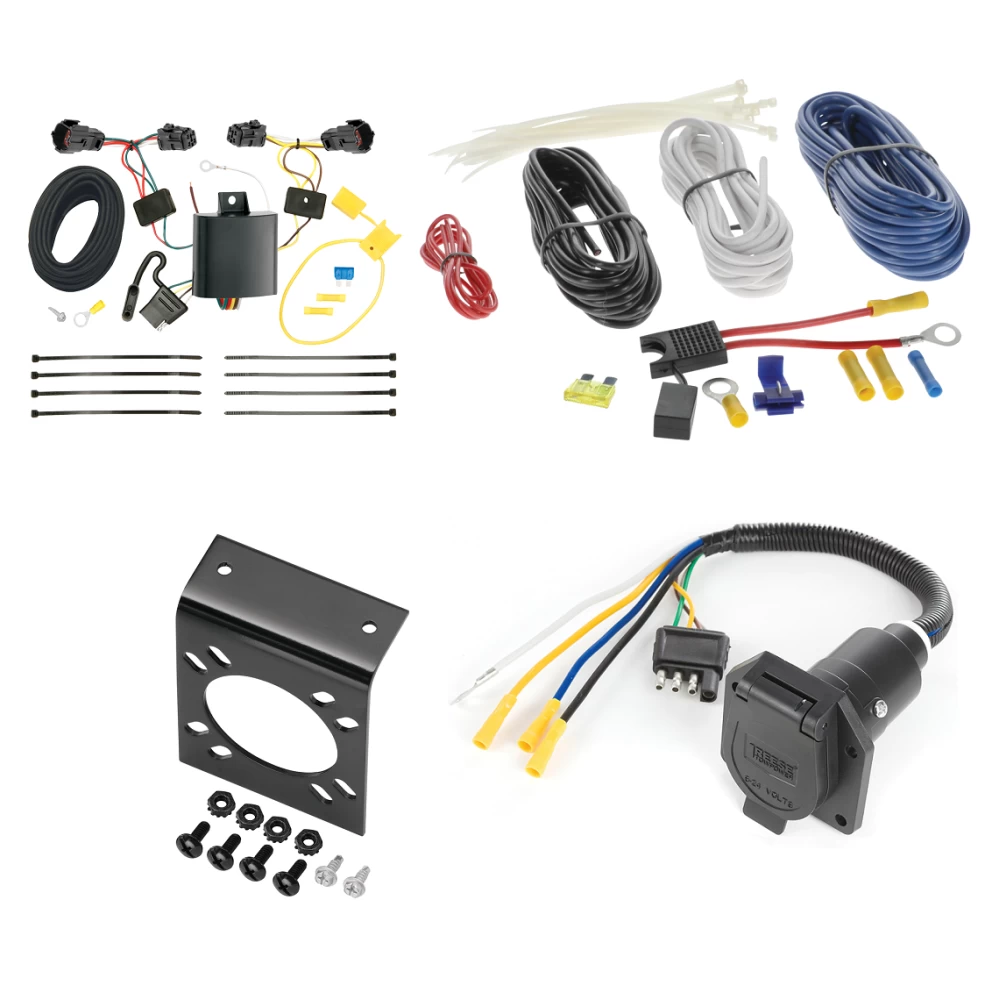

This Bundle Includes the Following Parts:
7-Way RV Wiring
List of fitment years: 2014, 2015, 2016, 2017, 2018, 2019, 2020

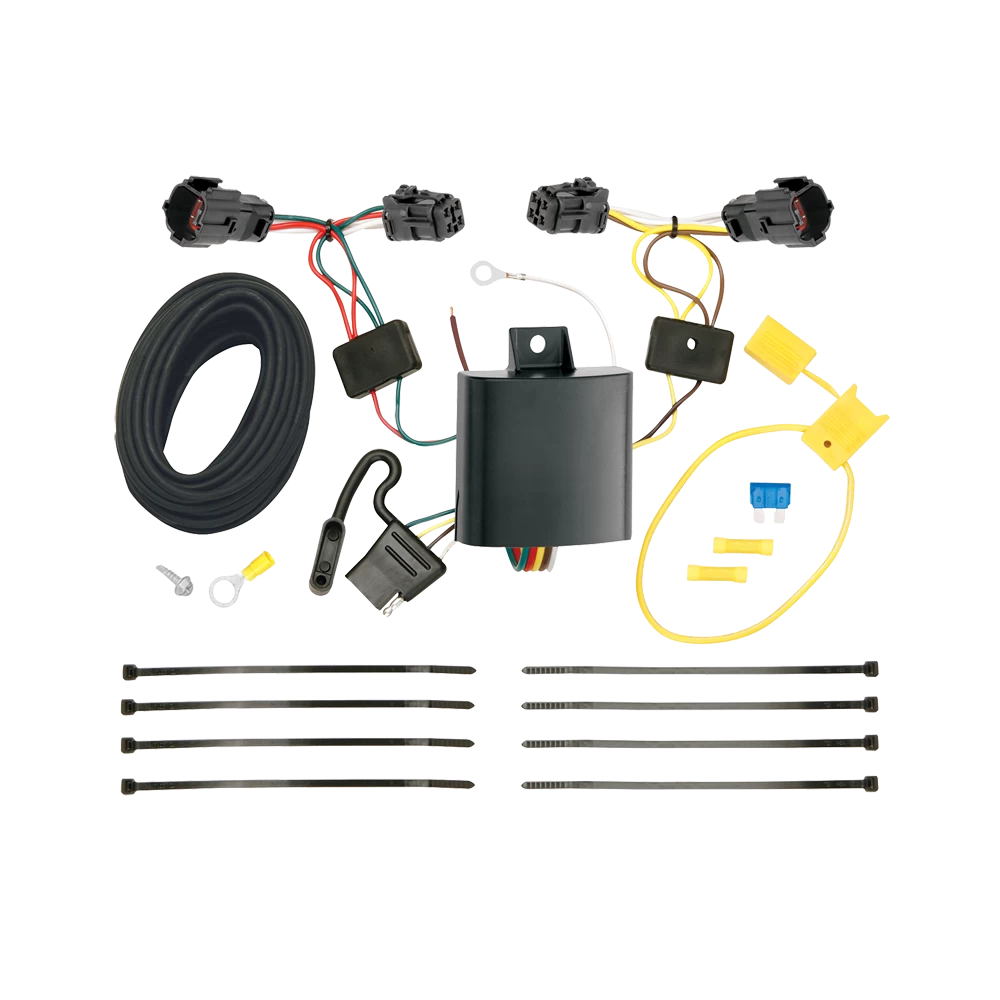

T-One® T-Connector Harness, 4-Way Flat, w/Circuit Protected ModuLite® HD Module Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
- 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
- Stop/Turn Circuit Capacity Of 4.2 Amps
- Taillight Circuit Capacity Of 7.5 Amps
- Solid, Weatherproof, One-Piece Construction
- No Cutting, Splicing, Or Taping Of Vehicle Wires
- Includes Converter Where Needed
Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha
This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
- OEM Style wiring harness
- Easy to install
- 1-3 axles
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower
The REESE Towpower pre-wired round blade 7-way connector provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.
- Provide versatility in going from 4-Flat to 7-Way standard plug
- Pre-wired with 4-Flat and wired with butt connects and ring terminal
- Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
- Features non-corroding brass terminals
- Mounts to standard 7-Way bracket
- Non-corrosive thermo plastic construction
- Ring terminal already mounted to ground wire
- 12 volt and brake wires have butt connectors already attached
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
$104 84 $203.50 48% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$203.50 $104 84
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $26.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118583 74184 8506020 20212-463538
- Includes: T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Mounting Bracket
Compatibility Chart
Get Expert Help
For 2014-2020 KIA Sorento 7 Pin Trailer Wiring RV 7 Way Trailer Plug (For w/I4 Engine Models) By Tekonsha Install Notes
Installation Instructions for T-Connector Adapter for Kia Sorento
Part Numbers:
- 118583
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Tailgate:
- Access the bolts holding the taillights in place.
- Use a Phillips head screwdriver to remove the taillights on both the driver and passenger sides.
- Carefully pull the taillights away from the vehicle to avoid damaging the alignment pins.
-
Disconnect the Vehicle Wiring Harness:
- On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
- Ensure the connectors are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector with the yellow wire between the vehicle wiring connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Route the Passenger-Side T-Connector:
- Route the 4-flat harness and the green and red wires down through the bumper brace.
- Continue routing behind the bumper fascia and toward the passenger side.
- Route the green wire harness up to the passenger-side taillight and repeat Steps 2 and 3.
Warning:
- Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other areas that may pinch or damage the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box to the bottom of the bumper support channel.
-
Ground the White Wire:
- Locate a suitable grounding point near the driver-side connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire using the supplied yellow butt connector.
- Route the wire through the taillight socket opening, behind the bumper, and along the vehicle frame to the engine compartment.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the fuse holder ring terminal to the positive (+) battery cable.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
Warning:
- Follow all warnings and instructions printed on the vehicle battery.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the harness, avoiding areas that could pinch, cut, or melt the wires.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies and any items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the product’s stated ratings or the vehicle manufacturer's specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for T-Connector Adapter for Kia Sorento
Part Numbers:
- 118583
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Tailgate:
- Access the bolts holding the taillights in place.
- Use a Phillips head screwdriver to remove the taillights on both the driver and passenger sides.
- Carefully pull the taillights away from the vehicle to avoid damaging the alignment pins.
-
Disconnect the Vehicle Wiring Harness:
- On the driver’s side, disconnect the vehicle wiring harness from the taillight socket.
- Ensure the connectors are clean and free of dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector with the yellow wire between the vehicle wiring connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Route the Passenger-Side T-Connector:
- Route the 4-flat harness and the green and red wires down through the bumper brace.
- Continue routing behind the bumper fascia and toward the passenger side.
- Route the green wire harness up to the passenger-side taillight and repeat Steps 2 and 3.
Warning:
- Avoid routing the wire near hot pipes, heat shields, fuel tanks, or other areas that may pinch or damage the wire.
-
Mount the Black Box:
- Use the provided double-sided tape to mount the T-Connector black box to the bottom of the bumper support channel.
-
Ground the White Wire:
- Locate a suitable grounding point near the driver-side connectors.
- Drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
Caution:
- Verify the area behind the surface before drilling to avoid damage or injury.
-
Connect the Power Wire:
- Locate the black 12-gauge power wire from the T-Connector box.
- Attach the provided black wire using the supplied yellow butt connector.
- Route the wire through the taillight socket opening, behind the bumper, and along the vehicle frame to the engine compartment.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the yellow fuse holder.
- Attach the fuse holder ring terminal to the positive (+) battery cable.
- Connect the black wire to the fuse holder using the yellow butt connector.
- Insert the 15-amp fuse into the fuse holder.
Warning:
- Follow all warnings and instructions printed on the vehicle battery.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Test the installation with a test light or trailer.
-
Secure the Wiring:
- Use the provided cable ties to secure the harness, avoiding areas that could pinch, cut, or melt the wires.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies and any items removed during installation, ensuring no wires are pinched or damaged.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the product’s stated ratings or the vehicle manufacturer's specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Refer to the vehicle owner’s manual for additional information.
- Store these instructions for future reference.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring (Economy Version)
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle near the hitch.
- Use a bracket (sold separately) to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector from the adapter into the existing 4-flat plug on the vehicle.
- This connection provides tail lights, left turn, and right turn functions.
-
Ground the Adapter:
- Locate a solid grounding point near the adapter (e.g., frame or cross member).
- Clean the area to ensure good contact and secure the large white wire with the provided eyelet and screw.
-
Leave Additional Wires Disconnected:
- The blue wire (brake control) will remain disconnected at this stage.
- No additional power or reverse light connections are included with this economy kit.
-
Test Initial Connection:
- Verify functionality of the 4-way circuits (tail lights and turn signals) using a test light or trailer.
Part 2: Install the Brake Control Wiring Kit
Wire Functions:
- Red Wire: Connects to the cold side of the stoplight switch (active only when the brake pedal is pressed).
- Black Wire: Connects to the battery (+) via the 20A in-line fuse.
- White Wire: Ground (-) to the vehicle frame or negative battery terminal.
- Blue Wire: Connects to the blue wire from the 7-way adapter for trailer brakes.
Step-by-Step Instructions:
-
Disconnect the Battery:
- Disconnect the negative (-) battery cable before beginning installation.
-
Mount the Brake Controller:
- Secure the brake controller under the dash on a firm surface within reach of the driver.
-
Route and Connect Wires:
- Red Wire:
- Locate the stoplight switch under the dashboard.
- Use the provided wire tap to connect the red wire to the cold side of the stoplight switch.
- Black Wire:
- Connect one end of the black wire to the positive battery terminal using a ring terminal.
- Insert the provided 20A in-line fuse between the battery and the brake controller.
- White Wire:
- Connect the white wire to a solid ground point on the vehicle’s chassis or directly to the negative battery terminal.
- Blue Wire:
- Route the blue wire to the 7-way adapter and connect it to the blue wire from the adapter.
- Red Wire:
-
Secure the Wiring:
- Use cable ties to secure all wires, avoiding hot or moving parts.
- Pass wires through existing grommets or add a grommet/silicone to insulate wires passing through metal surfaces.
-
Reconnect the Battery:
- Reattach the negative (-) battery cable.
-
Test the System:
- Verify functionality of the brake controller using a trailer or test light.
- Ensure proper brake signal is sent to the trailer.
Notes:
- This economy kit does not include a dedicated power circuit for accessories or battery charging via the 7-way connector.
- The blue wire from the 7-way adapter is used exclusively for trailer brake control.
- Always verify all connections before use and follow safety guidelines during installation.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring (Economy Version)
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle near the hitch.
- Use a bracket (sold separately) to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector from the adapter into the existing 4-flat plug on the vehicle.
- This connection provides tail lights, left turn, and right turn functions.
-
Ground the Adapter:
- Locate a solid grounding point near the adapter (e.g., frame or cross member).
- Clean the area to ensure good contact and secure the large white wire with the provided eyelet and screw.
-
Leave Additional Wires Disconnected:
- The blue wire (brake control) will remain disconnected at this stage.
- No additional power or reverse light connections are included with this economy kit.
-
Test Initial Connection:
- Verify functionality of the 4-way circuits (tail lights and turn signals) using a test light or trailer.
Part 2: Install the Brake Control Wiring Kit
Wire Functions:
- Red Wire: Connects to the cold side of the stoplight switch (active only when the brake pedal is pressed).
- Black Wire: Connects to the battery (+) via the 20A in-line fuse.
- White Wire: Ground (-) to the vehicle frame or negative battery terminal.
- Blue Wire: Connects to the blue wire from the 7-way adapter for trailer brakes.
Step-by-Step Instructions:
-
Disconnect the Battery:
- Disconnect the negative (-) battery cable before beginning installation.
-
Mount the Brake Controller:
- Secure the brake controller under the dash on a firm surface within reach of the driver.
-
Route and Connect Wires:
- Red Wire:
- Locate the stoplight switch under the dashboard.
- Use the provided wire tap to connect the red wire to the cold side of the stoplight switch.
- Black Wire:
- Connect one end of the black wire to the positive battery terminal using a ring terminal.
- Insert the provided 20A in-line fuse between the battery and the brake controller.
- White Wire:
- Connect the white wire to a solid ground point on the vehicle’s chassis or directly to the negative battery terminal.
- Blue Wire:
- Route the blue wire to the 7-way adapter and connect it to the blue wire from the adapter.
- Red Wire:
-
Secure the Wiring:
- Use cable ties to secure all wires, avoiding hot or moving parts.
- Pass wires through existing grommets or add a grommet/silicone to insulate wires passing through metal surfaces.
-
Reconnect the Battery:
- Reattach the negative (-) battery cable.
-
Test the System:
- Verify functionality of the brake controller using a trailer or test light.
- Ensure proper brake signal is sent to the trailer.
Notes:
- This economy kit does not include a dedicated power circuit for accessories or battery charging via the 7-way connector.
- The blue wire from the 7-way adapter is used exclusively for trailer brake control.
- Always verify all connections before use and follow safety guidelines during installation.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
