For 2015‑2018 Ford Edge Trailer Hitch Fits SE & SEL Curt 12140 1‑1/4 Tow Receiver
Model: 12140-CH1195This Trailer Tow Hitch Fits The Following Vehicles:
2015 - 2018 Ford Edge SE & SEL
This Trailer Tow Hitch Includes the Following Parts:
- Class 2 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2015, 2016, 2017, 2018

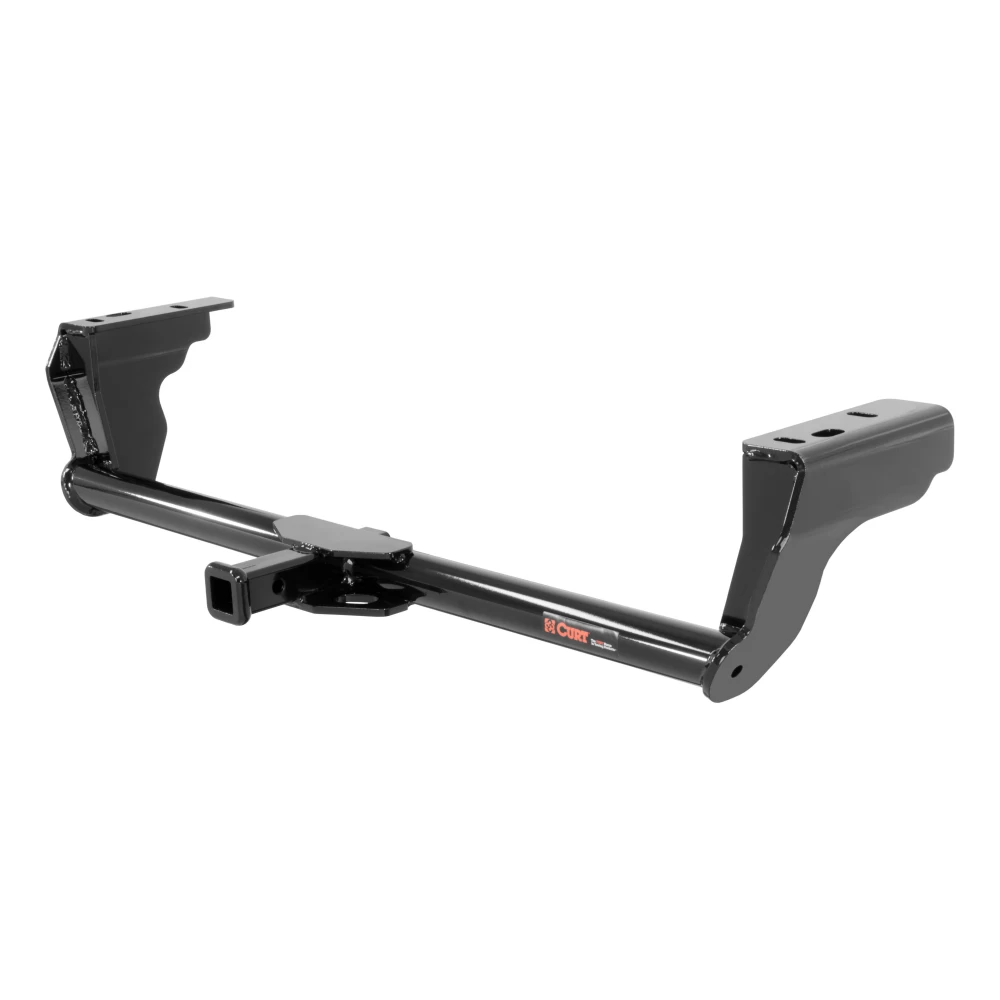

CURT 12140 Class 2 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.

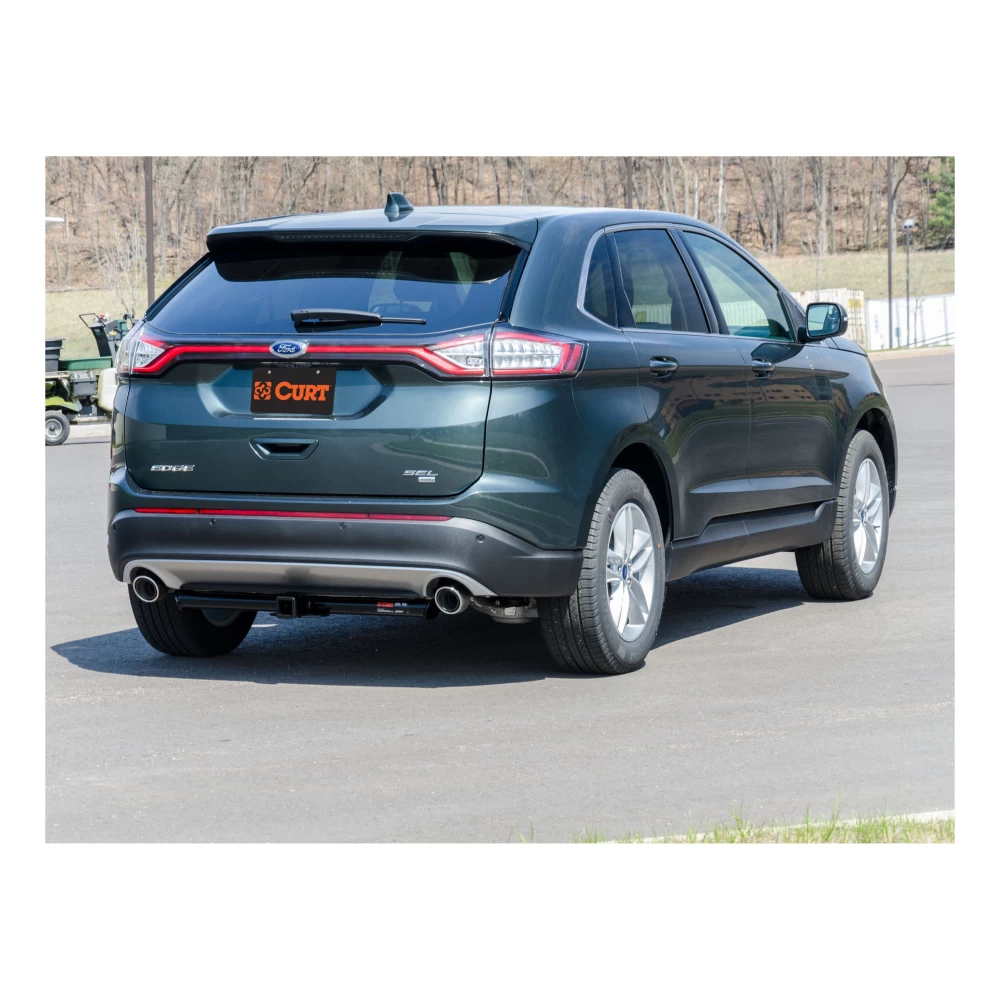

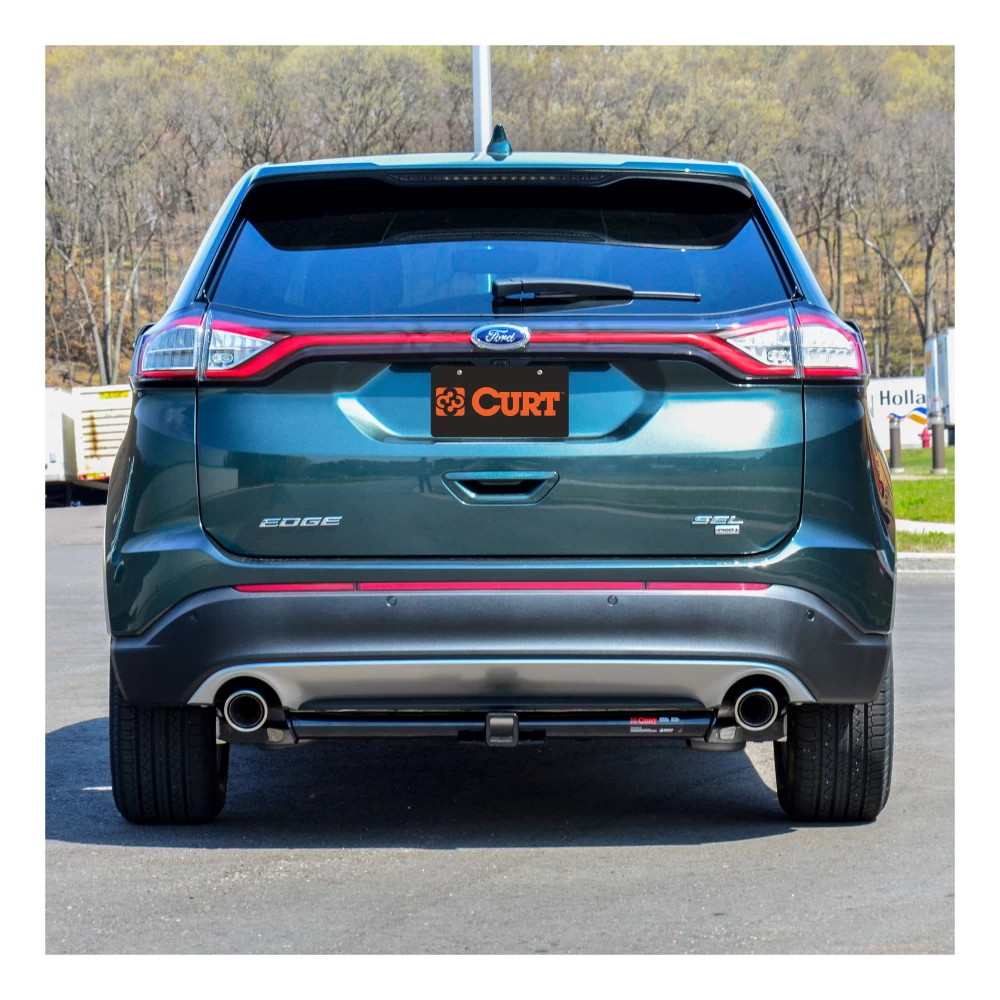

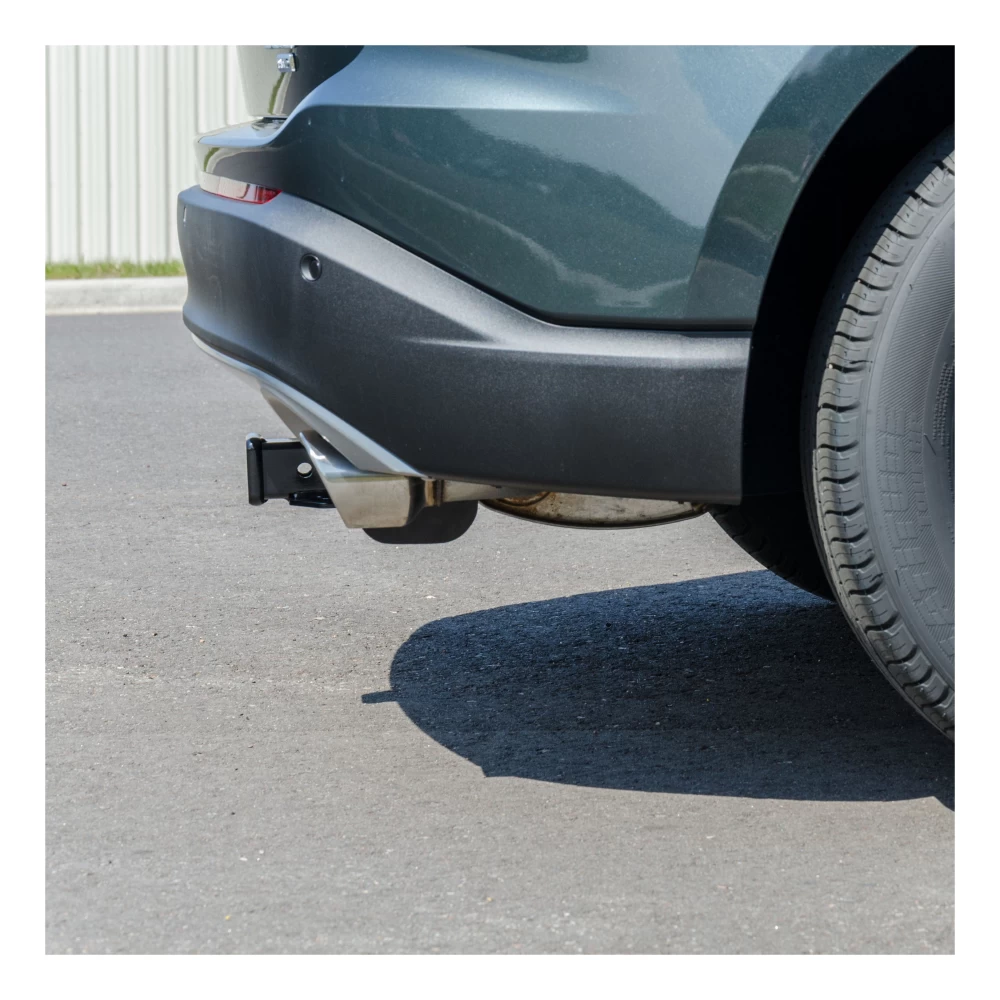

This particular class 2 hitch is made to be a custom hitch for certain years of the Ford Edge (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 3,500 lbs GTW and 350 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.

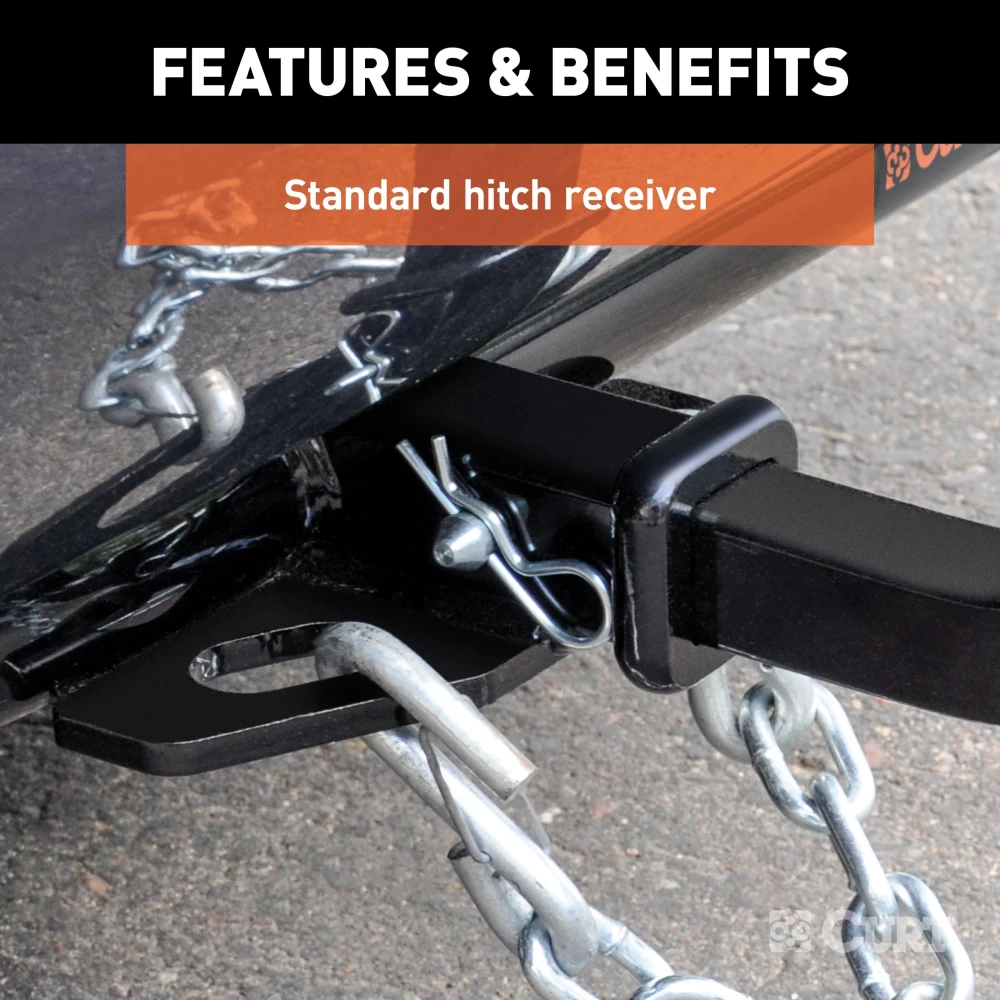

This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.

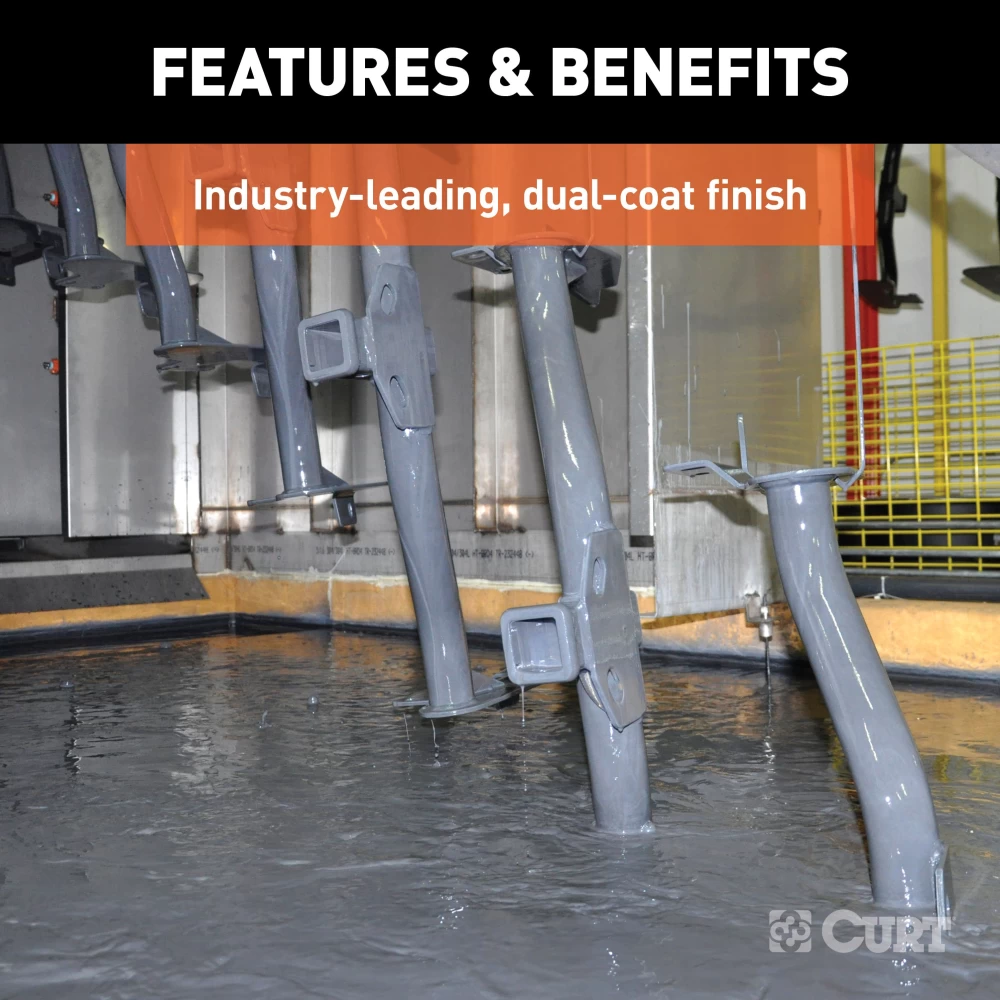

We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..

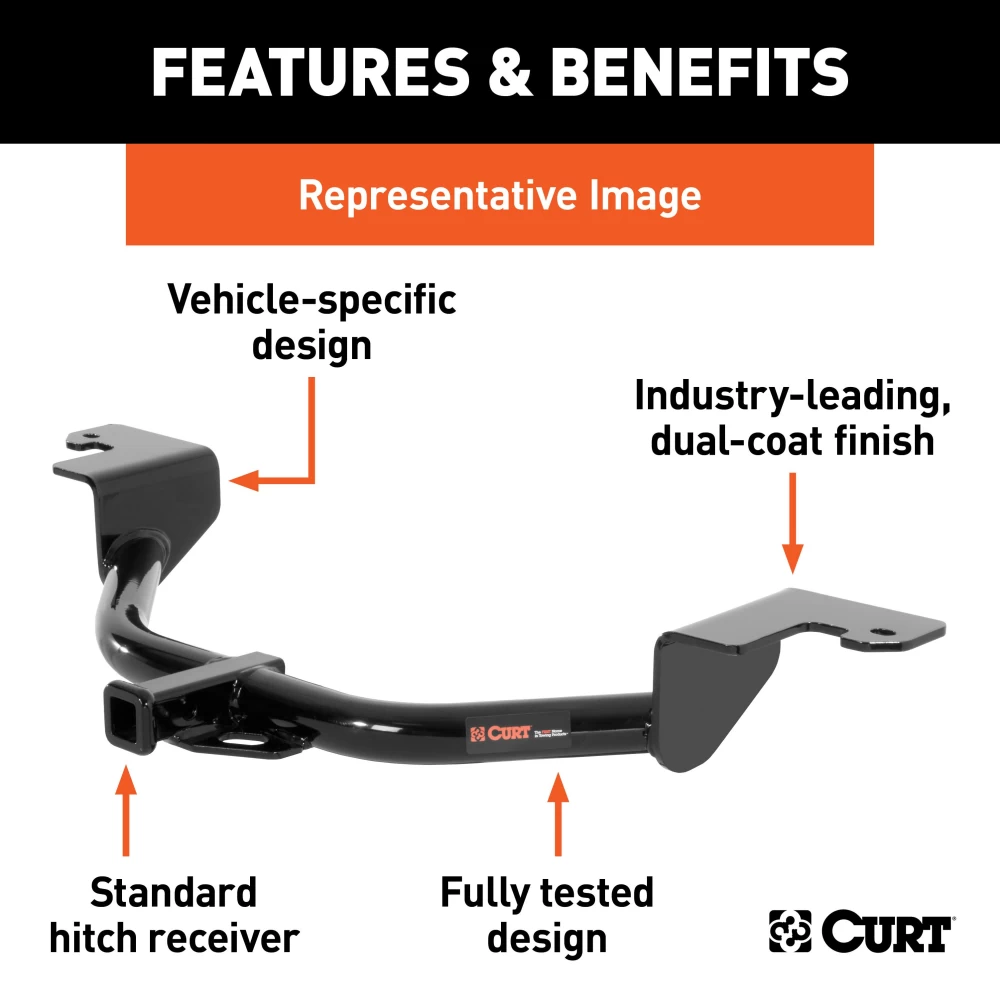

Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

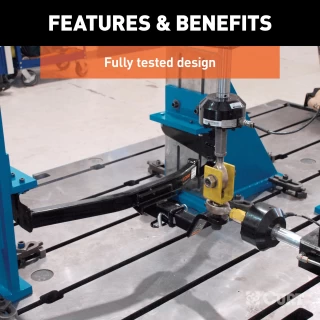

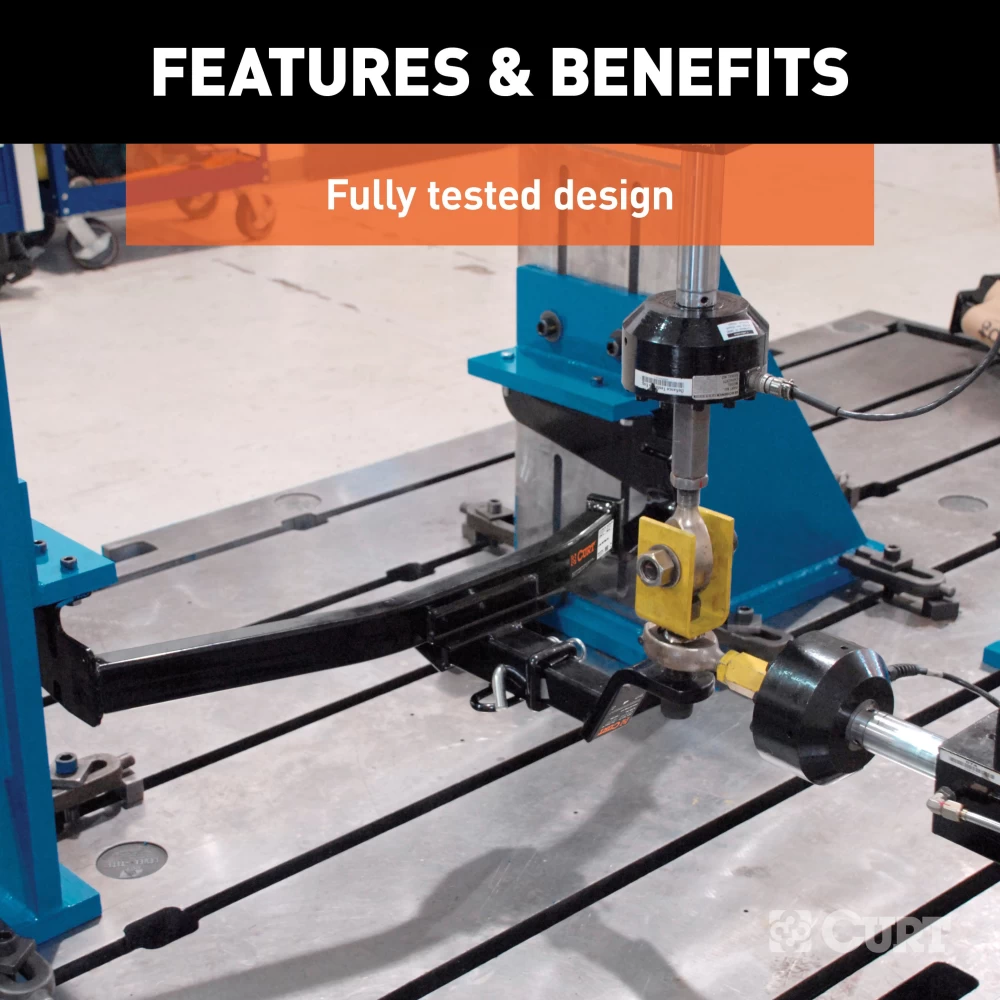

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$216 87 $338.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$338.95 $216 87
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12140-CH1195
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2015-2018 Ford Edge Trailer Hitch Fits SE & SEL Curt 12140 1-1/4 Tow Receiver Install Notes
Installation Instructions for Ford Edge SUV (2015-Present)
Part Numbers:
- 12140
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 10mm Socket
- 5.5mm Socket (Sport Model)
- T20 Torx Bit
- 7/32" Socket
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the Exhaust
- Support and lower the exhaust by removing two rubber isolators mounted to the muffler.
- For Sport models, remove the exhaust bezels using a 5.5mm socket and a T20 Torx bit.
Step 2: Remove Rear Panels
- Remove the panels from behind the rear wheels by removing two hex nuts using a 10mm socket and two screws with a 7/32" socket.
- Set the panels aside for reinstallation.
Step 3: Fishwire Hardware
- Fishwire two CM-SP4 spacers and two 1/2" carriage bolts into the mounting holes on both frame rails.
Step 4: Trim the Underbody Panels
- Trim 3/8" off the center underbody panel outer tabs to allow easier mounting of the hitch.
- Trim the underbody side panels according to the provided diagram for reinstallation.
Step 5: Install the Hitch
- Raise the hitch over the exhaust and thread the fishwires into the mounting holes.
- Remove the fishwires and install four supplied 1/2" hex flange nuts.
- Note: The hitch side plates should be located between the center underbody panel tabs and the frame rails.
Step 6: Torque the Hardware
- Torque all 1/2" fasteners to 110 ft-lbs.
Step 7: Reinstall Components
- Reinstall the trimmed underbody panels using the hardware removed in Step 2.
- Raise the exhaust back into position and reinstall the rubber isolators and exhaust bezels if removed.
Note:
- For vehicles equipped with a hands-free liftgate, perform the kick motion on the left or right side of the receiver tube.
Trim Diagram:
- Center Underbody Panel: Trim Dimensions: 1.88" x 0.75" x 0.38"
- Underbody Side Panel: Trim Dimensions: 7.25" x 3.00"
Hardware List:
- (2) 1/2"-13 UNC Carriage Bolts, 1-1/2"
- (2) .250 x 1.50 x 3.00" Square Hole Spacers
- (4) 1/2"-13 UNC Hex Flange Nuts
- (4) 1/2" Fishwire
Safety Notes:
- Wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Use stabilizing straps for all non-trailer loads to avoid damage and voiding the warranty.
Specifications:
- Gross Trailer Weight: 3,500 lbs
- Tongue Weight: 350 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
