Product Details
- Brand: Curt
- Model: 11425 56214-CH333

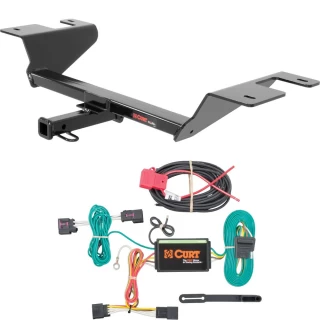

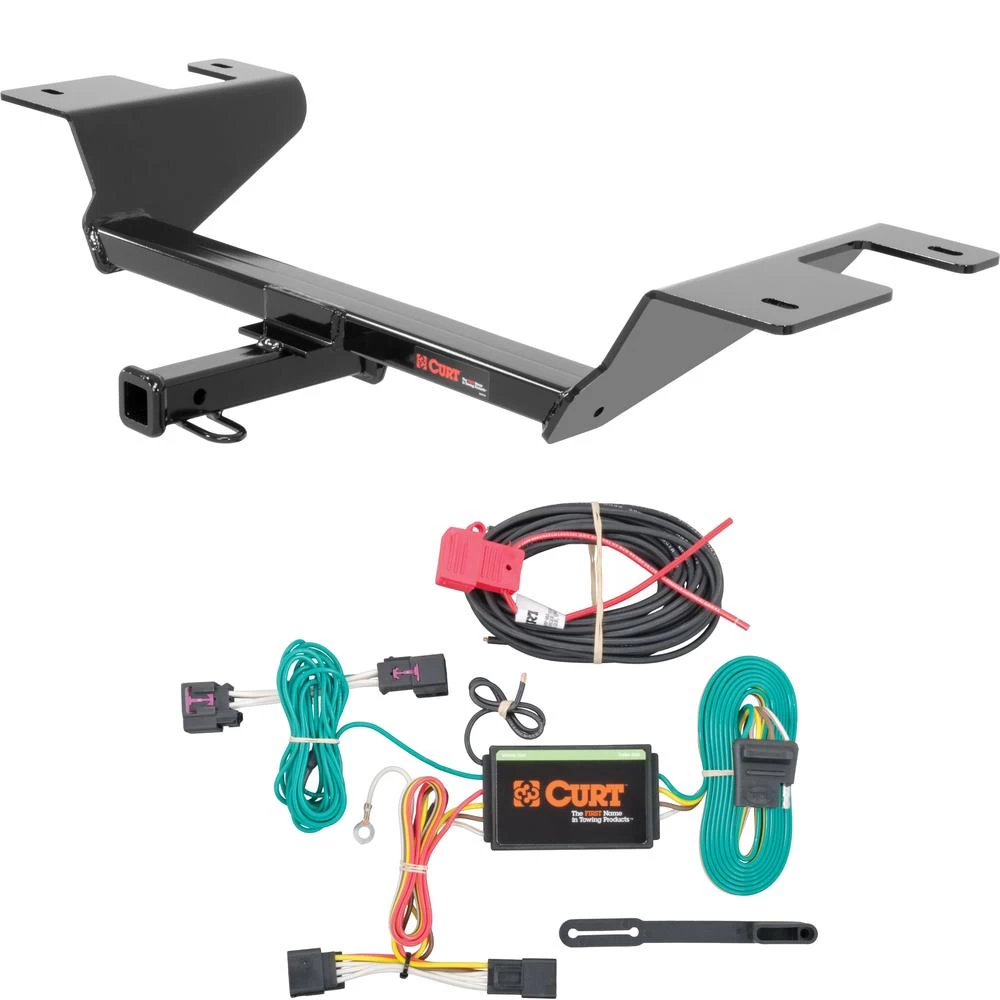

- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|
Get Expert Help
For 2015 Chevy Cruze Trailer Hitch + Wiring 4 Pin Except Diesel Curt 11425 56214 1-1/4 Tow Receiver Install Notes

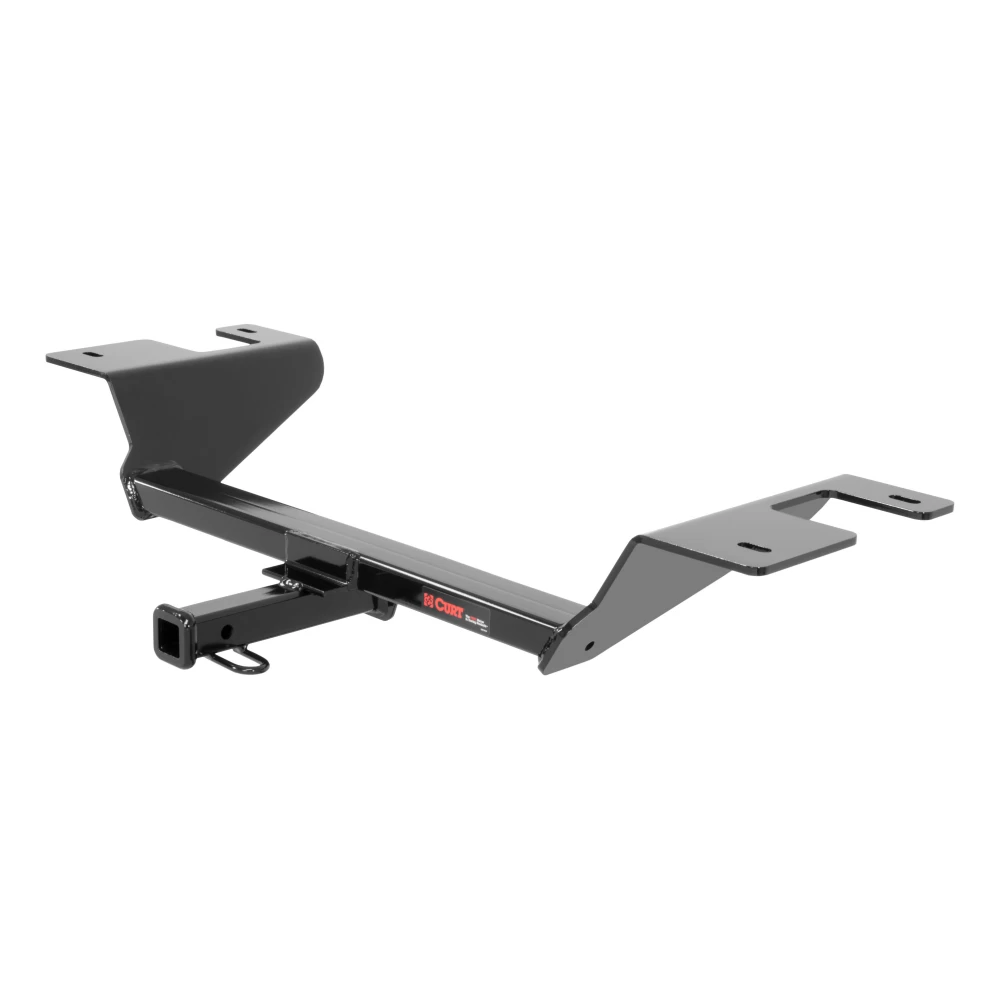

Installation Instructions for Chevrolet Cruze / Cruze Limited (2015-Present)
Part Numbers:
- 11425
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 13mm Socket
- Aviation Shears
- Safety Glasses
- Marker
- Tape Measure
Step-by-Step Instructions:
Step 1: Lower the exhaust
- Remove (2) rubber isolators from the muffler towards the center of the vehicle.
- Remove the bolt securing the rearmost hanger to the frame.
- Exhaust configuration may vary depending on the model.
Step 2: Trim the heat shield
- Trim the heat shield to access the frame's access hole.
- Confirm dimensions prior to trimming.
Step 3: Fishwire the hardware
- Fishwire (4) SP2 spacers (2 on each side) and (4) 7/16" carriage bolts (2 on each side) through the access holes and out the mounting holes.
- Raise the hitch into position and secure with (4) 7/16" flange nuts (2 on each side).
Step 4: Torque the hardware
- Torque 7/16" hardware to 70 ft-lbs.
- Raise the exhaust back into position and reinstall the rubber isolators as removed in Step 1.
Hardware List:
- (4) .250 x .88 x 2.25" Square Hole Spacer (#CM-SP2)
- (4) 7/16-14 UNC Carriage Bolt, 1-1/4" Grade 8 (#10-10281)
- (4) 7/16-14 UNC Flange Nut, Grade 8 (#20-00103)
- (2) 7/16" Fishwire (#7_16 FISHWIRE)
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- Do not exceed the vehicle manufacturer’s recommended towing capacity.
- All non-trailer loads must be supported using stabilizing straps (#18050).
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity: 2,000 lbs trailer weight, 200 lbs tongue weight
- Installation Time: 30 minutes (Professional), 45 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- No drilling required.
- Lower exhaust as instructed in Step 1.
- Use Fishwire Technique for hardware installation.
- Trim heat shield only if present, and verify dimensions before trimming.
- Torque specifications must be strictly followed.
- For any questions or installation help, contact technical support at 877-287-8634.
Installation Instructions for Chevrolet Cruze / Cruze Limited (2015-Present)
Part Numbers:
- 11425
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 13mm Socket
- Aviation Shears
- Safety Glasses
- Marker
- Tape Measure
Step-by-Step Instructions:
Step 1: Lower the Exhaust
- Remove (2) rubber isolators from the muffler towards the center of the vehicle.
- Remove the bolt securing the rearmost hanger to the frame.
- Note: Exhaust configuration may vary depending on the model.
Step 2: Trim the Heat Shield
- Trim the heat shield to access the frame's access hole.
- Confirm dimensions prior to trimming.
Step 3: Fishwire the Hardware
- Fishwire (4) SP2 spacers (2 on each side) and (4) 7/16" carriage bolts (2 on each side) through the access holes and out the mounting holes.
- Raise the hitch into position and secure with (4) 7/16" flange nuts (2 on each side).
Step 4: Torque the Hardware
- Torque all 7/16" hardware to 70 ft-lbs.
- Raise the exhaust back into position and reinstall the rubber isolators as removed in Step 1.
Hardware List:
- (4) .250 x .88 x 2.25" Square Hole Spacers (#CM-SP2)
- (4) 7/16-14 UNC Carriage Bolts, 1-1/4", Grade 8 (#10-10281)
- (4) 7/16-14 UNC Flange Nuts, Grade 8 (#20-00103)
- (2) 7/16" Fishwires (#7_16 FISHWIRE)
Safety Notes:
- Wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
- All non-trailer loads must be supported using stabilizing straps (#18050).
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity: 2,000 lbs trailer weight, 200 lbs tongue weight
- Installation Time: 30 minutes (Professional), 45 minutes (Novice)
- Compliance: SAE J684, VESC Regulation V-5
Additional Notes:
- No drilling required.
- Lower the exhaust as instructed in Step 1.
- Use Fishwire Technique for hardware installation.
- Trim the heat shield only if present, and verify dimensions before trimming.
- Torque specifications must be strictly followed.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty covering defects in material and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.

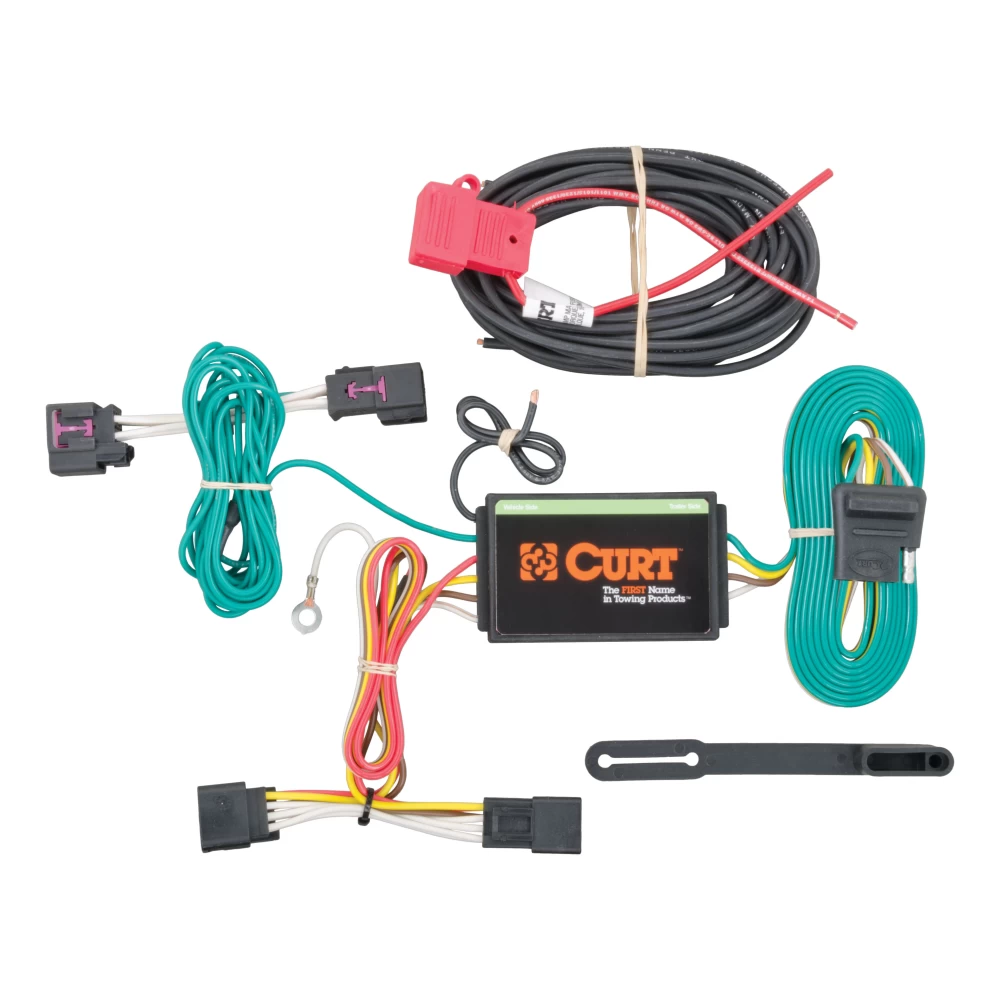

Installation Instructions for Chevrolet Cruze
Part Numbers:
- 56214
Step-by-Step Instructions:
-
Access the Wiring Harness Connectors
- Locate the vehicle's wiring harness connectors in the trunk behind the taillight in positions P3 and P4 as shown in the Wiring Location Guide.
-
Disconnect the Battery
- Locate the vehicle’s battery on the driver’s side under the hood and disconnect the negative battery terminal.
-
Prepare the Trunk
- Open the trunk and remove the spare tire cover.
- Remove the two plastic push fasteners on the rear scuff panel.
- Remove the scuff panel by pulling out on the bottom and then upward.
-
Remove the Trunk Liner Fastener
- Remove the plastic push fastener holding the felt trunk liner in place.
-
Access the Driver-Side Wiring Harness
- On the driver’s side, pull back on the felt trunk liner to locate the vehicle’s taillight wiring harness connectors.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Connect the Driver-Side Wiring Harness
- Insert the T-Connector end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle’s frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint. Secure the white ground wire using the ring terminal and screw provided.
Warning: Verify miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage or personal injury.
-
Route the Passenger-Side Wiring Harness
- Route the T-Connector end with the green wire to the passenger side behind the removed scuff panels.
- Repeat Steps 5–6 on the passenger side using the T-Connector end with the green wire.
- Use the provided cable ties to secure any loose wires.
-
Mount the Converter Box
- Inside the vehicle, locate a flat spot and adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire
- Route the black power wire from the vehicle’s battery as shown in the included CME-PCL-INS sheet.
-
Route the 4-Flat Connector
- Route the 4-flat wire to the center of the vehicle when in use.
- When not in use, roll it up and store it in a convenient, out-of-the-way location.
-
Reinstall Components
- Reinstall all items removed during installation.
-
Reconnect the Battery
- Connect the negative battery terminal.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max).
- Exceeding the product rating can cause overheating, loss of warranty, or potential fire.
- Signal Circuits: 7.5 amps per side.
- Tail / Running Circuits: 7.5 amps total.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Installation Instructions for Chevrolet Cruze
Part Numbers:
- 56214
Step-by-Step Instructions:
-
Access the Wiring Harness Connectors
- Locate the vehicle's wiring harness connectors in the trunk behind the taillight in positions P3 and P4 as shown in the Wiring Location Guide.
-
Disconnect the Battery
- Locate the vehicle’s battery on the driver’s side under the hood and disconnect the negative battery terminal.
-
Prepare the Trunk
- Open the trunk and remove the spare tire cover.
- Remove the two plastic push fasteners on the rear scuff panel.
- Remove the scuff panel by pulling out on the bottom and then upward.
-
Remove the Trunk Liner Fastener
- Remove the plastic push fastener holding the felt trunk liner in place.
-
Access the Driver-Side Wiring Harness
- On the driver’s side, pull back on the felt trunk liner to locate the vehicle’s taillight wiring harness connectors.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Connect the Driver-Side Wiring Harness
- Insert the T-Connector end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle’s frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint. Secure the white ground wire using the ring terminal and screw provided.
Warning: Verify miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage or personal injury.
-
Route the Passenger-Side Wiring Harness
- Route the T-Connector end with the green wire to the passenger side behind the removed scuff panels.
- Repeat Steps 5–6 on the passenger side using the T-Connector end with the green wire.
- Use the provided cable ties to secure any loose wires.
-
Mount the Converter Box
- Inside the vehicle, locate a flat spot and adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire
- Route the black power wire from the vehicle’s battery as shown in the included CME-PCL-INS sheet.
-
Route the 4-Flat Connector
- Route the 4-flat wire to the center of the vehicle when in use.
- When not in use, roll it up and store it in a convenient, out-of-the-way location.
-
Reinstall Components
- Reinstall all items removed during installation.
-
Reconnect the Battery
- Connect the negative battery terminal.
Safety Notes:
- The battery connection must be fuse-protected (10 amps max).
- Exceeding the product rating can cause overheating, loss of warranty, or potential fire.
- Signal Circuits: 7.5 amps per side.
- Tail / Running Circuits: 7.5 amps total.
- Verify all wiring connections and ensure proper function using a test light or a properly wired trailer before towing.
Warranty Information:
- This product comes with a warranty of [Insert Duration] covering defects in material and workmanship.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Note: This document is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
