For 2019-2024 Audi Q5 7 Way Trailer Wiring RV 7 Pin 7 Blade + Pro Series POD Brake Controller + Plug & Play Adapter By Tekonsha
Model: 119191 74184 8506020 20212 80500 3072-P-7197This Bundle Fits The Following Vehicles:
2019-2024 Audi Q5

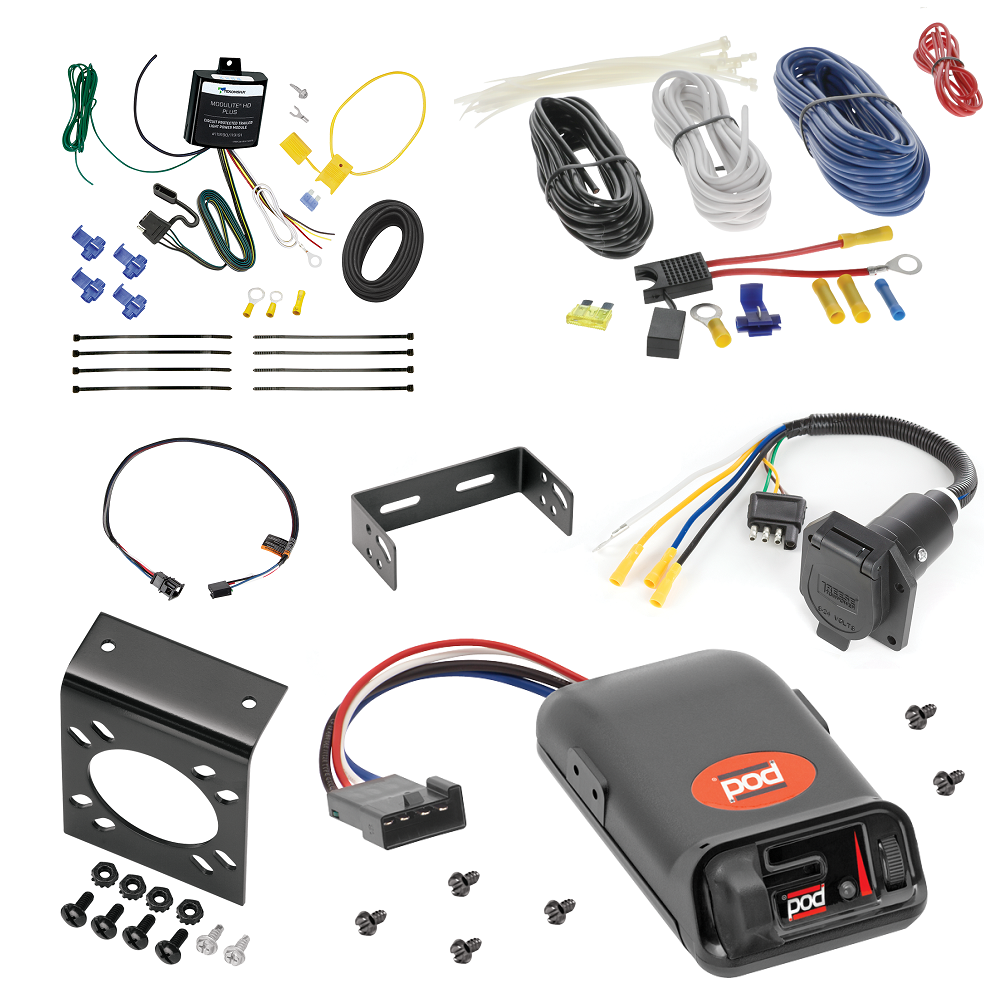

This Bundle Includes the Following Parts:
- 7-Way RV Wiring
- Pro Series POD Brake Control
- Plug & Play BC Adapter
List of fitment years:
2019, 2020, 2021, 2022, 2023, 2024
ModuLite® HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit Manufactured by: Tekonsha
- The unit is rated for up to 4.2 amps for Turns/Stops circuits and 7.5 amps for the Taillight circuit
- Universal ModuLite designed to be used on most vehicles plus the hard to wire vehicles
- Draws power directly from the vehicle battery and uses less than 5mA of the vehicle circuit for sensing to turn the trailer functions on and off
- Will work with either LED/Incandescent bulbs (vehicle & trailer)
- Has integrated re-settable Short Circuit and Overload protection, to safeguard itself and the tow vehicle from shorts and installation wiring mishaps
- Designed not to send feedback thru the vehicle circuits
- The trailer brakes will override the hazard lamps when the brake is activated
- Advanced circuitry works in all standard applications as well as vehicles with ST and STT pulse width modulation (PWM) systems
- Interprets/decodes multiplex signal inputs (i.e. Audi, BMW, Mercedes and VW)
- Will not work with vehicles with low-side switch
- Can be used on a 2 wire or 3 wire system
- All solid-state components in potted encapsulation
- Includes integrated protective cover
Wiring Adapter, 4-Way Flat to 7-Way, Round Car End Manufactured by: Reese Towpower
The REESE Towpower pre-wired round blade 7-way connector, provides versatility in going from a 4-way flat to a 7-way standard plug. The 7-way connectors include electric brake, auxiliary, and backup circuits.
- Provide versatility in going from 4-Flat to 7-Way standard plug
- Per-wired with 4-Flat and wired with butt connects and ring terminal
- Easy wiring featuring prewired with 4-Flat and wired with butt connects and ring terminal
- Features non-corroding brass terminals
- Mounts to standard 7-Way bracket
- Non-corrosive thermo plastic construction
- Ring terminal already mounted to ground wire
- 12 volt and brake wires have butt connectors already attached
Trailer Brake Controller Installation Kit, Wire and Hardware Manufactured by: Tekonsha
This complete Tekonsha brake control installation kit contains everything needed to install a brake control in any vehicle that is not pre-wired for a brake controller. This kit includes all wires going to both the battery and the wires needed to go to the connector located at the rear of the vehicle.
- OEM Style wiring harness
- Easy to install
- 1-3 axles
Mounting Bracket, 7-Way OEM Connectors, Includes Screws and Nuts Manufactured by: Tow Ready
- Mounts electrical connector to attachment bracket
- Includes screws and nuts
- Attractive point-of-purchase packaging
POD® Trailer Time-Delay Brake Controller for Trailers with 1-2 Axles Manufactured by: Pro Series
POD (Power on Demand) is your best choice for 1 or 2 axle trailers ... especially when your installation options are limited. POD can be mounted in any direction, and features “up-front-easy-access” adjustment controls, even when mounted upside down. POD is the perfect choice with almost vertical dash mounting surfaces.
- Solid state electronics
- Power-on LED for a positive tow vehicle-to-trailer connection
- “Up- front” manual over-ride control
- Rugged, easy mount chassis
- Mounting hardware included
- Smooth and simple installation
- Plug & Play feature allows quick and easy connection
- 5 year limited warranty
Trailer Brake Controller Wiring Harness Manufactured by: Tekonsha
Our 2-Plug units are designed for brake controls that have a wiring port built into the back of the unit. Simply plug the brake control end of the wiring harness into the back of the brake control and the vehicle end into the automobile's port. Brake controls that utilize the 2-plug style of wiring harness will be identified with the Plug & Play logo.
- Plug & Play
- O.E.M. Wiring Harness
- Audi, Porsche and Volkswagen
$198 16
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$198 16
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 119191 74184 8506020 20212 80500 3072-P-7197
