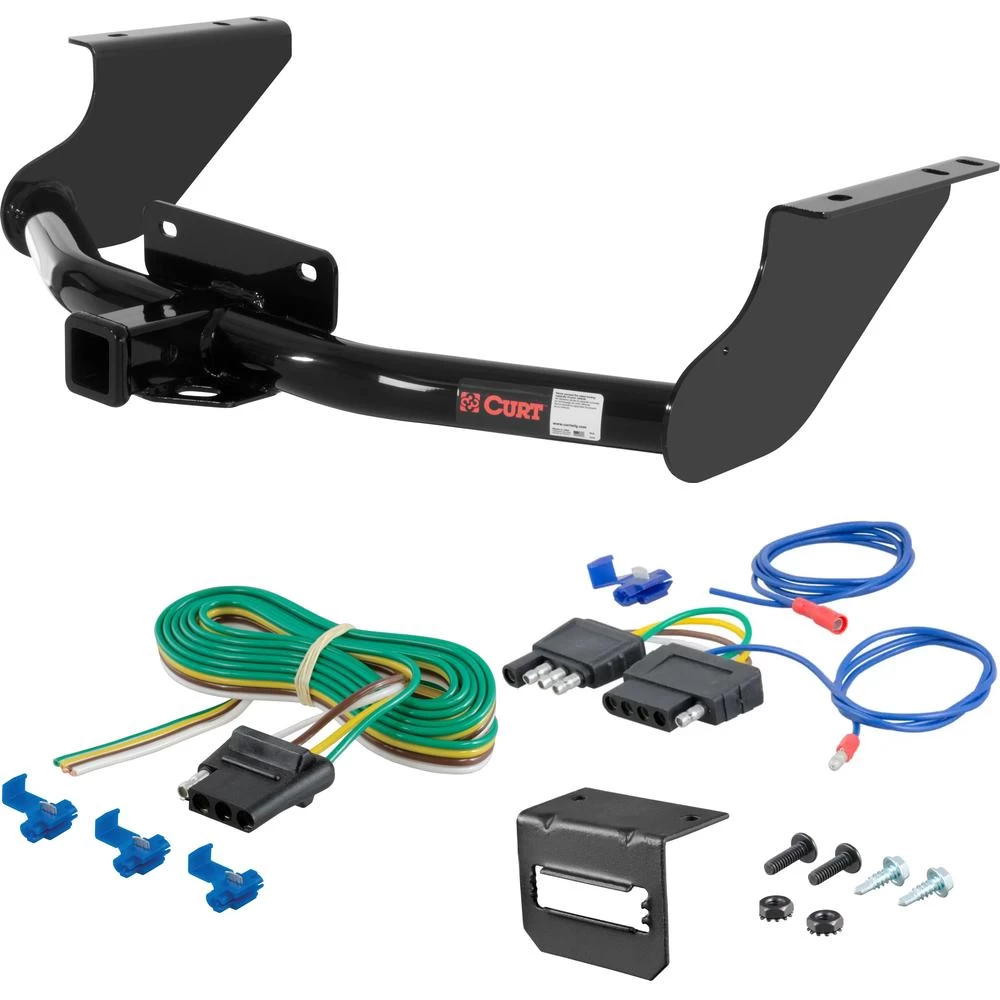

- Includes: Class 3 Trailer Tow Hitch, 4-Way Flat Connector Socket with 60" Wires, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Get Expert Help
For 2019-2024 Ram 1500 Classic Trailer Hitch + Wiring 5 Pin Except factory receiver Curt 13374 2 inch Tow Receiver Install Notes
Installation Instructions for Dodge Ram 1500 Without OEM Hitch
Part Numbers:
- 13374
Tools Required:
- Socket Wrench
- Torque Wrench
- 3/4" Socket
- 21mm Socket
- 6" Socket Extension
Hardware List:
- Carriage Bolt: 1/2-13 x 1-1/2", Grade 8, YZ (Qty: 4)
- Flange Nut: 1/2-13 UNC, Grade 8, YZ (Qty: 4)
- Square Hole Spacer: 0.188 x 1.00 x 3.00" (CM-SP40) (Qty: 2)
- Square Hole Spacer: 0.250 x 1.50 x 3.00" (CM-SP4) (Qty: 2)
- Fishwire: 1/2" x 30" (Qty: 1)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire to provide access to the frame rails for hitch installation.
-
Remove Existing Bolts:
- Remove the M14 bolts connecting the bumper beam to the frame rails on both the driver and passenger sides.
- Save these bolts for use in Step 6.
-
Reverse Fishwire Carriage Bolts:
- Reverse fishwire the 1/2-13 x 1-1/2" carriage bolts and CM-SP40 spacers through the large round holes in the frame rails.
- Refer to the Reverse Pull Fishwire Technique Diagram for proper guidance.
-
Fishwire Carriage Bolts Through Bumper Beam:
- Fishwire the remaining 1/2-13 x 1-1/2" carriage bolts and CM-SP4 spacers through the ends of the bumper beam.
- Pull them out through the slot in front of the bumper beam.
-
Raise Hitch Into Position:
- Position the hitch against the frame rails and bumper beam.
- Loosely install the provided 1/2-13 hex flange nuts onto the carriage bolts.
-
Reinstall Existing Bolts:
- Reinstall the M14 bolts removed in Step 2 to secure the bumper beam and hitch.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
- Torque all M14 hardware to 126 lb-ft.
-
Raise Spare Tire:
- Raise the spare tire back into its original position.
Safety Notes:
- No Drilling Required: Uses existing mounting holes in the frame and bumper beam.
- Fishwire Hardware: Follow proper fishwire techniques to avoid losing bolts inside the frame.
- Verify all hardware is securely torqued to prevent hitch loosening during operation.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 6,000 lbs
- Tongue Weight: 600 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 10,000 lbs
- Tongue Weight: 1,000 lbs
- Hitch Weight: 43 lbs
Installation Time:
- Professional: 60 minutes
- Novice (DIY): 120 minutes
Manufacturer Notes:
- For installation questions, contact Technical Support at 1-877-287-8634.
- Product Warranty: Curt Manufacturing Inc. guarantees this product to be free from defects in material and workmanship.
Warning: Do not exceed the vehicle manufacturer's recommended towing capacity. Periodically inspect the hitch to ensure all components remain structurally sound.
Installation Instructions for Dodge Ram 1500 Without OEM Hitch
Part Numbers:
- 13374
Tools Required:
- Socket Wrench
- Torque Wrench
- 3/4" Socket
- 21mm Socket
- 6" Socket Extension
Hardware List:
- Carriage Bolt: 1/2-13 x 1-1/2", Grade 8, YZ (Qty: 4)
- Flange Nut: 1/2-13 UNC, Grade 8, YZ (Qty: 4)
- Square Hole Spacer: 0.188 x 1.00 x 3.00" (CM-SP40) (Qty: 2)
- Square Hole Spacer: 0.250 x 1.50 x 3.00" (CM-SP4) (Qty: 2)
- Fishwire: 1/2" x 30" (Qty: 1)
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire to provide access to the frame rails for hitch installation.
-
Remove Existing Bolts:
- Remove the M14 bolts connecting the bumper beam to the frame rails on both the driver and passenger sides.
- Save these bolts for use in Step 6.
-
Reverse Fishwire Carriage Bolts:
- Reverse fishwire the 1/2-13 x 1-1/2" carriage bolts and CM-SP40 spacers through the large round holes in the frame rails.
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
-
Fishwire Carriage Bolts Through Bumper Beam:
- Fishwire the remaining 1/2-13 x 1-1/2" carriage bolts and CM-SP4 spacers through the ends of the bumper beam.
- Pull them out through the slot in front of the bumper beam.
-
Raise Hitch Into Position:
- Position the hitch against the frame rails and bumper beam.
- Loosely install the provided 1/2-13 hex flange nuts onto the carriage bolts.
-
Reinstall Existing Bolts:
- Reinstall the M14 bolts removed in Step 2 to secure the bumper beam and hitch.
-
Torque Fasteners:
- Torque all 1/2" hardware to 110 lb-ft.
- Torque all M14 hardware to 126 lb-ft.
-
Raise Spare Tire:
- Raise the spare tire back into its original position.
Safety Notes:
- No Drilling Required: Uses existing mounting holes in the frame and bumper beam.
- Fishwire Hardware: Follow proper fishwire techniques to avoid losing bolts inside the frame.
- Verify all hardware is securely torqued to prevent hitch loosening during operation.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 6,000 lbs
- Tongue Weight: 600 lbs
- Gross Load Capacity (Weight Distribution Hitch):
- Trailer Weight: 10,000 lbs
- Tongue Weight: 1,000 lbs
- Hitch Weight: 43 lbs
Installation Time:
- Professional: 60 minutes
- Novice (DIY): 120 minutes
Additional Information:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- The warranty duration and coverage details are outlined in the full installation PDF.
- For complete warranty instructions, please download the full installation PDF.
End of Instructions
Installation Instructions for Taillight Wiring Converter
Part Numbers:
- 58044
Wiring Access Locations:
- S1: Behind driver’s side taillight housing
- S2: Behind passenger’s side taillight housing
- S3: Behind driver’s side rear access panel
- S4: Behind passenger’s side rear access panel
- T1: Behind driver’s side taillight housing
- T2: Behind passenger’s side taillight housing
- T3: Behind driver’s side rear bumper
- T5: Behind passenger’s side rear bumper
Tools Required:
- Test light
Step-by-Step Instructions:
- Locate the vehicle's taillight wiring using the typical locations based on the vehicle type.
- Using a test light, identify the corresponding wires for:
- Left turn signal
- Right turn signal
- Tail lights
- Brake lights
- Temporarily disconnect the vehicle's negative battery cable.
- Using wire taps, connect the converter input wires to the vehicle harness wires:
- Brown Wire: Tail Light Circuit
- Yellow Wire: Left Turn/Brake Circuit
- Green Wire: Right Turn/Brake Circuit
- Locate a system ground wire:
- Use a terminal ring or tap into an existing ground wire.
- Test the installation:
- If testing with a test light:
- Attach the test light ground lead to the exposed ground terminal of the 4-flat end.
- Activate the left turn, right turn, tail, and brake lights on the vehicle one at a time.
- Probe the 4-flat end receptacles to confirm functionality.
- If testing with a trailer:
- Mate the 4-flat with the trailer and repeat the same tests.
- If any trailer light functions fail, recheck the vehicle wiring with a circuit tester.
- If testing with a test light:
Hardware List:
- 4-flat connector (60” car end):
- White Wire: To Ground
- Green Wire: To Right Turn Signal
- Yellow Wire: To Left Turn Signal
- Brown Wire: To Taillight Signal
Safety Notes:
- Ensure the product is only used on 2-wire, 12-volt negative ground systems.
- Double-check all connections and secure wires to avoid potential hazards.
Specifications:
- Compliance: Designed for 2-wire 12V systems with a negative ground.
- Ensure proper alignment and secure attachment to avoid wiring faults.
Installation Instructions for Taillight Wiring Converter
Part Numbers:
- 58044
Wiring Access Locations:
- S1: Behind driver’s side taillight housing
- S2: Behind passenger’s side taillight housing
- S3: Behind driver’s side rear access panel
- S4: Behind passenger’s side rear access panel
- T1: Behind driver’s side taillight housing
- T2: Behind passenger’s side taillight housing
- T3: Behind driver’s side rear bumper
- T5: Behind passenger’s side rear bumper
Tools Required:
- Test light
Step-by-Step Instructions:
- Locate the vehicle's taillight wiring using the typical locations based on the vehicle type.
- Using a test light, identify the corresponding wires for:
- Left turn signal
- Right turn signal
- Tail lights
- Brake lights
- Temporarily disconnect the vehicle's negative battery cable.
- Using wire taps, connect the converter input wires to the vehicle harness wires:
- Brown Wire: Tail Light Circuit
- Yellow Wire: Left Turn/Brake Circuit
- Green Wire: Right Turn/Brake Circuit
- Locate a system ground wire:
- Use a terminal ring or tap into an existing ground wire.
- Test the installation:
- If testing with a test light:
- Attach the test light ground lead to the exposed ground terminal of the 4-flat end.
- Activate the left turn, right turn, tail, and brake lights on the vehicle one at a time.
- Probe the 4-flat end receptacles to confirm functionality.
- If testing with a trailer:
- Mate the 4-flat with the trailer and repeat the same tests.
- If any trailer light functions fail, recheck the vehicle wiring with a circuit tester.
- If testing with a test light:
Hardware List:
- 4-flat connector (60” car end):
- White Wire: To Ground
- Green Wire: To Right Turn Signal
- Yellow Wire: To Left Turn Signal
- Brown Wire: To Taillight Signal
Safety Notes:
- Ensure the product is only used on 2-wire, 12-volt negative ground systems.
- Double-check all connections and secure wires to avoid potential hazards.
Specifications:
- Compliance: Designed for 2-wire 12V systems with a negative ground.
- Ensure proper alignment and secure attachment to avoid wiring faults.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- Warranty Duration: [Insert warranty period]
- Coverage Details: [Insert coverage details]
- For complete warranty information, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
