For 2020‑2024 Cadillac XT5 Trailer Wiring 4 Way Fits All Models Curt 56325
Model: 56325-CW248This Wiring 4-Flat Fits The Following Vehicles:
2020 - 2024 Cadillac XT5 All Models
This Wiring 4-Flat Includes the Following Parts:
- Custom Wiring Connector, 4-Way Flat (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022, 2023, 2024

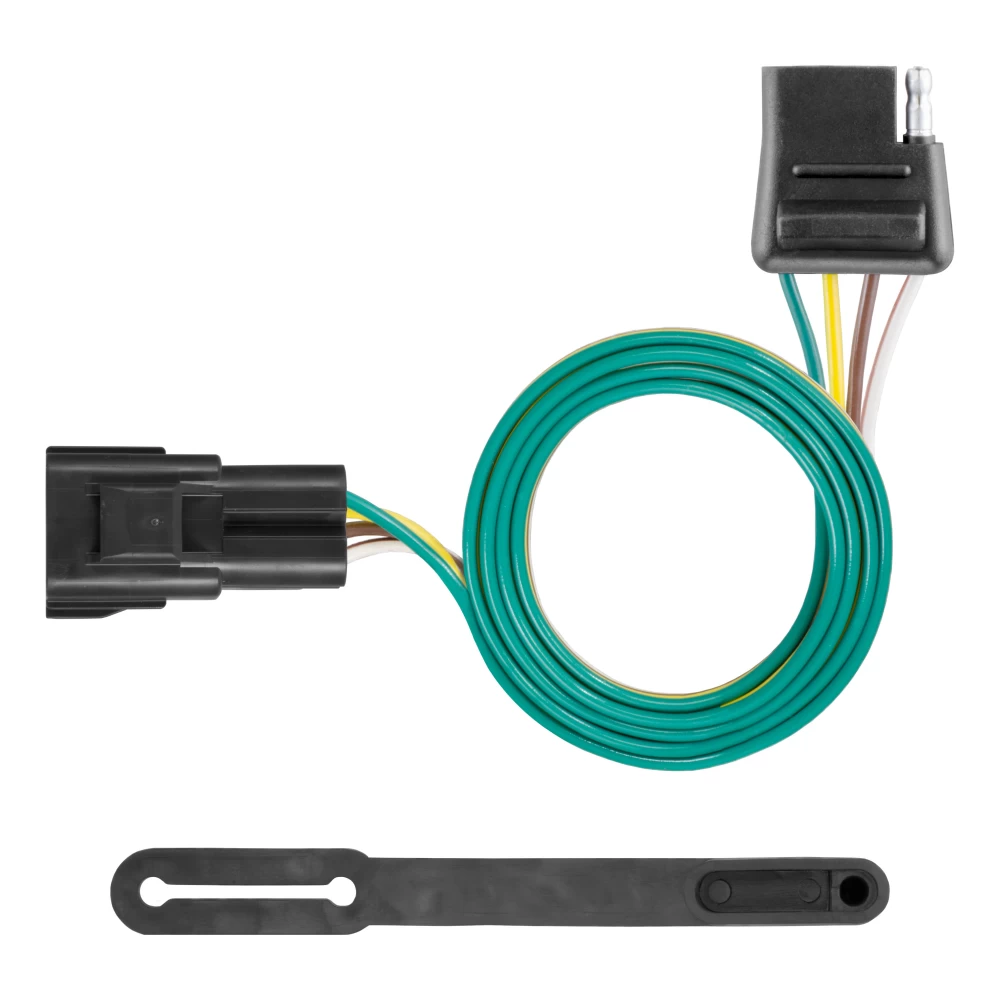

CURT 56325 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring.
Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit.
This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Buick Envision, Chevy Blazer, GMC Acadia, Cadillac XT5 and Cadillac XT6, (to verify your vehicle compatibility, see application info) It comes with all necessary hardware to establish a solid connection It also comes with a dust cover to keep the connector socket clean when not in use.
To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it..
Features:

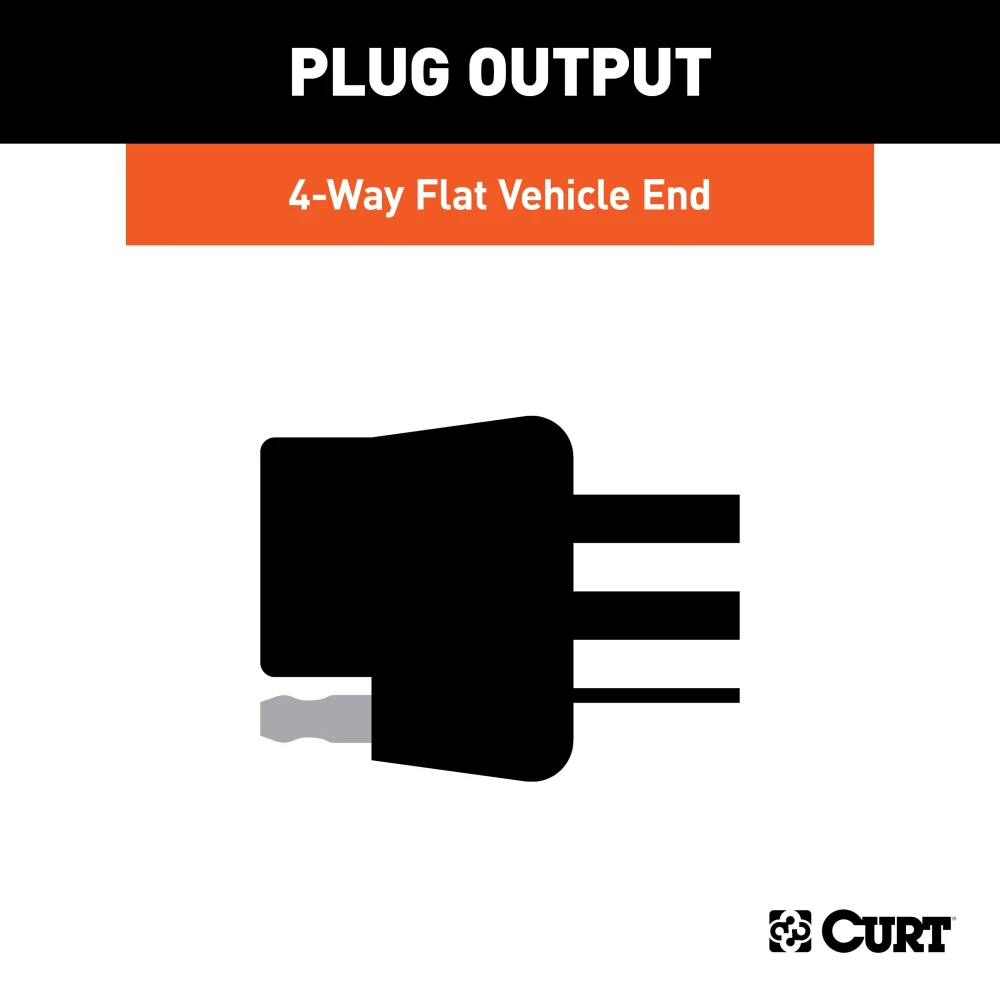

- Plugs into existing OEM vehicle socket to provide a 4-way flat socket

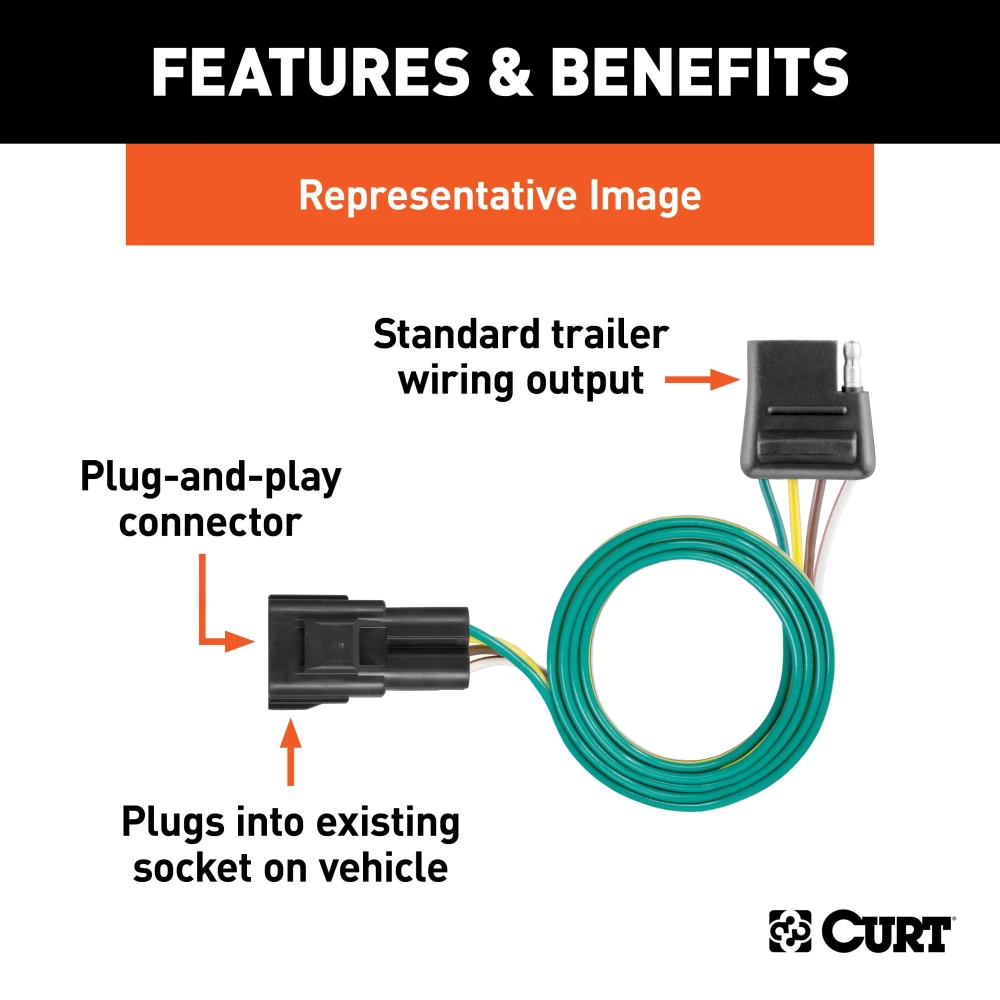

- Simple plug-and-play design eliminates the need for cutting or splicing

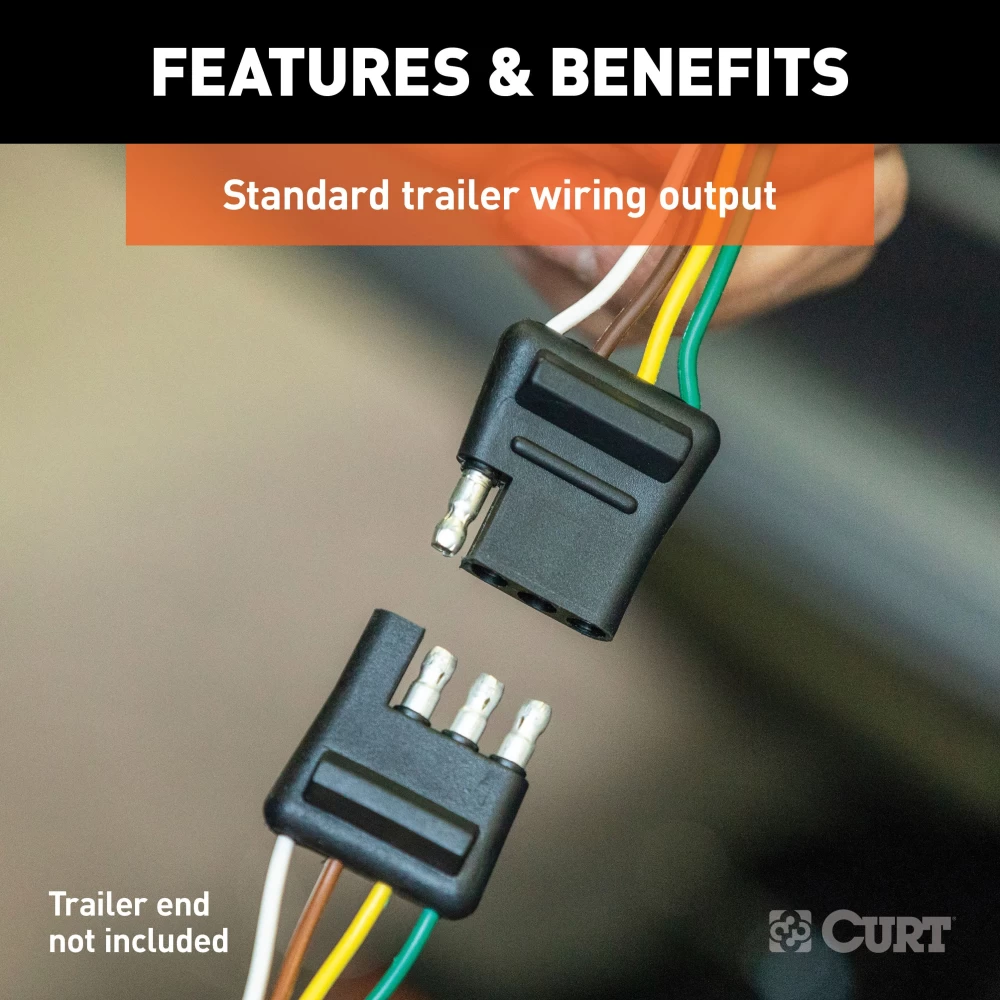

- 4-way flat output connects tail lights, brake lights and turn signals

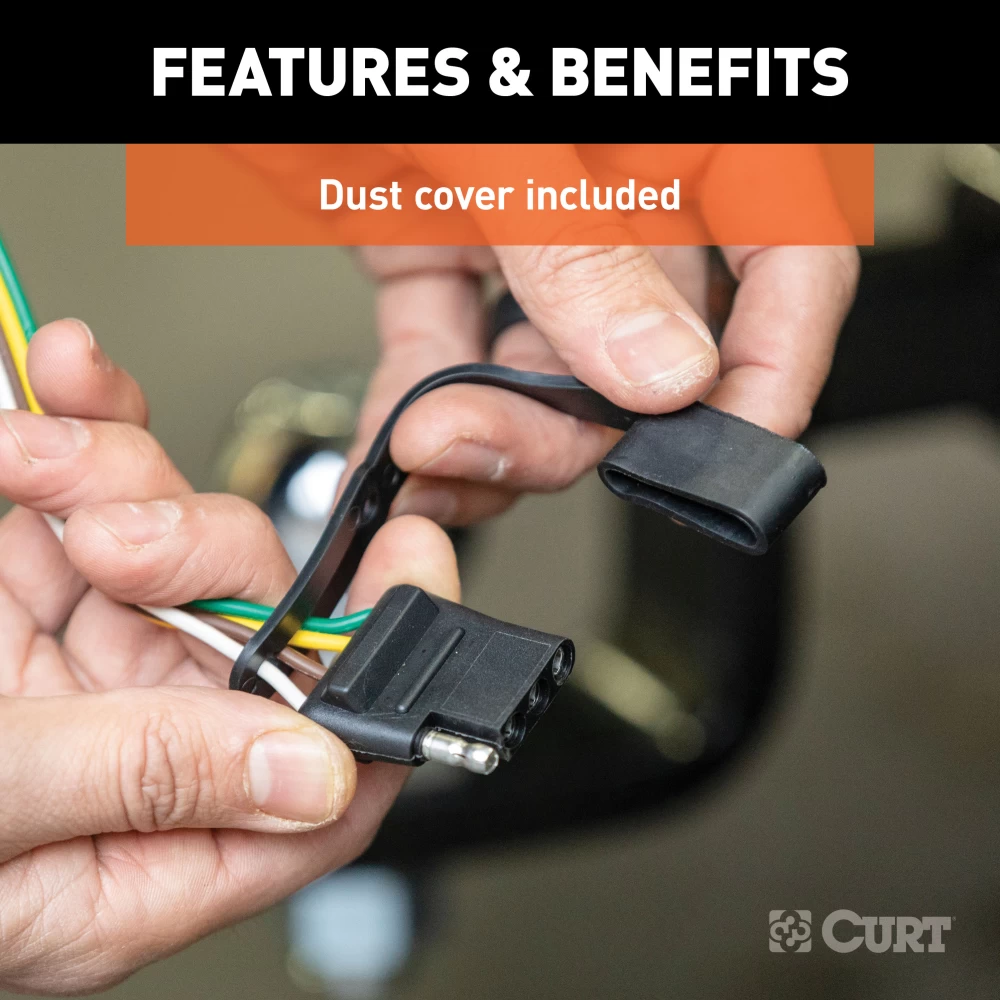

- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$31 14
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$31 14
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $7.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 56325-CW248
- Includes: Custom Wiring Connector
Compatibility Chart
Get Expert Help
For 2020-2024 Cadillac XT5 Trailer Wiring 4 Way Fits All Models Curt 56325 Install Notes
Installation Instructions for Cadillac XT5 and GMC Acadia (excluding Limited)
Part Number:
- 56325
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Wire cutter
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Locate Vehicle Connector:
- Find the vehicle connector behind the rear bumper in the center of the vehicle.
- The connector will resemble the one on the CURT wiring connector.
-
Separate Connectors:
- Detach the vehicle connectors from the weather seal connectors.
- Be careful not to damage the locking tabs.
-
Connect Wiring Harness:
- Insert the CURT wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Position 4-Flat Connector:
- When in use, route the 4-flat to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.

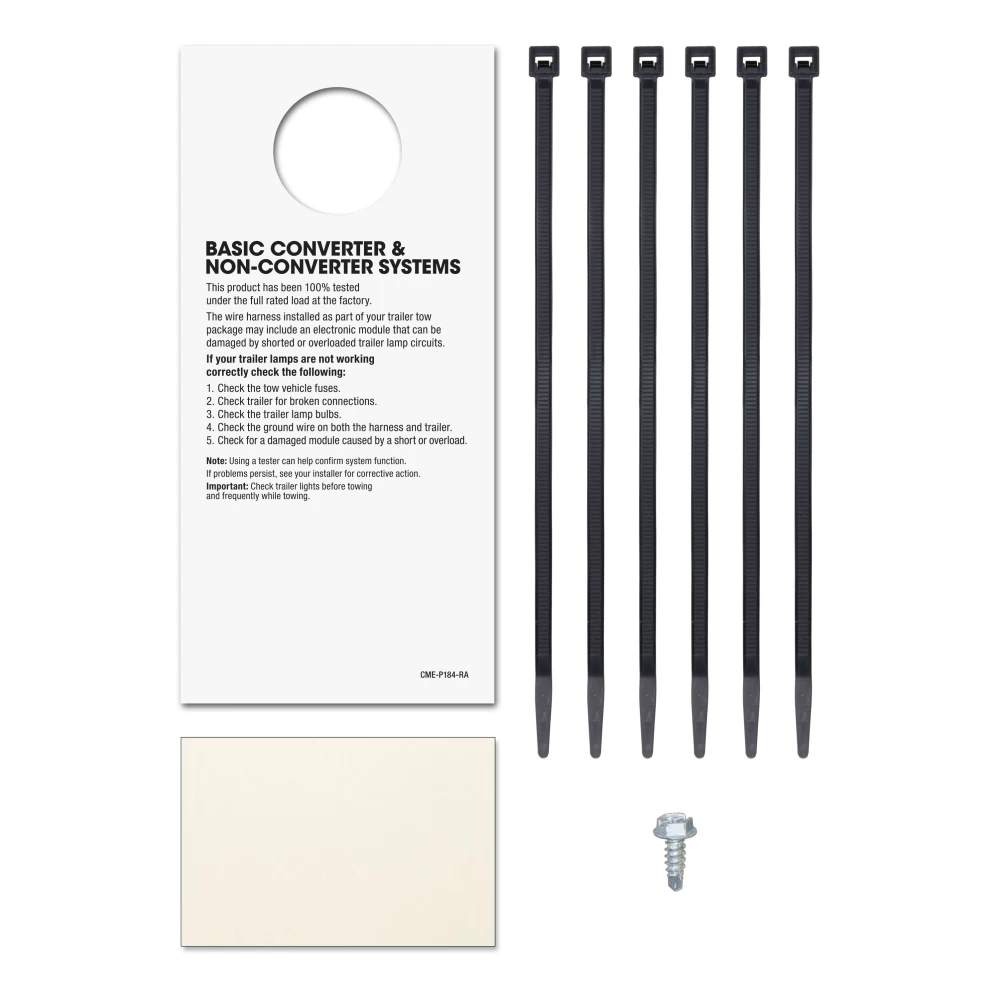

- Secure any loose wires with the provided cable ties.
-
Reassemble and Finalize:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Product Rating: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Specifications:
- Signal Circuits: 7.5 amps per side
- Tail/Running Circuits: 7.5 amps total
(Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.)
