Product Details
- Brand: Draw-Tite
- Model: 24971 118680
- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help

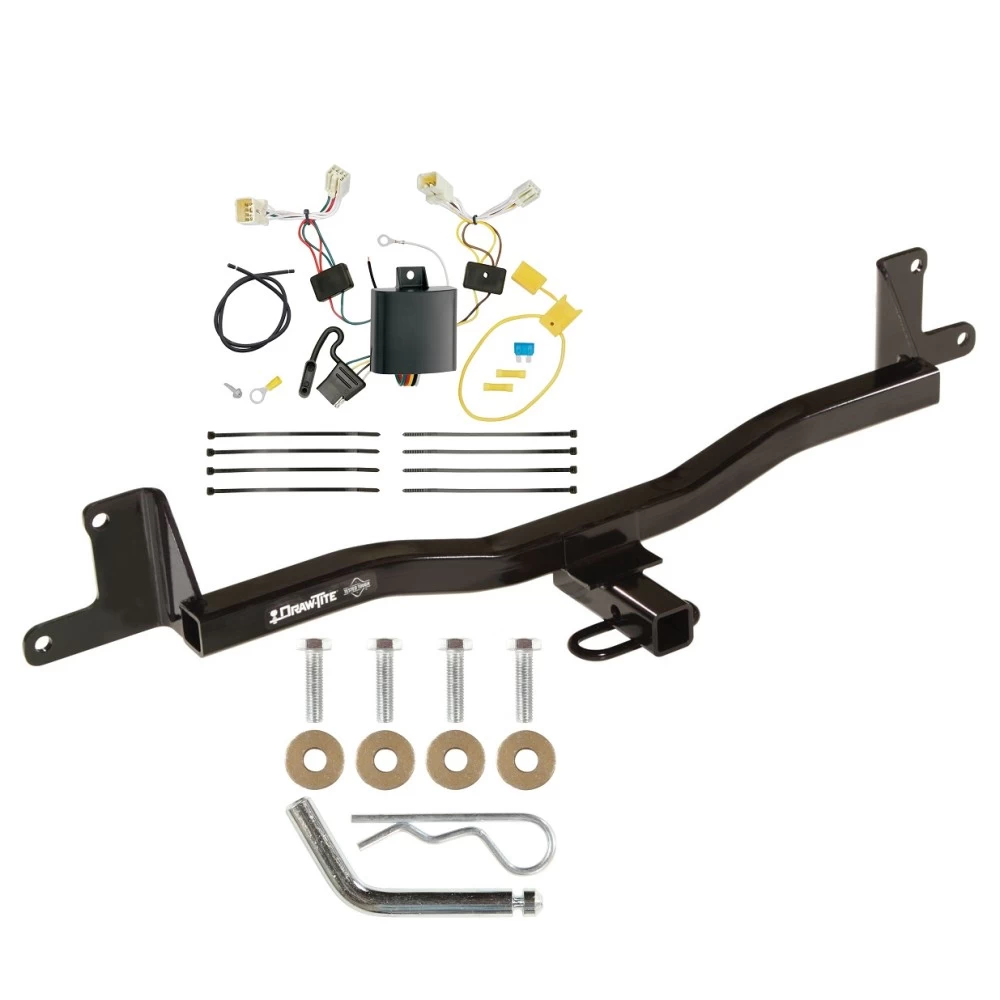

Trailer Hitch Tow Receiver w/ Wiring Harness Kit For 12-20 Toyota Prius C Install Notes
Installation Instructions for Toyota Prius C (2012-Current)
Part Numbers:
- 24971
- 77971
- CQT24971
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 13mm
- 6" Socket Extension
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Appearance Panels:
- Remove 2 plastic appearance panels on the driver side using a flat head screwdriver.
- Detach 4 push pins per panel (8 total).
- Remove 5 push pins from the center appearance panel and detach the remaining 2 push pins from the fascia tabs.
- Return the center appearance panel and 5 push pins to the vehicle owner. Retain other panels and pins for reinstallation in Step 5.
-
Remove Bumper Bolts:
- Using a 12mm socket, remove the lower bolt and the inboard bolt from the bumper on each side (4 bolts total).
- Leave the outer bolts attached to the vehicle and return the removed bolts to the vehicle owner.
-
Install Hitch:
- Rotate the passenger side of the hitch over the exhaust and raise it into position.
- Attach the provided M8 bolts and conical washers on each side.
-
Torque Fasteners:
- Tighten all 8mm fasteners to 27 ft-lb (37 N*m) using a torque wrench and a 13mm socket.
-
Reinstall Appearance Panels:
- Reattach the 2 driver-side appearance panels removed in Step 1.
- Reinstall the fascia tabs.
Hardware List:
- (4) Hex Bolt, M8 x 1.25 x 30mm, CL10.9
- (4) Conical Washer, 3/8" (Part No. 01292006)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch regularly to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access holes with a torch.
- Follow proper safety precautions when working beneath a vehicle.
Specifications:
- Installation Time: 20 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2012-Current)
Part Numbers:
- 24971
- 77971
- CQT24971
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 12mm, 13mm
- 6" Socket Extension
- Flat Head Screwdriver
Step-by-Step Instructions:
-
Remove Appearance Panels:
- Remove 2 plastic appearance panels on the driver side using a flat head screwdriver.
- Detach 4 push pins per panel (8 total).
- Remove 5 push pins from the center appearance panel and detach the remaining 2 push pins from the fascia tabs.
- Return the center appearance panel and 5 push pins to the vehicle owner. Retain other panels and pins for reinstallation in Step 5.
-
Remove Bumper Bolts:
- Using a 12mm socket, remove the lower bolt and the inboard bolt from the bumper on each side (4 bolts total).
- Leave the outer bolts attached to the vehicle and return the removed bolts to the vehicle owner.
-
Install Hitch:
- Rotate the passenger side of the hitch over the exhaust and raise it into position.
- Attach the provided M8 bolts and conical washers on each side.
-
Torque Fasteners:
- Tighten all 8mm fasteners to 27 ft-lb (37 N*m) using a torque wrench and a 13mm socket.
-
Reinstall Appearance Panels:
- Reattach the 2 driver-side appearance panels removed in Step 1.
- Reinstall the fascia tabs.
Hardware List:
- (4) Hex Bolt, M8 x 1.25 x 30mm, CL10.9
- (4) Conical Washer, 3/8" (Part No. 01292006)
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch regularly to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access holes with a torch.
- Follow proper safety precautions when working beneath a vehicle.
Specifications:
- Installation Time: 20 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Toyota Prius C
Part Numbers:
- 118680
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open Rear Cargo Area:
- Locate the vehicle wiring inside the rear cargo area by partially removing the plastic threshold cover, side access panels, carpet panels, and cargo trays.
-
Locate Taillight Wiring Harness:
- On both driver and passenger sides, locate the vehicle’s taillight wiring harness with a connection point matching the T-One® T-Connector ends.
- Disconnect the connectors carefully to avoid damaging the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Connect T-Connector:
- On the passenger side, insert the T-One® T-Connector end with the green wire between the vehicle wiring connectors and lock into place.
- Route the T-One® T-Connector end with the yellow wire to the driver’s side behind the panels and along the threshold. Repeat the connection process for the driver’s side.
-
Ground the White Wire:
- Locate a suitable grounding point near the passenger-side connector.
- Option 1: Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the eyelet and screw provided.
- Option 2: Locate an existing ground stud, loosen the bolt, place the eyelet on the stud, and re-tighten the bolt.
Caution: Verify the area behind any surface before drilling to avoid damage or injury. Do not drill into vehicle floor, bed, or exposed surfaces.
-
Connect Power Wire:
- Attach the provided black 12-gauge wire to the black power wire from the T-Connector black box.
-
Locate 12-Volt Battery:
- Locate the vehicle’s 12-volt battery inside the cargo area on the passenger side, underneath the floor covering in the rear corner.
-
Install Fuse Holder:
- Disconnect the vehicle’s Negative (-) battery cable. Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the vehicle’s Positive (+) battery cable and secure.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided.
-
Reconnect Battery and Install Fuse:
- Reconnect the vehicle’s Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
-
Mount the Black Box:
- Mount the T-One® T-Connector black box on the passenger side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble Vehicle Components:
- Reinstall taillight assemblies, panels, and any components removed during installation. Ensure no wires are pinched or damaged.
-
Test Installation:
- Test the installation with a test light or trailer. Reset the vehicle electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the vehicle manufacturer’s rating or the product’s stated ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Toyota Prius C
Part Numbers:
- 118680
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open Rear Cargo Area:
- Locate the vehicle wiring inside the rear cargo area by partially removing the plastic threshold cover, side access panels, carpet panels, and cargo trays.
-
Locate Taillight Wiring Harness:
- On both driver and passenger sides, locate the vehicle’s taillight wiring harness with a connection point matching the T-One® T-Connector ends.
- Disconnect the connectors carefully to avoid damaging the locking tabs. Ensure all connector surfaces are clean and free of dirt.
-
Connect T-Connector:
- On the passenger side, insert the T-One® T-Connector end with the green wire between the vehicle wiring connectors and lock into place.
- Route the T-One® T-Connector end with the yellow wire to the driver’s side behind the panels and along the threshold. Repeat the connection process for the driver’s side.
-
Ground the White Wire:
- Locate a suitable grounding point near the passenger-side connector.
- Option 1: Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the eyelet and screw provided.
- Option 2: Locate an existing ground stud, loosen the bolt, place the eyelet on the stud, and re-tighten the bolt.
Caution: Verify the area behind any surface before drilling to avoid damage or injury. Do not drill into vehicle floor, bed, or exposed surfaces.
-
Connect Power Wire:
- Attach the provided black 12-gauge wire to the black power wire from the T-Connector black box.
-
Locate 12-Volt Battery:
- Locate the vehicle’s 12-volt battery inside the cargo area on the passenger side, underneath the floor covering in the rear corner.
-
Install Fuse Holder:
- Disconnect the vehicle’s Negative (-) battery cable. Remove the fuse from the yellow fuse holder.
- Attach the ring terminal to the vehicle’s Positive (+) battery cable and secure.
- Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector provided.
-
Reconnect Battery and Install Fuse:
- Reconnect the vehicle’s Negative (-) battery cable and install the 15-amp fuse into the fuse holder.
-
Mount the Black Box:
- Mount the T-One® T-Connector black box on the passenger side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble Vehicle Components:
- Reinstall taillight assemblies, panels, and any components removed during installation. Ensure no wires are pinched or damaged.
-
Test Installation:
- Test the installation with a test light or trailer. Reset the vehicle electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the vehicle manufacturer’s rating or the product’s stated ratings.
- Always wear safety glasses and follow safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
