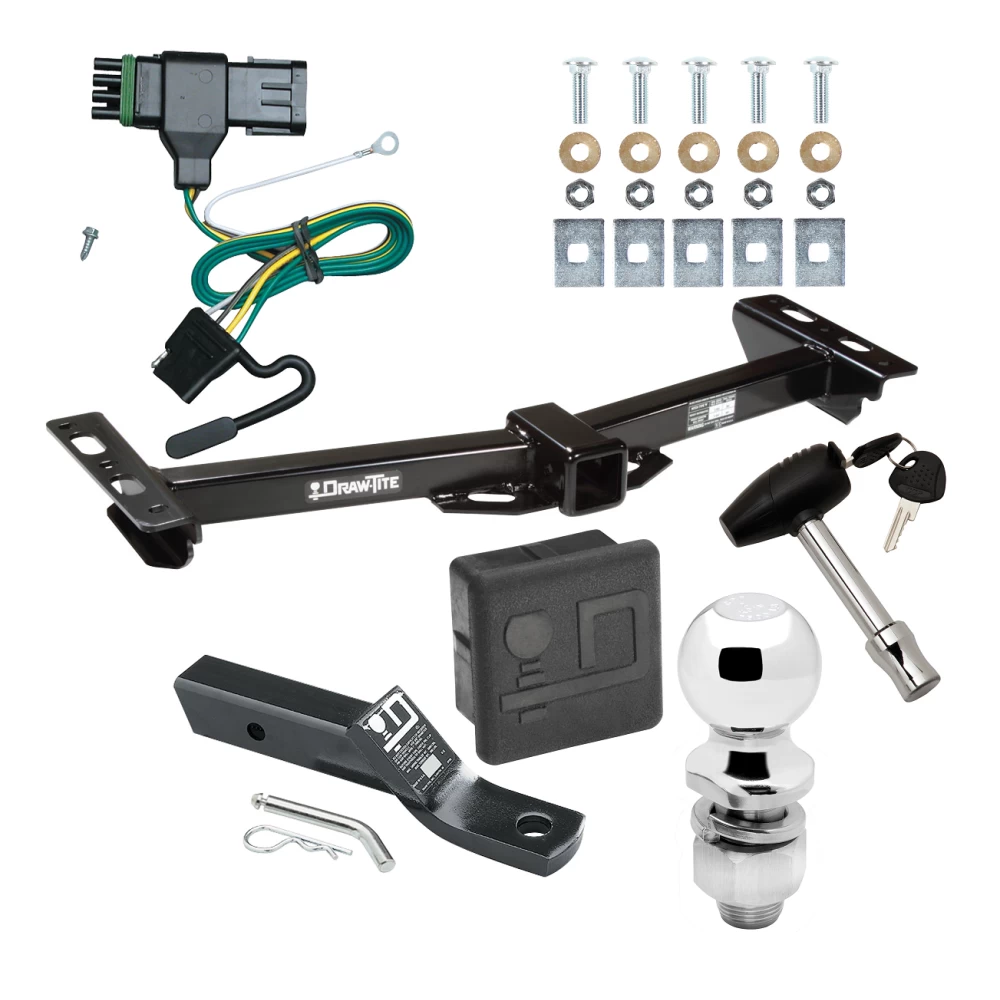

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 88-00 Chevy GMC C/K w/Aftermarket Roll Pan Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chevrolet/GMC Pickups with Aftermarket Roll Pan
Part Numbers:
- 41522
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 7/8" (Crowfoot)
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- If the under-bed spare tire is to be retained, an aftermarket spare tire repositioner must be installed.
-
Position Rearmost Slots:
- Position the rearmost slots in the receiver over/after the slot near the end of the frame.
-
Drill Forward Attachment Holes:
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Install fasteners as shown in Figure 1.
- Use 1/4" x 1-1/2" x 2" blocks (1540 and 3719) oriented as shown in the diagram.
-
Cut Roll Pan (if required):
- Cut the roll pan in the license plate area to provide drawbar installation and pin & clip access.
- Reposition the license plate while the drawbar is in use.
-
Apply Load Rating Label:
- Apply the load rating label (5767) provided in the license plate area of the roll pan.
-
Check Spare Tire Clearance:
- If using an aftermarket spare tire repositioner, ensure clearance between the spare tire, brake lines, and differential (see Figure 2).
-
Tighten Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft.
Torque Specifications:
- 1/2" GR5 fasteners: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Blocks, 1/4" x 1-1/2" x 2" (3719 and 1540)
- (6) Conical Toothed Washers
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb
- Max Tongue Weight: 550 lb
Additional Notes:
- Hitch will not fit with step bumpers or vehicles equipped with heavy-duty suspension with additional frame reinforcements (see Diagram 1).
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks with Aftermarket Roll Pan
Part Numbers:
- 41522
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 7/8" (Crowfoot)
Step-by-Step Instructions:
-
Remove Spare Tire:
- Remove the spare tire from the vehicle.
- If the under-bed spare tire is to be retained, an aftermarket spare tire repositioner must be installed.
-
Position Rearmost Slots:
- Position the rearmost slots in the receiver over/after the slot near the end of the frame.
-
Drill Forward Attachment Holes:
- On 8' bed models, use the hitch as a template to drill forward attachment holes.
-
Install Fasteners:
- Install fasteners as shown in Figure 1.
- Use 1/4" x 1-1/2" x 2" blocks (1540 and 3719) oriented as shown in the diagram.
-
Cut Roll Pan (if required):
- Cut the roll pan in the license plate area to provide drawbar installation and pin & clip access.
- Reposition the license plate while the drawbar is in use.
-
Apply Load Rating Label:
- Apply the load rating label (5767) provided in the license plate area of the roll pan.
-
Check Spare Tire Clearance:
- If using an aftermarket spare tire repositioner, ensure clearance between the spare tire, brake lines, and differential (see Figure 2).
-
Tighten Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft.
Torque Specifications:
- 1/2" GR5 fasteners: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (6) Blocks, 1/4" x 1-1/2" x 2" (3719 and 1540)
- (6) Conical Toothed Washers
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb
- Max Tongue Weight: 500 lb
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb
- Max Tongue Weight: 550 lb
Additional Notes:
- Hitch will not fit with step bumpers or vehicles equipped with heavy-duty suspension with additional frame reinforcements (see Diagram 1).
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118315
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied).
- Drill with a 3/32" drill bit.
Step-by-Step Instructions:
-
Locate the vehicle’s taillight wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the harness connectors.
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-connector adapter between the harness connectors and lock into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Note: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area.
- Drill a 3/32" hole and secure the white wire with an eyelet using the screw provided.
-
Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or other mounting point using electrical tape or tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-connector adapter.
- Screw for grounding.
- Eyelet for white wire.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118315
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (not supplied)
- Drill with a 3/32" drill bit
Step-by-Step Instructions:
-
Locate the Vehicle’s Taillight Wiring Harness:
- The taillight wiring harness is located along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the Harness Connectors:
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-Connector Adapter:
- Insert the T-connector adapter between the harness connectors and lock it into place.
- Verify that the connectors are fully inserted with locking tabs secure.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or crossmember.
- Note: Do not drill into the vehicle floor or bed.
- Clean dirt and rustproofing from the area.
- Drill a 3/32" hole and secure the white wire with an eyelet using the provided screw.
-
Route the T-Connector Harness:
- Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or tie straps.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure all connections function properly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-connector adapter
- Screw for grounding
- Eyelet for white wire
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Ground the white wire securely to a clean, appropriate location.
- Test the installation after completing all steps to verify functionality.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
