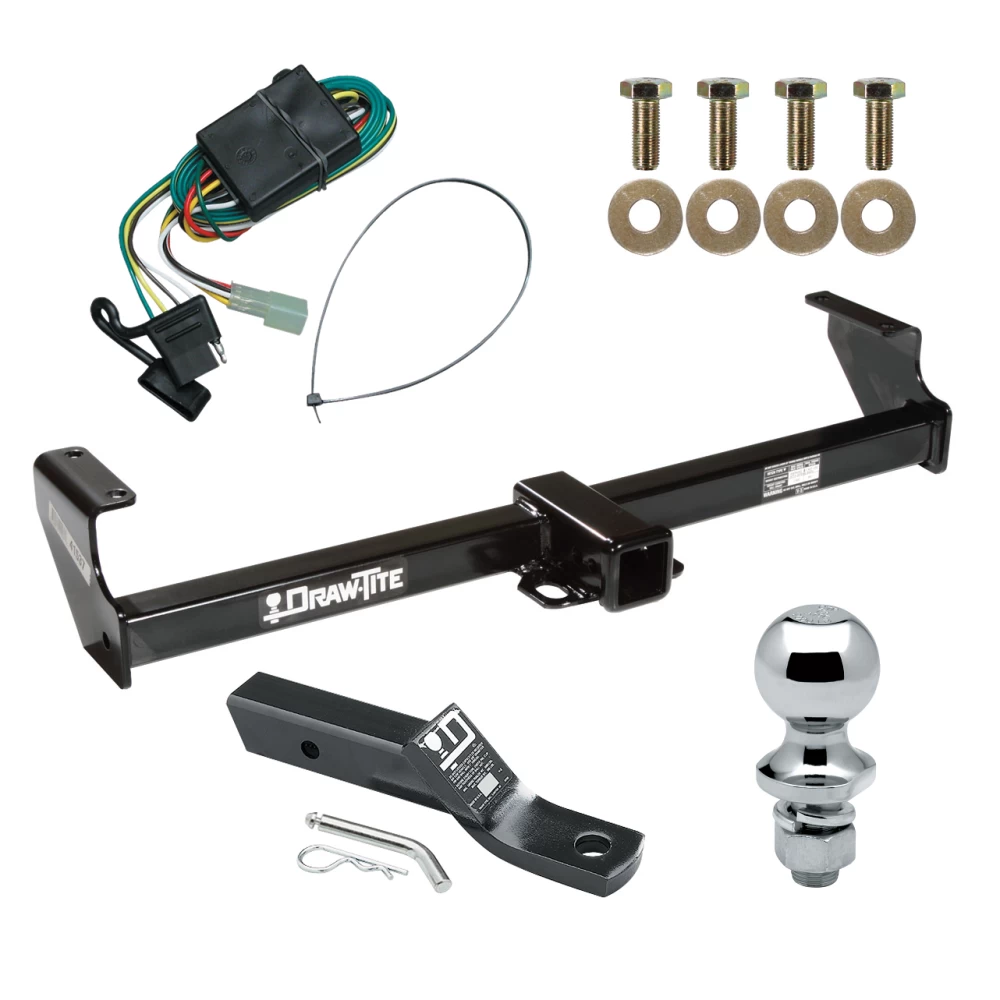

Trailer Tow Hitch For 99‑05 Suzuki Grand Vitara Chevy Tracker 02‑06 XL‑7 Complete Package w/ Wiring and 1‑7/8" Ball
Model: 41537 118372 23 63816Custom Fit Trailer Hitch

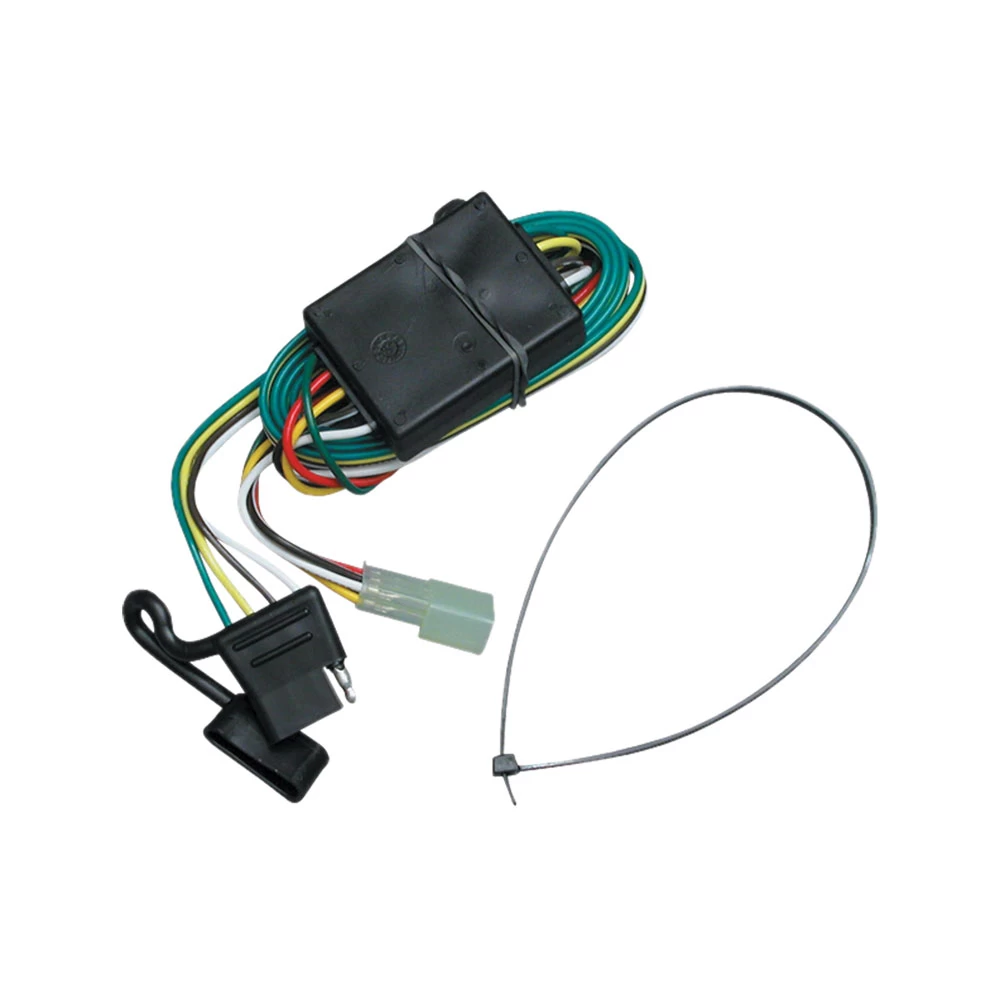

Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2005 Suzuki, Grand Vitara, All Styles
1999 - 2004 Suzuki, Vitara, All Styles
2002 - 2006 Suzuki, XL-7, All Styles
Trailer Hitch Specs:
| Part Number | 41537 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution |
N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118372 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$247 53 $391.67 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$391.67 $247 53
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $61.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41537 118372 23 63816
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1999 - 2005 Suzuki, Grand Vitara, All Styles
1999 - 2004 Suzuki, Vitara, All Styles
2002 - 2006 Suzuki, XL-7, All Styles
Trailer Hitch Specs:
| Part Number | 41537 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution |
N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118372 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 99-05 Suzuki Grand Vitara Chevy Tracker 02-06 XL-7 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Suzuki Grand Vitara, Suzuki Vitara (includes XL-7), and Chevrolet Tracker (2- & 4-Door)
Part Numbers:
- 41537
- 33038
Wiring Access Location:
- SUV3
Tools Required:
- Torque Wrench
- Wrenches: 14mm, 18mm
Step-by-Step Instructions:
-
Remove Tie Down Bracket:
- Remove the tie-down bracket and bolts on the driver’s side.
- Return the bracket and bolts to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using four (4) M12 x 1.25 x 30mm CL8.8 bolts with conical toothed washers (teeth side toward the hitch).
- Tighten all M12 CL8.8 fasteners to 67 lb-ft (91 N*m).
Torque Specifications:
- M12 x 1.25 CL8.8 bolts: 67 lb-ft (91 N*m)
Hardware List:
- (4) Hex Bolts, M12 x 1.25 x 30mm CL8.8
- (4) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut ac
Installation Instructions for Pickup Trucks and SUVs
Part Numbers:
- 41537
- 33038
Wiring Access Location:
- SUV3
Tools Required:
- Torque Wrench
- Wrenches: 14mm, 18mm
Step-by-Step Instructions:
-
Remove Tie Down Bracket:
- Remove the tie-down bracket and bolts on the driver’s side.
- Return the bracket and bolts to the vehicle owner.
-
Position Hitch:
- Raise the hitch into position, aligning it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using four (4) M12 x 1.25 x 30mm CL8.8 bolts with conical toothed washers (teeth side toward the hitch).
- Tighten all M12 CL8.8 fasteners to 67 lb-ft (91 N*m).
Torque Specifications:
- M12 x 1.25 CL8.8 bolts: 67 lb-ft (91 N*m)
Hardware List:
- (4) Hex Bolts, M12 x 1.25 x 30mm CL8.8
- (4) Conical Toothed Washers, M12
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb (2,722 kg)
- Max Tongue Weight: 600 lb (272 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb (4,535 kg)
- Max Tongue Weight: 1,000 lb (454 kg)
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118372
- Application: Suzuki Vitara/Grand Vitara, Chevrolet Tracker, Suzuki XL-7
Tools Required:
- Philips Head Screwdriver
- Trim Panel Remover
Step-by-Step Instructions:
Suzuki Vitara/Grand Vitara / Chevrolet Tracker:
-
Locate the Vehicle’s Trailer Harness Connector:
- The trailer harness connector is inside the driver’s side tire jack compartment. (Fig. 1)
-
Locate the 6-Pin Connector:
- The 6-pin connector is taped to the vehicle wiring harness, located forward of the tire jack compartment. (Fig. 2)
-
Connect the T-Connector:
- Remove the tape from the vehicle’s connector.
- Insert the T-Connector into the 6-pin trailer plug harness.
- Ensure the T-Connector is fully inserted and the locking tabs are engaged.
-
Test the Installation:
- Use a test light or connect a trailer to verify the following functions:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Use a test light or connect a trailer to verify the following functions:
-
Secure and Store the Harness:
- Secure all loose wiring with cable ties.
- Store the 4-flat harness inside the vehicle when not in use.
Suzuki XL-7:
-
Remove the Storage Compartment:
- Open the rear door and remove the four screws holding the storage compartment to the floor. (Fig. 1)
- Lift the compartment, starting with the front edge.
-
Access the Left Trim Panel:
- Remove the two plastic push clips from the bottom rear edge of the left trim panel. (Fig. 2)
- Pull the trim panel away from the body. (Fig. 3)
Note: If a rear cargo net is installed, remove the top and bottom anchor bolts.
-
Install the T-Connector:
- Locate the white 6-pin connector under the rear blower motor.
- Insert the T-Connector into the vehicle’s trailer plug harness. (Fig. 4)
- Ensure the T-Connector is fully inserted and the locking tabs are engaged.
-
Mount the Black Box:
- Clean a flat surface near the black box location using a mixture of rubbing alcohol and water.
- Mount the black box using the foam tape provided.
-
Route the 4-Flat Connector:
- Route the 4-flat connector out from under the left trim panel.
- Reattach the trim panel and the storage compartment to their original positions.
- Store the 4-flat harness inside the vehicle when not in use.
Alternate 4-Flat Routing Instructions (Optional):
-
Remove the Driver-Side Taillight:
- Remove the two screws holding the taillight assembly in place. (Fig. 5)
- Carefully pull the taillight housing away from the vehicle.
-
Route the 4-Flat Connector:
- Route the 4-flat harness alongside the rear taillight wiring.
- Route it into the area below the taillight.
-
Use the Rubber Grommet:
- Under the vehicle, locate the square rubber grommet above the exhaust pipe. (Fig. 6)
- Remove the grommet and cut a small slot in it.
- Route the 4-flat connector through the slot and replace the grommet in its original position.
-
Secure the Harness:
- Route the wiring harness toward the center of the vehicle, avoiding exhaust pipes or pinch points. (Fig. 7)
-
Reinstall the Taillight Assembly:
- Reattach the taillight assembly using the screws removed earlier.
Specifications:
- Max Current: 4 amps per circuit
Safety Notes:
- Always test the trailer wiring system before towing.
- Avoid routing the harness near hot surfaces, exhaust pipes, or sharp edges.
- Inspect the wiring regularly for wear, damage, or corrosion.
Technical Support:
For further assistance, contact the manufacturer’s support team.
Note: Store the 4-flat connector inside the vehicle when not in use to protect it from damage.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118372
- Application: Suzuki Vitara/Grand Vitara, Chevrolet Tracker, Suzuki XL-7
Tools Required:
- Philips Head Screwdriver
- Trim Panel Remover
Step-by-Step Instructions:
Suzuki Vitara/Grand Vitara / Chevrolet Tracker:
-
Locate the Vehicle’s Trailer Harness Connector:
- The trailer harness connector is inside the driver’s side tire jack compartment.
-
Locate the 6-Pin Connector:
- The 6-pin connector is taped to the vehicle wiring harness, located forward of the tire jack compartment.
-
Connect the T-Connector:
- Remove the tape from the vehicle’s connector.
- Insert the T-Connector into the 6-pin trailer plug harness.
- Ensure the T-Connector is fully inserted and the locking tabs are engaged.
-
Test the Installation:
- Use a test light or connect a trailer to verify the following functions:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Use a test light or connect a trailer to verify the following functions:
-
Secure and Store the Harness:
- Secure all loose wiring with cable ties.
- Store the 4-flat harness inside the vehicle when not in use.
Suzuki XL-7:
-
Remove the Storage Compartment:
- Open the rear door and remove the four screws holding the storage compartment to the floor.
- Lift the compartment, starting with the front edge.
-
Access the Left Trim Panel:
- Remove the two plastic push clips from the bottom rear edge of the left trim panel.
- Pull the trim panel away from the body.
Note: If a rear cargo net is installed, remove the top and bottom anchor bolts.
-
Install the T-Connector:
- Locate the white 6-pin connector under the rear blower motor.
- Insert the T-Connector into the vehicle’s trailer plug harness.
- Ensure the T-Connector is fully inserted and the locking tabs are engaged.
-
Mount the Black Box:
- Clean a flat surface near the black box location using a mixture of rubbing alcohol and water.
- Mount the black box using the foam tape provided.
-
Route the 4-Flat Connector:
- Route the 4-flat connector out from under the left trim panel.
- Reattach the trim panel and the storage compartment to their original positions.
- Store the 4-flat harness inside the vehicle when not in use.
Alternate 4-Flat Routing Instructions (Optional):
-
Remove the Driver-Side Taillight:
- Remove the two screws holding the taillight assembly in place.
- Carefully pull the taillight housing away from the vehicle.
-
Route the 4-Flat Connector:
- Route the 4-flat harness alongside the rear taillight wiring.
- Route it into the area below the taillight.
-
Use the Rubber Grommet:
- Under the vehicle, locate the square rubber grommet above the exhaust pipe.
- Remove the grommet and cut a small slot in it.
- Route the 4-flat connector through the slot and replace the grommet in its original position.
-
Secure the Harness:
- Route the wiring harness toward the center of the vehicle, avoiding exhaust pipes or pinch points.
-
Reinstall the Taillight Assembly:
- Reattach the taillight assembly using the screws removed earlier.
Specifications:
- Max Current: 4 amps per circuit
Safety Notes:
- Always test the trailer wiring system before towing.
- Avoid routing the harness near hot surfaces, exhaust pipes, or sharp edges.
- Inspect the wiring regularly for wear, damage, or corrosion.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting TrailerJacks.com or calling 877-869-6690.
Note: Store the 4-flat connector inside the vehicle when not in use to protect it from damage.
Related Products
