Trailer Tow Hitch For 01‑07 Chevy Silverado GMC Sierra 2500 HD 3500 Receiver w/ 1‑7/8" and 2" Ball

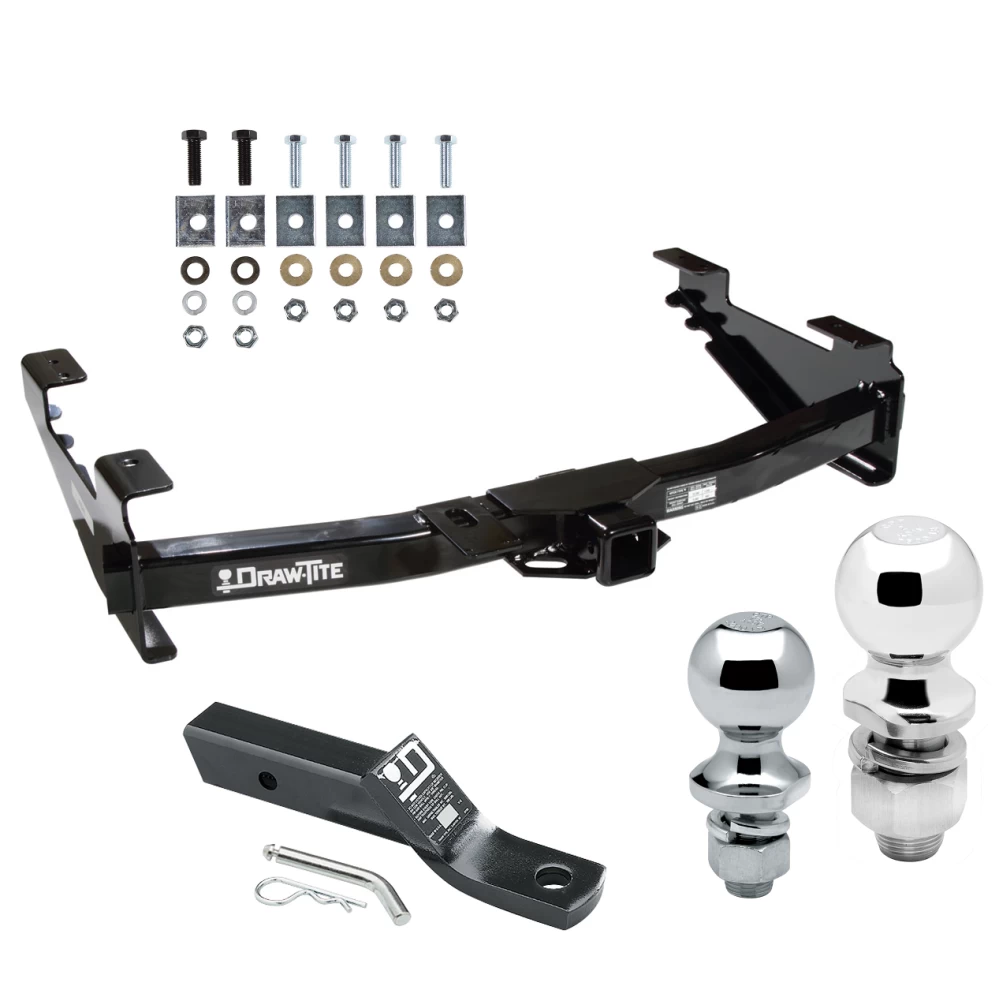

Model: 41544 23 63845 63816Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2002 Chevrolet, Silverado 2500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 2500 HD, (Classic)
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2003 - 2007 Chevrolet, Silverado 3500, (Classic)
2001 - 2002 GMC, Sierra 2500 HD, All Styles
2003 - 2007 GMC, Sierra 2500 HD, (Classic)
2001 - 2002 GMC, Sierra 3500, All Styles
2003 - 2007 GMC, Sierra 3500, (Classic)
Trailer Hitch Specs:
| Part Number | 41544 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 600/1,200lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 2001 2002 2003 2004 2005 2006 2007
$304 40 $473.84 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$473.84 $304 40
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $76.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41544 23 63845 63816
- Includes: Class 4 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" and 2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2002 Chevrolet, Silverado 2500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 2500 HD, (Classic)
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2003 - 2007 Chevrolet, Silverado 3500, (Classic)
2001 - 2002 GMC, Sierra 2500 HD, All Styles
2003 - 2007 GMC, Sierra 2500 HD, (Classic)
2001 - 2002 GMC, Sierra 3500, All Styles
2003 - 2007 GMC, Sierra 3500, (Classic)
Trailer Hitch Specs:
| Part Number | 41544 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 12,000 lbs |
| Max Tongue Weight | 600/1,200lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8" |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63845 |
| Brand | Draw-Tite |
| Size | 2" x 1" x 2-1/8" |
| Towing Capacity | 7,500 lbs. GTW |
| Material | Chrome (Cold forged for superior strength) |
| Torque | torgue to 250 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Trailer Tow Hitch For 01-07 Chevy Silverado GMC Sierra 2500 HD 3500 Receiver w/ 1-7/8" and 2" Ball Install Notes
Installation Instructions for Chevrolet Silverado and GMC Sierra Pickups (1500/2500 Series, 2500 H.D./3500 Series)
Part Numbers:
- 41544
- 44657
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 3/4", 7/8", 21mm, 22mm
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove M14 fasteners from the end of each frame rail if present and return them to the customer.
-
Position Receiver:
- Lift the receiver into position, aligning the slots in the receiver with the weldnuts in the vehicle frame.
-
Install Fasteners:
- For vehicles with a bumper, install M14 fasteners through the receiver into the weldnuts.
- For vehicles without a bumper, align the slots in the receiver over the fore/aft slot near the frame end and secure fasteners as shown in Figure 2.
-
Drill Additional Holes (6' Bed Models Only):
- Using the hitch as a template, drill a 1/2" hole through the frame at the center attachment points on both sides.
-
Install Remaining Fasteners:
- Secure all additional fasteners as shown in Figures 1 and 2, including spacer blocks, lock washers, and nuts.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- M14 CL10.9 bolts: 115 lb-ft (156 N*m)
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
Hardware List:
- (4) Bolts, 1/2"-13 x 1.75" GR5
- (2) Bolts, M14 x 2.00 x 45 CL10.9
- (4) Conical Washers, 1/2"
- (2) Conical Washers, M14
- (4) Hex Nuts, 1/2"-13
- (2) Hex Nuts, M14 x 2.00
- (4) Spacer Blocks (17/32" Hole)
- (2) Spacer Blocks (19/32" Hole)
- (2) Lock Washers
- (2) Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (546 kg)
Additional Notes:
- For vehicles without a factory bumper, it may be necessary to relocate the license plate mounting bracket.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks (1500/2500 Series, 2500 H.D./3500 Series)
Part Numbers:
- 41544
- 44657
Wiring Access Location:
- PU3
Tools Required:
- Drill with 1/2" Drill Bit
- Wrenches: 3/4", 7/8", 21mm, 22mm
Step-by-Step Instructions:
-
Remove Existing Fasteners:
- Remove M14 fasteners from the end of each frame rail if present and return them to the customer.
-
Position Receiver:
- Lift the receiver into position, aligning the slots in the receiver with the weldnuts in the vehicle frame.
-
Install Fasteners:
- For vehicles with a bumper, install M14 fasteners through the receiver into the weldnuts.
- For vehicles without a bumper, align the slots in the receiver over the fore/aft slot near the frame end and secure fasteners as shown in Figure 2.
-
Drill Additional Holes (6' Bed Models Only):
- Using the hitch as a template, drill a 1/2" hole through the frame at the center attachment points on both sides.
-
Install Remaining Fasteners:
- Secure all additional fasteners as shown in Figures 1 and 2, including spacer blocks, lock washers, and nuts.
-
Tighten Fasteners:
- Tighten all M14 CL10.9 fasteners to 115 lb-ft (156 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- M14 CL10.9 bolts: 115 lb-ft (156 N*m)
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
Hardware List:
- (4) Bolts, 1/2"-13 x 1.75" GR5
- (2) Bolts, M14 x 2.00 x 45 CL10.9
- (4) Conical Washers, 1/2"
- (2) Conical Washers, M14
- (4) Hex Nuts, 1/2"-13
- (2) Hex Nuts, M14 x 2.00
- (4) Spacer Blocks (17/32" Hole)
- (2) Spacer Blocks (19/32" Hole)
- (2) Lock Washers
- (2) Flat Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 600 lb (272 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (546 kg)
Additional Notes:
- For vehicles without a factory bumper, it may be necessary to relocate the license plate mounting bracket.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
