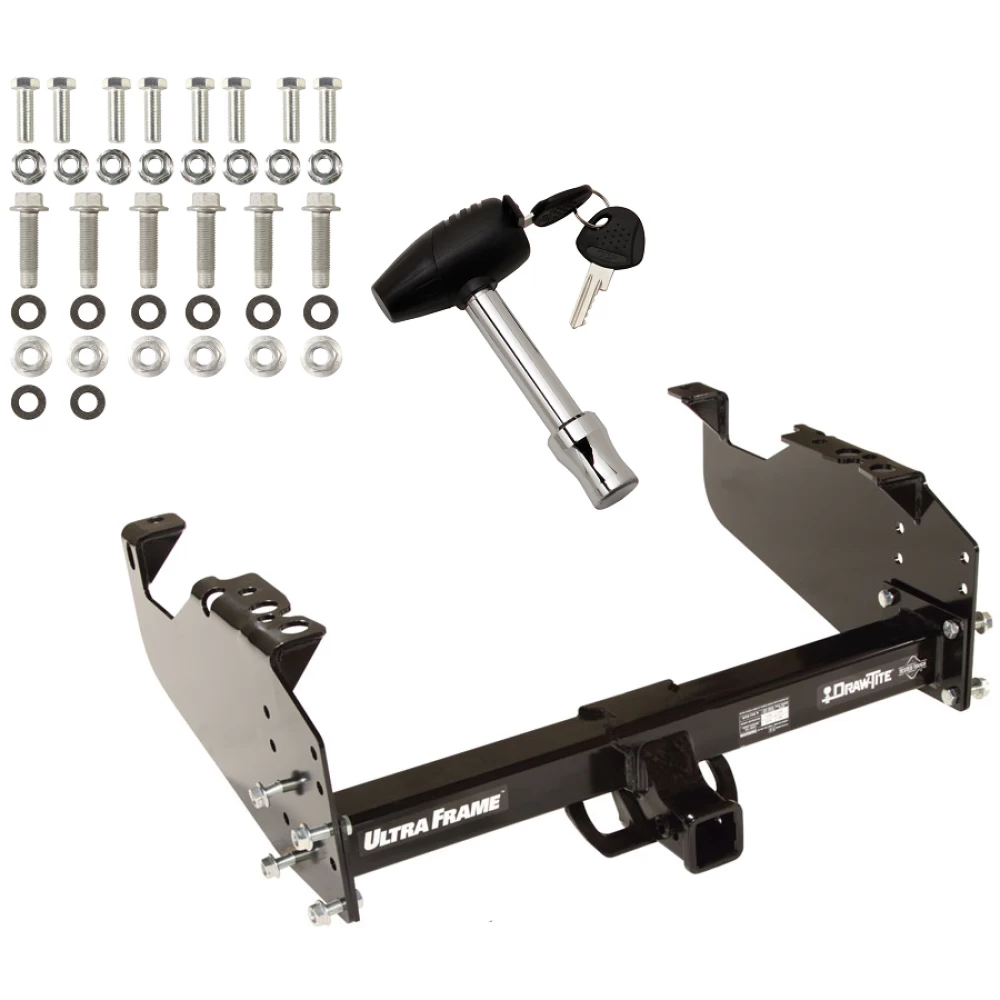

- Includes: Ultra Frame Class 5 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Description
Get Expert Help

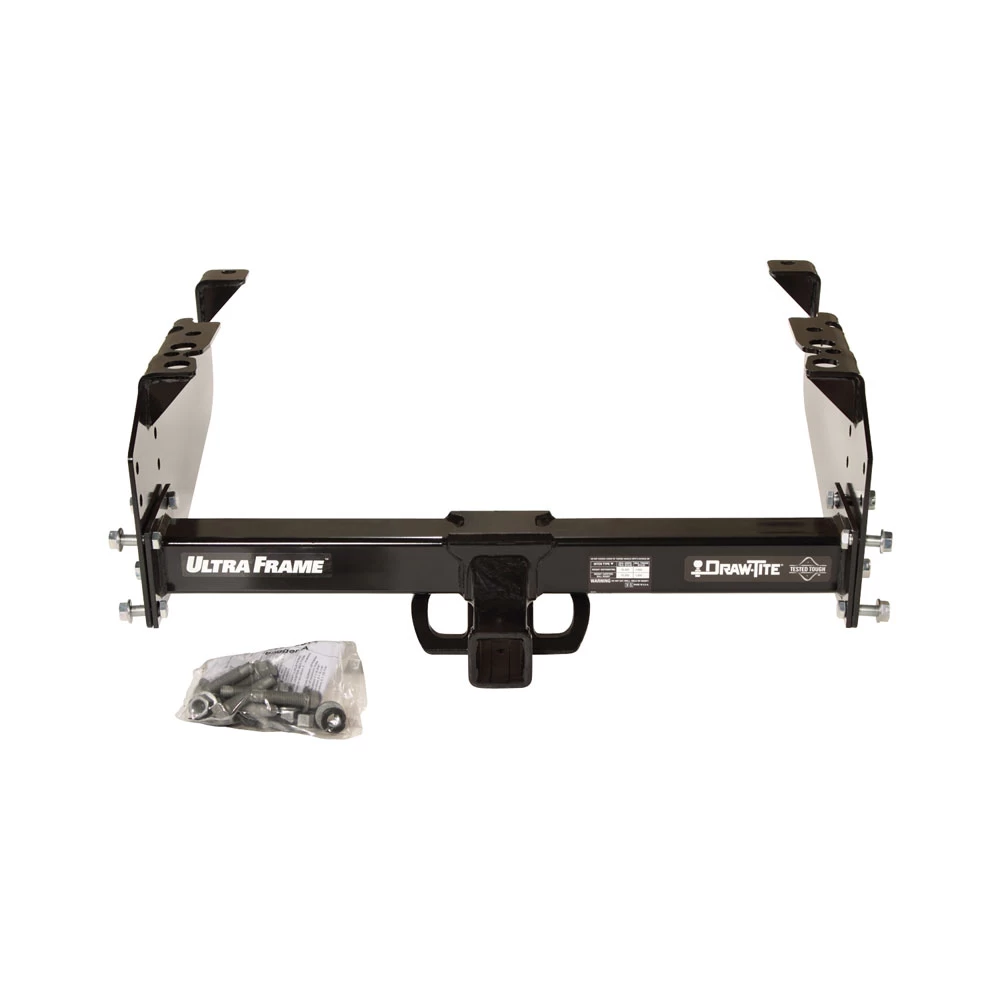

Trailer Tow Hitch For Cab and Chassis Pickups Fits 63-24 Ford GMC Chevrolet Dodge Ram w/ Security Lock Pin Key Install Notes
Installation Instructions for Dodge 3500/4500/5500 and Sterling 4500/5500 Cab and Chassis
Part Numbers:
- 41947
Wiring Access Location:
- N/A (not specified)
Tools Required:
- Wrenches: 13/16", 7/8", 21mm, 24mm
- Drill Bit: 11/16"
- Torque Wrench
- Safety Glasses
Step-by-Step Instructions:
General Instructions:
- Remove the center section and side brackets from the box.
- Loosely install side brackets as per vehicle-specific instructions.
- Attach the center section to the side brackets.
- Tighten the fasteners for the center section first, followed by the frame attachment fasteners.
Specific Installation for Dodge 3500/4500/5500 and Sterling 4500/5500 (34” Frame):
- Center Fuel Tank:
- Position the fuel tank between the frame rails.
- Position Side Brackets:
- Raise and clamp the hitch side brackets into position. Center the forward attachment point between the suspension reinforcement and align flush with the frame rail's exterior.
- Mark Drill Points:
- Use the side brackets as templates to mark the frame for attachment holes.
- Warning: Avoid drilling into fuel or electrical lines.
- Drill Holes:
- Remove the side brackets and drill 9/16" holes in the marked locations. A pilot hole is recommended.
- Attach Side Brackets:
- Loosely attach side brackets to the frame using the specified fasteners.
- Install Center Section:
- Raise the center section into the desired position for the vehicle.
- Secure it with (8) 9/16"-18 x 1.75" bolts, washers, and flanged locknuts.
- Final Tightening:
- Tighten the side brackets to the center section and then to the truck frame.
Torque Specifications:
- 9/16" GR5 fasteners: 120 lb-ft (163 N*m)
- M16 CL10.9 fasteners: 210 lb-ft (285 N*m)

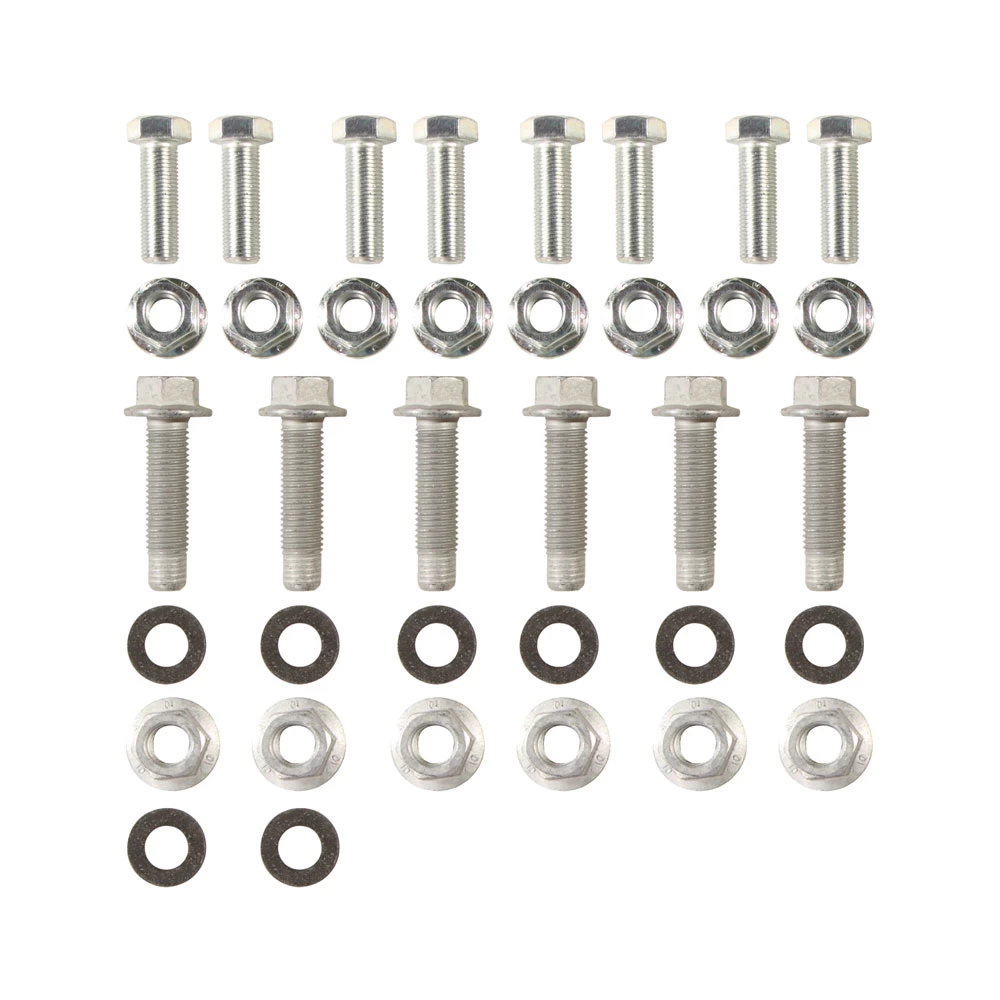

Hardware List:
- (6) Hex Bolts, M16 x 2.0 x 45mm CL10.9
- (6) Flanged Locknuts, M16 x 2.0 CL10.9
- (8) Hex Bolts, 9/16"-18 x 1.75" GR5
- (8) Hardened Flat Washers, 9/16"
- (8) Flanged Locknuts, 9/16"-18
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are secure.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not modify the hitch, drill, or weld onto it.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,600 lb (726 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 16,000 lb (7,264 kg)
- Max Tongue Weight: 1,600 lb (726 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 standards.
- Always paint any exposed metal to prevent rust.
Installation Instructions for Cab and Chassis Trucks (3500/4500/5500 Models)
Part Numbers:
- 41947
Wiring Access Location:
- N/A (not specified)
Tools Required:
- Wrenches: 13/16", 7/8", 21mm, 24mm
- Drill Bit: 11/16"
- Torque Wrench
- Safety Glasses
Step-by-Step Instructions:
General Instructions:
- Remove the center section and side brackets from the box.
- Loosely install side brackets as per vehicle-specific instructions.
- Attach the center section to the side brackets.
- Tighten the fasteners for the center section first, followed by the frame attachment fasteners.
Specific Installation for 3500/4500/5500 and Similar (34” Frame):
- Center Fuel Tank:
- Position the fuel tank between the frame rails.
- Position Side Brackets:
- Raise and clamp the hitch side brackets into position. Center the forward attachment point between the suspension reinforcement and align flush with the frame rail's exterior.
- Mark Drill Points:
- Use the side brackets as templates to mark the frame for attachment holes.
- Warning: Avoid drilling into fuel or electrical lines.
- Drill Holes:
- Remove the side brackets and drill 9/16" holes in the marked locations. A pilot hole is recommended.
- Attach Side Brackets:
- Loosely attach side brackets to the frame using the specified fasteners.
- Install Center Section:
- Raise the center section into the desired position for the vehicle.
- Secure it with (8) 9/16"-18 x 1.75" bolts, washers, and flanged locknuts.
- Final Tightening:
- Tighten the side brackets to the center section and then to the truck frame.
Torque Specifications:
- 9/16" GR5 fasteners: 120 lb-ft (163 N*m)
- M16 CL10.9 fasteners: 210 lb-ft (285 N*m)
Hardware List:
- (6) Hex Bolts, M16 x 2.0 x 45mm CL10.9
- (6) Flanged Locknuts, M16 x 2.0 CL10.9
- (8) Hex Bolts, 9/16"-18 x 1.75" GR5
- (8) Hardened Flat Washers, 9/16"
- (8) Flanged Locknuts, 9/16"-18
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are secure.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not modify the hitch, drill, or weld onto it.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,600 lb (726 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 16,000 lb (7,264 kg)
- Max Tongue Weight: 1,600 lb (726 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 standards.
- Always paint any exposed metal to prevent rust.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
