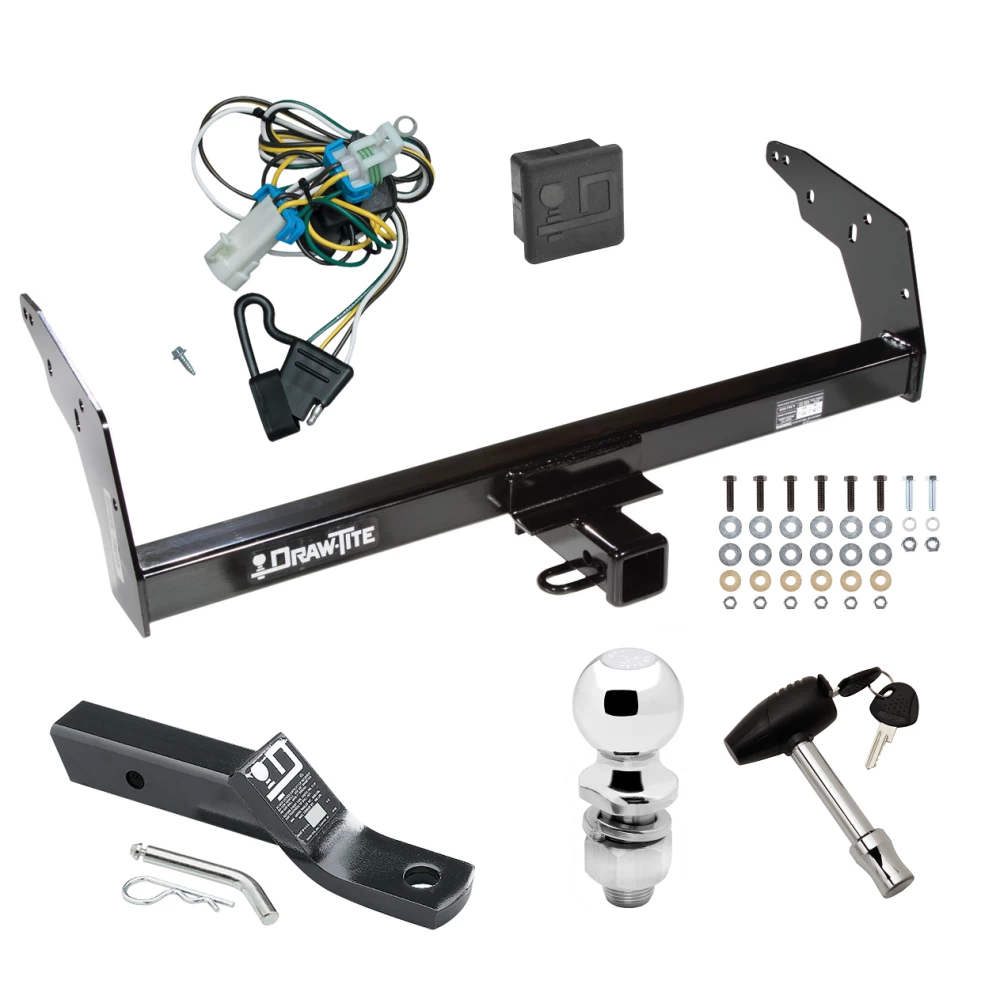

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help

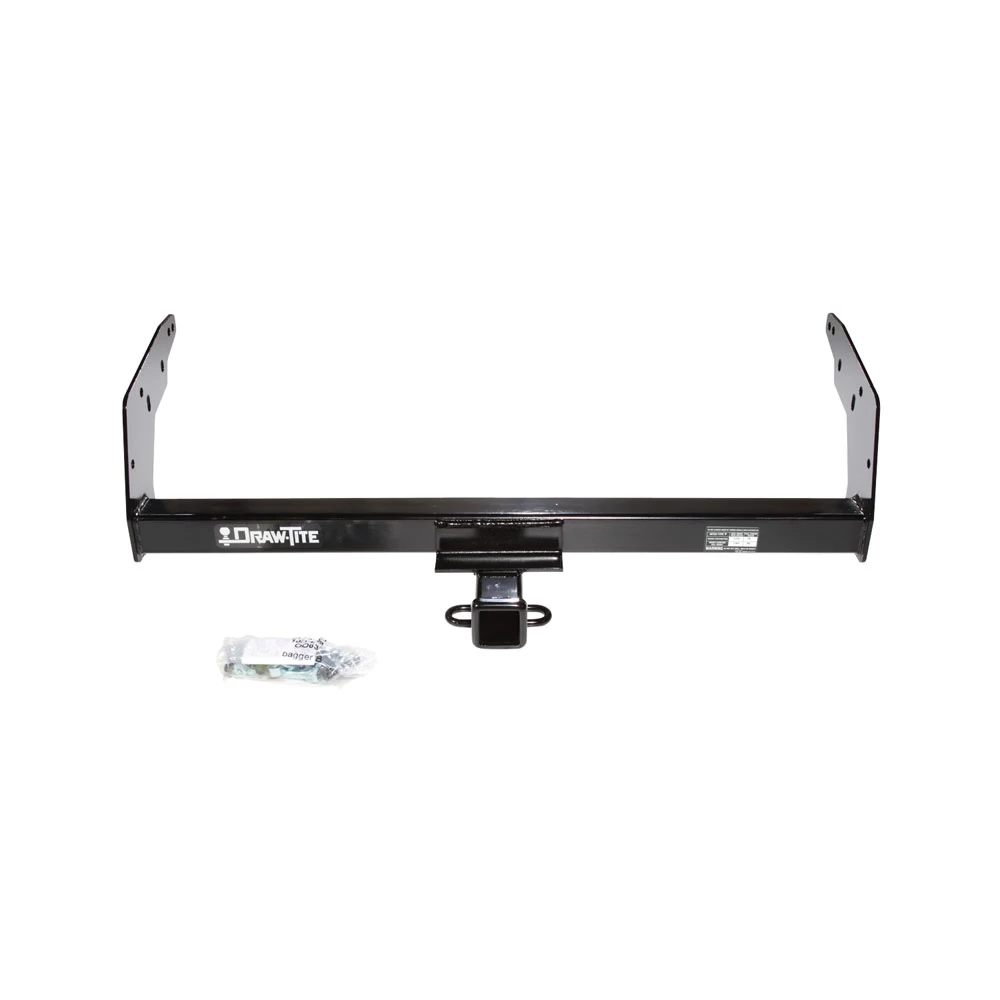

Trailer Tow Hitch For 98-04 Chevy S10 GMC Sonoma Isuzu Hombre w/Step Bumper PKG Wiring 2" Ball and Lock Install Notes
Installation Instructions for Chevrolet S-10 Pickup, GMC Sonoma Pickup, and Isuzu Hombre (Including Sport Side Bed Models)
Part Numbers:
- 75085
- 87464
- 44062
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
Step-by-Step Instructions:
Sport Side Bed Models:
- Some spare tires may need to be lowered and repositioned slightly for hitch installation.
General Instructions:
- Remove Bumper Bracket Bolts:
- Remove bumper bracket bolts and return them to the vehicle owner.
- Position Hitch:
- Position the hitch on the frame and install fasteners as shown in the diagrams.
Step Bumper Models:
-
Pre-1994 Models:
- Remove bumper, leaving brackets attached to the frame. Disconnect bumper wiring before removing the bumper.
- For 1982–1993 models: Bumpers are attached to each bumper bracket by two horizontal bolts.
-
1994–1997 Models:
- Bumpers are attached to each bumper bracket by two vertical bolts. Remove bolts and set aside.
-
1998–2004 Models:
- Remove the plastic step tread from the top of the bumper. The bumper is attached to the frame by four bolts; remove them.
- Attach the bumper brackets from the hitch kit to the frame using provided fasteners.
- Mark spare tire area (if applicable) for clearance, ensuring a minimum distance of 3/4" from spare tire to the hitch.
-
Install Hitch:
- Install the hitch using the provided fasteners as per your vehicle configuration:
- Pre-1994 Models: Use M12 bolts, conical washers, and nuts as shown in Figure 1.
- 1994–1997 Models: Use fasteners shown in Figure 2 for bumper bracket configuration.
- 1998–2004 Models: Reinstall bumper brackets on the bumper, aligning with slots in the bumper.
- Install the hitch using the provided fasteners as per your vehicle configuration:
-
Reinstall Bumper:
- Reinstall the bumper, ensuring it is aligned and secure. Reconnect bumper wiring.
-
Tighten Fasteners:
- Tighten all fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.75 x 45mm CL10.9 Bolts
- (8) Conical Toothed Washers
- (8) Hex Nuts, M12
- (4) 1/2"-13 x 1-3/4" GR5 Bolts
- (4) Lock Washers
- (4) Hex Nuts, 1/2"-13
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Chevrolet S-10 Pickup, GMC Sonoma Pickup, and Isuzu Hombre (Including Sport Side Bed Models)
Part Numbers:
- 75085
- 87464
- 44062
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 3/4", 7/8"
Step-by-Step Instructions:
Sport Side Bed Models:
- Some spare tires may need to be lowered and repositioned slightly for hitch installation.
General Instructions:
- Remove Bumper Bracket Bolts:
- Remove bumper bracket bolts and return them to the vehicle owner.
- Position Hitch:
- Position the hitch on the frame and install fasteners as shown in the diagrams.
Step Bumper Models:
-
Pre-1994 Models:
- Remove bumper, leaving brackets attached to the frame. Disconnect bumper wiring before removing the bumper.
- For 1982–1993 models: Bumpers are attached to each bumper bracket by two horizontal bolts.
-
1994–1997 Models:
- Bumpers are attached to each bumper bracket by two vertical bolts. Remove bolts and set aside.
-
1998–2004 Models:
- Remove the plastic step tread from the top of the bumper. The bumper is attached to the frame by four bolts; remove them.
- Attach the bumper brackets from the hitch kit to the frame using provided fasteners.
- Mark spare tire area (if applicable) for clearance, ensuring a minimum distance of 3/4" from spare tire to the hitch.
-
Install Hitch:
- Install the hitch using the provided fasteners as per your vehicle configuration:
- Pre-1994 Models: Use M12 bolts, conical washers, and nuts as shown in Figure 1.
- 1994–1997 Models: Use fasteners shown in Figure 2 for bumper bracket configuration.
- 1998–2004 Models: Reinstall bumper brackets on the bumper, aligning with slots in the bumper.
- Install the hitch using the provided fasteners as per your vehicle configuration:
-
Reinstall Bumper:
- Reinstall the bumper, ensuring it is aligned and secure. Reconnect bumper wiring.
-
Tighten Fasteners:
- Tighten all fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (8) M12 x 1.75 x 45mm CL10.9 Bolts
- (8) Conical Toothed Washers
- (8) M12 Hex Nuts
- (4) 1/2"-13 x 1-3/4" GR5 Bolts
- (4) Lock Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.

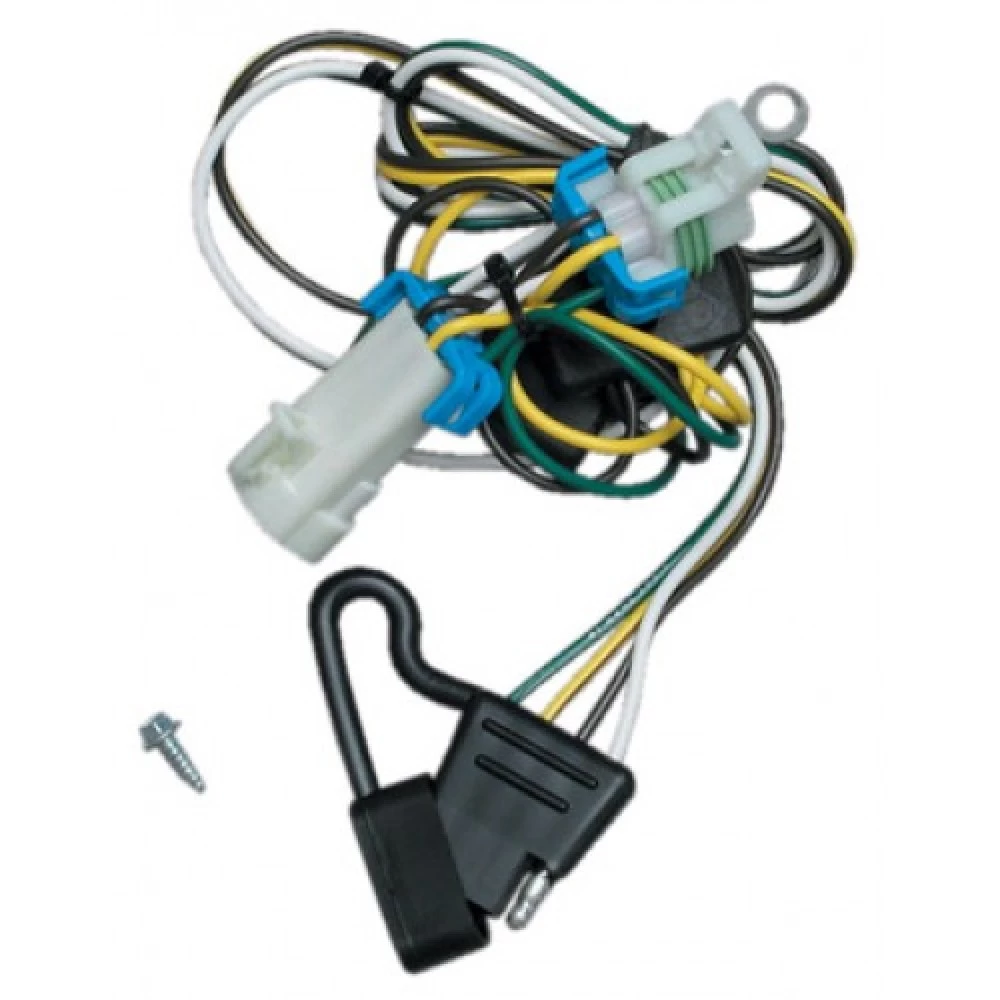

Installation Instructions for T-Connector Adapter
