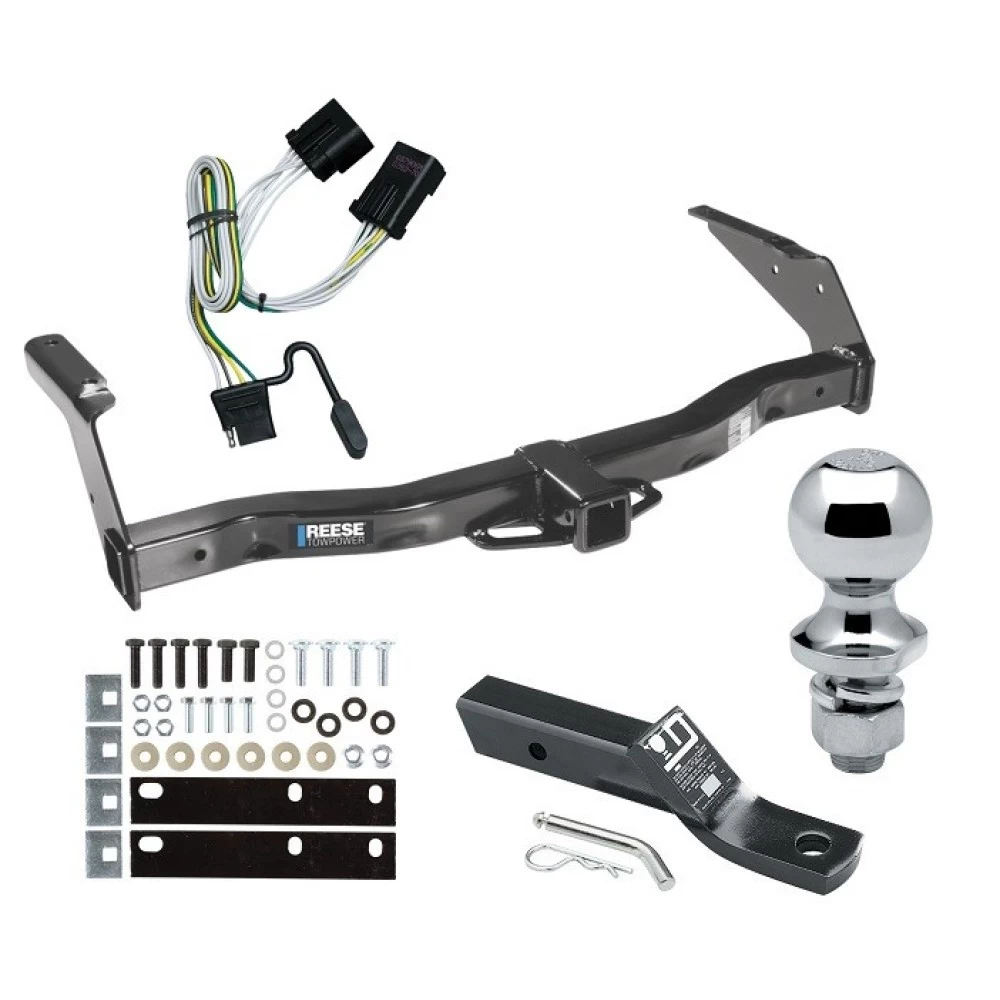

Reese Trailer Tow Hitch For 01‑03 Dodge Van Ram 1500 2500 3500 Complete Package w/ Wiring and 1‑7/8" Ball
Model: 44094 118381 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2003 Dodge, Van, Ram 1500, All Styles
2001 - 2003 Dodge, Van, Ram 2500, All Styles
2001 - 2003 Dodge, Van, Ram 3500, All Styles
Trailer Hitch Specs:
| Part Number | 44094 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 500/1,000 lbs |
| Warranty | Lifetime |
Wiring Kit Specs:
| Part Number | 118381 |
| Brand | Tekonsha |
| Warranty | 1 Year |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Partial list of fitment years: 01 02 03 2001 2002 2003
$278 79 $420.20 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$420.20 $278 79
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $69.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44094 118381 23 63816
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 01-03 Dodge Van Ram 1500 2500 3500 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Dodge Van
Part Numbers:
- 75140
- 87492
Wiring Access Location:
- SUV5
Tools Required:
- Hacksaw
- Pliers
- Wrenches: 5/8", 11/16", 3/4", 7/8"
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 10,000 lb. (4,536 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 1,000 lb. (454 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Bumper Bolts:
- Remove two (2) inboard bolts on the bumper mounting bracket (each side). Return the bolts to the vehicle owner.
-
Cut Metal Tabs:
- Use a hacksaw to cut the sheet metal tabs on both sides as indicated. Bend the tabs out of the way to provide clearance for the hitch side brackets.
-
Fishwire Fasteners:
- Use the fishwire method to guide carriage bolts and spacer blocks through the access hole into the frame as shown.
-
Install Hitch:
- Raise the hitch into position between the frame rail and fasteners. Install the remaining fasteners as shown. Ensure the brackets sit flush on the frame.
-
Reinstall Step Bumper:
- Reinstall the step bumper and secure it in its original position.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- 1/2"-13 GR5: 75 Lb.-Ft. (102 N*M)
- 1/2"-20 GR5: 55 Lb.-Ft. (75 N*M)
- 7/16"-14 GR5: 50 Lb.-Ft. (68 N*M)
- Torque all fasteners to the specified values:
Hardware List:
- (4) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (4) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (4) Hardened Flat Washers
- (4) Lock Washers
- (4) Hex Nuts: 1/2"-13 GR5
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Dodge Van
Part Numbers:
- 75140
- 87492
Wiring Access Location:
- SUV5
Tools Required:
- Hacksaw
- Pliers
- Wrenches: 5/8", 11/16", 3/4", 7/8"
Specifications:
- Max Gross Trailer Weight:
- Weight Distributing: 10,000 lb. (4,536 kg)
- Weight Carrying: 5,000 lb. (2,268 kg)
- Max Tongue Weight:
- Weight Distributing: 1,000 lb. (454 kg)
- Weight Carrying: 500 lb. (227 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Bumper Bolts:
- Remove two (2) inboard bolts on the bumper mounting bracket (each side). Return the bolts to the vehicle owner.
-
Cut Metal Tabs:
- Use a hacksaw to cut the sheet metal tabs on both sides as indicated. Bend the tabs out of the way to provide clearance for the hitch side brackets.
-
Fishwire Fasteners:
- Use the fishwire method to guide carriage bolts and spacer blocks through the access hole into the frame as shown.
-
Install Hitch:
- Raise the hitch into position between the frame rail and fasteners. Install the remaining fasteners as shown. Ensure the brackets sit flush on the frame.
-
Reinstall Step Bumper:
- Reinstall the step bumper and secure it in its original position.
-
Tighten Fasteners:
- Torque all fasteners to the specified values:
- 1/2"-13 GR5: 75 Lb.-Ft. (102 N*M)
- 1/2"-20 GR5: 55 Lb.-Ft. (75 N*M)
- 7/16"-14 GR5: 50 Lb.-Ft. (68 N*M)
- Torque all fasteners to the specified values:
Hardware List:
- (4) Carriage Bolts: 1/2"-13 x 1-3/4" GR5
- (4) Spacer Blocks: 1/4" x 1-1/2" x 2"
- (4) Hardened Flat Washers
- (4) Lock Washers
- (4) Hex Nuts: 1/2"-13 GR5
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118381
Wiring Access Location:
- Underneath the vehicle, behind the bumper, on the driver’s side.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Full-Size Dodge Vans Without Factory 7-Way:
-
Locate the vehicle’s trailer harness connector (A), found under the vehicle, behind the bumper, on the driver’s side (Fig. 1).
-
Remove the protective cap (B) from the connector (A) and save it.
- Ensure the mating surfaces of the connectors are free of dirt. Clean if necessary.
-
Connect the T-Connector adapter end (C) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted and the locking tabs are in place.
-
Place the protective cap (B) on the remaining plug end (Fig. 1).
-
Skip to step 7 for final installation instructions.
For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):
-
Remove the screws holding the 7-way trailer tow bracket in place (Fig. 2).
-
Pull out the 7-way connector to access the plug on its back.
- Slide the red locking tab to the unlocked position and separate the connector (A) (Fig. 3).
-
Connect the T-Connector adapter in between the separated halves (B).
- Slide the red locking tab back to the locked position.
-
Route the 4-flat connector away from the 7-way bracket.
-
Push the 7-way connector back into the bracket and reinstall the screws.
Final Steps for All Installations:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118381
Wiring Access Location:
- Underneath the vehicle, behind the bumper, on the driver’s side.
Tools Required:
- None specified
Step-by-Step Instructions:
For Full-Size Dodge Vans Without Factory 7-Way:
-
Locate the Vehicle’s Trailer Harness Connector:
- Find the vehicle’s trailer harness connector underneath the vehicle, behind the bumper, on the driver’s side (Fig. 1).
-
Remove the Protective Cap:
- Remove the protective cap from the connector and save it.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector Adapter:
- Attach the T-Connector adapter to the vehicle’s trailer harness connector.
- Ensure the connection is fully inserted and the locking tabs are secure.
-
Place the Protective Cap:
- Place the protective cap on the remaining plug end (Fig. 1).
-
Proceed to Final Steps:
- Continue to the final steps below.
For Vehicles with a Factory 7-Way (Durango, Dakota, Full-Size Ram, Jeep Grand Cherokee, Dodge Vans):
-
Remove the 7-Way Trailer Tow Bracket:
- Unscrew the 7-way trailer tow bracket to access the connector (Fig. 2).
-
Disconnect the 7-Way Connector:
- Pull out the 7-way connector to access the rear plug.
- Slide the red locking tab to the unlocked position and disconnect the connector (Fig. 3).
-
Install the T-Connector Adapter:
- Connect the T-Connector adapter between the separated halves of the 7-way connector.
- Slide the red locking tab back to the locked position.
-
Route the 4-Flat Connector:
- Route the 4-flat connector away from the 7-way bracket.
-
Reinstall the 7-Way Connector:
- Push the 7-way connector back into the bracket and secure it using the screws removed earlier.
Final Steps for All Installations:
- Test the Installation:
- Use a test light or trailer to verify proper functionality of all circuits.
Specifications:
- Max Current: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Protective cap
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
- Do not exceed the specified amperage rating to prevent damage or fire.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
