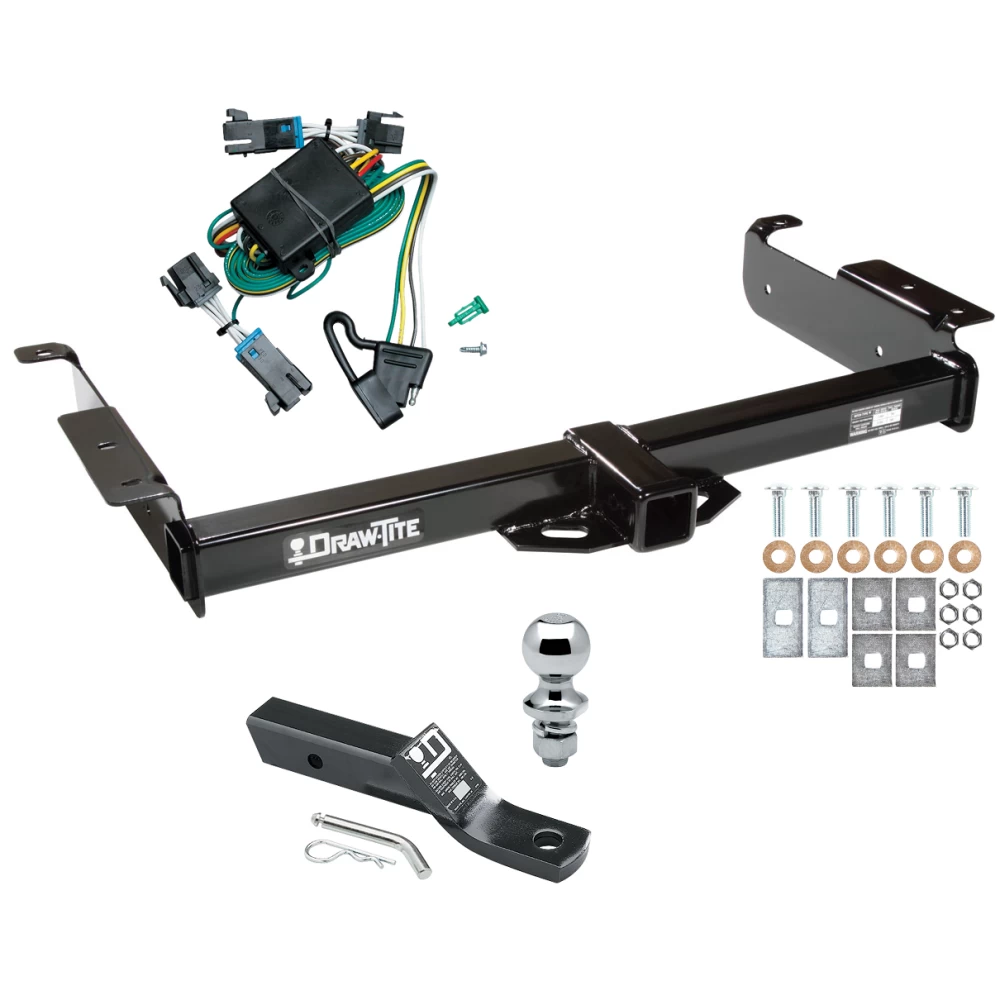

Trailer Tow Hitch For 00-02 Chevy Express GMC Savana 1500 2500 3500 Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for GM Full Size Van
Part Numbers:
- 75189
- 87189
- 44028
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 7/8" (tighten all fasteners with torque wrench)
Drill Bits:
- None
Notes:
- Hitch requires 5/8" pin and clip if stabilizing pin is not installed.
Step-by-Step Instructions:
- Insert carriage bolts and blocks through existing access slots and into attachment holes as shown in the diagram for each side.
- Raise the hitch into position and fasten with conical toothed washers and nuts as shown in the diagram for each side.
- Tighten all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2-13 x 1-3/4 GR5 Carriage Bolts
- (2) 1/4 x 1-1/2 x 3 Blocks (1711)
- (2) 1/4 x 1-1/2 x 2 Blocks (1540)
- (4) Conical Toothed Washers
- (4) Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs, Max Tongue Weight 750 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for GM Full Size Van
Part Numbers:
- 75189
- 87189
- 44028
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 3/4", 7/8" (tighten all fasteners with torque wrench)
Drill Bits:
- None
Notes:
- Hitch requires 5/8" pin and clip if stabilizing pin is not installed.
Step-by-Step Instructions:
- Insert carriage bolts and blocks through existing access slots and into attachment holes as shown in the diagram for each side.
- Raise the hitch into position and fasten with conical toothed washers and nuts as shown in the diagram for each side.
- Tighten all 1/2” GR5 fasteners to 75 lb-ft (102 N·m).
Hardware List:
- (4) 1/2-13 x 1-3/4 GR5 Carriage Bolts
- (2) 1/4 x 1-1/2 x 3 Blocks (1711)
- (2) 1/4 x 1-1/2 x 2 Blocks (1540)
- (4) Conical Toothed Washers
- (4) Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 7,500 lbs, Max Tongue Weight 750 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs, Max Tongue Weight 500 lbs.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118377
Wiring Access Location:
- Near the rear interior trim panels close to the doors.
Tools Required:
- Screw or cable ties (provided).
Step-by-Step Instructions:
-
Remove the rear interior trim panels near the doors.
- Locate the vehicle’s tail light wiring harness. Connection points will be present on both sides of the vehicle, matching the ends of the T-Connector adapter.
-
Disconnect the vehicle’s wiring harness connectors on the driver’s side.
- Caution: Be careful not to damage the locking tabs.
-
Position the black box on the left (driver’s) side of the vehicle.
- Plug the T-Connector harness containing the yellow wire into the left vehicle wiring harness connector.
- Ensure the connectors are fully inserted and secured using the existing and provided locking tabs.
-
Repeat the procedure for the passenger side using the connector containing the green wire.
-
Route the green wire under the floor trim (threshold) panel.
- Secure the black box to the vehicle using the provided screw or cable tie behind the driver’s side trim panel.
-
Reinstall the rear trim panels removed in step 1.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Black box.
- Cable ties or screws.
Safety Notes:
- On some early production vehicles, the tail light and stoplight circuits may be reversed. If this condition is present, wires can be switched according to the included diagram or by consulting a dealer.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118377
Wiring Access Location:
- Near the rear interior trim panels close to the doors.
Tools Required:
- Screw or cable ties (provided)
Step-by-Step Instructions:
-
Remove Rear Interior Trim Panels:
- Remove the rear interior trim panels near the doors to access the vehicle’s tail light wiring harness.
- Connection points will be present on both sides of the vehicle, matching the ends of the T-Connector adapter.
-
Disconnect the Vehicle’s Wiring Harness:
- Disconnect the wiring harness connectors on the driver’s side.
- Caution: Avoid damaging the locking tabs during disconnection.
-
Position the Black Box:
- Place the black box on the left (driver’s) side of the vehicle.
- Plug the T-Connector harness containing the yellow wire into the left vehicle wiring harness connector.
- Ensure the connectors are fully inserted and secured with the locking tabs.
-
Connect the Passenger Side:
- Repeat the procedure for the passenger side using the connector containing the green wire.
-
Route the Green Wire:
- Route the green wire under the floor trim (threshold) panel to the passenger side.
- Secure the black box to the vehicle using the provided screw or cable tie behind the driver’s side trim panel.
-
Reinstall Trim Panels:
- Reinstall the rear trim panels removed in step 1.
-
Test the Installation:
- Use a test light or connect a trailer to verify the following functions:
- Left Turn Signal
- Right Turn Signal
- Brake Lights
- Running Lights
- Use a test light or connect a trailer to verify the following functions:
Specifications:
- Max Current: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Black box
- Cable ties or screws
Safety Notes:
- On some early production vehicles, the tail light and stoplight circuits may be reversed. If this occurs, consult the included diagram or seek assistance from a qualified technician.
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly after completing all steps.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
