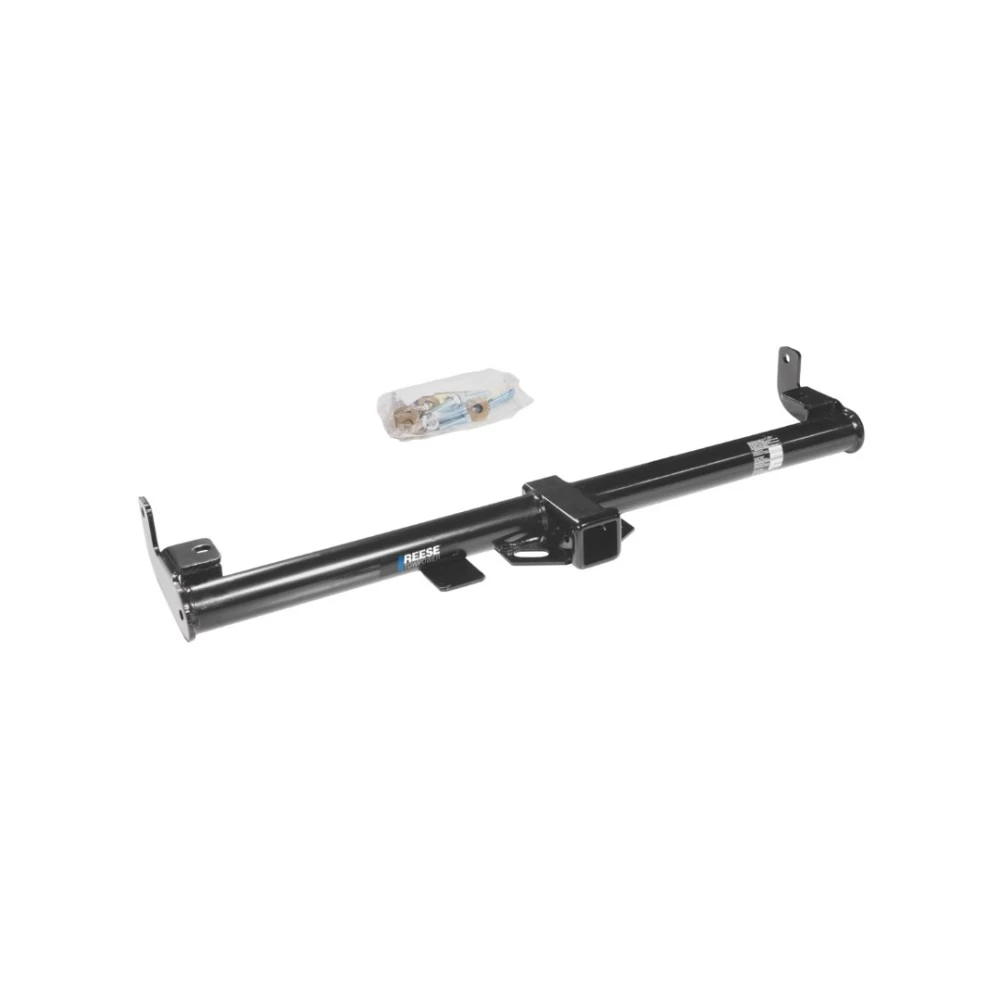

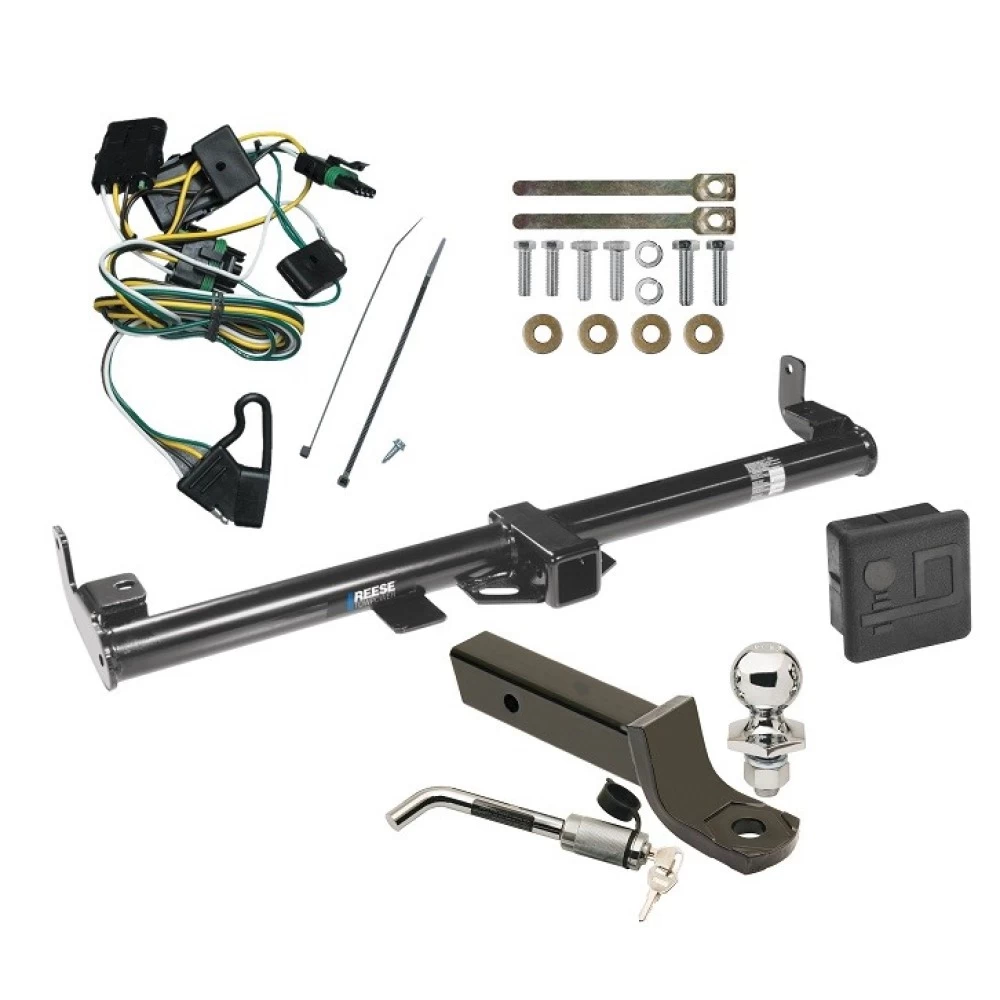

Installation Instructions for Jeep Wrangler

Part Numbers:

• 75193
• 87431
• 44565
• 33036

Wiring Access Location:

• SUV5, SUV7

Tools Required:

• Wrenches: 5/8", 3/4"
• Torque Wrench
• Drill Bits: None

Notes:

• Hitch requires 5/8” pin and clip.

Step-by-Step Instructions:

1. Remove the existing bolt from the frame/bumper attachment (one from each side of the vehicle).
2. If equipped, remove tow hooks and return them to the customer.
3. Raise the hitch into position as shown in the diagram.
   • Replace the bolt removed in Step 1 with either 7/16-14 x 1-1/2” bolts or M12 x 1.75 x 40mm bolts, depending on the vehicle model.
   • Install the remaining fasteners as shown in the diagram.
4. Tighten all fasteners as follows:
   • 7/16 GR5 fasteners: 50 lb-ft (68 N·m)
   • 1/2 GR5 fasteners: 50 lb-ft (68 N·m)
   • M12 CL8.8 fasteners: 68 lb-ft (91 N·m)

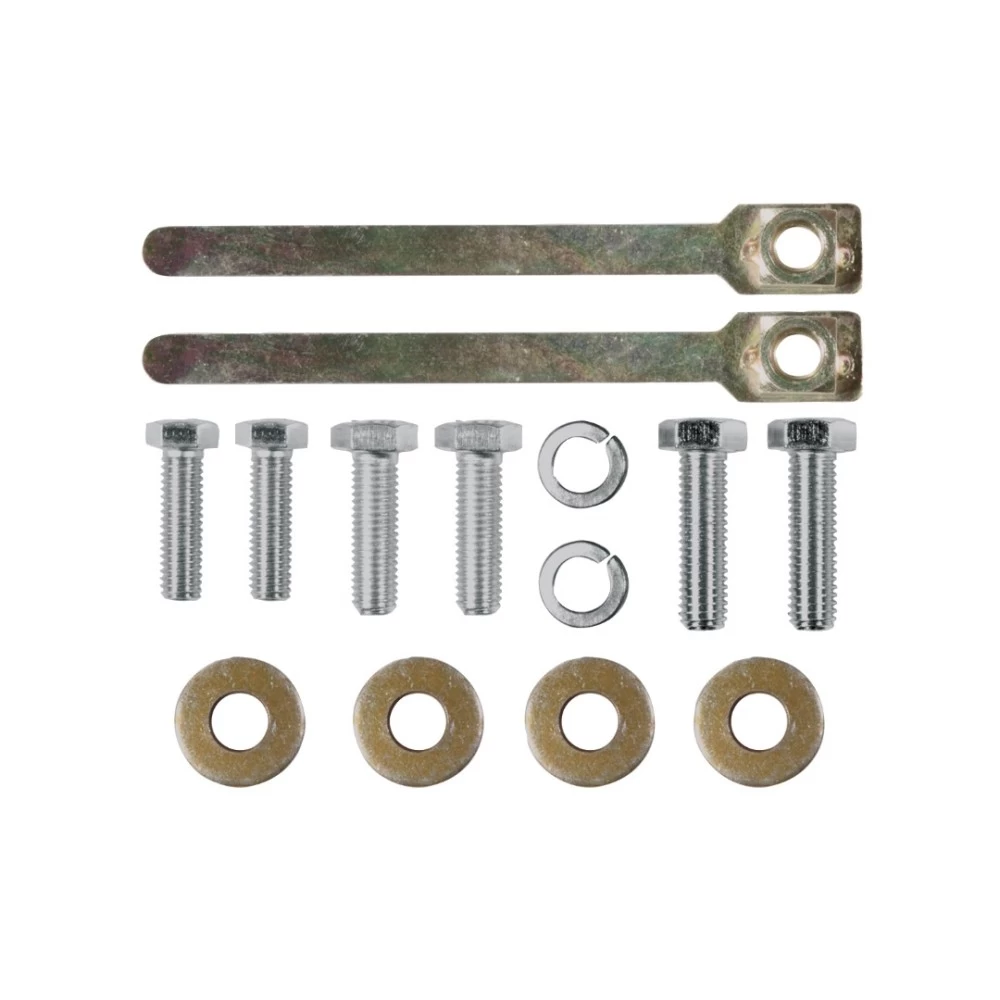

Hardware List:

• (2) 7/16-14 x 1.50 GR5 Hex Bolts
• (2) 1/2-13 x 1.75 GR5 Hex Bolts
• (2) M12 x 1.75 x 40mm CL8.8 Hex Bolts
• (2) 7/16” Conical Toothed Washers
• (2) 1/2” Conical Toothed Washers
• (2) 1/2” Lock Washers
• (2) 1/2-13 Handle Nut Assemblies

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
  • Weight Distributing: Not applicable.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Jeep Wrangler

Part Numbers:

• 75193
• 87431
• 44565
• 33036

Wiring Access Location:

• SUV5, SUV7

Tools Required:

• Wrenches: 5/8", 3/4"
• Torque Wrench
• Drill Bits: None

Notes:

• Hitch requires 5/8” pin and clip.

Step-by-Step Instructions:

1. Remove the existing bolt from the frame/bumper attachment (one from each side of the vehicle).
2. If equipped, remove tow hooks and return them to the customer.
3. Raise the hitch into position as shown in the diagram.
   • Replace the bolt removed in Step 1 with either 7/16-14 x 1-1/2” bolts or M12 x 1.75 x 40mm bolts, depending on the vehicle model.
   • Install the remaining fasteners as shown in the diagram.
4. Tighten all fasteners as follows:
   • 7/16 GR5 fasteners: 50 lb-ft (68 N·m)
   • 1/2 GR5 fasteners: 50 lb-ft (68 N·m)
   • M12 CL8.8 fasteners: 68 lb-ft (91 N·m)

Hardware List:

• (2) 7/16-14 x 1.50 GR5 Hex Bolts
• (2) 1/2-13 x 1.75 GR5 Hex Bolts
• (2) M12 x 1.75 x 40mm CL8.8 Hex Bolts
• (2) 7/16” Conical Toothed Washers
• (2) 1/2” Conical Toothed Washers
• (2) 1/2” Lock Washers
• (2) 1/2-13 Handle Nut Assemblies

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
  • Weight Distributing: Not applicable.
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118356

Wiring Access Location:

• Underneath the vehicle behind the rear protective covers on both sides.

Tools Required:

• Drill with a 3/32" drill bit.
• Screw or cable ties (provided in the kit).

Step-by-Step Instructions:

1. Temporarily remove the protective covers under the vehicle next to the rear bumper.

   • Locate the vehicle’s wiring harnesses underneath the vehicle behind the protective covers.
   • These harnesses will have connection points matching the ends of the T-Connector on both sides.

2. Starting on the driver’s side:

   • Separate the vehicle’s wiring harness connectors.
   • Note: Be careful not to damage the locking tabs.
   • Ensure the mating surfaces are free of dirt. Clean if necessary.

3. Insert the T-Connector containing the yellow wire between the vehicle connectors.

   • Ensure the connectors are fully inserted with locking tabs secure.

4. Repeat steps 2 and 3 for the passenger’s side using the T-Connector containing the green wire.

5. Locate a suitable grounding point near the adapter, such as the vehicle frame or cross member.

   • Caution: Do not drill into the vehicle floor or bed.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

6. Test the installation with a test light or trailer.

7. Bundle and secure wires to the vehicle’s crossmember using the provided cable ties.

8. Reinstall the protective covers removed in step 1.

   • Specifications:
     • This unit is rated for 7.5 amps per circuit.

Hardware List:

• T-Connector adapter.
• Eyelet and screw.
• Cable ties.

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Manufacturer Notes:

• Follow all warnings and instructions provided with the product.
• Use a test light or trailer to confirm proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118356

Wiring Access Location:

• Underneath the vehicle behind the rear protective covers on both sides.

Tools Required:

• Drill with a 3/32" drill bit.
• Screw or cable ties (provided in the kit).

Step-by-Step Instructions:

1. Remove Protective Covers:

   • Temporarily remove the protective covers under the vehicle next to the rear bumper.
   • Locate the vehicle’s wiring harnesses underneath the vehicle behind the protective covers.
   • These harnesses will have connection points matching the ends of the T-Connector on both sides.

2. Install the Driver-Side T-Connector:

   • Starting on the driver’s side, separate the vehicle’s wiring harness connectors.
   • Note: Be careful not to damage the locking tabs.
   • Ensure the mating surfaces are free of dirt. Clean if necessary.

3. Connect the Yellow-Wire T-Connector:

   • Insert the T-Connector containing the yellow wire between the vehicle connectors.
   • Ensure the connectors are fully inserted with locking tabs secure.

4. Install the Passenger-Side T-Connector:

   • Repeat steps 2 and 3 for the passenger’s side using the T-Connector containing the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the adapter, such as the vehicle frame or cross member.
   • Caution: Do not drill into the vehicle floor or bed.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

6. Test the Installation:

   • Use a test light or connect a trailer to verify proper functionality.

7. Secure the Wiring Harness:

   • Bundle and secure wires to the vehicle’s crossmember using the provided cable ties.

8. Reinstall Protective Covers:

   • Reinstall the protective covers removed in step 1.

Specifications:

• Rated Current: 7.5 amps per circuit

Hardware List:

• T-Connector adapter
• Eyelet and screw
• Cable ties

Safety Notes:

• Handle all connectors with care to avoid damage.
• Ensure all connections are clean and securely fastened.
• Test the installation after completing all steps to verify functionality.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
This product comes with a limited warranty for [insert duration here] covering [insert coverage details]. For complete warranty instructions, please download the full installation PDF.
