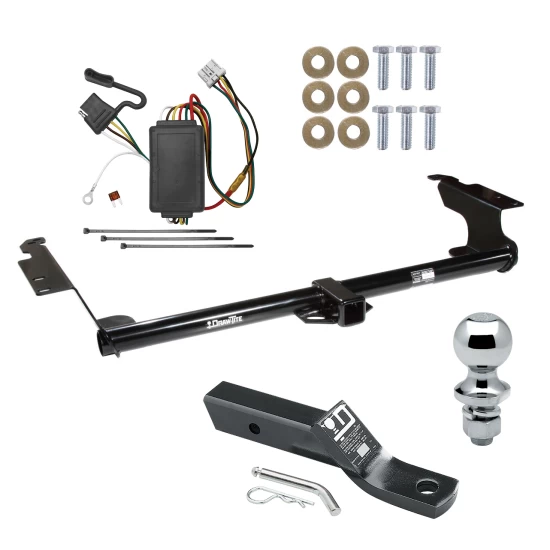

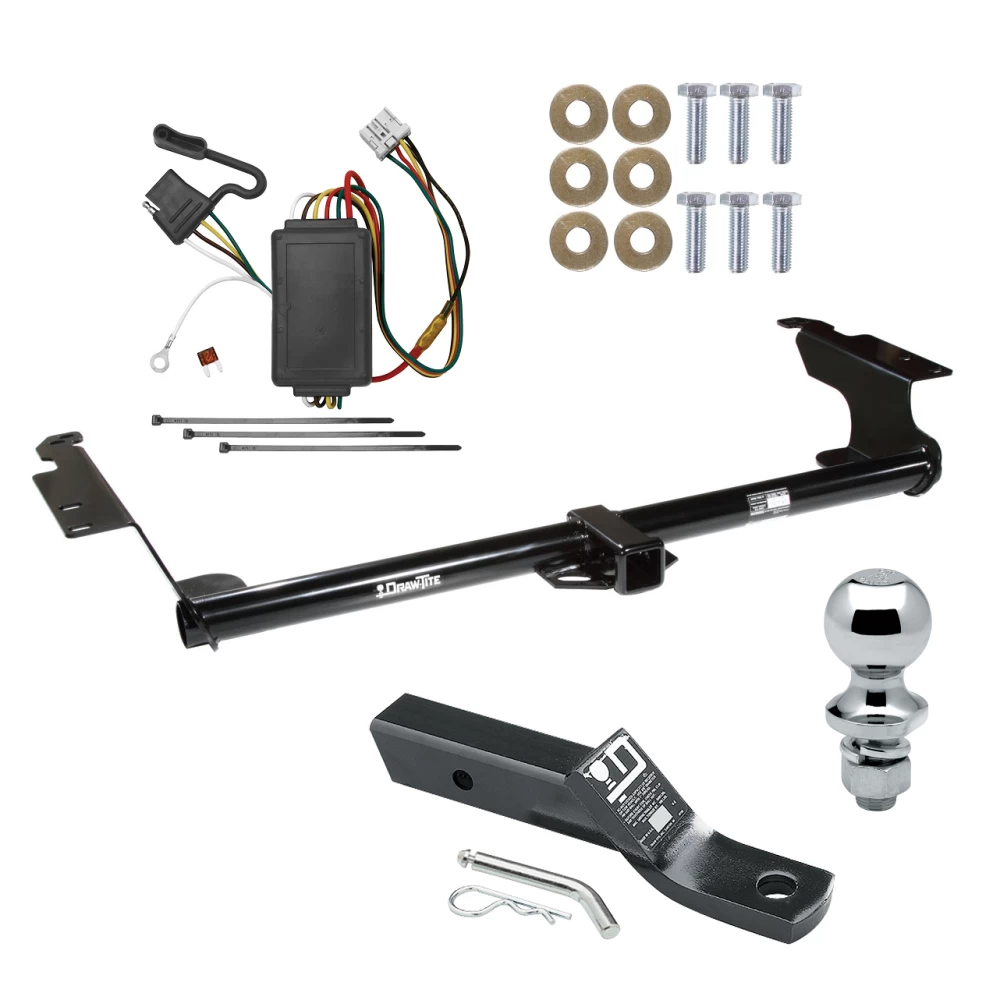

Installation Instructions for Honda Odyssey
(1999-2004 and 2005 & Later Models)

Part Numbers:

• 75270
• 44174
• CQT75270

Applications:

• Honda Odyssey (1999-2004 and 2005 & Later Models)

Tools Required:

• Wrenches: 19mm
• Drill Bits: None

Wiring Access Location:

• SUV3

Step-by-Step Instructions:

For 1999-2004 Models:

1. Remove Appearance Panel:

   • If present, remove the plastic appearance panel covering the driver’s side frame rail.
   • Return the appearance panel and fasteners to the vehicle owner.

2. Lower Exhaust:

   • Lower the vehicle exhaust to allow for hitch installation.

3. Install Hitch:

   • Raise the hitch into position.
   • Install the six (6) M12 fasteners and blocks using the forward slots on the hitch side brackets.

4. Reinstall Exhaust:

   • Reinstall the vehicle exhaust to its original position.

For 2005 & Later Models:

1. Lower Exhaust:

   • Lower the vehicle exhaust to allow for hitch installation.

2. Install Hitch:

   • Raise the hitch into position.
   • Install the six (6) M12 fasteners and blocks as shown in the diagram.

3. Reinstall Exhaust:

   • Reinstall the vehicle exhaust to its original position.

Hardware List:

• (6) M12 x 1.25 x 35mm CL8.8 Bolts
• (6) 1/4” x 1-1/2” x 3” Blocks
• (6) 1/2” Conical Washers

Torque Specifications:

• Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Honda Odyssey
(1999-2004 and 2005 & Later Models)

Part Numbers:

• 75270
• 44174
• CQT75270

Applications:

• Honda Odyssey (1999-2004 and 2005 & Later Models)

Tools Required:

• Wrenches: 19mm
• Drill Bits: None

Wiring Access Location:

• SUV3

Step-by-Step Instructions:

For 1999-2004 Models:

1. Remove Appearance Panel:

   • If present, remove the plastic appearance panel covering the driver’s side frame rail.
   • Return the appearance panel and fasteners to the vehicle owner.

2. Lower Exhaust:

   • Lower the vehicle exhaust to allow for hitch installation.

3. Install Hitch:

   • Raise the hitch into position.
   • Install the six (6) M12 fasteners and blocks using the forward slots on the hitch side brackets.

4. Reinstall Exhaust:

   • Reinstall the vehicle exhaust to its original position.

For 2005 & Later Models:

1. Lower Exhaust:

   • Lower the vehicle exhaust to allow for hitch installation.

2. Install Hitch:

   • Raise the hitch into position.
   • Install the six (6) M12 fasteners and blocks as shown in the diagram.

3. Reinstall Exhaust:

   • Reinstall the vehicle exhaust to its original position.

Hardware List:

• (6) M12 x 1.25 x 35mm CL8.8 Bolts
• (6) 1/4” x 1-1/2” x 3” Blocks
• (6) 1/2” Conical Washers

Torque Specifications:

• Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

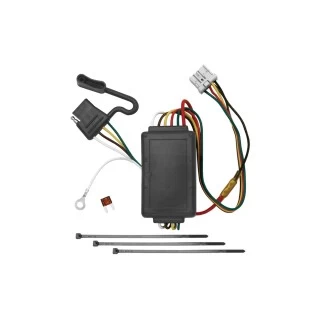

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118438

Tools Required:

• Trim Panel Remover
• Pliers

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Open the vehicle’s rear tailgate.
   • Remove the cargo liner and threshold. Set aside all items removed carefully to avoid damage.
   • Remove the passenger-side rear cargo area trim panel to access the vehicle’s black electric junction box.

2. Connect the T-Connector:

   • Plug the gray connector into the mating connection in the top right corner of the electric junction box.
   • Mount the white ground wire to the existing ground stud next to the electric junction box.
   • Mount the black box using the provided double-sided tape on a clean, flat surface inside the passenger-side trim panel.

   Warning:

   • Ensure all other ground connections are secure when removing and reattaching the ground stud.

3. Route the 4-Flat Connector:

   • Route the 4-flat wire across to the driver’s side under the threshold and cable tie it to the factory wiring harness.
   • Route the wire under the driver’s side trim panel and store it in the jack compartment for future use.

4. Install the Fuse:

   • Locate the fuse compartment on the passenger-side kick panel, near the glove box.
   • Open the fuse compartment and place the provided 7.5-amp fuse into fuse position #5.
   • Attach the fuse label to the fuse cover in position #5 and close the fuse compartment.

   Warning:

   • Do not use a fuse larger than 7.5 amps. Replacing it with a higher-rated fuse could damage the vehicle and/or trailer.

5. Reassemble the Vehicle:

   • Reposition the passenger-side panels, trays, and trunk floor panels.
   • Reattach the threshold.

6. Test the Installation:

   • Test and verify the T-Connector installation with a test light or trailer to ensure proper functionality.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (4.2 amps)

Safety Notes:

• All connections must be complete for the T-Connector to function properly.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Follow all warnings and installation instructions provided.
• Refer to the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118438

Tools Required:

• Trim Panel Remover
• Pliers

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Open the vehicle’s rear tailgate.
   • Remove the cargo liner and threshold. Set aside all items removed carefully to avoid damage.
   • Remove the passenger-side rear cargo area trim panel to access the vehicle’s black electric junction box.

2. Connect the T-Connector:

   • Plug the gray connector into the mating connection in the top right corner of the electric junction box.
   • Mount the white ground wire to the existing ground stud next to the electric junction box.
   • Mount the black box using the provided double-sided tape on a clean, flat surface inside the passenger-side trim panel.

   Warning:

   • Ensure all other ground connections are secure when removing and reattaching the ground stud.

3. Route the 4-Flat Connector:

   • Route the 4-flat wire across to the driver’s side under the threshold and cable tie it to the factory wiring harness.
   • Route the wire under the driver’s side trim panel and store it in the jack compartment for future use.

4. Install the Fuse:

   • Locate the fuse compartment on the passenger-side kick panel, near the glove box.
   • Open the fuse compartment and place the provided 7.5-amp fuse into fuse position #5.
   • Attach the fuse label to the fuse cover in position #5 and close the fuse compartment.

   Warning:

   • Do not use a fuse larger than 7.5 amps. Replacing it with a higher-rated fuse could damage the vehicle and/or trailer.

5. Reassemble the Vehicle:

   • Reposition the passenger-side panels, trays, and trunk floor panels.
   • Reattach the threshold.

6. Test the Installation:

   • Test and verify the T-Connector installation with a test light or trailer to ensure proper functionality.

Specifications:

• Max. Stop/Turn Light: 1 per side (2.1 amps)
• Max. Tail Lights: (4.2 amps)

Safety Notes:

• All connections must be complete for the T-Connector to function properly.
• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

• Follow all warnings and installation instructions provided.
• Refer to the vehicle owner’s manual for additional details.
• For technical support, visit www.trailerjacks.com or call 877-869-6690.
• For complete warranty information, please download the full installation PDF.
