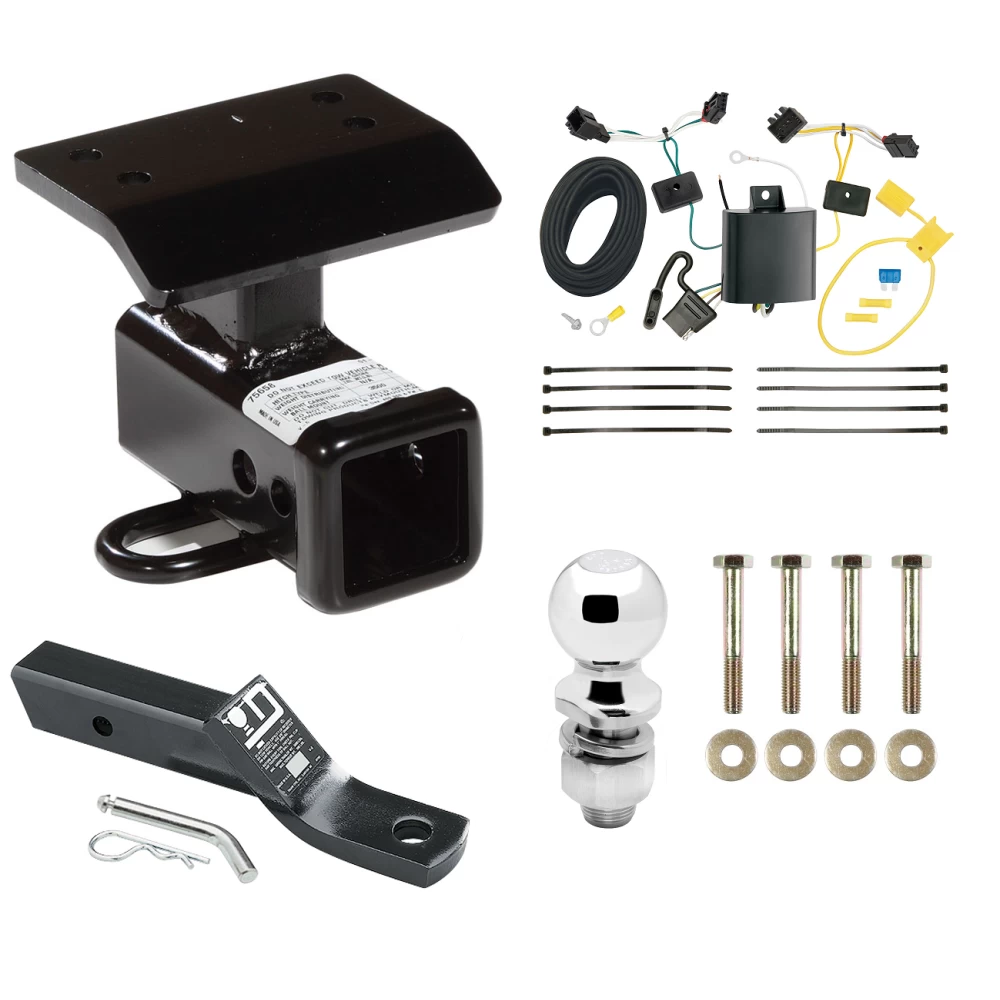

Trailer Tow Hitch For 12‑17 Volkswagen Tiguan Complete Package w/ Wiring and 2" Ball
Model: 75658* 118675 23 63845Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2017 Volkswagen Tiguan All Styles
Trailer Hitch Specs:
| Part Number | 75658 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118675 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5Cold forged for superior strength
When installing the ball, torgue to 250 ft. lbs
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 12 13 14 15 16 17 2012 2013 2014 2015 2016 2017
$210 55 $316.41 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$316.41 $210 55
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75658* 118675 23 63845
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2012 - 2017 Volkswagen Tiguan All Styles
Trailer Hitch Specs:
| Part Number | 75658 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118675 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5Cold forged for superior strength
When installing the ball, torgue to 250 ft. lbs
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 12 13 14 15 16 17 2012 2013 2014 2015 2016 2017
Get Expert Help
Trailer Tow Hitch For 12-17 Volkswagen Tiguan Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.
Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Fascia trimming is required for this installation. Ensure the cut is precise and approved by the vehicle owner beforehand.
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.
Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Adapter for Volkswagon Tiguan
Part Numbers:
- 118675
Tools Required:
- Torx #20 Driver
- 10mm Socket or Wrench
-
2 Phillips Screwdriver
- Trim Panel Remover
- Wire Crimpers
- Wire Cutters
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and use a trim panel puller to carefully pry the black taillight trim cover to expose the two Torx-20 fasteners.
- Use the Torx-T20 driver to remove the two bolts holding the taillight in place. Do not remove the taillight yet.
-
Prepare the Rear Cargo Area:
- Remove all floor coverings and storage trays to expose the spare tire compartment.
- Use a trim panel tool to carefully pry the threshold plate away from the vehicle without damaging the clips.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on both sides of the vehicle to access the taillight wiring.
-
Remove the Taillights:
- Locate the white plastic Philips head screw behind the trim panel holding the taillight in place.
- Turn the screw 90° counterclockwise with a Philips screwdriver to release the taillight.
- Carefully remove the taillight assembly and repeat for the passenger side.
-
Connect the Passenger-Side T-Connector:
- On the passenger side, route the T-Connector with the green wire through the square hole to the taillight pocket area.
- Plug the T-Connector between the taillight socket and vehicle wiring harness.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector with the yellow wire along the threshold to the driver’s side.
- Repeat the connection process using the yellow wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors on the passenger side.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the black wire from the T-Connector black box to the fuse holder using the yellow butt connector.
-
Route the Power Wire:
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the battery, avoiding hot pipes, heat shields, and other potential damage points.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
-
Mount the Black Box:
- On the passenger side, locate a flat, out-of-the-way surface and mount the T-Connector’s black box using the provided double-sided tape.
-
Reassemble the Vehicle:
- Reinstall the taillight housing assemblies, plastic trim panels, threshold, storage covers, and floor covering, ensuring no wires are pinched.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the passenger’s side trim panel into the side storage compartment for storage when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Volkswagen Tiguan
Part Numbers:
- 118675
Tools Required:
- Torx #20 Driver
- 10mm Socket or Wrench
-
2 Phillips Screwdriver
- Trim Panel Remover
- Wire Crimpers
- Wire Cutters
- Test Probe
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the tailgate and use a trim panel puller to carefully pry the black taillight trim cover to expose the two Torx-20 fasteners.
- Use the Torx-T20 driver to remove the two bolts holding the taillight in place. Do not remove the taillight yet.
-
Prepare the Rear Cargo Area:
- Remove all floor coverings and storage trays to expose the spare tire compartment.
- Use a trim panel tool to carefully pry the threshold plate away from the vehicle without damaging the clips.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on both sides of the vehicle to access the taillight wiring.
-
Remove the Taillights:
- Locate the white plastic Philips head screw behind the trim panel holding the taillight in place.
- Turn the screw 90° counterclockwise with a Philips screwdriver to release the taillight.
- Carefully remove the taillight assembly and repeat for the passenger side.
-
Connect the Passenger-Side T-Connector:
- On the passenger side, route the T-Connector with the green wire through the square hole to the taillight pocket area.
- Plug the T-Connector between the taillight socket and vehicle wiring harness.
-
Connect the Driver-Side T-Connector:
- Route the T-Connector with the yellow wire along the threshold to the driver’s side.
- Repeat the connection process using the yellow wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connectors on the passenger side.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Connect the Power Wire:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the black wire from the T-Connector black box to the fuse holder using the yellow butt connector.
-
Route the Power Wire:
- Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the battery, avoiding hot pipes, heat shields, and other potential damage points.
-
Reconnect the Battery:
- Reconnect the negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder and test the installation with a test light or trailer.
-
Mount the Black Box:
- On the passenger side, locate a flat, out-of-the-way surface and mount the T-Connector’s black box using the provided double-sided tape.
-
Reassemble the Vehicle:
- Reinstall the taillight housing assemblies, plastic trim panels, threshold, storage covers, and floor covering, ensuring no wires are pinched.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the passenger’s side trim panel into the side storage compartment for storage when not in use.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
