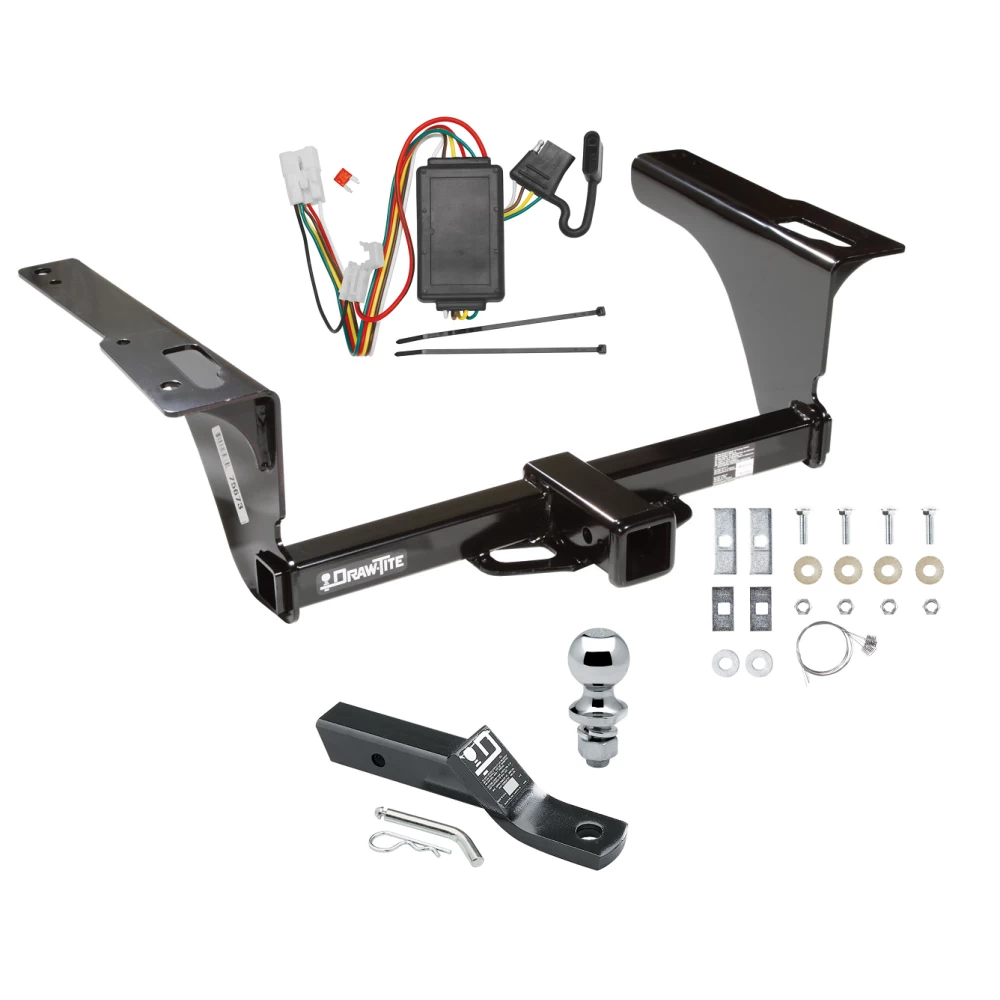

Trailer Tow Hitch For 10‑19 Subaru Outback Wagon Except Sport Complete Package w/ Wiring and 1‑7/8" Ball
Model: 75673 118467 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2019 Subaru, Outback, Wagon, Except Sport
Trailer Hitch Specs:
| Part Number | 75673 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118467 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
Cold forged for superior strength
When installing the ball, torgue to 160 ft. lbs
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
$286 32 $430.34 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$430.34 $286 32
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $71.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75673 118467 23 63816
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2019 Subaru, Outback, Wagon, Except Sport
Trailer Hitch Specs:
| Part Number | 75673 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118467 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 1-7/8" x 1" x 2-1/8", 2,000 lbs. GTW Chrome
Cold forged for superior strength
When installing the ball, torgue to 160 ft. lbs
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Get Expert Help
Trailer Tow Hitch For 10-19 Subaru Outback Wagon Except Sport Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Subaru Legacy and Outback
(All Models)
Part Numbers:
- 75673
- 44631
- 87568
- 75159 (U-Haul)
Tools Required:
- Tin Snips
- Spray Lubricant
- Wrenches: 10mm, 11/16”
- Drill Bits: 1-1/8” Hole Saw
Wiring Access Location:
- PC3
Step-by-Step Instructions:
-
Lower the Exhaust:
- Temporarily lower the exhaust system by removing the two rubber isolators from the muffler hangers and one below the rear axle.
- Note: Spray hangers with lubricant to ease removal. For dual exhaust systems, repeat on both sides.
-
Lower Heat Shields:
- Temporarily lower the heat shields by removing four (4) M6 bolts.
- Save the bolts for reinstallation.
-
Remove Rubber Plugs:
- Remove the rubber plugs from the holes in the bottom of the frame.
-
Drill Access Hole:
- Drill a 1-1/8” access hole in the bottom of the frame approximately 2” from the forward heat shield attachment point (see Figure 1).
-
Fishwire Carriage Bolts:
- Fishwire a 7/16”-14 x 1.5” carriage bolt and a 1” x 2” spacer block through the access hole and down through the rearmost hole in the frame.
- Repeat with a 1” x 3” spacer block for the forward hole.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the carriage bolts. Be careful not to push bolts back into the frame.
-
Install Rear Fasteners:
- Loosely install conical toothed washers and hex nuts onto the rearmost carriage bolts.
-
Install Forward Fasteners:
- Place a flat washer between the forward carriage bolt and the hitch bracket.
- Install conical toothed washers and hex nuts onto the forward carriage bolts.
- Tighten all fasteners to the specified torque (50 lb-ft or 68 N·m).
-
Trim Heat Shields:
- Trim the heat shields around the forward attachment bolt area to ensure they sit flat against the hitch bracket.
-
Reinstall Heat Shields:
- Reattach the heat shields on top of the hitch brackets using the four (4) M6 bolts removed earlier.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators, including the one under the axle.
Hardware List:
- (4) Carriage Bolts, 7/16”-14 x 1.5”
- (2) Flat Washers, 7/16”
- (2) Spacer Blocks, 3/16” x 1” x 2”
- (2) Spacer Blocks, 1/4” x 1” x 3”
- (4) Conical Toothed Washers, 7/16”
- (4) Fish Wires, 7/16”
- (4) Hex Nuts, 7/16”-14
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Not for use with spring bars.
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75673
- 44631
- 87568
- 75159 (U-Haul)
Tools Required:
- Tin Snips
- Spray Lubricant
- Wrenches: 10mm, 11/16”
- Drill Bits: 1-1/8” Hole Saw
Wiring Access Location:
- PC3
Step-by-Step Instructions:
-
Lower the Exhaust:
- Temporarily lower the exhaust system by removing the two rubber isolators from the muffler hangers and one below the rear axle.
- Note: Spray hangers with lubricant to ease removal. For dual exhaust systems, repeat on both sides.
-
Lower Heat Shields:
- Temporarily lower the heat shields by removing four (4) M6 bolts.
- Save the bolts for reinstallation.
-
Remove Rubber Plugs:
- Remove the rubber plugs from the holes in the bottom of the frame.
-
Drill Access Hole:
- Drill a 1-1/8” access hole in the bottom of the frame approximately 2” from the forward heat shield attachment point (see Figure 1).
-
Fishwire Carriage Bolts:
- Fishwire a 7/16”-14 x 1.5” carriage bolt and a 1” x 2” spacer block through the access hole and down through the rearmost hole in the frame.
- Repeat with a 1” x 3” spacer block for the forward hole.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch with the carriage bolts. Be careful not to push bolts back into the frame.
-
Install Rear Fasteners:
- Loosely install conical toothed washers and hex nuts onto the rearmost carriage bolts.
-
Install Forward Fasteners:
- Place a flat washer between the forward carriage bolt and the hitch bracket.
- Install conical toothed washers and hex nuts onto the forward carriage bolts.
- Tighten all fasteners to the specified torque (50 lb-ft or 68 N·m).
-
Trim Heat Shields:
- Trim the heat shields around the forward attachment bolt area to ensure they sit flat against the hitch bracket.
-
Reinstall Heat Shields:
- Reattach the heat shields on top of the hitch brackets using the four (4) M6 bolts removed earlier.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach the rubber isolators, including the one under the axle.
Hardware List:
- (4) Carriage Bolts, 7/16”-14 x 1.5”
- (2) Flat Washers, 7/16”
- (2) Spacer Blocks, 3/16” x 1” x 2”
- (2) Spacer Blocks, 1/4” x 1” x 3”
- (4) Conical Toothed Washers, 7/16”
- (4) Fish Wires, 7/16”
- (4) Hex Nuts, 7/16”-14
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Not for use with spring bars.
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 600 lbs (272 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)
Part Numbers:
- 118467
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the cargo nets and cargo floor hatch to access the spare tire area.
-
Locate the Tow Plug Housing:
- 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
- 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
- 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
- 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.
-
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
- Ensure the connectors are fully inserted with the locking tabs engaged.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
Note:
- Store the 4-flat connector in the spare tire compartment when not in use.
Warning:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Always follow all warnings and instructions included with the product before beginning installation.
- Wear safety glasses and use all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Subaru (Forester, Outback, XV Crosstrek)
Part Numbers:
- 118467
Tools Required:
- Trim Panel Remover
- Test Probe
Step-by-Step Instructions:
-
Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the cargo nets and cargo floor hatch to access the spare tire area.
-
Locate the Tow Plug Housing:
- 2009-2013 Subaru Forester: Remove the driver’s side and center foam cargo trays to locate the tow plug housing under the driver’s side foam tray.
- 2010-2019 Subaru Outback: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with blue tape.
- 2014-Current Subaru Forester / XV Crosstrek: Locate the tow plug housing behind the driver’s side trim panel. It is taped to the wire harness with tape.
- 2020-Current Subaru Outback: Temporarily remove the rear threshold plate. Locate the tow plug on the passenger side under the rear threshold plate. It is taped to the harness with tape.
-
Connect the T-Connector Harness:
- Insert the T-Connector harness into the vehicle’s tow plug housing and lock it into place.
- Ensure the connectors are fully inserted with the locking tabs engaged.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer. For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
- Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that could cut or pinch the wire.
Note:
- Store the 4-flat connector in the spare tire compartment when not in use.
Warning:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the following specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Always follow all warnings and instructions included with the product before beginning installation.
- Wear safety glasses and use all safety precautions during installation.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Warranty Information:
- This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
TrailerJacks.com - Trailer Jacks, Hitches, Auto Parts & Accessories www.trailerjacks.com
