Product Details
- Brand: Draw-Tite
- Model: 75714 118547 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help

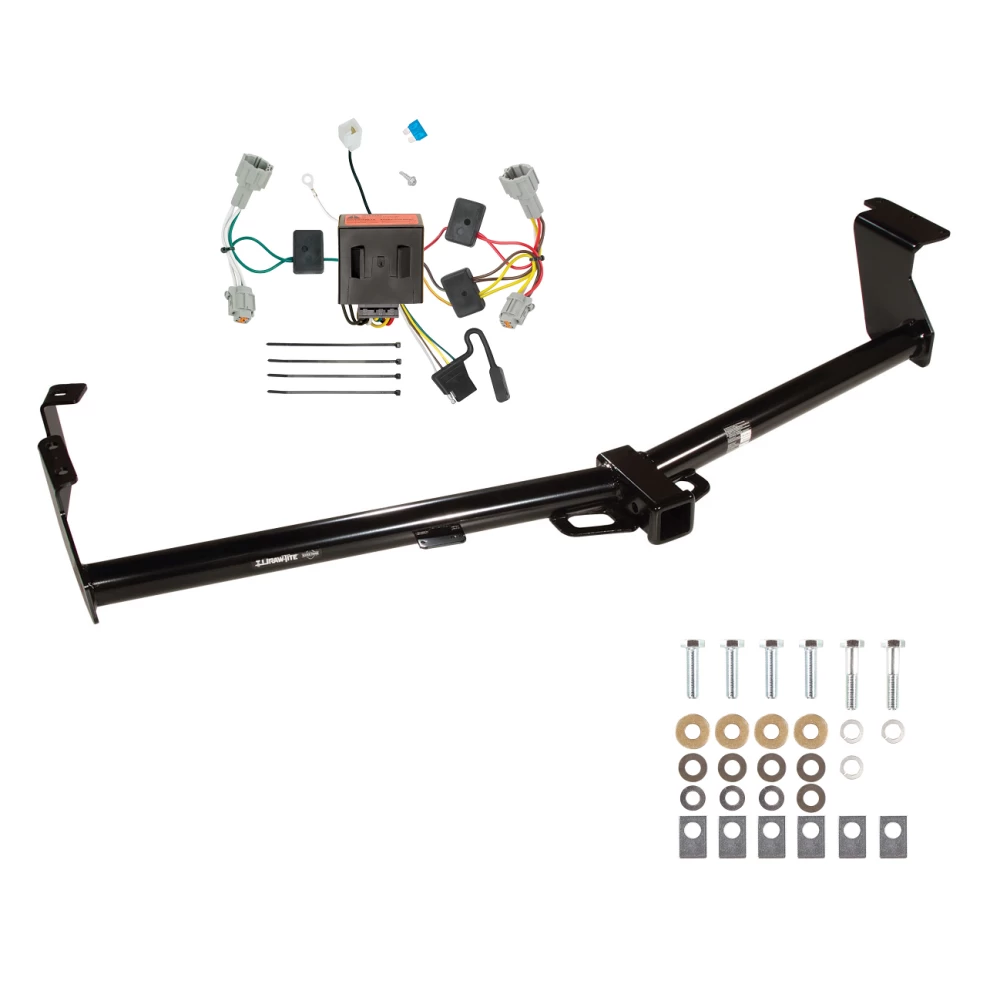

Trailer Tow Hitch For 11-16 Nissan Quest w/ Wiring Harness Kit Install Notes
Installation Instructions for Nissan Quest
Part Numbers:
- 75714
- 87609
- 44663
- 75228 U-Haul
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Lubricant or soapy water
- Tape
- Wrenches: 18mm, 19mm, 6” ratchet extension
Step-by-Step Instructions:
- Lower the exhaust system at the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
- Remove the two bolts on the tie-down on the driver’s side frame rail. Return fasteners to the vehicle owner.
- Tape three spacers (item 2) and five flat washers (item 6) together for easier installation.
- Clean threads to ensure bolts start easily. Spray lubricant into each weldnut. Work the bolt in and out until cleaned, then remove the lubricant using household detergent and flush clean.
- Raise the hitch over the exhaust and install bolt (item 7) and conical washer (item 8) to hold the hitch in position.
- On the driver’s side, install the forward bolt, lock washer, flat washer, and spacer to secure the hitch in position.
- Slide taped spacers (item 2) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Do not tighten.
- Slide taped washers (item 6) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Hand-tighten the fastener and orient spacers as shown in the figure.
- Install the remaining fasteners on the passenger’s side frame rail.
- Tighten all fasteners to the specified torque.
- Reattach the exhaust system.
Hardware List:
- Qty (2): Hex Bolt M12 x 1.25 x 55 CL8.8
- Qty (5): Flat Washer 1/2” (Black)
- Qty (6): Spacer 3/16” x 1.00 x 1.50
- Qty (4): Hex Bolt M12 x 1.25 x 45 CL8.8
- Qty (3): Flat Washer 7/16” (Silver)
- Qty (4): Conical Washer 1/2” (Yellow)
- Qty (3): Lock Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (239 kg)
Manufacturer Notes:
- Tighten all M12 CL8.8 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 75714
- 87609
- 44663
- 75228 U-Haul
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Lubricant or soapy water
- Tape
- Wrenches: 18mm, 19mm, 6” ratchet extension
Step-by-Step Instructions:
- Lower the exhaust system at the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to ease removal.
- Remove the two bolts on the tie-down on the driver’s side frame rail. Return fasteners to the vehicle owner.
- Tape three spacers (item 2) and five flat washers (item 6) together for easier installation.
- Clean threads to ensure bolts start easily. Spray lubricant into each weldnut. Work the bolt in and out until cleaned, then remove the lubricant using household detergent and flush clean.
- Raise the hitch over the exhaust and install bolt (item 7) and conical washer (item 8) to hold the hitch in position.
- On the driver’s side, install the forward bolt, lock washer, flat washer, and spacer to secure the hitch in position.
- Slide taped spacers (item 2) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Do not tighten.
- Slide taped washers (item 6) into position between the tie-down and hitch bracket. Install the spacer, flat washer, lock washer, and hex bolt (item 1). Hand-tighten the fastener and orient spacers as shown in the figure.
- Install the remaining fasteners on the passenger’s side frame rail.
- Tighten all fasteners to the specified torque.
- Reattach the exhaust system.
Hardware List:
- Qty (2): Hex Bolt M12 x 1.25 x 55 CL8.8
- Qty (5): Flat Washer 1/2” (Black)
- Qty (6): Spacer 3/16” x 1.00 x 1.50
- Qty (4): Hex Bolt M12 x 1.25 x 45 CL8.8
- Qty (3): Flat Washer 7/16” (Silver)
- Qty (4): Conical Washer 1/2” (Yellow)
- Qty (3): Lock Washer 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (239 kg)
Manufacturer Notes:
- Tighten all M12 CL8.8 fasteners to 42 lb-ft (57 N·m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Nissan Quest
Part Numbers:
- 118547
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- Flat Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate to access the bolts holding the taillights.
- Remove the taillights on both the driver and passenger sides.
- Remove the threshold, trunk floor panels, and trays. Carefully set aside all removed items.
-
Access Interior Panels:
- Partially remove the lower interior trim panels on the driver’s side only, being careful not to damage clips.
-
Install the Driver-Side T-Connector:
- Attach the T-Connector containing the yellow and brown wires to the vehicle’s harness.
- Ensure the connectors are fully inserted and locking tabs are secure.
-
Route the T-Connector Harness:
- Route the green wire and 4-flat harness down the opening behind the driver’s side taillight.
- Route the 4-flat harness to the center of the vehicle and the green wire underneath to the passenger side.
- Route the green wire through the opening behind the passenger-side taillight.
-
Prepare the Grommet:
- Locate the grommet between the taillight pocket and trunk on the driver’s side.
- Carefully slit the grommet to allow routing of the T-Connector’s grey 12-pin and 1-pin connectors into the vehicle’s cargo area.
-
Connect the Grey 12-Pin Connector:
- Inside the vehicle, connect the grey 12-pin connector to the mating connector on the black box module.
- Ensure all connector surfaces are clean and fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Find a flat surface inside the vehicle and mount the black box using the provided double-sided tape.
- Warning: The black box must be mounted inside the vehicle to prevent damage from exposure to elements.
-
Connect the 1-Pin Housing:
- Locate the 1-pin housing taped to the taillight harness on the driver’s side.
- Plug the 1-pin housing from the T-Connector into the vehicle’s connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Install the Fuse:
- Open the vehicle hood and locate the fuse box on the driver’s side.
- Insert the 15-amp fuse into the position labeled “20A Trailer.”
-
Secure and Test:
- Secure the T-Connector harness with the provided cable ties, avoiding areas where the wiring could be pinched, cut, or melted.
- Test the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched.
Specifications:
- Max. stop/turn light: 2.1 amps
- Max. tail lights: 5.6 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
- Always wear safety glasses and follow safety precautions.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Installation Instructions for T-Connector Adapter for Nissan Quest
Part Numbers:
- 118547
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or 10mm Wrench
- Drill (3/32” Drill Bit)
- Flat Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate to access the bolts holding the taillights.
- Remove the taillights on both the driver and passenger sides.
- Remove the threshold, trunk floor panels, and trays. Carefully set aside all removed items.
-
Access Interior Panels:
- Partially remove the lower interior trim panels on the driver’s side only, being careful not to damage clips.
-
Install the Driver-Side T-Connector:
- Attach the T-Connector containing the yellow and brown wires to the vehicle’s harness.
- Ensure the connectors are fully inserted and locking tabs are secure.
-
Route the T-Connector Harness:
- Route the green wire and 4-flat harness down the opening behind the driver’s side taillight.
- Route the 4-flat harness to the center of the vehicle and the green wire underneath to the passenger side.
- Route the green wire through the opening behind the passenger-side taillight.
-
Prepare the Grommet:
- Locate the grommet between the taillight pocket and trunk on the driver’s side.
- Carefully slit the grommet to allow routing of the T-Connector’s grey 12-pin and 1-pin connectors into the vehicle’s cargo area.
-
Connect the Grey 12-Pin Connector:
- Inside the vehicle, connect the grey 12-pin connector to the mating connector on the black box module.
- Ensure all connector surfaces are clean and fully inserted with locking tabs in place.
-
Mount the Black Box Module:
- Find a flat surface inside the vehicle and mount the black box using the provided double-sided tape.
- Warning: The black box must be mounted inside the vehicle to prevent damage from exposure to elements.
-
Connect the 1-Pin Housing:
- Locate the 1-pin housing taped to the taillight harness on the driver’s side.
- Plug the 1-pin housing from the T-Connector into the vehicle’s connector.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
-
Install the Fuse:
- Open the vehicle hood and locate the fuse box on the driver’s side.
- Insert the 15-amp fuse into the position labeled “20A Trailer.”
-
Secure and Test:
- Secure the T-Connector harness with the provided cable ties, avoiding areas where the wiring could be pinched, cut, or melted.
- Test the installation with a test light or trailer.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation, ensuring no wires are pinched.
Specifications:
- Max. stop/turn light: 2.1 amps
- Max. tail lights: 5.6 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
- Always wear safety glasses and follow safety precautions.
Manufacturer Notes:
- For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
