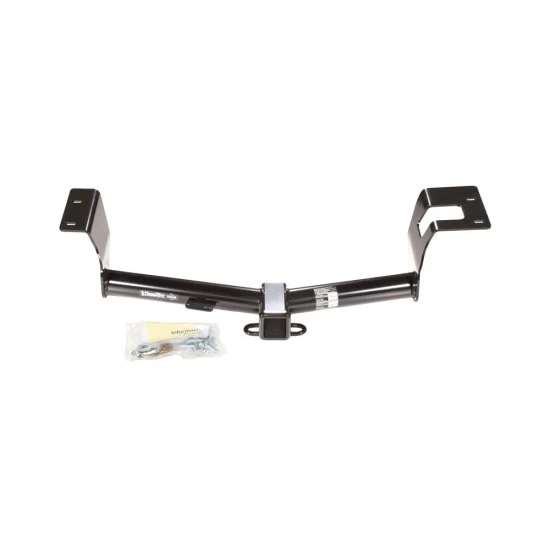

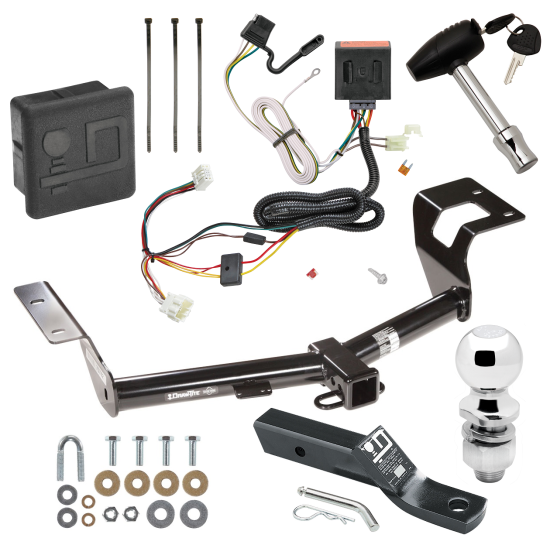

Installation Instructions for Honda CR-V

Part Numbers:

• 75742
• 87621
• 44675

Wiring Access Location:

• SUV3

Tools Required:

• Wrenches: 10mm, 17mm, 11/16
• Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver

Step-by-Step Instructions:

1. Remove appearance panel:
   • Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
2. Clear weld nut threads:
   • Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
3. Reinstall appearance panel:
   • If trimmed, reinstall the appearance panel.
4. Lower exhaust:
   • Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
5. Prepare frame:
   • Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
6. Position hitch:
   • Raise the hitch into position under the vehicle.
7. Install M10 fasteners:
   • Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
8. Install U-bolt:
   • Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
9. Torque all fasteners:
   • Tighten all bolts to the specified torque values.
10. Reinstall exhaust:
    • Raise the exhaust system back into position and reattach the rubber isolators.

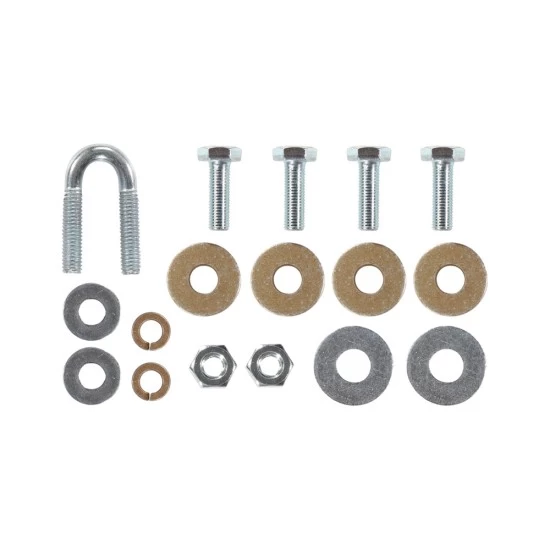

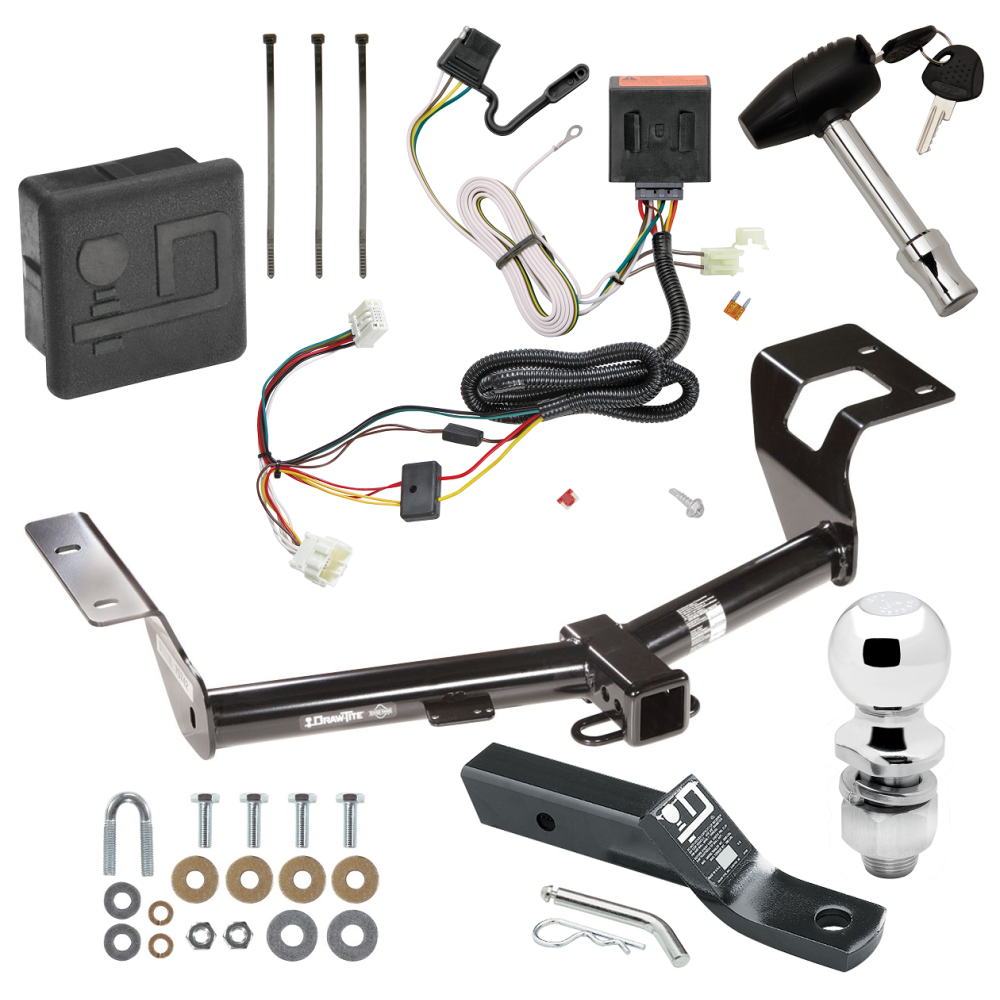

Hardware List:

• Qty (4): Hex Bolt M10X1.25X30 CL8.8
• Qty (4): Conical Washers
• Qty (2): Lock Washers
• Qty (2): Hex Nut 3/8
• Qty (1): 3/8-16 U-Bolt
• Qty (2): Flat Washer 3/8”
• Qty (2): Flat Washer 1/2”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N*m).
• Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75742
• 87621
• 44675

Wiring Access Location:

• SUV3

Tools Required:

• Wrenches: 10mm, 17mm, 11/16
• Other Tools: Tape, Utility Knife, Tape Measure, Marking Pencil, Lubricant or Soapy Water, Small Phillips Head Screwdriver

Step-by-Step Instructions:

1. Remove appearance panel:
   • Remove the appearance panel on the driver’s side by detaching 5 plastic rivets, 3 hex nuts, and 2 Phillips head screws located in the wheel well behind the rear tire. This panel needs to be trimmed and reinstalled.
2. Clear weld nut threads:
   • Run the provided M10 bolt (item 1) into existing weld nuts to clear the threads.
3. Reinstall appearance panel:
   • If trimmed, reinstall the appearance panel.
4. Lower exhaust:
   • Remove the rubber isolators from the muffler hangers. Remove the outer isolator first, then the inner isolator. Use lubricant or soapy water to ease removal.
5. Prepare frame:
   • Tape a flat washer (item 7) to the rearward weld nut location on both frame rails.
6. Position hitch:
   • Raise the hitch into position under the vehicle.
7. Install M10 fasteners:
   • Attach the M10 bolts, conical washers, and other hardware as shown in the instructions.
8. Install U-bolt:
   • Insert the 3/8-16 U-bolt through the vehicle’s tie-down hook and the receiver’s tie-down hook attachment. Secure with flat washers, lock washers, and hex nuts.
9. Torque all fasteners:
   • Tighten all bolts to the specified torque values.
10. Reinstall exhaust:
    • Raise the exhaust system back into position and reattach the rubber isolators.

Hardware List:

• Qty (4): Hex Bolt M10X1.25X30 CL8.8
• Qty (4): Conical Washers
• Qty (2): Lock Washers
• Qty (2): Hex Nut 3/8
• Qty (1): 3/8-16 U-Bolt
• Qty (2): Flat Washer 3/8”
• Qty (2): Flat Washer 1/2”

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,500 lbs (2,043 kg)
  • Max Tongue Weight: 675 lbs (306 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Tighten all 3/8-16 GR5 fasteners to 30 lb-ft (41 N·m).
• Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

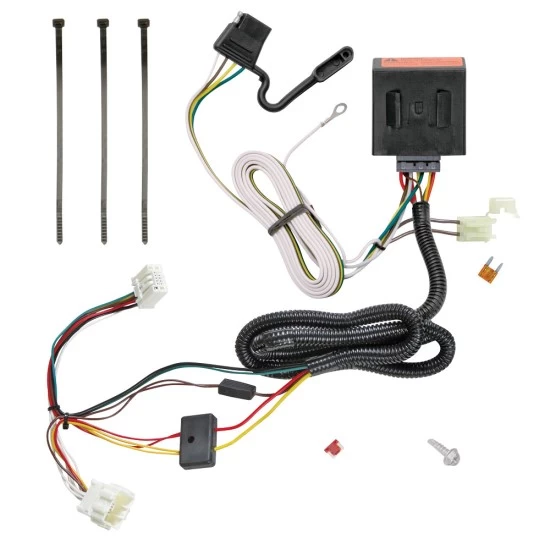

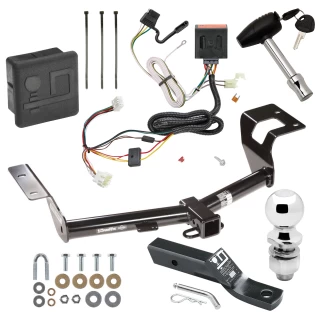

Installation Instructions for T-Connector Adapter for CR-V

Part Numbers:

• 118561

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear door of the vehicle and remove the rear threshold, cargo net, and cargo cover to access the driver’s side rear interior trim panel.

   Note:

   • Folding the rear seat forward may provide easier access.

2. Remove Interior Trim Panels:

   • Use a trim panel remover to carefully remove two plastic panels.
   • Partially remove the main trim panel by unscrewing one 10mm bolt, two screws behind the seat lever, one clip, and one cargo hook.

3. Locate the Vehicle’s Wiring Connectors:

   • Gently pull back the upper trim panel to reveal the vehicle’s 13-pin connectors.
   • Verify that the connectors match the T-Connector ends and are clean.

4. Install the T-Connector:

   • Locate the T-Connector’s grey 12-pin connector and insert it into the mating connector on the black box module.
   • Ensure all connections are fully inserted and secured with locking tabs.

5. Mount the Black Box Module:

   • Mount the black box below the rear threshold in the spare tire compartment in an area free from moisture and away from direct water or liquids.

   Warning:

   • The black box must only be mounted inside the vehicle to prevent damage.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage.

7. Install the Fuse:

   • Locate the fuse compartment under the driver-side dashboard.
   • Insert the provided 7.5-amp fuse into the appropriate fuse box slot.

8. Route and Mount the 4-Flat Connector:

   • Route the 4-flat connector through the driver-side trim panel into the side storage compartment.
   • Store the 4-flat connector in this compartment when not in use.

9. Test the Installation:

   • Test the T-Connector with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.

10. Reassemble the Vehicle:

    • Reinstall the threshold, trim panel, cargo net, and cargo cover, ensuring no wires are pinched or cut.

Specifications:

• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: 5 amps

Safety Notes:

• Do not exceed the manufacturer’s ratings for towing.
• Follow all vehicle warnings and installation instructions.
• Wear safety glasses and take safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.

Installation Instructions for T-Connector Adapter for CR-V

Part Numbers:

• 118561

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear door of the vehicle and remove the rear threshold, cargo net, and cargo cover to access the driver’s side rear interior trim panel.

   Note:

   • Folding the rear seat forward may provide easier access.

2. Remove Interior Trim Panels:

   • Use a trim panel remover to carefully remove two plastic panels.
   • Partially remove the main trim panel by unscrewing one 10mm bolt, two screws behind the seat lever, one clip, and one cargo hook.

3. Locate the Vehicle’s Wiring Connectors:

   • Gently pull back the upper trim panel to reveal the vehicle’s 13-pin connectors.
   • Verify that the connectors match the T-Connector ends and are clean.

4. Install the T-Connector:

   • Locate the T-Connector’s grey 12-pin connector and insert it into the mating connector on the black box module.
   • Ensure all connections are fully inserted and secured with locking tabs.

5. Mount the Black Box Module:

   • Mount the black box below the rear threshold in the spare tire compartment in an area free from moisture and away from direct water or liquids.

   Warning:

   • The black box must only be mounted inside the vehicle to prevent damage.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage.

7. Install the Fuse:

   • Locate the fuse compartment under the driver-side dashboard.
   • Insert the provided 7.5-amp fuse into the appropriate fuse box slot.

8. Route and Mount the 4-Flat Connector:

   • Route the 4-flat connector through the driver-side trim panel into the side storage compartment.
   • Store the 4-flat connector in this compartment when not in use.

9. Test the Installation:

   • Test the T-Connector with a test light or trailer.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition, reinserting it, and turning it to the proper position.

10. Reassemble the Vehicle:

    • Reinstall the threshold, trim panel, cargo net, and cargo cover, ensuring no wires are pinched or cut.

Specifications:

• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: 5 amps

Safety Notes:

• Do not exceed the manufacturer’s ratings for towing.
• Follow all vehicle warnings and installation instructions.
• Wear safety glasses and take safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.

Important Notices:

• Installation Summary: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

• Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

• Warranty Information: For complete warranty instructions, please download the full installation PDF.
