Bulldog 10x 12K 2-Speed Square Trailer Jack w/ Spring Return and Planetary Gearbox
Model: BDTJ10010-Pack Bulldog 12,000 lb Two-Speed Sidewind Square Trailer Jacks with Spring Return & Planetary Gearbox

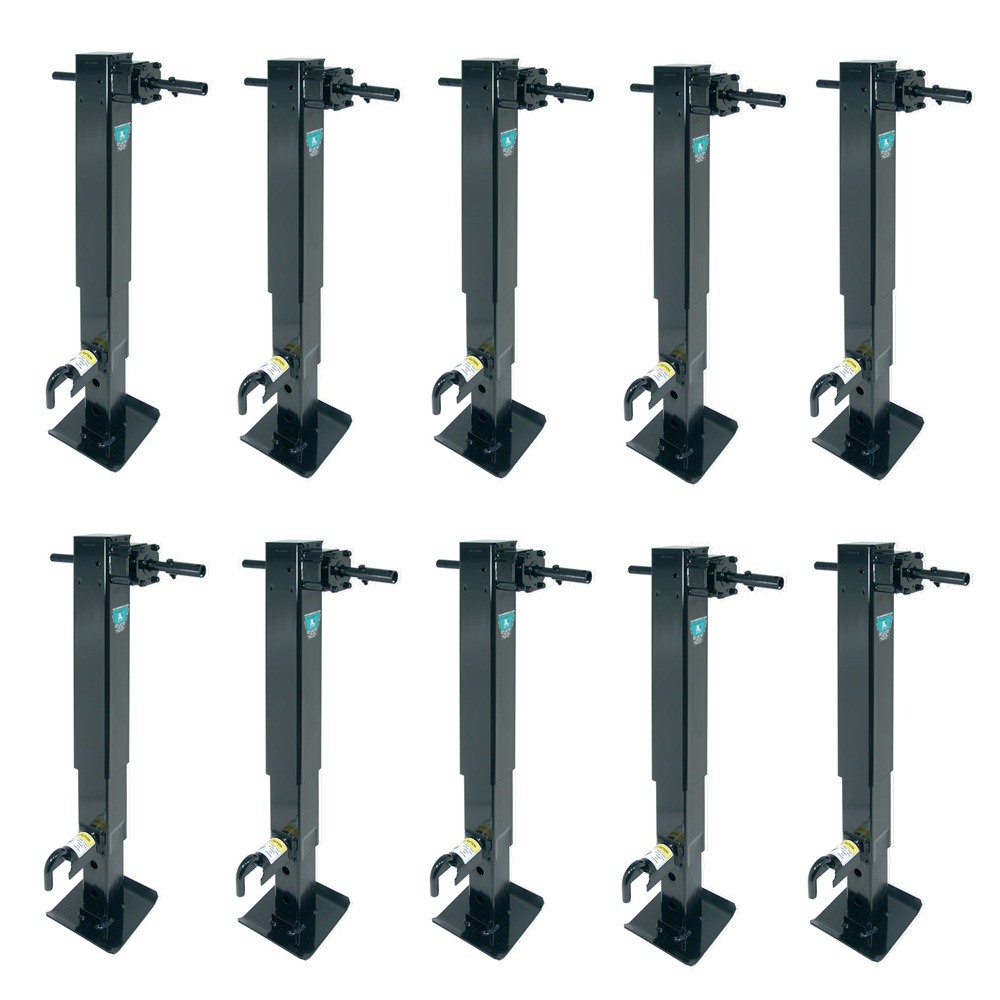

This bundle delivers ten rugged Bulldog 12,000 lb lift-capacity square jacks featuring an innovative two-speed planetary gearbox and spring-return drop leg design. Perfect for agricultural, construction, and industrial trailers, these jacks save time and effort by offering fast travel in high gear and maximum power in low gear.
Bundle Contents:

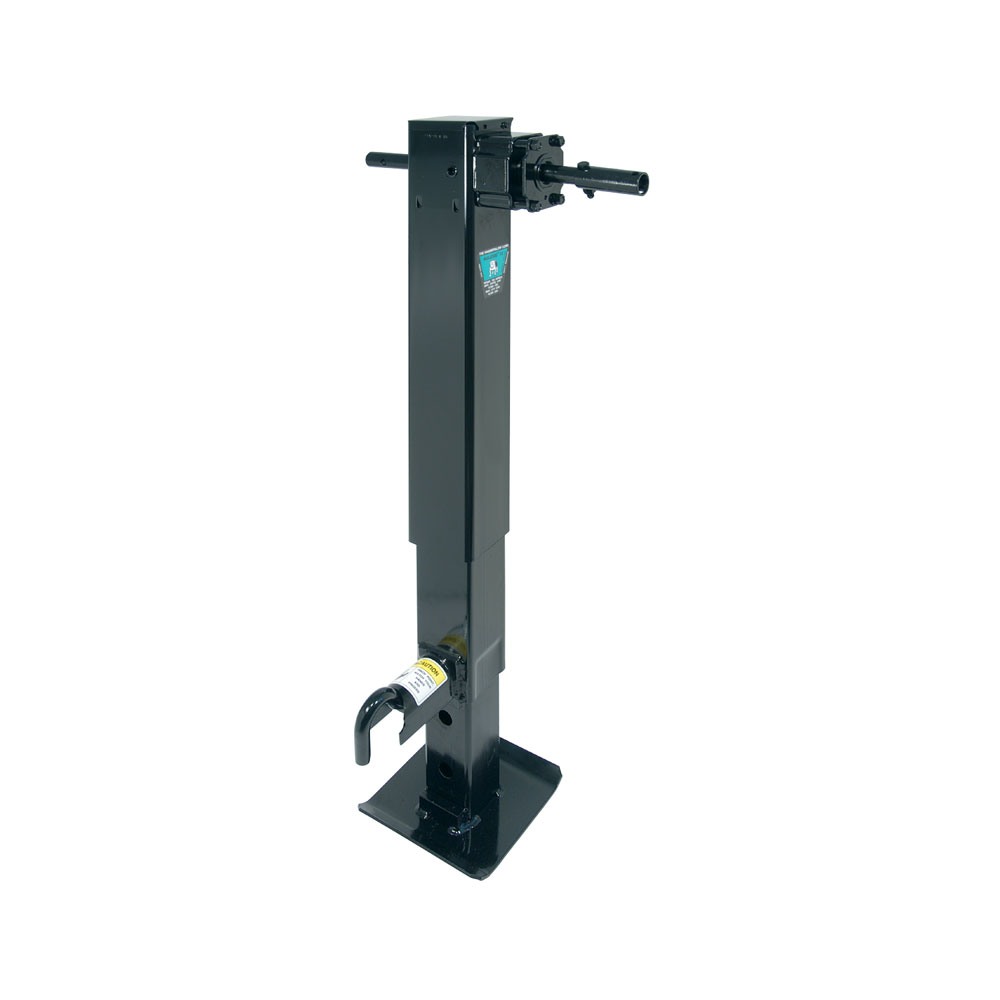

- QTY (10): Two-Speed Square Trailer Jack, 12,000 lbs. Lift Capacity, Sidewind, 12½″ Travel
- First two-speed gearbox designed for drop-leg jacks
- Low gear: 27 turns per 1″ (planetary) or 29 turns per 1″ (traditional)
- High gear: 9 turns per 1″ of travel—the fastest in its class
- Spring-return drop leg for easy retraction
- Planetary gearbox fits within outer tube—no spacers needed
- Engineered alloy for enhanced strength, stability & sideload capability
Always verify compatibility with your trailer’s original equipment and perform regular maintenance for reliable operation.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 30 Inch |
| Bracket-to-Bottom Clearance (Extended) | 56 Inch |
| Bracket-to-Top Clearance | User-Configurable |
| Exact Retracted Clearance | 29.5 Inch |
| Exact Extended Clearance | 55.6 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
